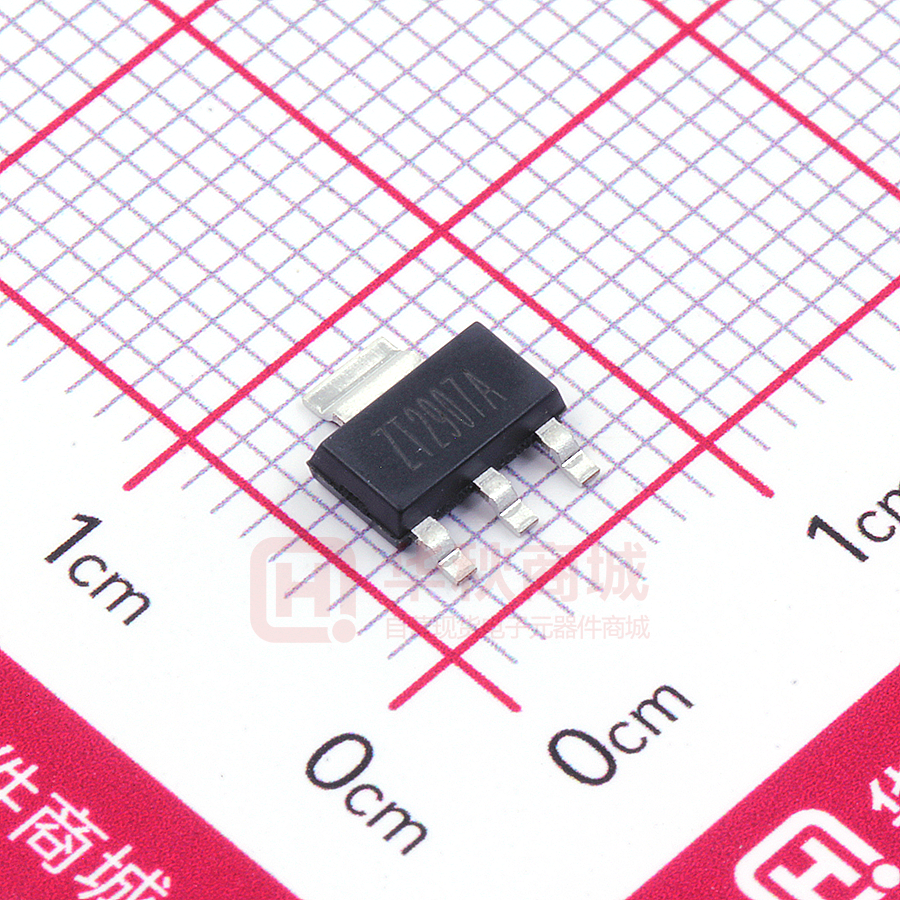

PZT2907A

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOT-223 Plastic-Encapsulate Transistors PZT2907A TRANSISTOR (PNP) FEATURES y y SOT-223 Epitaxial planar die construction Complementary PNP Type available(PZT2222A) MARKING: 1. BASE 2. COLLECTOR 3. EMITTER Solid dot = Green molding compound device, if none,the normal device. MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO IC Emitter-Base Voltage Collector Current -Continuous -5 -0.6 V A PC Collector Power Dissipation 1 W TJ Junction Temperature 150 ℃ Tstg Storage Temperature -55~+150 ℃ ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=-10μA,IE=0 -60 V Collector-emitter breakdown voltage V(BR)CEO IC=-10mA,IB=0 -60 V Emitter-base breakdown voltage V(BR)EBO IE=-10μA,IC=0 -5 V Collector cut-off current ICBO VCB=-50V,IE=0 -10 nA Emitter cut-off current IEBO VEB=-5V,IC=0 -50 nA hFE(1) VCE=-10V,IC=-0.1mA 75 hFE(2) VCE=-10V,IC=-1mA 100 hFE(3) VCE=-10V,IC=-10mA 100 hFE(4) VCE=-10V,IC=-150mA 100 hFE(5) VCE=-10V,IC=-500mA 50 VCE(sat) IC=-150mA,IB=-15mA -0.4 V VCE(sat) IC=-500mA,IB=-50mA -1.6 V VBE(sat) IC=-150mA,IB=-15mA -1.3 V VBE(sat) IC=-500mA,IB=-50mA -2.6 V DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage 300 Transition frequency fT VCE=-20V,IC=-50mA,f=100MHz Collector Cc VCB=-10V,IE=0,f=1MHz 8 pF Emitter capacitance CE VEB=-2V,IC=0,f=1MHz 30 pF Delay time td 12 ns Rise time tr 30 ns 300 ns 65 ns capacitance Storage time tS Fall time tf www.cj-elec.com IC=-150mA IB1=- IB2=- 15mA 1 200 MHz D,Jan,2017 Typical Characteristics Static Characteristic hFE —— IC 1000 -1.8mA -1.6mA -1.4mA hFE -2mA COMMON EMITTER Ta=25℃ -1.2mA DC CURRENT GAIN (mA) -300 COLLECTOR CURRENT -350 IC -400 -250 -1mA -200 -0.8mA -150 -0.6mA o Ta=100 C o Ta=25 C 100 -100 -0.4mA -50 VCE= -10V IB=-0.2mA 10 -10 -0 -0 -2 -4 -6 -8 -10 COLLECTOR-EMITTER VOLTAGE -14 VBEsat —— IC -800 Ta=25℃ -600 -100 COLLECTOR CURRENT VCEsat —— -800 COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (mV) -1000 BASE-EMITTER SATURATION VOLTAGE VBEsat (mV) -12 (V) VCE Ta=100℃ -400 IC -600 (mA) IC -600 -400 Ta=100℃ -200 Ta=25℃ β=10 β=10 -200 -1 -10 IC —— IC (mA) -600 -600 -100 COLLECTOR CURRENT IC -0 -1 -10 (mA) VBE Cob / Cib 100 —— IC (mA) VCB / VEB f=1MHz IE=0 / IC=0 -500 o (pF) Ta=25 C Cib CAPACITANCE C -400 COLLECTOR CURRENT -600 -100 COLLECTOR CURRENT o Ta=100 C -300 Ta=25℃ -200 10 Cob -100 VCE=-10V -0 -200 -400 -600 -800 BASE-EMITTER VOLTAGE fT 500 —— 1 -0.1 -1000 IC COLLECTOR POWER DISSIPATION Pc (W) o Ta=25 C 400 fT (MHz) Pc 1.2 VCE=-10V TRANSITION FREQUENCY -1 -10 REVERSE VOLTAGE VBE(mV) 300 200 100 —— V -20 (V) Ta 1.0 0.8 0.6 0.4 0.2 0.0 0 -0 -20 -40 -60 COLLECTOR CURRENT www.cj-elec.com -80 IC 0 -100 25 50 75 AMBIENT TEMPERATURE (mA) 2 100 Ta 125 150 (℃ ) D,Jan,2017 SOT-223 Package Outline Dimensions Symbol A A1 A2 b b1 c D E E1 e L θ Dimensions In Millimeters Min. Max. —— 1.800 0.020 0.100 1.500 1.700 0.660 0.840 2.900 3.100 0.230 0.350 6.300 6.700 6.700 7.300 3.300 3.700 2.300(BSC) 0.750 —— 0° 10° Dimensions In Inches Min. Max. —— 0.071 0.001 0.004 0.059 0.067 0.026 0.033 0.114 0.122 0.009 0.014 0.248 0.264 0.264 0.287 0.130 0.146 0.091(BSC) 0.030 —— 0° 10° SOT-223 Suggested Pad Layout www.cj-elec.com 3 D,Jan,2017 SOT-223 Tape and Reel P1 C A E P0 d SOT-223 Embossed Carrier Tape A B F W A A A A-A P Packaging Description: SOT-223 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 2,500 units per 13" or 33.0cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). Dimensions are in millimeter Pkg type A B C d E F P0 SOT-223 6.765 7.335 1.88 Ø1.50 1.75 5.50 4.00 P P1 W 8.00 2.00 12.00 SOT-223 Tape Leader and Trailer Leader Tape Trailer Tape Components 51±1 Empty Pockets G SOT-223 Reel 51±1 Empty Pockets H W1 D1 D2 I W2 D Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 13''Dia Ø330.00 100.00 13.00 R151.00 R56.00 R6.50 12.40 17.60 Carton Size(mm) G.W.(kg) REEL 2,500 pcs www.cj-elec.com Reel Size 13 inch Box 2,500 pcs Box Size(mm) 336×336×48 4 Carton 20,000 pcs 445×355×365 D,Jan,2017
