JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD

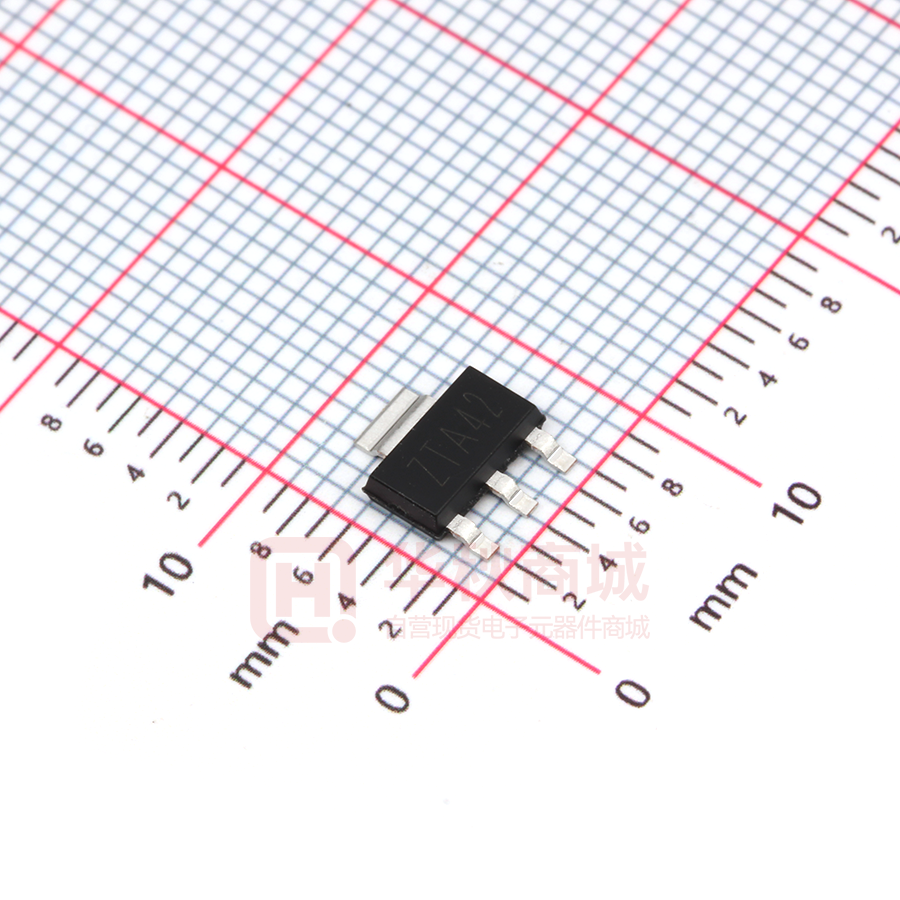

SOT-223 Plastic-Encapsulate Transistors
PZTA42
TRANSISTOR (NPN)
SOT-223
FEATURES
· High breakdown voltage
1. BASE
·Low collector-emitter saturation voltage
2. COLLECTOR
·Complementary type: PZTA92(PNP)
3. EMITTER
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol Para
meter
Value
Unit
VCBO
Collector-Base Voltage
300
V
VCEO
Collector-Emitter Voltage
300
V
VEBO
Emitter-Base Voltage
6
V
IC
Collector Current -Continuous
0.2
A
ICM
Collector Current -Pulsed
0.5
A
PC
Collector Power Dissipation
1
W
Tj
Junction Temperature
150
℃
Tstg
Storage Temperature
-55~150
℃
MARKING:
Solid dot = Green molding compound device,
if none,the normal device.
ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Min
Typ
Max
Unit
Collector-base breakdown voltage
V(BR)CBO
IC=100μA,IE=0
300
V
Collector-emitter breakdown voltage
V(BR)CEO
IC=1mA,IB=0
300
V
Emitter-base breakdown voltage
V(BR)EBO
IE=100μA,IC=0
6
V
Collector cut-off current
ICBO
VCB=200V,IE=0
0.1
μA
Emitter cut-off current
IEBO
VEB=6V,IC=0
0.1
μA
hFE(1)
VCE=10V,IC=1mA
25
hFE(2)
VCE=10V,IC=10mA
40
hFE(3)
VCE=10V,IC=30mA
40
Collector-emitter saturation voltage
VCE(sat)
IC=20mA,IB=2mA
0.5
V
Base-emitter saturation voltage
VBE(sat)
IC=20mA,IB=2mA
0.9
V
DC current gain
Transition frequency
Collector output capacitance
www.cj-elec.com
fT
Cob
VCE=20V,IC=10mA,f=100MHz
VCB=20V,IE=0,f=1MHz
1
50
MHz
3
pF
E,Jan,2017
Typical Characteristics
IC
18
VCE
——
90uA
——
IC
COMMON
EMITTER
Ta=25℃
hFE
80uA
70uA
DC CURRENT GAIN
(mA)
12
COLLECTOR CURRENT
14
IC
16
hFE
1000
60uA
50uA
10
40uA
8
30uA
6
Ta=100℃
Ta=25℃
100
20uA
4
IB=10uA
COMMON EMITTER
VCE=10V
2
10
0.1
0
0
2
4
6
8
10
12
14
16
COLLECTOR-EMITTER VOLTAGE
VCEsat
——
20
22
10
VBEsat ——
BASE-EMITTER SATURATION
VOLTAGE VBEsat (mV)
900
Ta=100 ℃
100
1
COLLECTOR CURRENT
IC
500
COLLECTOR-EMITTER SATURATION
VOLTAGE VCEsat (mV)
18
VCE (V)
Ta=25℃
100
IC
(mA)
IC
Ta=25℃
600
Ta=100 ℃
β=10
β=10
10
0.1
1
10
COLLECTOR CURREMT
IC
100
——
IC
300
0.1
100
fT
VBE
——
IC
100
(mA)
IC
(MHz)
300
fT
1
300
600
900
COMMON EMITTER
VCE=20V
Ta=25℃
0.1
0
100
TRANSITION FREQUENCY
T =2
5℃
a
T =1
00℃
a
10
COMMON EMITTER
VCE=10V
10
0.1
1200
1
100
Cob/Cib
——
VCB/VEB
PC
1200
COLLECTOR POWER DISSIPATION
PC (mW)
f=1MHz
IE=0/IC=0
Ta=25 ℃
C
(pF)
Cib
10
COLLECTOR CURRENT
BASE-EMMITER VOLTAGE VBE (mV)
CAPACITANCE
10
COLLECTOR CURREMT
(mA)
(mA)
IC
COLLECTOR CURRENT
1
10
Cob
——
IC
100
(mA)
Ta
1000
800
600
400
200
1
0.1
1
REVERSE VOLTAGE
www.cj-elec.com
10
V
0
20
0
(V)
25
50
75
AMBIENT TEMPERATURE
2
100
Ta
125
150
(℃ )
D,May,2015
SOT-223 Package Outline Dimensions
Symbol
A
A1
A2
b
b1
c
D
E
E1
e
L
θ
Dimensions In Millimeters
Max.
Min.
——
1.800
0.020
0.100
1.500
1.700
0.660
0.840
2.900
3.100
0.230
0.350
6.300
6.700
6.700
7.300
3.300
3.700
2.300(BSC)
0.750
——
0°
10°
Dimensions In Inches
Min.
Max.
——
0.071
0.001
0.004
0.059
0.067
0.026
0.033
0.114
0.122
0.009
0.014
0.248
0.264
0.264
0.287
0.130
0.146
0.091(BSC)
0.030
——
0°
10°
SOT-223 Suggested Pad Layout
www.cj-elec.com
3
E,Jan,2017
SOT-223 Tape and Reel
P1
C
A
E
P0
d
SOT-223 Embossed Carrier Tape
A
B
F
W
A
A
A
A-A
P
Packaging Description:
SOT-223 parts are shipped in tape. The carrier
tape is made from a dissipative (carbon filled)
polycarbonate resin. The cover tape is a multilayer
film (Heat Activated Adhesive in nature) primarily
composed of polyester film, adhesive layer, sealant,
and anti-static sprayed agent. These reeled parts in
standard option are shipped with 2,500 units per 13"
or 33.0cm diameter reel. The reels are clear in color
and is made of polystyrene plastic (anti-static
coated).
Dimensions are in millimeter
Pkg type
A
B
C
d
E
F
P0
SOT-223
6.765
7.335
1.88
Ø1.50
1.75
5.50
4.00
P
P1
W
8.00
2.00
12.00
SOT-223 Tape Leader and Trailer
Leader Tape
Trailer Tape
Components
51±1 Empty Pockets
G
SOT-223 Reel
51±1 Empty Pockets
H
W1
D1
D2
I
W2
D
Dimensions are in millimeter
Reel Option
D
D1
D2
G
H
I
W1
W2
13''Dia
Ø330.00
100.00
13.00
R151.00
R56.00
R6.50
12.40
17.60
Carton Size(mm)
G.W.(kg)
REEL
2,500 pcs
www.cj-elec.com
Reel Size
13 inch
Box
2,500 pcs
Box Size(mm)
336×336×48
4
Carton
20,000 pcs
445×355×365
E,Jan,2017
