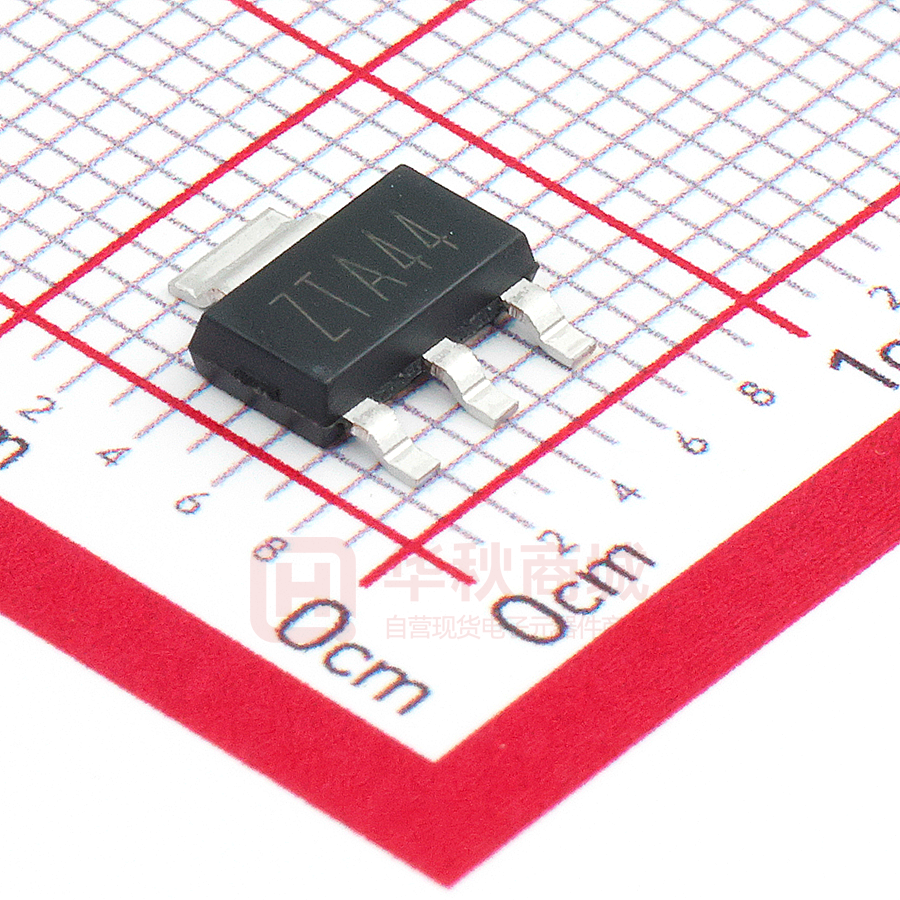

PZTA44

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-223(8R) Plastic-Encapsulate Transistors PZTA44 SOT-223 TRA NSISTOR (NPN) FEATURES z Low current : 300mA(max) z High voltage: VCEO=400V 1. BASE 2. COLLECTOR 3. EMITTER MAXIMUM RATINGS (Ta=25 ℃ unless otherwise noted) Symbol Parameter Value Unit VCBO Collector-Base Voltage 400 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage IC MARKING: 6 V Collector Current -Continuous 200 mA ICM Collector Current -Pulsed 300 mA PC Collector Power Dissipation 1 W TJ,Tstg Operation Junction and Storage Temperature Range -55~150 ℃ ℃ ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Collector-base breakdown voltage Symbol Test conditions = V(BR)CBO IC=100μA,IE 0 V(BR)CEO IC=1mA,IB 0 Collector-emitter breakdown voltage = Emitter-base breakdown voltage = V(BR)EBO IE=100μA,IC 0 Collector cut-off current = VCB=400V,IE 0 ICBO Emitter cut-off current Collector-emitter saturation voltage Base-emitter saturation voltage VCE=10V,I =C 1mA Typ Max Unit 400 V 400 V 6 V = VEB=4V,IC 0 IEBO hFE(1) DC current gain Min 0.1 μA 0.1 μA 40 h= VCE=10V,IC 10mA FE(2) 50 hFE(3) VCE=10V,I =C 50mA 45 hFE(4) VCE=10V,I =C 100mA 40 200 = VCE(sat) IC=1mA,IB 0.1mA 0.4 V = VCE(sat) IC=10mA,IB 1mA 0.5 V = VCE(sat) IC=50mA,IB 5mA 0.75 V IC=10mA,IB= 1mA 0.75 V VBE(sat) VCE = =10V,IC= 10mA,f 100MHz 20 MHz Transition frequency fT Collector ca pacitance = VCB=20V,IE 0,f 1MHz CC= 7 pF Emitter capacitance Ce = = VEB=0.5V,IC 0,f 1MHz 130 pF www.jscj-elec.com 1 Rev. - 2.0 Typical Characteristics Static Characteristic hFE 30 COMMON EMITTER Ta=25℃ 200uA 25 (mA) 500 COMMON EMITTER VCE= 10V —— IC Ta=100℃ hFE 180uA IC 160uA DC CURRENT GAIN 20 COLLECTOR CURRENT 140uA 120uA 15 100uA 80uA 10 Ta=25℃ 100 60uA 40uA 5 IB=20uA 0 0 5 10 15 20 COLLECTOR-EMITTER VOLTAGE VBEsat —— 1.0 10 0.1 25 10 VCEsat IC 300 100 IC —— (mA) IC COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (mV) 300 0.8 BASE-EMITTER SATURATION VOLTAGE VBEsat (mV) 1 COLLECTOR CURRENT VCE (V) Ta=25℃ 0.6 Ta=100 ℃ 0.4 0.2 1000 Ta=100 ℃ 100 Ta=25℃ β=10 β=10 10 0.0 1 10 100 COLLECTOR CURREMT PC 1200 —— IC 1 500 10 100 COLLECTOR CURREMT (mA) Ta 500 Cob/Cib —— IC 300 (mA) VCB/VEB COLLECTOR POWER DISSIPATION PC (mW) f=1MHz IE=0/IC=0 1000 (pF) CAPACITANCE C 800 600 400 10 Cob 200 0 0 25 50 75 100 AMBIENT TEMPERATURE fT 200 —— 125 Ta 1 0.1 150 (℃ ) 1 REVERSE VOLTAGE 10 V 20 (V) IC 100 TRANSITION FREQUENCY fT (MHz) Ta=25 ℃ Cib 100 COMMON EMITTER VCE=10V Ta=25℃ 10 2 COLLECTOR CURRENT www.jscj-elec.com 50 10 IC (mA) 2 Rev. - 2.0 SOT-223 Package Outline Dimensions Symbol A A1 A2 b b1 c D E E1 e L θ Dimensions In Millimeters Min. Max. —— 1.800 0.020 0.100 1.500 1.700 0.660 0.840 2.900 3.100 0.230 0.350 6.300 6.700 6.700 7.300 3.300 3.700 2.300(BSC) 0.750 —— 0° 10° Dimensions In Inches Max. Min. —— 0.071 0.001 0.004 0.059 0.067 0.026 0.033 0.114 0.122 0.009 0.014 0.248 0.264 0.264 0.287 0.130 0.146 0.091(BSC) 0.030 —— 0° 10° SOT-223 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.0 SOT-223 Tape and Reel P1 C A E P0 d SOT-223 Embossed Carrier Tape A B F W A A A A-A P Packaging Description: SOT-223 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 2,500 units per 13" or 33.0cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). Dimensions are in millimeter Pkg type A B C d E F P0 SOT-223 6.765 7.335 1.88 Ø1.50 1.75 5.50 4.00 P P1 W 8.00 2.00 12.00 SOT-223 Tape Leader and Trailer Leader Tape Trailer Tape Components 51±1 Empty Pockets G SOT-223 Reel 51±1 Empty Pockets H W1 D1 D2 I W2 D Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 13''Dia Ø330.00 100.00 13.00 R151.00 R56.00 R6.50 12.40 17.60 Carton Size(mm) G.W.(kg) REEL 2,500 pcs www.jscj-elec.com Reel Size 13 inch Box 2,500 pcs Box Size(mm) 336×336×48 4 Carton 20,000 pcs 445×355×365 Rev. - 2.0
