JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD

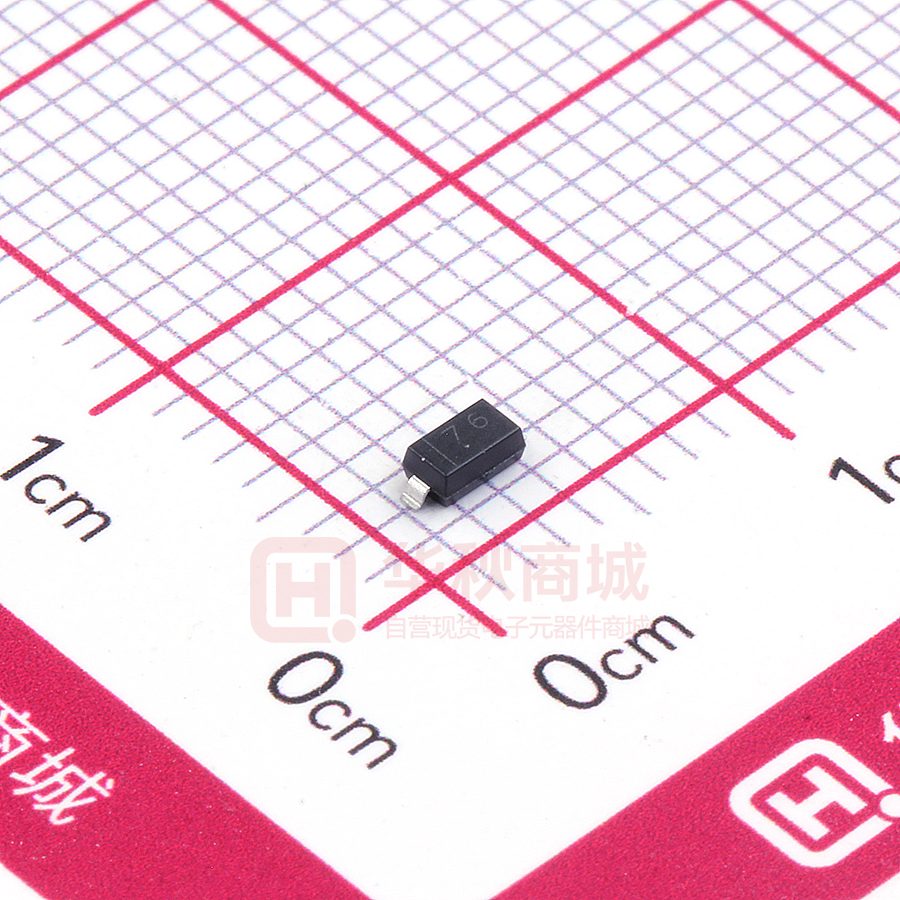

SOD-123 Plastic-Encapsulate Diodes
RB160M-60
Schottky Barrier Diode
SOD-123
FEATURES
z Small Power Mold Type
z Low IR
z High Reliability
MARKING: 76
The marking bar indicates the cathode
Solid dot = Green molding compound device,if none,
the normal device.
Maximum Ratings
@Ta=25
Parameter
Symbol
Limit
Unit
DC reverse voltage
VR
60
V
Mean rectifying current
IO
1
A
Peak forward surge current @t=8.3ms
IFSM
15
A
3RZHUGLVVLSDWLRQ
PD
mW
7KHUPDO5HVLVWDQFH-XQFWLRQWR$PELHQW RθJA
/W
Junction temperature
Tj
Storage temperature
Tstg
150
-55~+150
Electrical characteristics @Ta=25
Parameter
Symbol
Min.
Typ.
Max.
Unit
Conditions
Forward voltage
VF
0.58
V
IF=1A
Reverse current
IR
30
A
VR=60V
ZZZFMHOHFFRP
D,Mar,2015
7\SLFDO&KDUDFWHULVWLFV
Forward
Reverse
Characteristics
1000
Characteristics
10000
Pulsed
Pulsed
(uA)
100
REVERSE CURRENT IR
=1
00
ć
a
T
a
=2
5ć
10
T
FORWARD CURRENT
IF
(mA)
T a=100ć
1
0.1
1000
100
T a=25ć
10
1
0
100
200
300
FORWARD VOLTAGE
400
VF
500
600
0
10
20
(mV)
30
40
REVERSE VOLTAGE
Capacitance Characteristics
VR
50
60
(V)
Power Derating Curve
400
250
f=1MHz
350
(mW)
150
300
PD
200
250
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25ć
100
50
200
150
100
50
0
0
0
5
10
15
REVERSE VOLTAGE
20
VR
25
30
0
25
50
75
AMBIENT TEMPERATURE
ZZZFMHOHFFRP
100
125
(V)
Ta
(ć )
D,Mar,2015
SOD-123 Package Outline Dimensions
Dimensions In Millimeters
Max
Min
1.050
1.250
0.000
0.100
1.050
1.150
0.450
0.650
0.080
0.150
1.500
1.700
2.600
2.800
3.550
3.850
0.500 REF
0.250
0.450
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
L
L1
θ
Dimensions In Inches
Min
Max
0.041
0.049
0.000
0.004
0.041
0.045
0.018
0.026
0.003
0.006
0.059
0.067
0.102
0.110
0.140
0.152
0.020 REF
0.010
0.018
0°
8°
SOD-123 Suggested Pad Layout
www.cj-elec.com
3
D,Mar,2015
SOD-123 Tape and Reel
www.cj-elec.com
4
D,Mar,2015
