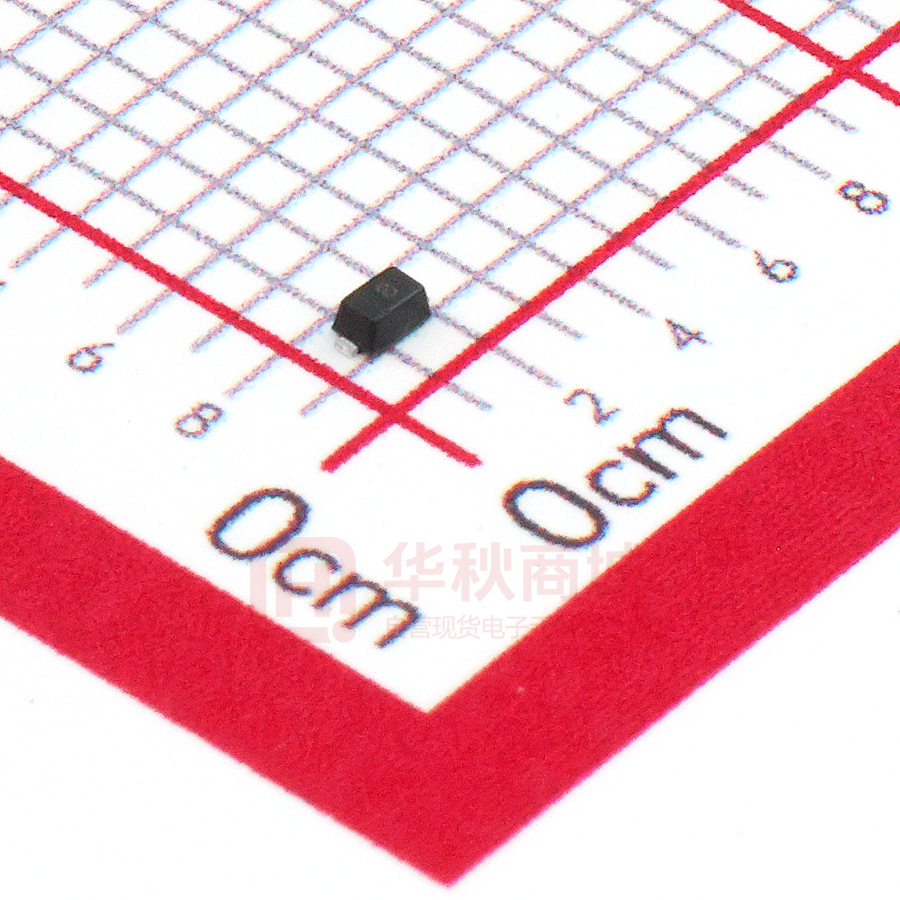

RB520S-30

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-523 Plastic-Encapsulate Diodes RB520S-30 SOD-523 Schottky barrier Diode FEATURES z Small surface mounting type z Low IR z High reliability MARKING: B B=Device code The marking bar indicates the cathode Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃ Parameter Symbol Limit DC reverse voltage VR 30 V Mean rectifying current IO 200 mA Non-repetitive Peak Forward Surge Current@t=8.3ms IFSM 1 A Power dissipation PD 150 mW Thermal resistance junction to ambient RθJA 667 ℃/W Operating Junction Temperature Range Tj -40 ~ +125 ℃ Tstg -55 ~ +150 ℃ Storage Temperature Range Unit Electrical Ratings @Ta=25℃ Parameter Symbol Typ Min Max Unit Forward voltage VF 0.6 V Reverse current IR 1 μA www.jscj-elec.com 1 Conditions IF=200mA VR=10V Rev. - 2.0 Typical Characteristics Forward 600 Characteristics 100 o Ta=100 C (uA) REVERSE CURRENT IR C o Ta =2 5 1 0.1 0 100 200 300 400 FORWARD VOLTAGE 500 VF 600 700 10 1 0.1 0.01 800 o Ta=25 C 0 5 10 (mV) 15 20 VR REVERSE VOLTAGE 25 30 (V) Power Derating Curve Capacitance Characteristics 100 200 (mW) Ta=25℃ f=1MHz 150 PD 30 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) Characteristics o C Ta =1 00 FORWARD CURRENT IF (mA) 100 10 0.01 Reverse 1000 10 3 1 0 5 10 REVERSE VOLTAGE www.jscj-elec.com 15 VR 100 50 0 20 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 ( ℃) Rev. - 2.0 SOD-523 Package Outline Dimensions 6\PERO A A1 b c D E E1 E2 L  'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF 'LPHQVLRQV,Q,QFKHV 0LQ 0D[ 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF SOD-523 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.0 SOD-523 Tape and Reel www.jscj-elec.com 4 Rev. - 2.0
