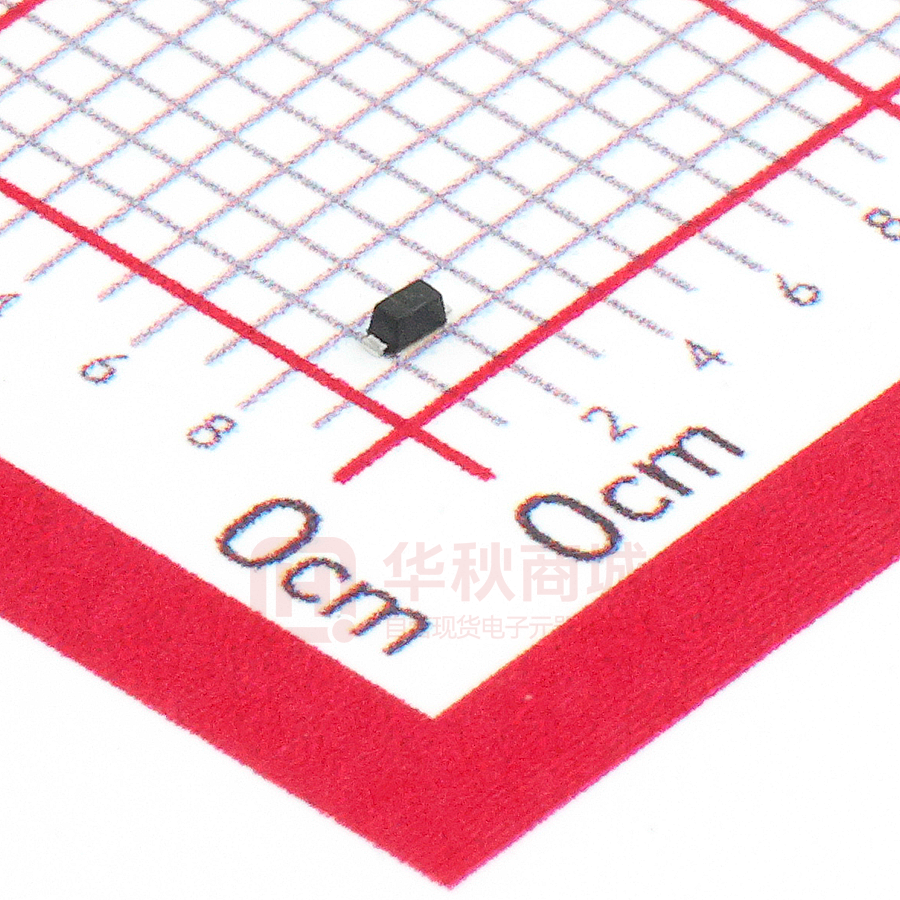

RB521G-30

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-723 Plastic-Encapsulate Diodes RB521G-30 SOD-723 Schottky barrier Diode + FEATURES z Small surface mounting type z High reliability - MARKING: F F=Device code The marking bar indicates the cathode Maximum Ratings and Electrical Characteristics, Single Diode @Ta=25℃ Parameter Symbol Limit Unit DC reverse voltage VR 30 V Mean rectifying current IO 200 mA Non-repetitive Peak forward surge current @ t=8.3ms IFSM 1 Power dissipation PD 100 mW Thermal Resistance Junction to Ambient RθJA 1000 ℃/W Operating Junction Temperature Range Tj -40 ~ +125 ℃ Tstg -55 ~ +150 ℃ Storage Temperature Range A Electrical Ratings @Ta=25℃ Parameter Forward voltage Reverse current www.jscj-elec.com Ma x Unit Conditions VF1 0.35 V IF=10mA VF2 0.5 V IF=200mA IR 10 μA Symbol Min Typ 1 VR=10V Rev. - 2.0 Typical Characteristics Forward 1000 Characteristics Reverse 1000 100 o Ta=100 C 100 REVERSE CURRENT IR =1 00 10 T= a 2 5 o C a T FORWARD CURRENT IF o C (uA) (mA) Characteristics 1 0.1 0.01 0 50 100 150 200 250 300 400 350 FORWARD VOLTAGE VF 450 500 550 o Ta=25 C 1 0.1 600 0 5 10 (mV) 15 20 REVERSE VOLTAGE Capacitance Characteristics 100 10 VR 25 30 (V) Power Derating Curve 120 Ta=25℃ (mW) PD 30 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 10 100 80 60 40 3 20 1 0 5 10 REVERSE VOLTAGE www.jscj-elec.com 15 VR 0 20 0 25 50 75 AMBIENT TEMPERATURE (V) 2 100 Ta 125 (℃ ) Rev. - 2.0 SOD-723 Package Outline Dimensions 'LPHQVLRQV,Q0LOOLPHWHUV 0LQ 0D[ 0.525 0.650 0.515 0.580 0.250 0.350 0.080 0.150 0.550 0.650 0.900 1.100 1.300 1.500 0.200 REF 0.010 0.070 7° REF 6\PERO A A1 b c D E E1 E2 L  'LPHQVLRQV,Q,QFKHV 0LQ 0D[ 0.021 0.026 0.023 0.020 0.010 0.014 0.003 0.006 0.022 0.026 0.035 0.043 0.051 0.059 0.008 REF 0.001 0.003 7° REF SOD-723 Suggested Pad Layout NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 2.0 SOD-723 Tape and Reel www.jscj-elec.com 4 Rev. - 2.0
