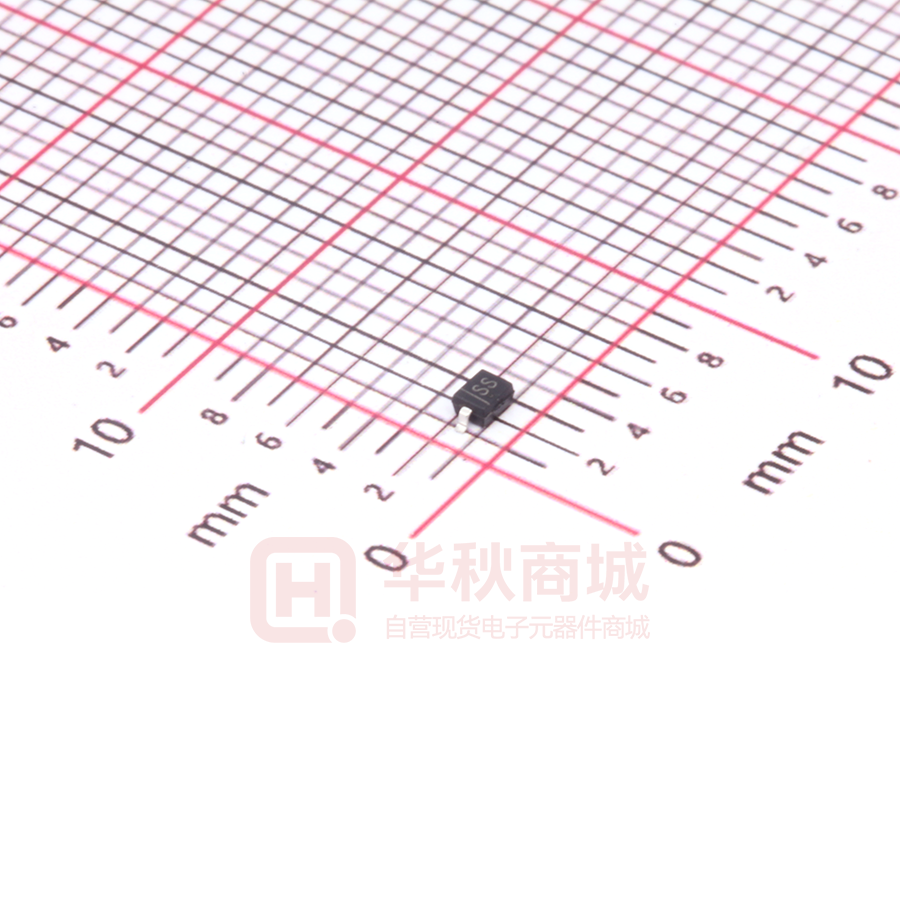

RB550V-30

JIANGSU CHANGJIANG ELECTRONICS TECHNOLOGY CO., LTD SOD-323 Plastic-Encapsulate Diodes SOD-323 RB550V-30 Schottky Barrier Diode FEATURES z Small Surface Mounting Type z Low VF and IR z High Reliability APPLICATIONS z General Rectification MARKING: SS The marking bar indicates the cathode MAXIMUM RATINGS (Ta =25℃ unless otherwise noted ) Value Unit Non-Repetitive Peak Reverse Voltage 30 V Continuous Forward Current 1 A 3 A Power Dissipation 200 mW Thermal Resistance From Junction To Ambient 500 ℃/W Tj Junction Temperature 125 ℃ Tstg Storage Temperature -55～+150 ℃ Symbol Parameter VRM IO IFSM Non-repetitive Peak Forward Surge Current@t=8.3ms PD RθJA ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified) Parameter Symbol Reverse voltage V(BR) = IR 1mA Reverse current = VR 10V IR Test conditions Typ Max 0.03 0.49 0.52 1 Unit V 30 = IF 700mA VF Forward voltage = IF 1A www.cj-elec.com Min mA V F,Mar,2015 Typical Characteristics Forward Characteristics Reverse (uA) (mA) 1000 100 REVERSE CURRENT IR 25 ℃ a T= T 10 a =1 00 ℃ IF FORWARD CURRENT Characteristics 10000 1000 1 Ta=100℃ 100 10 Ta=25℃ 1 0.1 0.1 0.1 0 100 200 300 FORWARD VOLTAGE VF 400 500 5 10 15 20 REVERSE VOLTAGE (mV) Capacitance Characteristics VR 25 30 (V) Power Derating Curve 200 250 Ta=25℃ (mW) 200 PD 150 POWER DISSIPATION CAPACITANCE BETWEEN TERMINALS CT (pF) f=1MHz 100 50 0 150 100 50 0 0 2 4 REVERSE VOLTAGE www.cj-elec.com 6 8 VR 10 0 (V) 25 50 75 AMBIENT TEMPERATURE 2 100 Ta 125 (℃ ) F,Mar,2015 SOD-323 Package Outline Dimensions SOD-323 Suggested Pad Layout www.cj-elec.com 3 F,Mar,2015 SOD-323 Tape and Reel www.cj-elec.com 4 F,Mar,2015
