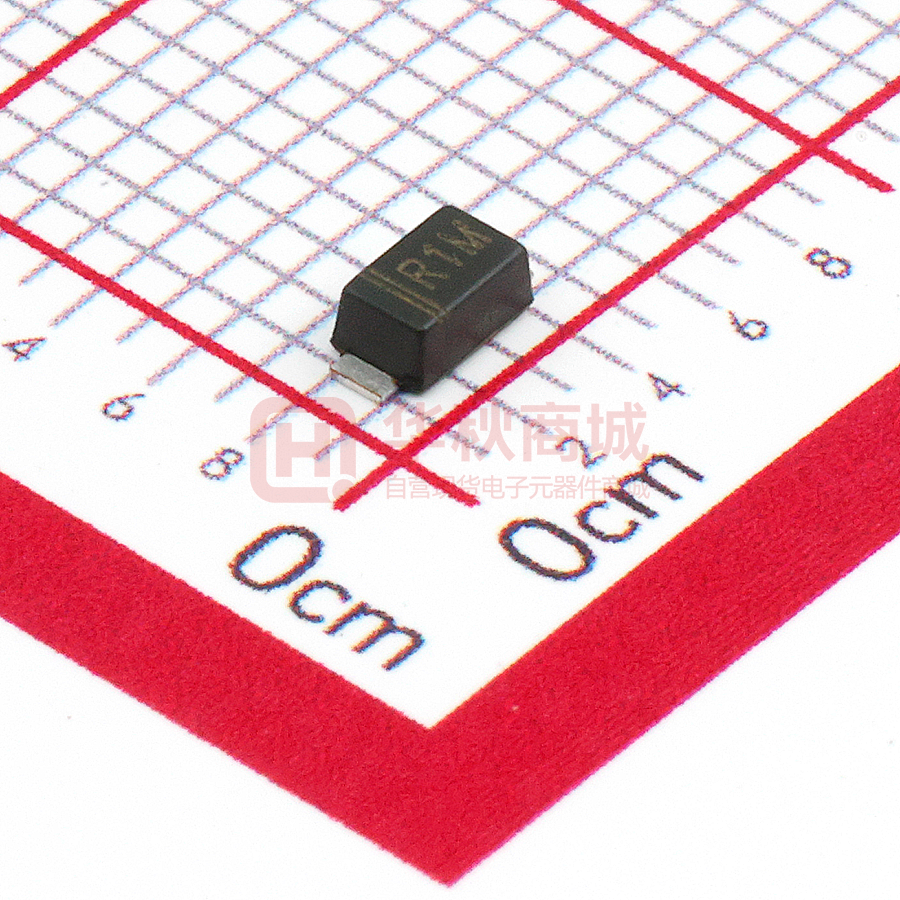

RS1ML

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOD-123FL Plastic-Encapsulate Diodes RS1AL THRU RS1ML Fast Recovery Rectifier Diodes Features ●IF(AV) 1A ● VRRM 50V-1000V SOD-1 23FL ●High surge current capability ● Polarity: Color band denotes cathode Applications ● Rectifier Marking ● R1X X : From A To M Limiting Values(Absolute Maximum Rating) Item Symbol Unit RS1 Test Conditions AL BL DL GL JL KL ML Repetitive Peak Reverse Voltage VRRM V 50 100 200 400 600 800 1000 Maximum RMS Voltage V RMS V 35 70 140 280 420 560 700 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，Ta=90℃ 1.0 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ 30 TJ,TSTG ℃ KL ML Operation Junction and Storage Temperature Range -55 ~ +150 Electrical Characteristics (T=25℃ Unless otherwise specified） Symbol Unit Peak Forward Voltage VF V Maximum reverse recovery time trr ns Item Peak Reverse Current Thermal Resistance(Typical) IRRM1 IRRM2 RθJ-A RθJ-L μA ℃/ W Test Condition RS1 AL BL DL IF =1.0A JL 1.3 IF=0.5A,IR=1.0A,Irr=0.25A VRM=VRRM GL 250 150 Ta =25℃ 10 Ta =125℃ 100 Between junction and ambient 70 Between junction and terminal 25 500 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas www.jscj-elec.com 1 Rev. - 1.1 Typical Characteristics FIG.2: MAXIMUM NON-REPETITIVE FORWARD URGE CURRENT 30 IFSM(A) IO(A) FIG.1: FORWARD CURRENT DERATING CURVE 1.0 0.8 25 8.3ms Single Half Sine Wave JEDEC Method 0.6 20 0.4 15 0.2 10 Resistive or Inductive Load P.C.B. Mounted on 0.2"×0.2" (5.0mm×5.0mm)Copper Pad Areas 5 0 0 50 100 1 150 Ta( ) 10 FIG.4 TYPICAL REVERSE CHARACTERISTICS IR(uA) IF(A) FIG.3: TYPICAL FORWARD CHARACTERISTICS 100 TJ=25 Pulse width=300us 1% Duty Cycle 100 10 10 1.0 1.0 0.1 0.1 0.01 0.4 0.6 0.8 1.0 1.2 1.4 100 Number of Cycles 1.6 Tj=150 Tj=100 Tj=25 0.01 0 1.8 VF(V) 20 40 60 80 100 Voltage(%) FIG.5: Diagram of circuit and Testing wave form of reverse recovery time I D trr IF VR IF RL t 0 IRR IR www.jscj-elec.com 2 Rev. - 1.1 SOD-1 23FL 1.8± 0.1 １．０ ±0.15 Cathode Band Top View 1.3± 0.1 0.12-0.20 2.8 ±0.15 0.8±0.1 3.7 ±0.15 Dimensions in millimeters SOD-1 23FL 1.4 2.85 1.2 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.1 Reel Taping Specifications For Surface Mount Devices-SOD-123FL FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING SOD-123FL 54 1.0 2.13 0.039 www.jscj-elec.com 4 Rev. - 1.1
