JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD

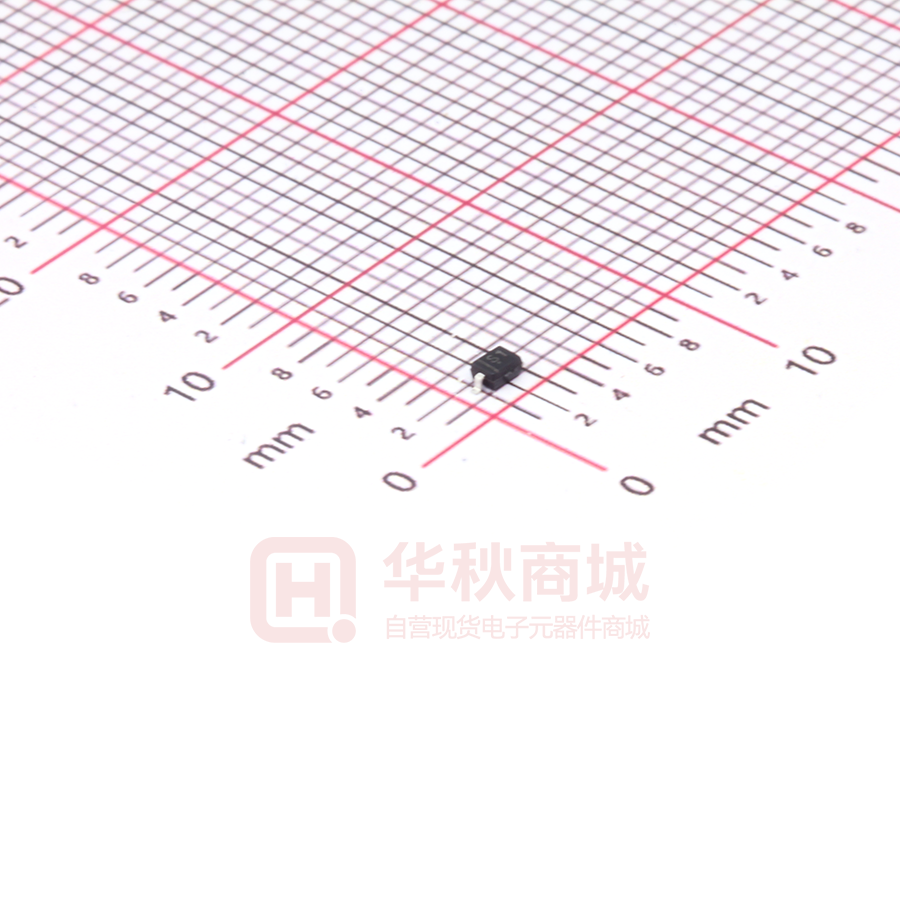

SOD-323 Plastic-Encapsulate Diodes
SD101AWS
SCHOTTKY BARRIER DIODE
SOD-323
FEATURES
Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
Negligible Reverse Recovery Time
Very Low Reverse Capacitance
MARKING: S1
The marking bar indicates the cathode
Solid dot = Green molding compound device,if none,
the normal device.
MAXIMUM RATINGS ( TA=25℃ unless otherwise noted )
Symbol
Parameter
VRRM
Repetitive Peak Reverse Voltage
VRWM
Working Peak Reverse Voltage
Value
Unit
60
V
VR
DC Blocking Voltage
VR(RMS)
RMS reverse voltage
42
V
IFM
Forward Continuous Current
15
mA
IFSM
Non-repetitive Peak Forward Surge Current @t=8.3ms
2
A
PD
Power Dissipation
200
mW
Thermal Resistance from Junction to Ambient
500
℃/W
Operating Junction Temperature Range
-40 ~ +125
℃
Storage Temperature Range
-50 ~ +150
℃
RΘJA
Tj
Tstg
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Parameter
Symbol
Test conditions
Min
Typ
Max
Reverse voltage
V(BR)
IR=10μA
Reverse current
IR
VR=50V
0.2
Forward voltage
VF
IF=1mA
0.41
IF=15mA
1
Total capacitance
Ctot
VR=0V,f=1MHz
2
pF
IF= IR=5mA, Irr=0.1×IR, RL=100Ω
1
ns
Reverse recovery time
www.jscj-elec.com
trr
60
Unit
1
V
μA
V
Rev. - 2.1
Typical Characteristics
Forward
Reverse
100
Characteristics
Pulsed
(uA)
1
Ta=100℃
REVERSE CURRENT IR
FORWARD CURRENT
Characteristics
Pulsed
IF
(mA)
15
10
Ta=25℃
0.1
Ta=100℃
10
1
0.1
Ta=25℃
0.01
0.01
1E-3
0
100
200
300
400
FORWARD VOLTAGE
VF
500
600
1E-3
700
10
20
30
40
REVERSE VOLTAGE
(mV)
Capacitance Characteristics
2.5
0
VR
50
60
(V)
Power Derating Curve
250
Ta=25℃
(mW)
200
PD
2.0
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
f=1MHz
1.5
1.0
0.5
0.0
150
100
50
0
5
10
15
REVERSE VOLTAGE
www.jscj-elec.com
20
VR
25
0
30
0
25
50
75
AMBIENT TEMPERATURE
(V)
2
100
Ta
125
(℃ )
Rev. - 2.1
CHANGJING ELEC.TECH.
PACKAGE OUTLINE AND PAD LAYOUT INFORMATION
Dimensions In Millimeters
Min
Max
1.100
0.000
0.100
1.000
0.800
0.250
0.350
0.080
0.150
1.200
1.400
1.600
1.800
2.750
2.500
0.475 REF
0.250
0.400
0°
8°
Symbol
A
A1
A2
b
c
D
E
E1
L
L1
θ
Dimensions In Inches
Min
Max
0.043
0.000
0.004
0.039
0.031
0.010
0.014
0.003
0.006
0.047
0.055
0.063
0.071
0.098
0.108
0.019 REF
0.010
0.016
0°
8°
NOTICE
JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other
changes without further notice to any product herein. JSCJ does not assume any liability arising
out of the application or use of any product described herein.
www.jscj-elec.com
3
Rev. - 2.1
SOD-323 Tape and Reel
www.jscj-elec.com
4
Rev. - 2.1
