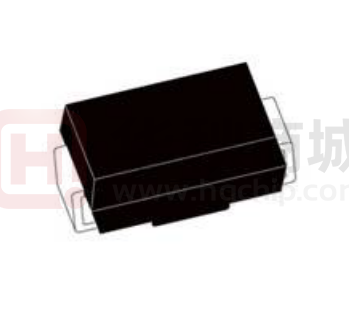

SS36

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SMAG Plastic-Encapsulate Diodes SS3 2 THRU SS3 20 Schottky Rectifier Diodes Features ● IF(AV) 3A ● VRRM 20V-200V SMAG ● High surge current capability ● Polarity: Color band denotes cathode Applications ● Rectifier Marking ● SS3X X : From 2 To 20 Limiting Values(Absolute Maximum Rating) Item Symbol Unit SS3 Test Conditions 2 3 4 5 6 8 10 15 20 Repetitive Peak Reverse Voltage VRRM V 20 30 40 50 60 80 100 150 200 Maximum RMS Voltage V RMS V 14 21 28 35 42 56 70 105 140 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，FIG.1 3.0 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ 70 TJ ℃ TSTG ℃ Junction Temperature Storage Temperature -55~+150 -55~+125 -55 ~ +150 Electrical Characteristics (T =25℃ Unless otherwise specified） Item Peak Forward Voltage Peak Reverse Current Thermal Resistance(Typical) Symbol Unit VF IRRM1 IRRM2 RθJ-A RθJ-L Test Condition V mA ℃/ W IF =3.0A VRM=VRRM SS3 2 3 4 5 0.55 6 0.70 8 10 15 0.85 0.95 Ta =25℃ 0.5 0.1 Ta =100℃ 10 5.0 Between junction and ambient 75 Between junction and terminal 17 20 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas www.jscj-elec.com 1 Rev. - 1.0 Typical Characteristics FIG.2: MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 3.0 IFSM(A) IO(A) FIG.1: FORWARD CURRENT DERATING CURVE SS32-SS34 SS35-SS320 2.5 70 8.3ms Single Half Sine Wave JEDEC Method 60 2.0 50 1.5 40 1.0 30 Resistive or Inductive Load P.C.B. Mounted on 0.2"×0.2" (5mm×5mm)Copper Pad Areas 0.5 0 0 25 75 50 100 125 20 150 1 2 10 20 FIG.3: TYPICAL FORWARD CHARACTERISTICS FIG.4：TYPICAL REVERSE CHARACTERISTICS 100 IR(mA) IF(A) 100 Number of Cycles TL(℃ ) TJ=25℃ Pulse width=300us 1% Duty Cycle 100 SS32 - SS36 SS38 -SS320 10 10 Tj=125℃ 1.0 1.0 Tj=75℃ 0.1 SS32-SS34 SS35-SS36 SS38-SS310 SS315-SS320 0.1 0.01 Tj=25℃ 0.01 0 0.001 0.2 0.4 0.6 0.8 1.0 1.2 1.4 20 40 60 80 100 Voltage(%) VF(V) www.jscj-elec.com 0 2 Rev. - 1.0 SMAG 0.106(2.70) 0.096(2.45) SMAG 4.12 1.8 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.0 Reel Taping Specifications For Surface Mount Dev ices- SMAG FIG:CONFIGURATION OF SURFACE MOUNTED DEVICES TAPING G 279 2.0 (11 0.079) 75 1.0 2.95 0.039 www.jscj-elec.com 4 Rev. - 1.0
