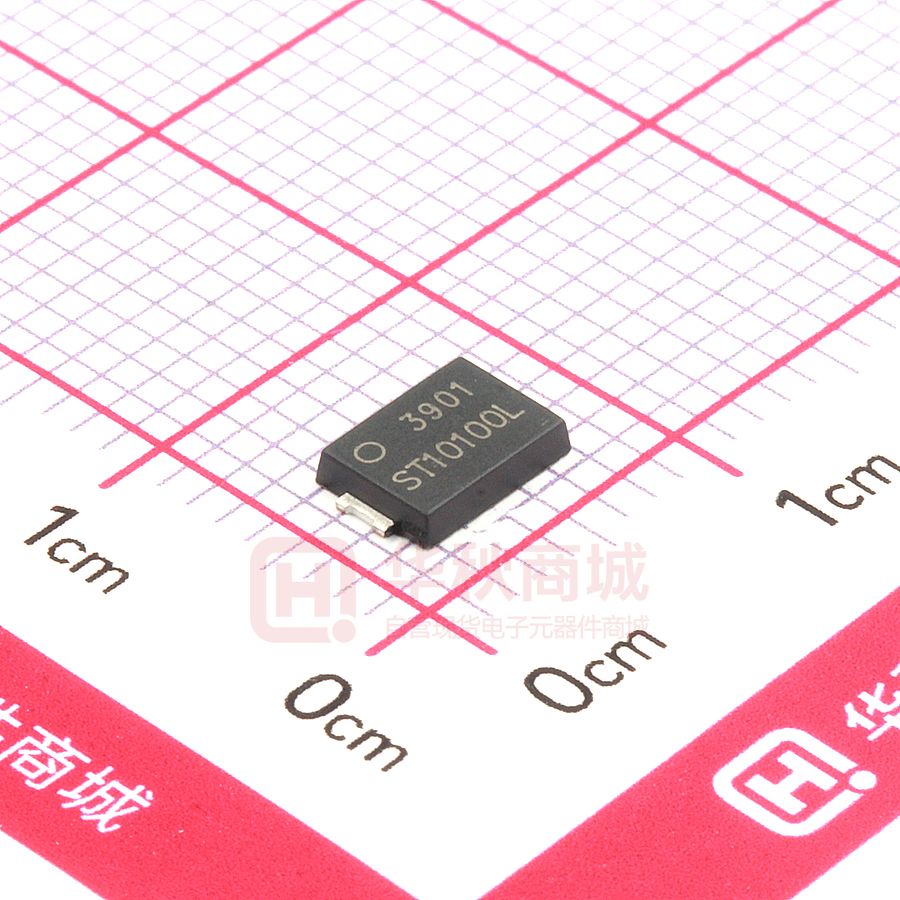

ST10100L

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD TO-277 Plastic-Encapsulate Diodes ST10100L Schottky Rectifier Diode Features ● IF(AV) 10A ● VRRM 100 V TO- 27 7 ● High surge current capability ● Low peak foward voltage Applications Anode 1 Cathode & Heatsink ● Rectifier Anode 2 Marking ● ST10100L:ST10100L Limiting Values(Absolute Maximum Rating) Item Symbol Unit Test Conditions ST10100L Repetitive Peak Reverse Voltage VRRM V 100 Maximum RMS Voltage V RMS V 70 Average Forward Current IF(AV) A 60Hz Half-sine wave， Resistance load，TL(Fig.1) 10 Surge(Non-repetitive)Forward Current IFSM A 60Hz Half-sine wave， 1 cycle，Ta=25℃ 200 TJ ℃ -55 ~ +150 TSTG ℃ -55 ~ +150 Junction Temperature Storage Temperature Electrical Characteristics (T=25℃ Unless otherwise specified） Item Peak Forward Voltage Peak Reverse Current Thermal Resistance(Typical) Typical junction capacitance Symbol Unit VF V IRRM1 IRRM2 RθJ-A mA ℃/ W RθJ-L CJ nF Test Condition IF =10.0A VRM=VRRM ST10100L Ta =25℃ 0.59(TYP) 0.64(MAX) Ta =125℃ 0.57(TYP) 0.62(MAX) Ta =25℃ 0.02(TYP) 0.08(MAX) Ta =125℃ 12(TYP) 20(MAX) Between junction and ambient 80 Between junction and terminal 5 VR=4.0 V, f=1 MHz 0.95 Notes: Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas www.jscj-elec.com 1 Rev. - 1.0 Typical Characteristics FIG.2: MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 12.0 250 IFSM(A) IO(A) FIG.1: FORWARD CURRENT DERATING CURVE 10.0 200 8.0 150 6.0 100 4.0 50 2.0 0 0 25 0 75 50 125 100 150 Ta(℃ ) 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 100 Number of Cycles FIG.3: INSTANTANEOUS FORWARD CHARACTERISTICS FIG.4：TYPICAL REVERSE CHARACTERISTICS 60 IR(mA) IF(A) 10 40 100 10 20 TA = 125 °C 10 1 5.0 0.1 1.0 0.01 TA = 25 °C 0.5 0.001 0.2 0.1 Ta=25℃ 0 0.1 0.2 www.jscj-elec.com 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 0.0001 10 1.2 VF(V) 20 30 40 50 60 70 80 90 100 Voltage(%) 2 Rev. - 1.0 TO- 27 7 DIM HE E D B1 B2 A C L L1 L2 L3 D1 E1 Unit: mm Unit: inch MIN MAX 6.4 6.6 5.6 5.8 4.1 4.3 1.7 1.9 0.8 1 1.05 1.2 0.3 0.4 0.85 1.1 4.2 4.4 3.52 Typ. 1.1 1.4 3 3.3 1.86 Typ. MIN MAX 0.252 0.260 0.220 0.228 0.161 0.169 0.067 0.075 0.031 0.039 0.041 0.047 0.012 0.016 0.033 0.043 0.165 0.173 0.139 Typ. 0.043 0.055 0.118 0.130 0.073 Typ. TO- 27 7 NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein.JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 3 Rev. - 1.0
