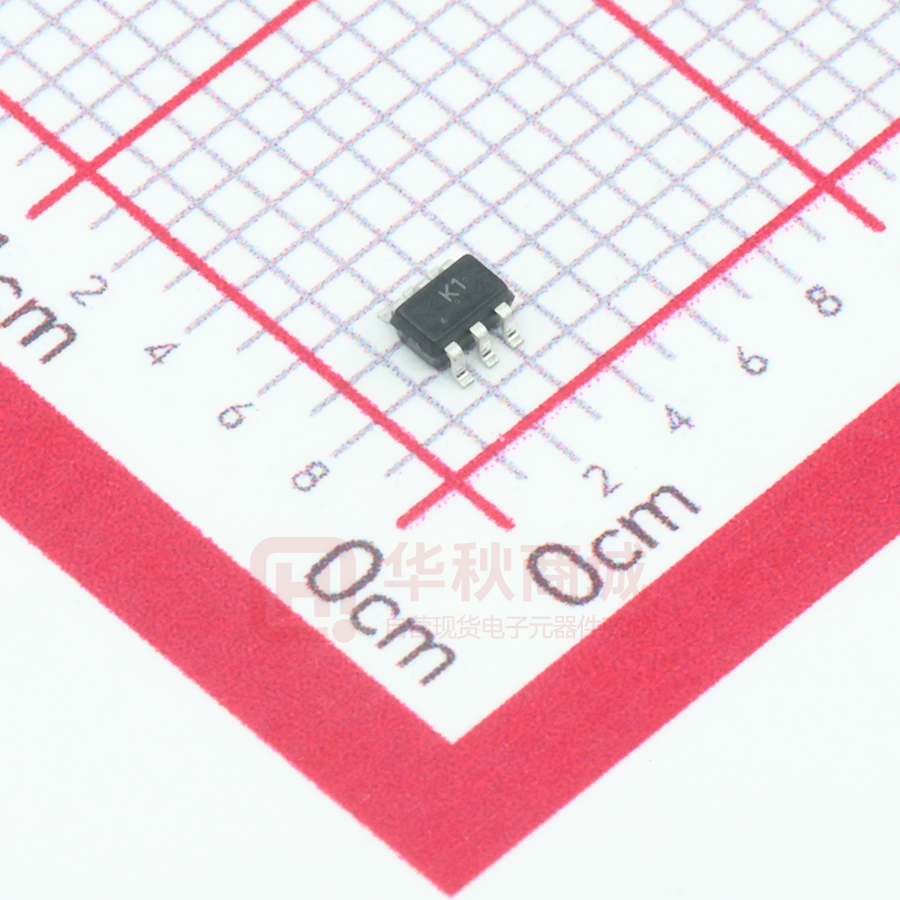

UM6K1N

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-363 Plastic-Encapsulate MOSFETs UM6K1N V(BR)DSS 30 V Dual N-channel MOSFET ID RDS(on)MAX SOT-363  8Ω@4V  100mA 13Ω@2.5V   FEATURE 1) Two 2SK3018 transistors in a package. 2) The MOS FET elements are independent, eliminating mutual interference. 3) Mounting cost and area can be cut in half. 4) Low On-resistance. 5) Low voltage drive (2.5V drive) makes this device ideal for portable equipment. Equivalent Circuit MARKING MOSFET MAXIMUM RATINGS (Ta = 25°C unless otherwise noted) Symbol Parameter Value Unit 30 V VDS Drain-Source Voltage VGS Gate-Source Voltage ±20 V ID Continuous Drain Current 0.1 A PD Power Dissipation 0.15 W RθJA Thermal Resistance from Junction to Ambient 833 ℃ /W TJ Junction Temperature 150 ℃ Tstg Storage Temperature www.jscj-elec.com -55~+150 1 ℃ Rev. - 1.0 MOSFET ELECTRICAL CHARACTERISTICS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max Units Off Characteristics Drain-Source Breakdown Voltage VDS VGS = 0V, ID = 10µA Zero Gate Voltage Drain Current IDSS VDS =30V,VGS = 0V 1 µA Gate –Source leakage current IGSS VGS =±20V, VDS = 0V ±2 µA Gate Threshold Voltage VGS(th) VDS = 3V, ID =100µA 1.5 V Drain-Source On-Resistance RDS(on) Forward Transconductance gFS 30 0.8 V 1.2 VGS = 4V, ID =10mA 4 8 Ω VGS =2.5V,ID =1mA 6 13 Ω VDS =3V, ID = 10mA 20 mS Dynamic Characteristics* Input Capacitance Ciss 13 pF Output Capacitance Coss 9 pF Reverse Transfer Capacitance Crss 4 pF td(on) 15 ns VGS =5V, VDD =5V, 35 ns ID =10mA, Rg=10Ω, RL=500Ω 80 ns 80 ns VDS =5V,VGS =0V,f =1MHz Switching Characteristics* Turn-On Delay Time Rise Time Turn-Off Delay Time tr td(off) Fall Time tf *These parameters have no way to verify. www.jscj-elec.com 2 Rev. - 1.0 Typical Characteristics Output Characteristics 0.20 4.0V Ta=25℃ VGS=3.0V 3.5V Pulsed 100 0.15 (mA) 30 ID VGS=2.5V 0.10 0.05 DRAIN CURRENT DRAIN CURRENT ID (A) Transfer Characteristics 200 VGS=2.0V 10 3 1 VDS=3V 0.3 Ta=25℃ VGS=1.5V 0.00 0 1 2 3 4 DRAIN TO SOURCE VOLTAGE VDS Pulsed 0.1 5 0 (V) 1 2 GATE TO SOURCE VOLTAGE 3 VGS RDS(ON) —— VGS RDS(ON) —— ID 60 15 Ta=25℃ Ta=25℃ Pulsed ( ) 10 RDS(ON) 40 ON-RESISTANCE RDS(ON) ( ) Pulsed ON-RESISTANCE 4 (V) 20 VGS=2.5V ID=100mA 5 ID=50mA VGS=4V 0 3 1 10 DRAIN CURRENT 200 100 IS 100 30 —— ID 0 200 (mA) 0 5 10 GATE TO SOURCE VOLTAGE 15 VGS 20 (V) VSD VGS=0V Ta=25℃ SOURCE CURRENT IS (mA) Pulsed 30 10 3 1 0.3 0.1 0.2 0.4 0.6 SOURCE TO DRAIN VOLTAGE www.jscj-elec.com 0.8 1.0 VSD (V) 3 Rev. - 1.0 6273DFNDJH2XWOLQH'LPHQVLRQV Symbol A A1 A2 b c D E E1 e e1 L L1  Dimensions In Millimeters Min Max 0.900 1.100 0.000 0.100 0.900 1.000 0.150 0.350 0. 0.150 2.000 2.200 1.150 1.350 2.150 2.4 0.650 TYP 1.200 1.400 0.525 REF 0.260 0.460 0° 8° Dimensions In Inches Min Max 0.035 0.043 0.000 0.004 0.035 0.039 0.006 0.014 0.00 0.006 0.079 0.087 0.045 0.053 0.085 0.09 0.026 TYP 0.047 0.055 0.021 REF 0.010 0.018 0° 8° 627 6XJJHVWHG3DG/D\RXW  NOTICE JSCJ reserves the right to make modifications,enhancements,improvements,corrections or other changes without further notice to any product herein. JSCJ does not assume any liability arising out of the application or use of any product described herein. www.jscj-elec.com 4 Rev. - 1.0 6277DSHDQG5HHO SOT-363 Tape and reel SOT-363 Embossed Carrier Tape P0 C d P1 Packaging Description: SOT-363 parts are shipped in tape. The carrier tape is made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 17.8cm diameter reel. The reels are clear in color and is made of polystyrene plastic (anti-static coated). B F W E A P A A A-A Dimensions are in millimeter Pkg type A B C d E F P0 P P1 W SOT-363 2.25 2.55 1.20 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 SOT-363 Tape Leader and Trailer Leader Tape Trailer Tape 50±2 Empty Pockets 100±2 Empty Pockets Components SOT-363 Reel D I G W2 3000 H 2500 2000 1500 1000 D2 D1 500 W1 Dimensions are in millimeter Reel Option D D1 D2 G H I W1 W2 7''Dia Ø178.00 54.40 13.00 R78.00 R25.60 R6.50 9.50 12.30 G.W.(kg) REEL Reel Size Box Box Size(mm) Carton Carton Size(mm) 3000 pcs 7 inch 30,000 pcs 203×203×195 120,000 pcs 438×438×220 www.jscj-elec.com 5 Rev. - 1.0
