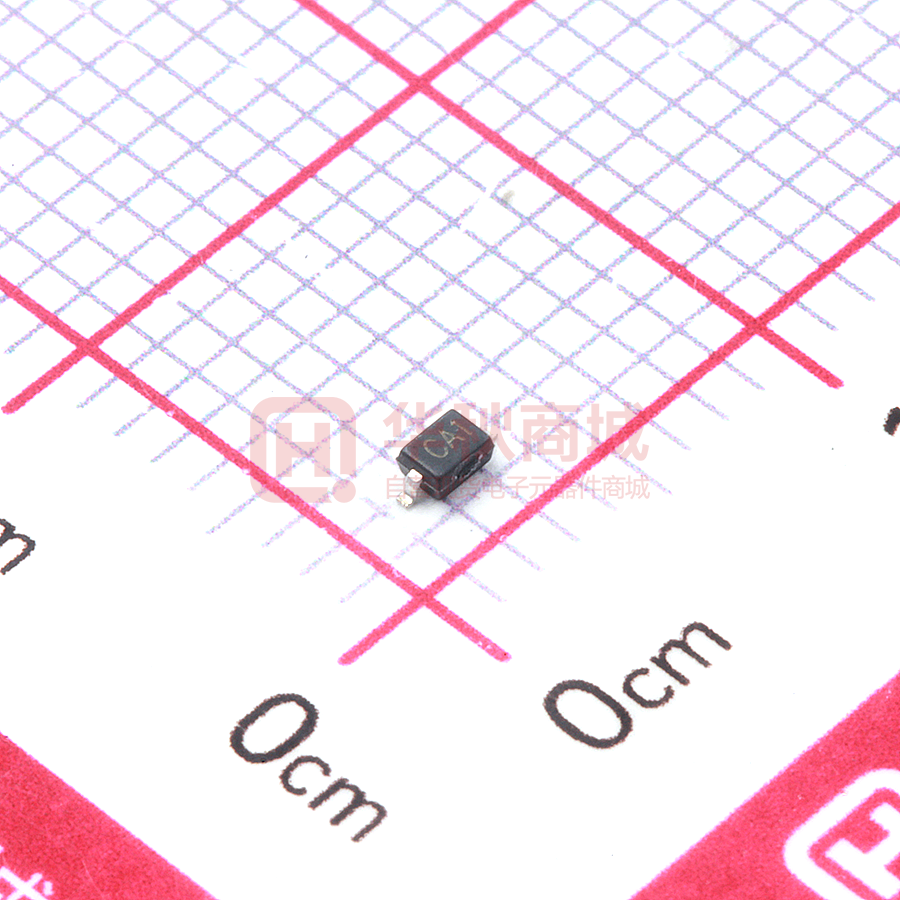

JIEJIE MICROELECTRONICS CO. , Ltd JEB03CX TVS Diode Array Rev.3.5 FEATURES          350 watts peak pulse power per line (tP=8/20µs) Protects one bi-directional I/O line Low clamping voltage Working voltage:3.3V Low leakage current RoHS compliant   SOD-323   MAIN APPLICATIONS         Cell phone handsets and accessories Microprocessor based equipment Personal digital assistants (PDA’s) Notebooks, desktops, and servers Portable instrumentation Peripherals USB interface Pin Configuration PROTECTION SOLUTION TO MEET   IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)  IEC61000-4-4 (EFT) 40A (5/50ns)  IEC61000-4-5 (Lightning) 20A (8/20µs) MECHANICAL CHARACTERISTICS       SOD-323 package Molding compound flammability rating: UL 94V-0 Weight 5 milligrams (approximate) Quantity per reel: 3,000pcs Lead finish: lead free Marking code: CA1 TEL：+86-513-83639777 - 1 / 5- http://www.jjwdz.com JEB03CX TVS Diode Array                        JieJie Microelectronics CO. , Ltd ABSOLUTE MAXIMUM RATINGS (TA=25℃, RH=45%-75%, unless otherwise noted)  Parameter Symbol Value Unit PPP 350 W VESD +/- 30 +/- 30 kV Lead soldering temperature TL 260 (10 sec.) ℃ Operating junction temperature range TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Peak pulse power dissipation on 8/20μs waveform ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Storage temperature range   ELECTRICAL CHARACTERISTICS (TA=25℃) Parameter Symbol Reverse working voltage Reverse breakdown voltage Min Typ VRWM VBR Reverse leakage current Clamping voltage Conditions IR VC Junction capacitance CJ IT=1mA Max Unit 3.3 V 4 V VRWM=3.3V 0.1 μA IPP=1A, tP=8/20μs 6.5 V IPP=10A, tP=8/20μs 12 V IPP=20A, tP=8/20μs 17.5 V 1.5 pF VRWM=0V, f=1MHz 1.0   RATINGS AND V‐I CHARACTERISTICS CURVES (TA=25℃, unless otherwise noted)    FIG.1:V- I curve characteristics (Bi-directional) I IPP IT VC VBR VRWM IR TEL：+86-513-83639777 FIG.2: Pulse waveform (8/20μs) Percent of I PPM Peak value 100 90 front time: T1 = 1.25×T = 8×(1±20%)μs time to half value: T2 = 20×(1±20%)μs Half value V IR VRWMVBR VC IT 50 IPP 10 0 0 - 2 / 5- T2 t(μs) T T1 10 20 30 40          http://www.jjwdz.com JEB03CX TVS Diode Array                      FIG.3: Pulse derating curve   JieJie Microelectronics CO. , Ltd FIG.4: ESD clamping (30kV contact) PPP derating in percentage(%) 100 Percent of IPPM 100 90 80 30ns 60 40 60ns 20 0 0 25 50 TA(℃) 75 100 125 150 175 10 0 0 t(ns) tr 0.7 to 1ns 30 60        PACKAGE MECHANICAL DATA  Millimeters Inches Symbol Min Max Min Max A 1.60 1.80 0.063 0.071 B 0.25 0.35 0.010 0.014 C 2.50 2.75 0.098 0.108 D 0.00 1.00 0.000 0.039 E 1.20 1.40 0.047 0.055 F 0.08 0.15 0.003 0.006 L 0.475REF 0.019REF L1 0.25 0.40 0.010 0.016 H 0.00 0.10 0.000 0.004 P 3.00 0.118 P1 0.80 0.031 Land Pattern TEL：+86-513-83639777 - 3 / 5- http://www.jjwdz.com JEB03CX TVS Diode Array                        JieJie Microelectronics CO. , Ltd TAPE AND REEL INFORMATION‐SOD‐323    Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 User direction of feed   Pin 1 quadrant:Q1&Q2 Packaging description: SOD-323 parts are shipped in tape. The carrier tape is made from a dissipative(carbon filled) polycarbonate resin. The cover tape is a multilayer film(heat activated adhesive in nature)primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. The reels are blue in color and made of recyclable plastic.               Symbol Millimeters Inches A 1.46±0.05 0.057±0.002 B 2.90±0.05 0.114±0.002 C 1.25±0.05 0.049±0.002 d ⌀1.50±0.1 ⌀0.059±0.004 E 1.75±0.1 0.069±0.004 F 3.50±0.1 0.138±0.004 P0 4.0±0.1 0.157±0.004 P 4.0±0.1 0.157±0.004 P1 2.0±0.1 0.079±0.004 W 8.00+0.3/-0.1 0.315+0.012/-0.004 D ⌀178.0±2 ⌀7.008±0.079 D1 54.40±1 2.142±0.039 D2 13.0±1 0.512±0.039 G R78.0±1 R3.071±0.039 H R25.60±1 R1.008±0.039 I R6.50±1 R0.256±0.039 W1 9.50±1 0.374±0.039 W2 12.30±1 0.484±0.039 ORDERING INFORMATION  PART No. PACKAGE TYPE QUANTITY(PCS) REEL DESCIPTION JEB03CX SOD-323 3,000 7 inch reel pack             TEL：+86-513-83639777 - 4 / 5- http://www.jjwdz.com JEB03CX TVS Diode Array                        JieJie Microelectronics CO. , Ltd MARKING CODE  Part Number Marking Code JEB03CX CA1   Information furnished in this document is believed to be accurate and reliable. However, Jiangsu JieJie Microelectronics Co.,Ltd assumes no responsibility for the consequences of use without consideration for such information nor use beyond it. Information mentioned in this document is subject to change without notice, apart from that when an agreement is signed, Jiangsu JieJie complies with the agreement. Products and information provided in this document have no infringement of patents. Jiangsu JieJie assumes no responsibility for any infringement of other rights of third parties which may result from the use of such products and information. This document is the 3.5th version which is made in 12-Aug.-2019. This document supersedes and replaces all information previously supplied. is a registered trademark of Jiangsu JieJie Microelectronics Co.,Ltd. Copyright ©2019 Jiangsu JieJie Microelectronics Co.,Ltd. Printed All rights reserved. TEL：+86-513-83639777 - 5 / 5- http://www.jjwdz.com
