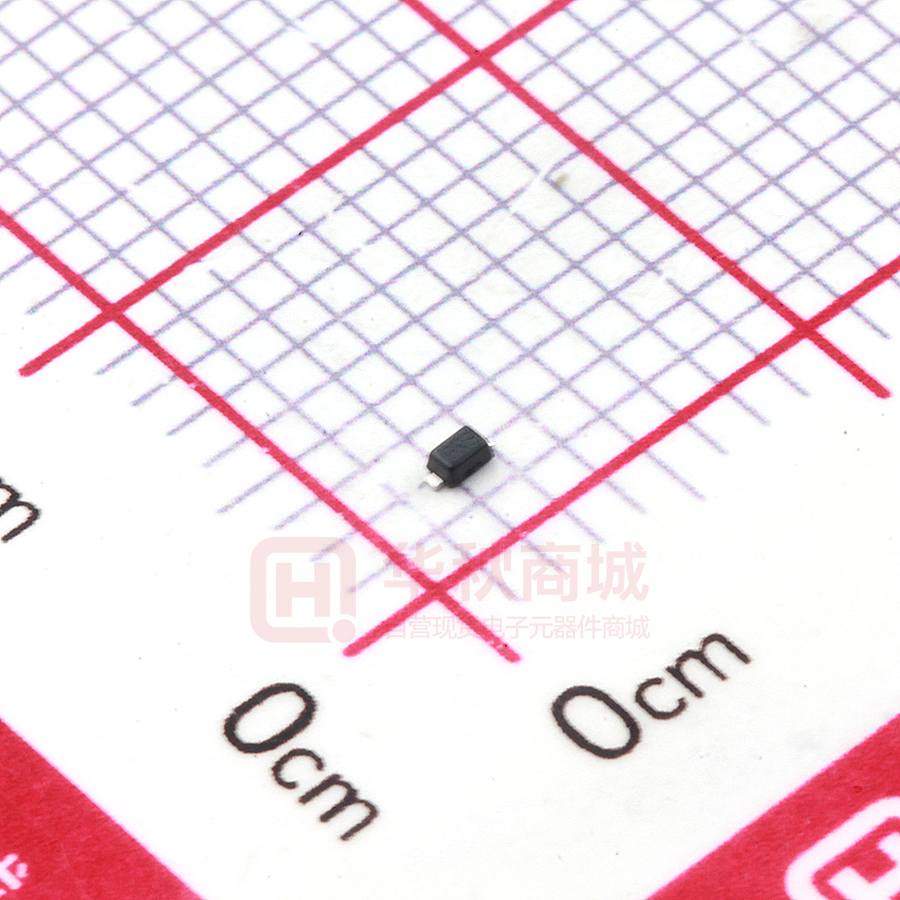

JEB05D5

JIEJIE MICROELECTRONICS CO. , Ltd JEB05D5 Bi-directional TVS Diode for ESD Protection Rev.4.0 FEATURES Small body outline dimensions: 0.063″ × 0.032″ (1.6×0.8 mm) Protects one bi-directional I/O line Low clamping voltage Working voltages: 5V Low leakage current RoHS compliant SOD-523 MAIN APPLICATIONS Cell phone handsets and accessories PIN Configuration Microprocessor based equipment Personal digital assistants (PDA’s) Notebooks, desktops, and servers Portable instrumentation Peripherals Digital cameras PROTECTION SOLUTION TO MEET IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 5A (8/20µs) MECHANICAL CHARACTERISTICS SOD-523 package Molding compound flammability rating: UL 94V-0 Weight 0.5 milligrams (approximate) Quantity per reel: 5,000pcs Lead finish: lead free Marking code: 5XB TEL：+86-513-83639777 - 1 / 5- http://www.jjwdz.com JieJie Microelectronics CO. , Ltd JEB05D5 for ESD Protection ABSOLUTE MAXIMUM RATINGS (TA=25℃, RH=45%-75%, unless otherwise noted) Parameter Symbol Value Unit PPP 100 W VESD +/- 30 +/- 30 kV Lead soldering temperature TL 260 (10 sec.) ℃ Operating junction temperature range TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Peak pulse power dissipation on 8/20µs waveform ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Storage temperature range ELECTRICAL CHARACTERISTICS (TA=25℃) Parameter Symbol Reverse working voltage Reverse breakdown voltage Conditions Min Typ VRWM VBR Reverse leakage current IR Clamping voltage VC Junction capacitance CJ IT = 1mA Max Unit 5.0 V 5.5 V VRWM = 5V 0.1 µA IPP = 1A, tP=8/20µs 9 10 V IPP = 5A, tP=8/20µs 13 15.5 V VRWM = 0V, f = 1MHz 7.5 15 pF RATINGS AND V-I CHARACTERISTICS CURVES (TA=25℃, unless otherwise noted) FIG.1:V- I curve characteristics (Bi-directional) I IPP IT V C V BR VRWM IR TEL：+86-513-83639777 FIG.2: Pulse waveform (8/20µs) Percent of I PPM Peak value 100 90 front time: T1 = 1.25×T = 8×(1±20%)µs time to half value: T2 = 20×(1±20%)µs Half value V IR VRWMV BR VC IT 50 IPP 10 0 0 - 2 / 5- T2 t(µs) T T1 10 20 30 40 http://www.jjwdz.com JieJie Microelectronics CO. , Ltd JEB05D5 for ESD Protection FIG.3: Pulse derating curve FIG.4: ESD clamping (8KV contact) PPP derating in percentage(%) 100 Percent of IPPM 100 90 80 30ns 60 40 60ns 20 0 0 25 50 TA(℃) 75 100 125 150 175 10 0 0 t(ns) tr 0.7 to 1ns 30 60 PACKAGE MECHANICAL DATA D Millimeter Inches Max Min Max A 0.50 0.70 0.020 0.028 B 0.25 0.35 0.010 0.014 C 0.07 0.20 0.0028 0.0079 D 1.10 1.30 0.043 0.051 E 0.70 0.90 0.028 0.035 F 1.50 1.70 0.059 0.067 G 0.15 0.25 0.006 0.010 E Min C A B Symbol F G P P1 P1 P1 0.40 0.016 P 1.80 0.072 Land Pattern TEL：+86-513-83639777 - 3 / 5- http://www.jjwdz.com JieJie Microelectronics CO. , Ltd JEB05D5 for ESD Protection TAPE AND REEL SPECIFICATION-SOD-523 Millimeter Inches Typ. Typ. A 0.90 0.035 B 1.94 0.076 C 0.73 0.029 d Φ1.50 Φ0.059 E 1.75 0.069 F 3.50 0.138 P0 4.00 0.157 P 2.00 0.079 P1 2.00 0.079 W 8.00 0.315 D Φ178 Φ7.008 D1 54.40 2.142 D2 13.00 0.512 G R78.00 R3.071 H R25.60 R1.008 I R6.50 R0.256 W1 9.50 0.374 W2 12.30 0.484 Symbol Packaging Description: SOD-523 parts are shipped in tape. The carrier tape is made from a dissipative(carbon filled) polycarbonate resin. The cover tape is a multilayer film(heat activated adhesive in nature)primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 5,000 units per 7'' or 17.8cm diameter reel. The reels are clear in color and made of polystyrene plastic(anti-static coated). ORDERING INFORMATION OUTLINE PACKAGE TYPE QUANTITY REEL DESCIPTION TAPING SOD-523 5,000 7 inch reel pack TEL：+86-513-83639777 - 4 / 5- http://www.jjwdz.com JieJie Microelectronics CO. , Ltd JEB05D5 for ESD Protection MARKING CODE Part Number Marking Code JEB05D5 5XB Information furnished in this document is believed to be accurate and reliable. However, Jiangsu JieJie Microelectronics Co.,Ltd assumes no responsibility for the consequences of use without consideration for such information nor use beyond it. Information mentioned in this document is subject to change without notice, apart from that when an agreement is signed, Jiangsu JieJie complies with the agreement. Products and information provided in this document have no infringement of patents. Jiangsu JieJie assumes no responsibility for any infringement of other rights of third parties which may result from the use of such products and information. This document is the fourth version which is made in 4-May-2018. This document supersedes and replaces all information previously supplied. is a registered trademark of Jiangsu JieJie Microelectronics Co.,Ltd. Copyright ©2018 Jiangsu JieJie Microelectronics Co.,Ltd. Printed All rights reserved. TEL：+86-513-83639777 - 5 / 5- http://www.jjwdz.com
