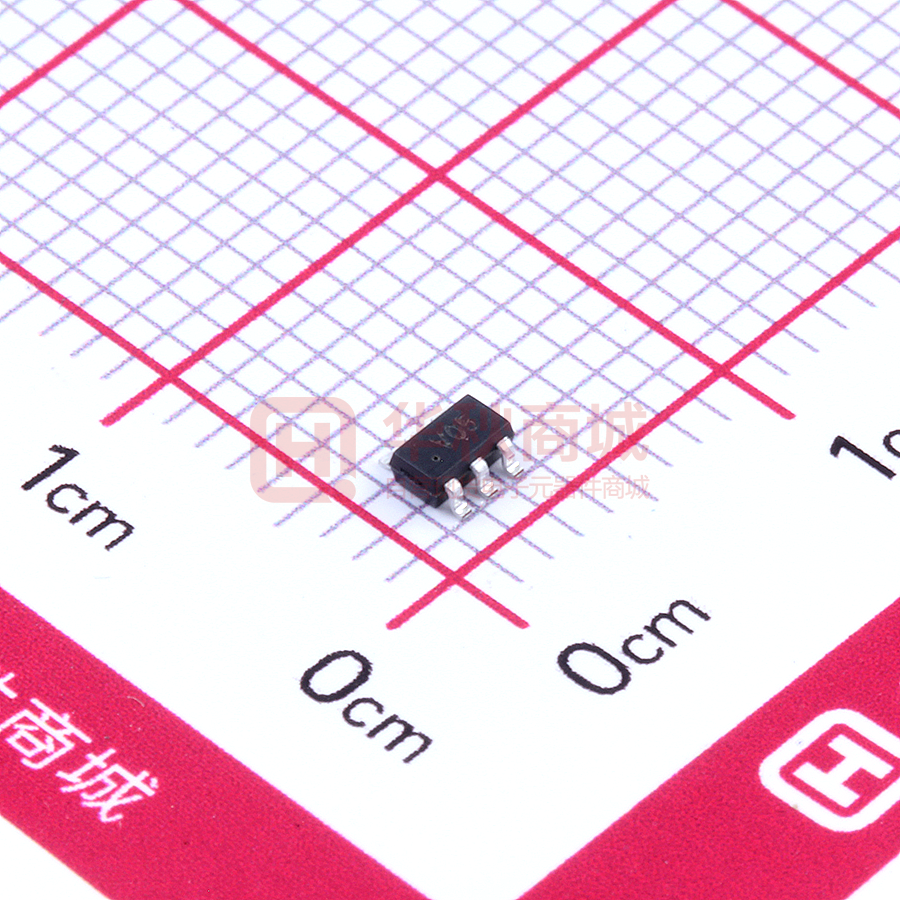

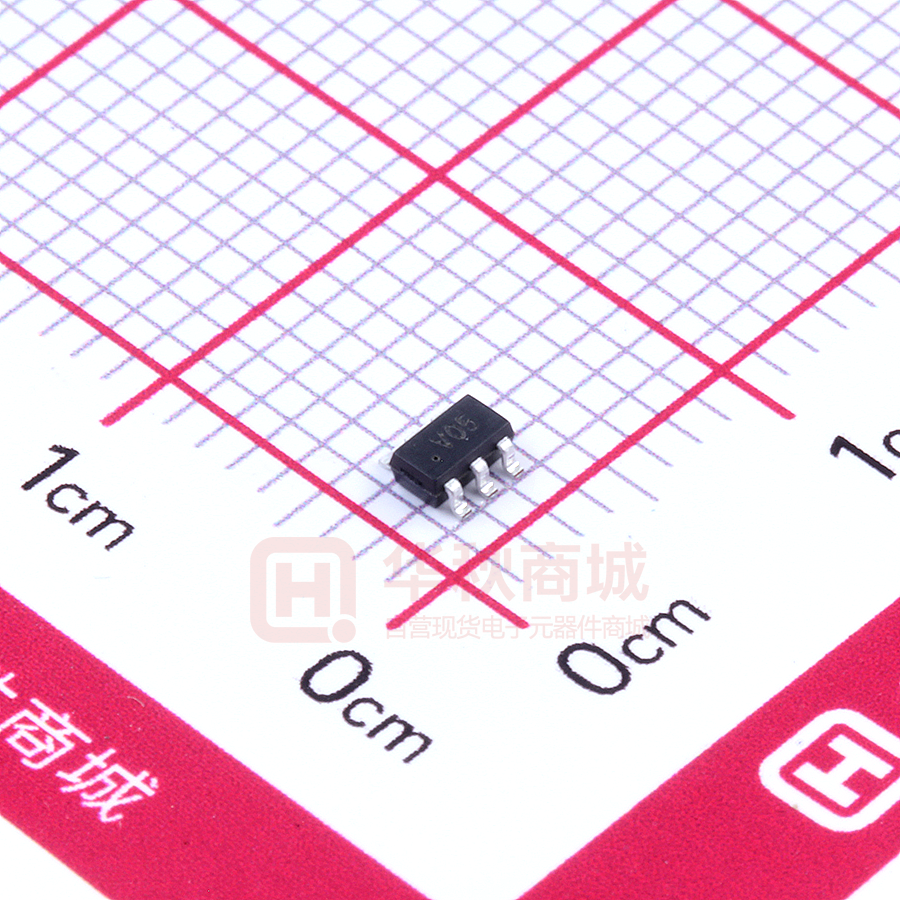

SRV05-4A

SRV05-4A

  • 厂商:

    JIEJIE(捷捷微电)

  • 封装:

    SOT-23-6

  • 描述:

    SRV05-4A

  • 数据手册
  • 价格&库存
SRV05-4A 数据手册
JIEJIE MICROELECTRONICS CO. , Ltd SRV05-4A TVS Diode Array Rev.2.4 FEATURES: 100 watts peak pulse power per line (tP=8/20µs) Protects four I/O lines Low clamping voltage Low operating voltage Low capacitance RoHS compliant Meets MSL level 3 SOT23-6L MAIN APPLICATIONS USB 2.0&3.0 power and data line protection Digital video interface (DVI) Notebook computers Video graphics cards Monitors and flat panel displays 10/100/1000 ethernet SIM ports ATM interfaces PIN Configuration PROTECTION SOLUTION TO MEET IEC61000-4-2 (ESD) ±20kV (air), ±20kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 5A (8/20µs) Circuit Diagram MECHANICAL CHARACTERISTICS JEDEC SOT23-6L package Molding compound flammability rating: UL 94V-0 Quantity per reel: 3, 000pcs Lead finish: lead free Marking code: V05 TEL:+86-513-83639777 - 1 / 5- http://www.jjwdz.com JieJie Microelectronics CO. , Ltd SRV05-4A TVS Diode Array ABSOLUTE MAXIMUM RATINGS (TA=25℃, RH=45%-75%, unless otherwise noted) Parameter Symbol Value Unit PPP 100 W VESD +/- 20 +/- 20 kV Lead soldering temperature TL 260 (10 sec.) ℃ Operating junction temperature range TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Peak pulse power dissipation on 8/20µs waveform ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Storage temperature range ELECTRICAL CHARACTERISTICS (TA=25℃) Parameter Symbol Reverse working voltage Conditions Min Typ VRWM Reverse breakdown voltage VBR IT=1mA Max Unit 5.0 V 6.0 Reverse leakage current IR VRWM=5V Forward voltage VF IT=10mA Clamping voltage (I/O pin to Ground) VC IPP=1A, tP=8/20µs V 1 µA 0.8 1.0 V 9.5 11 V Junction capacitance VC IPP=5A, tP=8/20µs CJ VRWM=0V, f=1MHz Any I/O pin to Ground VRWM=0V, f=1MHz Between I/O pins 12.5 15 0.65 0.8 0.3 0.5 pF RATINGS AND V-I CHARACTERISTICS CURVES (TA=25℃, unless otherwise noted) FIG.1:V- I curve characteristics (Uni-directional) IF I FIG.2: Pulse waveform (8/20µs) Percent of IPPM Peak value 100 90 front time: T1 = 1.25×T = 8×(1±20%)µs time to half value: T2 = 20×(1±20%)µs Half value V VC VBR VRWM IR VF IT 50 IPP 10 0 0 TEL:+86-513-83639777 - 2 / 5- T2 t(µs) T T1 10 20 30 40 http://www.jjwdz.com JieJie Microelectronics CO. , Ltd SRV05-4A TVS Diode Array FIG.3: Pulse derating curve FIG.4: ESD clamping (20kV contact) PPP derating in percentage(%) 100 Percent of I PPM 100 90 80 30ns 60 40 60ns 20 0 0 25 50 TA(℃) 75 100 125 150 175 10 0 0 t(ns) tr 0.7 to 1ns 30 60 PACKAGE MECHANICAL DATA Millimeter Inches Symbol Min Max Min Max A 0.90 1.45 0.035 0.057 A1 0.00 0.15 0.000 0.006 A2 0.45 0.65 0.017 0.026 B 0.35 0.50 0.010 0.020 C 0.08 0.20 0.003 0.007 D 2.80 3.00 0.110 0.122 e 0.69 1.02 0.032 0.043 E1 1.50 1.75 0.060 0.069 E L1 Land Pattern TEL:+86-513-83639777 2.80BSC 0.35 0.60 0.110BSC 0.013 0.024 L 0.60 0.024 X 0.60 0.024 Y 1.10 0.043 P 3.60 0.141 P1 1.40 0.055 P2 2.50 0.098 P3 0.95 0.037 - 3 / 5- http://www.jjwdz.com JieJie Microelectronics CO. , Ltd SRV05-4A TVS Diode Array TAPE AND REEL SPECIFICATION-SOT23-6L Millimeter Inches Typ. Typ. a 3.17 0.125 B 3.23 0.127 C 1.37 0.054 d Φ1.55 Φ0.061 E 1.75 0.069 F 3.50 0.138 P0 4.00 0.157 P 4.00 0.157 P1 2.00 0.079 W 8.00 0.315 D Φ180 Φ7.087 D1 60.00 2.632 D2 13.00 0.512 G R78.00 R3.071 H R25.60 R1.008 I R6.50 R0.256 W1 9.50 0.374 W2 13.10 0.516 Symbol Packaging Description: SOT23-6L parts are shipped in tape. The carrier tape is made from a dissipative(carbon filled) polycarbonate resin. The cover tape is a multilayer film(heat activated adhesive in nature)primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000units per 7'' or 17.8cm diameter reel. The reels are clear in color and made of polystyrene plastic(anti-static coated). ORDERING INFORMATION OUTLINE PACKAGE TYPE QUANTITY REEL DESCIPTION TAPING SOT23-6L 3,000 7 inch reel pack TEL:+86-513-83639777 - 4 / 5- http://www.jjwdz.com JieJie Microelectronics CO. , Ltd SRV05-4A TVS Diode Array MARKING CODE Part Number Marking Code 6 5 4 V05 SRV05-4A 1 2 3 Information furnished in this document is believed to be accurate and reliable. However, Jiangsu JieJie Microelectronics Co.,Ltd assumes no responsibility for the consequences of use without consideration for such information nor use beyond it. Information mentioned in this document is subject to change without notice, apart from that when an agreement is signed, Jiangsu JieJie complies with the agreement. Products and information provided in this document have no infringement of patents. Jiangsu JieJie assumes no responsibility for any infringement of other rights of third parties which may result from the use of such products and information. This document is the 2.4th version which is made in 2-Jan.-2019. This document supersedes and replaces all information previously supplied. is a registered trademark of Jiangsu JieJie Microelectronics Co.,Ltd. Copyright ©2019 Jiangsu JieJie Microelectronics Co.,Ltd. Printed All rights reserved. TEL:+86-513-83639777 - 5 / 5- http://www.jjwdz.com
