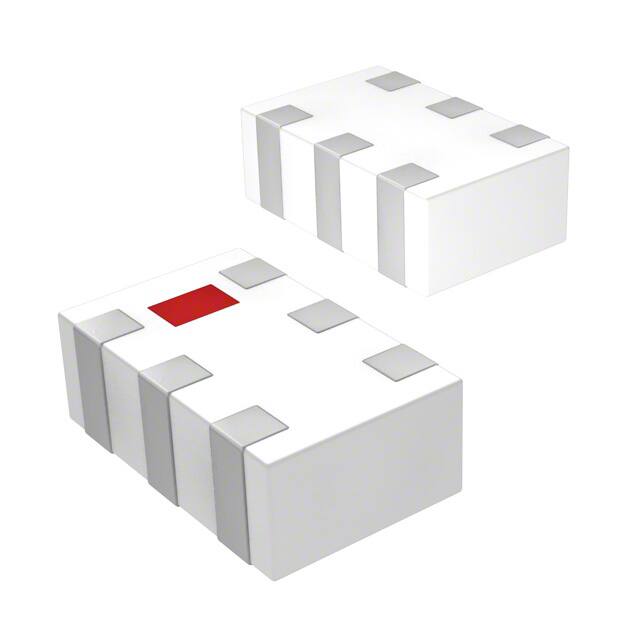

2450BM15B0002E

High Frequency Ceramic Solutions 2.4GHz Impedance Matched Balun-Filter designed for TI CC2520 Chipset. 6/15/2015 Detail Specification: Page 1 of 5 12 min. @ 1GHz General Specifications Differential Mode Attenuation (dB) 18 min. @ 4800~5000MHz -40°C to 125°C 2450BM15B0002 Part Number 2400 - 2500 Frequency (MHz) Differential Balanced Impedance 20 min. @ 7200~7500MHz 50 Ω Input Power 2W max. CW Conjugate match to TI Chipset 2520 Reel Quanity 4,000 Unbalanced Impedance Insertion Loss 1.5 dB max. (-40°C to +85°C) Insertion Loss 1.7 dB max. (-40°C to +125°C) 9.5 dB min. Return Loss (-40°C to 125°C) Phase Diff. P/N: 2450BM15B0002 -40°C to +125°C Storage Temperature Range -40°C to +85°C Recommended Storage Conditions of unused product on T&R 180° ± 15 (-40°C to 125°C) Operating Temperature +5 ~ +35 °C, Humidity 45~75%RH, 18 mos. max Part Number Explanation Packaging Style P/N Suffix Termination Bulk Suffix = S Eg. 2450BM15B0002S Terminal Configuration T&R Suffix = E Eg. 2450BM15B0002E No. Function 100% Tin Suffix = None Eg. 2450BM15B0002(E or S) 1 Unbalanced Port (2.2nH Ind)* 2 GND Mechanical Dimensions In mm 3 Balanced Port L 0.079 ± 0.004 2.00 ± 0.10 4 Balanced Port W 0.049 ± 0.004 1.25 ± 0.10 5 GND T 0.028 ± 0.004 0.70 ± 0.10 6 GND a 0.012 ± 0.004 0.30 ± 0.10 b 0.008 ± 0.004 0.20 ± 0.10 c 0.012 +.004/-.008 0.30 +0.1/-0.2 g 0.014 ± 0.004 0.35 ± 0.10 p 0.026 ± 0.002 0.65 ± 0.05 W c L a p       T g b *2.2 nH Ceramic Chip inductor required on unbalanced port. See page 2 for details Mounting Considerations 0.35 Mount these devices with brown mark facing up. Units: mm * * Line width should be designed to provide 50 Ω impedance matching characteristics.    T.I. Chipset 0.8    Solder Resist 1.0 Note: No DC Blocking Capacitor required (internal) Land Through-hole (0.3) 0.30 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.2 2015 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 2.4GHz Impedance Matched Balun-Filter designed for TI CC2520 Chipset. Detail Specification: P/N: 2450BM15B0002 6/15/2015 Page 2 of 5 Mounting Considerations Mounting layout for reference only. Mount device with colored mark facing up. For detailed dimensions, please contact Johanson Technology at: http://www.johansontechnology.com/ask-a-question Or visit TI’s CC2520 website: http://focus.ti.com/docs/prod/folders/print/cc2520.html 2.2nH RF Inductor T.I. Chipset Distance between TI Chipset and Balun-Filter as small as possible with the differential feedlines the exact same length and symmetrical T.I. Chipset Matching Component P/N:2.2nH Inductor: L-07C2N2SV6T http://www.johansontechnology.com/ceramic-inductors.html Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.2 2012 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 2.4GHz Impedance Matched Balun-Filter designed for TI CC2520 Chipset. P/N: 2450BM15B0002 6/15/2015 Detail Specification: Page 3 of 5 Typ 25C and 125C RF Plot of Balun-Filter component only (solo) 0 -5 -10 -15 -20 -25 -30 Differential impedance setting  when measuring/characterizing  balun‐filter component only  (solo): 35‐j43ohms -35 -40 -45 0.5 1.5 2.5 3.5 4.5 5.5 6.5 7.5 8.5 freq, GHz 25C Unbalanced RL 25C Balanced Return Loss 25C Insertion Loss/Attenuation (Differential Mode) 125C Unbalanced RL 125C Balanced Return Loss 125C Insertion Loss/Attenuation (Differential Mode) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.2 2012 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 2.4GHz Impedance Matched Balun-Filter designed for TI CC2520 Chipset. Detail Specification: P/N: 2450BM15B0002 6/15/2015 Page 4 of 5 Typical Electrical Performance (T=25°C) when balun-filter connected to TI CC2520 + 2.2nH inductor in series Differential impedance setting when simulating the balun‐filter component  connected to TI CC2520 + 2.2nH inductor  in series: 47‐j34ohms Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.2 2012 Johanson Technology, Inc. All Rights Reserved "High Frequency Ceramic Solutions" 2.4GHz Impedance Matched Balun-Filter designed for TI CC2520 Chipset. Detail Specification: P/N: 2450BM15B0002 6/15/2015 Page 5 of 5 Application Notes, Layout Files, and more www.johansontechnology.com/ti RoHS Compliance www.johansontechnology.com/technical-notes/rohs-compliance.html Soldering Information www.johansontechnology.com/ipcsoldering-profile Antenna layout and tuning techniques www.johansontechnology.com/tuning Antenna layout review, tuning, and characterization services www.johansontechnology.com/ipcantennaservices MSL Info www.johansontechnology.com/technical-notes/msl-rating.html Recommneded Storage Condition and Max Shelf Life www.johansontechnology.com/ipcstorage-shelflife Packaging information www.johansontechnology.com/ipcpackaging.html Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.2 2015 Johanson Technology, Inc. All Rights Reserved
