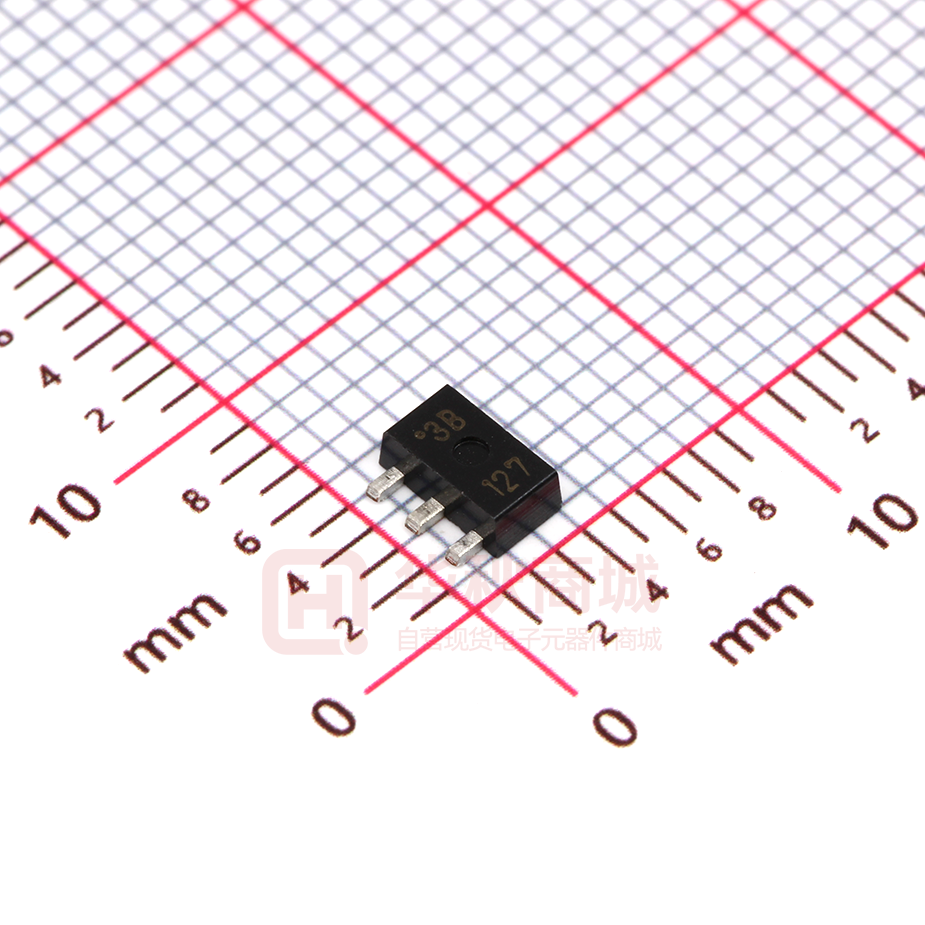

KIA431AF-RTF/PC

SEMICONDUCTOR TECHNICAL DATA KIA431 Series BIPOLAR LINEAR INTEGRATED CIRCUIT PROGRAMMABLE PRECISION REFERENCES The KIA431 Series integrated circuits are three-terminal programmable shunt regulator diodes. These monolithic IC voltage reference operate as a low temperature coefficient zener which is programmable from Vref to 36 volts with two external resistors. These devices exhibit a wide operating current range of 1.0 to 100mA with a typical dynamic impedance of 0.22Ω.The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5 volt reference makes it convenient to obtain a stable reference from 5.0 volt logic supplies, and since the KIA431 Series operates as a shunt regulator, it can be used as either a positive or negative voltage reference. FEATURES ・Divice Code Name :KIA431 + Vref Code + Package Code+Pin Configuration Code Vref Code ITEM KIA431 Code Blank Z A Tolerance (%) B ±0.5 ±2.2 ±1.5 ±1.0 Package Code Code Blank F M Package TO-92 SOT-89 SOT-23 ・Low Dynamic Output Impedance : 0.22Ω(Typ.). ・Sink Current Capability of 1.0 to 100mA. ・Equivalent Full-Range Temperature Coefficient of 50ppm/℃ (Typ.). ・Temperature Compensated for Operation Over Full Rated Operating Temperature Range. ・Low Output Noise Voltage. ・Suffix U : Qualified to AEC-Q100. ex ) KIA431*M-RTK/HU PIN CONFIGURATION (SOT-23) LINE UP Type No. Operating Voltage(V) Package Marking 3 KIA431 KIA431Z 3 TO-92 KIA431A TOP VIEW KIA431B KIA431F KIA431ZF KIA431AF 2.5 ~ 36 SOT-89 3Z 3C KIA431M 43C KIA431ZM SOT-23 KIA431AM KIA431BM 2 2 1 3B KIA431BF 2019. 01. 23 1 3A 1. Cathode 2. Reference 3. Anode 43Z 43A 43B Revision No : 22 1/7 KIA431 Series BLOCK DIAGRAM Cathode (K) + Reference (R) Cathode (K) - Reference (R) 2.5Vref Anode (A) Anode (A) ORDERING INFORMATION KIA431 Selection code Packing specification Package code Vref Tolerance code Vref Tolerance code Package Code Selection Code Blank ±2.2% Blank TO-92 P/PS Pb-Free Z ±1.5% F SOT-89 H Halogen-Free A ±1.0% M SOT-23 B ±0.5% Packing Specification 2019. 01. 23 TO-92 AT : Taping of AMMO PACK type SOT-89 RTF : RTF type SOT-23 RTK : RTK type Revision No : 22 2/7 KIA431 Series MAXIMUM RATINGS (Ta=25℃) (Full operating ambient temperature range applies unless otherwise noted.) CHARACTERISTIC SYMBOL RATING UNIT VKA 37 V Cathode Current Range, Continuous IK -100～150 mA Reference Input Current Range, Continuous Iref -0.05～10 mA Operating Junction Temperature Tj 150 ℃ Operating Temperature Topr -40～85 ℃ Storage Temperature Tstg -65～150 ℃ Cathode To Anode Voltage 700 KIA431 Total Power Dissipation PD KIA431F KIA431M (Note1) 350 KIA431 179 Rth(j-a) KIA431F Thermal Resistance mW 800 KIA431M 156 (Note1) ℃/W 357 Note1) Package mounted on 99.5% Alumina 10×8×0.6mm ELECTRICAL CHARACTERISTICS (Ta=25℃) CHARACTERISTICS SYMBOL TEST CIRCUIT TEST CONDITION KIA431 Reference Input KIA431Z Voltage KIA431A Vref Figure 1 VKA=Vref , IK=10mA KIA431B Reference Input Voltage Deviation Over Temperature Range Ratio of Change in Reference Input Voltage to Change in Cathode to ΔVref (Note 1) VKA=Vref , IK=10mA ΔVKA= ΔVref/ ΔVKA Anode Voltage Figure 1 Figure 2 IK=10mA 10V～Vref ΔVKA= 36V～10V Ta=25℃ MIN. TYP. MAX. UNIT 2.440 2.495 2.550 V 2.458 2.495 2.532 V 2.470 2.495 2.520 V 2.4825 2.495 2.5075 V - 7.0 30* - 7.0 40 - -1.4 -2.7 - -1.0 -2.0 - 1.8 4.0 - - 6.5 mV mV/V Iref Figure 2 ΔIref Figure 2 IK=10mA, R1=10kΩ, R2=∞ - 0.8 2.5 μA Minimum Cathode Current For Regulation Imin Figure 1 VKA=Vref - 0.5 1.0 mA Off-State Cathode Current Ioff Figure 3 VKA=36V, Vref=0V - 2.6 1000 nA Dynamic Impedance Zka Figure 1 VKA=Vref, IK=1.0～100mA, (Note 2) f≦1.0kHz - 0.22 - Ω Reference Input Current Ta=Topr Reference Input Current Deviation Over Temperature Range IK=10mA, R1=10kΩ, R2=∞ μA * : Selection Code (PS) 2019. 01. 23 Revision No : 22 3/7 KIA431 Series FIGURE 3-TEST CIRCUIT FOR I off FIGURE 1-TEST CIRCUIT FOR VKA = Vref VKA Input VKA Input IK I off Vref Example : ΔVref = 8.0mV and slope is positive, FIGURE 2-TEST CIRCUIT FOR VKA > Vref Input Vref at 25℃=2.495V, ΔTa=70℃ VKA αVref = IK R1 Iref VKA = Vref ( 1+ R1 ) + Iref R2 R1 R2 70×(2.495) = 45.8 ppm/℃ Note 2: The dynamic impedance Zka is defined as: |Zka| = Vref 0.008×106 ΔVKA ΔIk When the device is programmed with two external Note 1: resistors, R1 and R2, (refer to Figure 2) the total The deviation parameter ΔVref is defined as the differences dynamic impedance of the circuit is defined as: between the maximum and minimum values obtained over the full operating ambient temperature range that applies. |Zka’| = |Zka| (1+ R1 R2 ) Vref = Vref (Max.) Vref Max. - Vref (Min.) Ta = T2 - T1 Vref Min. T1 T2 AMBIENT TEMPERATURE The average temperature coefficient of the Reference input voltage, ΔVref , is defined as: αVref ( ppm ℃ ( )= = ΔVref Vref at 25℃ ) × 106 ΔTa ΔVref × 106 ΔTa(Vref at 25℃) α Vref can be positive or negative depending on whether Vref Min. or Vref Max. occurs at the lower ambient temperature. 2019. 01. 23 Revision No : 22 4/7 KIA431 Series I K - VKA 800 VKA =V ref Ta=25 C 100 CATHODE CURRENT I K (μA) CATHODE CURRENT IK (mA) I K - VKA 150 50 0 -50 -1.0 0 1.0 2.0 600 400 200 0 -200 -1.0 -100 -2.0 V KA =V ref Ta=25 C 3.0 CATHODE VOLTAGE VKA (V) 0 1.0 2.0 CATHODE VOLTAGE VKA (V) DYNAMIC IMPEDANCE Zka (Ω) Zka CHANGE IN REFERENCE INPUT VOLTAGE Vref (mV) Vref - VKA 0 IK =10mA Ta=25 C -8.0 -16 -24 100 10 1.0 0.1 1.0k 10 20 30 10k 10M Ta=25 C 3.0 VOLTAGE SWING (V) I K=10mA Ta=25 C 40 30 20 OUTPUT 2.0 1.0 0 5.0 INPUT 0 10 0 4.0 8.0 0 12 16 20 TIME t (μs) -10 1.0k 10k 100k 1.0M FREQUENCY f (Hz) PD - Ta 10M 1000 ALLOWABLE POWER DISSIPATION PD (mW) OPEN LOOP VOLTAGE GAIN GVO (dB) 1.0M PULSE RESPONSE GVO - f 50 100k FREQUENCY f (Hz) 40 CATHODE VOLTAGE VKA (V) 60 - f I K=1.0mA~100mA Ta=25 C -32 0 3.0 900 800 KIA431F 700 600 500 KIA431 400 300 200 100 KIA431M 0 0 25 50 75 100 125 150 175 AMBIENT TEMPERATURE Ta ( C) 2019. 01. 23 Revision No : 22 5/7 KIA431 Series C B A C H J B E A G N DIM A B C D E F G H J K L M N E K G J D H F F 3 C 2 M L 1 MILLIMETERS 4.70 MAX 4.80 MAX 3.70 MAX 0.45 1.00 1.27 0.85 0.45 _ 0.50 14.00 + 0.55 MAX 2.30 0.45 MAX 1.00 DIM A B C D E F G H J K D D K F 1 F 2 3 MILLIMETERS 4.70 MAX _ 0.20 2.50 + 1.70 MAX 0.45+0.15/-0.10 4.25 MAX _ 0.10 1.50 + 0.40 TYP 1.75 MAX 0.75 MIN 0.5+0.10/-0.05 1. REFERENCE 2. ANODE 1. REFERENCE 3. CATHODE 2. ANODE Heat Sink is common to 2 (ANODE) 3. CATHODE TO-92 E B L D L 2 3 H G A SOT-89 1 Q P K J N C P DIM A B C D E G H J K L M N P Q MILLIMETERS _ 0.20 2.93 + 1.30+0.20/-0.15 1.30 MAX 0.40+0.15/-0.05 2.40+0.30/-0.20 1.90 0.95 0.13+0.10/-0.05 0.00 ~ 0.10 0.55 0.20 MIN 1.00+0.20/-0.10 7 0.1 MAX M 1. CATHODE 2. REFERENCE 3. ANODE SOT-23 2019. 01. 23 Revision No : 22 6/7 KIA431 Series PRECAUTION FOR USE Lead-Free Soldering Condition. Elements mounting styles of electronic devices are gaining in further diversification over recent years, and needs for components are all the more expanding in varieties. Especially, surface mounting is steadily penetrating into industrial segments as a world-wide popular technical trend. Although exposure to high temperature is inevitable during soldering we recommend limiting the soldering temperature to low levels as shown in figure for the sake of retaining inherent excellent reliability. _ 1sec 10 + _3 C Peak : 260 + Temperature ( C) 250 C 230 C 180 C 150 C _ 30sec 90 + _ 5sec 35 + Preheating Zone Reflow Zone Time (sec) [Lead-Free Soldering Temperature Profile] 1. When employing solder reflow method 1) Soldering Condition ⓐ Standard Condition : 250℃ (Temperature), 10±1sec. (Time) ⓑ Peak Condition : 260±3℃ 2) Recommend temperature profile 3) Precautions on heating method When resin in kept exposed to high temperature for a long time, device reliability may be marred. Therefore, it is essential to complete soldering in the shortest time possible to prevent temperature of resin from rising. 2. When employing halogen lamps or infrared-ray heaters When halogen lamps or infrared-ray heaters are used, avoid direct irradiation onto resin surfaces; such devices cause extensive localized temperature rise. ※ Please keep a reflow solder operating when Surface Mount Package s Soldering. 2019. 01. 23 Revision No : 22 7/7
