Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Overview

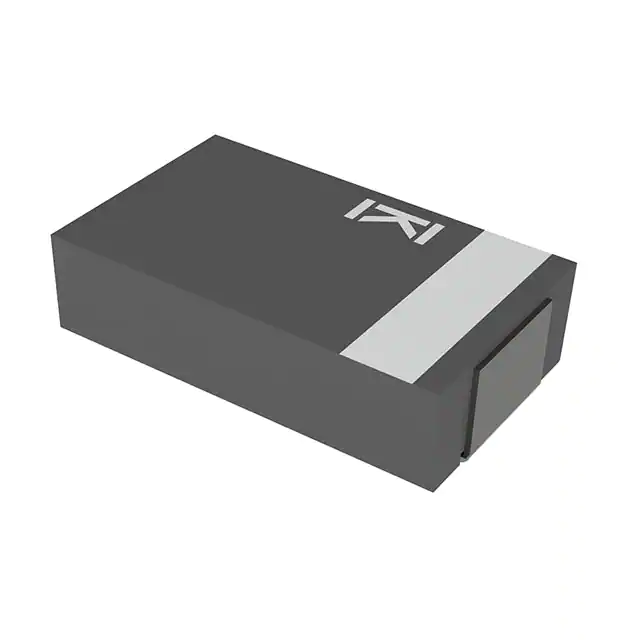

The KEMET Aluminum Organic Capacitor (AO-CAP)
is a solid state aluminum capacitor. The cathode is a
conductive organic polymer, which results in very low ESR
and improved capacitance retention at a high frequency.
AO-CAPs may be operated at steady state voltages up
to100% of rated voltage without the need to de-rate.
Since there is no liquid electrolyte, the A720 offers long
operational lifetimes, low ESR and high operational
temperatures. The inherent low ESR renders the A720
suitable for high ripple current handling. The small
package size, high ripple current capability, high operating
temperature, low parasistics, and high capacitance make the
A720 ideal for high performance microprocessor, FPGA, and
ASIC decoupling designs.
Benefits
• Polymer cathode technology
• High frequency capacitance retention
• Non-ignition failure mode
• 100% accelerated steady state aging
• 100% surge current tested
• Volumetric efficiency
• Minimum ESR up to mΩ
• Voltage: 2 – 35 V
• Capacitance: 22 – 470 μF
Applications
Typical applications include DC/DC converters, notebook PCs, telecommunications, displays, and industrial applications.
Environmental Compliance
• RoHS compliant when ordered with 100% Sn, Ni-Pd-Au or non-magnetic 100% Sn solder
• Halogen-free
• Epoxy compliant with UL94 V-0
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
1
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET's K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
Ordering Information
A
720
Capacitor
Class
Series
A=
Aluminum
V
477
M
002
A
Case Capacitance Code Capacitance Rated Voltage Failure Rate/
Size
(pF)
Tolerance
(VDC)
Design
720 =
Aluminum
Polymer
(Gen II)
V
First two digits
represent
significant
figures. Third
digit specifies
number of zeros.
M=
±20%
002 = 2
2R5 = 2.5
035 = 35
A=
N/A
P
E003
Termination
Finish
ESR
P=
Ni-Pd-Au
E = ESR
Last three
digits specify
ESR in mΩ
(018 = 18 mΩ)
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
Performance Characteristics
Item
Performance Characteristics
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
−55°C to 105°C
22 – 470 μF at 120 Hz/25°C
M Tolerance (20%)
2 – 35 V
DF (120 Hz)
Refer to Part Number Electrical Specification Table
ESR (100 kHz)
Refer to Part Number Electrical Specification Table
Leakage Current
Refer to Part Number Electrical Specification Table
If there is any concern about leakage current, please perform pre-conditioning to the part
following below conditions:
* Temperature: 105°C maximum
* Voltage: Rated Voltage
* Series Resistor: 1,000 Ω
* Charge Time: 1 hour minimum
* Measuring: Discharge the capacitor(s), store them for 4 to 24 hours at room temperature
and RH ≤ 60%
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
2
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Qualification
Test
Condition
Characteristics
Δ C/C
Endurance
105°C at 1.0 VR , 2,000 hours
DF
≤ initial limit
DCL
Within 1.25 x initial limit
ESR
Within 2.0 x initial limit
Δ C/C
Storage Life
105°C at 0 volts, 2,000 hours
Temperature
Stability
60°C, 90% RH, 500 hours, no load
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +105°C, +25°C
Within initial limits
DCL
Within 1.25 x initial limit
ESR
Within 2.0 x initial limit
Mechanical Shock/
Vibration
Within −20/+50% of initial value
DF
Within 2.0 x initial limit
DCL
Within 5.0 x initial limit
+25°C
−55°C
+85°C
+105°C
Δ C/C
IL*
±15%
±15%
±20%
DF
IL
IL
IL
IL
DCL
IL
N/A
2 x IL
2 x IL
Δ C/C
Surge Voltage
Within ±10% of initial value (for ≤ 16 V parts)
Within ±20% of initial value (for ≥ 16 V parts)
DF
Δ C/C
Humidity
Within ±10% of initial value (for ≤ 16 V parts)
Within ±20% of initial value (for ≥ 16 V parts)
105°C, 1.32 x Rated Voltage, 33 Ω resistance,
1,000 cycles
MIL–STD–202, Method 213, Condition I, 100 G Peak
MIL–STD–202, Method 204, Condition D,
10 Hz to 2,000 Hz, 20 G Peak
Within ±10% of initial value (for ≤ 16 V parts)
Within ±20% of initial value (for ≥ 16 V parts)
DF
Within initial limits
DCL
Within initial limits
ESR
Within initial limits
Δ C/C
Within ±10% of initial value (for ≤ 16 V parts)
Within ±20% of initial value (for ≥ 16 V parts)
DF
Within initial limits
DCL
Within initial limits
*IL = Initial Limit
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
3
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Electrical Characteristics
ESR vs. Frequency
100
A720V477M002_IMP
A720V477M002_ESR
A720V226M035_IMP
10
Impedance & ESR (ohms)
A720V226M035_ESR
1
0.1
0.01
0.001
100
1,000
10,000
100,000
1,000,000
Frequency (Hz)
Capacitance vs. Frequency
1,000
A720V477M002_CAP
A720V226M035_CAP
Capacitance (µF)
100
10
1
100
1,000
10,000
Frequency (Hz)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
100,000
1,000,000
T2078_A720 • 10/14/2021
4
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Dimensions – Millimeters (Inches)
Metric will govern
BOTTOM VIEW
END VIEW
F
SIDE VIEW
w
H
L
S
KEMET
EIA
L
W
H
F ±0.1
±(0.004)
S ±0.3
±(0.012)
Weight
V
7343–21
7.3±0.3
(0.287±0.012)
4.3±0.3
(0.169±0.012)
1.9±0.2
(0.075±0.008)
2.4 (0.094)
1.3 (0.051)
141.00
S
Notes: (Ref) – Dimensions provided for reference only.
These weights are provide as reference. If exact weights are needed, please contact your KEMET Sale Representative.
Table 1 – Ratings & Part Number Reference
Rated
Voltage
Rated
Capacitance
Case Code/
Case Size
KEMET Part
Number
DC
Leakage
DF
ESR
VDC at 105°C
µF
KEMET/EIA
(See below for
part options)
µA at +25°C
Maximum/5
Minutes
% at +25°C
120 Hz
Maximum
mΩ at 25°C
100 kHz
Maximum
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
4
4
4
6.3
16
16
16
16
35
470
470
470
560
560
560
470
470
560
560
560
330
330
330
330
100
100
100
100
22
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
V/7343-21
A720V477M002APE006
A720V477M002APE4R5
A720V477M002APE003
A720V567M002APE003
A720V567M002APE4R5
A720V567M002APE006
A720V477M2R5APE4R5
A720V477M2R5APE003
A720V567M2R5APE003
A720V567M2R5APE4R5
A720V567M2R5APE006
A720V337M004APE006
A720V337M004APE4R5
A720V337M004APE003
A720V337M006APE4R5
A720V107M016APE040
A720V107M016APE025
A720V107M016APE015
A720V107M016APE010
A720V226M035APE040
56.4
56.4
56.4
67.2
67.2
67.2
70.5
70.5
84
84
84
79.2
79.2
79.2
83.2
160
160
160
160
77
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
4.5
3
3
4.5
6
4.5
3
3
4.5
6
6
4.5
3
4.5
40
25
15
10
40
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Ripple
Current
(rms)
MSL
mA at 100 kHz
Temp
with/T = +20°C at Reflow
≤ 260°C
−55°C to 105°C
8,260
9,540
11,690
11,690
9,540
8,260
9,540
11,690
11,690
9,540
8,260
8,260
9,540
11,690
9,540
3,200
4,000
5,200
6,400
3,200
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Maximum
Operating
Temp.
°C
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
105
T2078_A720 • 10/14/2021
5
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Derating Guidelines
Voltage Rating
Maximum
Recommended
Steady State
Voltage
Maximum
Recommended
Transient Voltage
−55°C to 105°C
2 – 35 V
VR
VR
VR = Rated Voltage
Ripple Current/Ripple Voltage
Permissible AC ripple voltage and current are related to equivalent series resistance (ESR) and the power dissipation
capabilities of the device. Permissible AC ripple voltage, which may be applied, is limited by two criteria:
1. The positive peak AC voltage plus the DC bias voltage, if any, must not exceed the DC voltage rating of the capacitor.
2. The negative peak AC voltage, in combination with bias voltage, if any, must not exceed the allowable limits specified
for reverse voltage. See the Reverse Voltage section for allowable limits.
Power capability is determined based on a 20°C temperature rise. A higher temperature rise and therefore higher power
capability is allowable as long as the ambient temperature, plus, temperature rise due to ripple current, does not exceed the
rated temperature of the part.
The maximum power dissipation by case size can be determined using the below table.
KEMET Series
and Case Code
EIA
Case Code
Maximum Power
Dissipation (Pmax)
mWatts at 25°C
with +20°C Rise
A720V
7343–21
410
Using the Pmax of the device, the maximum allowable RMS ripple current or voltage may be determined.
I(max) = √Pmax/R
E(max) = Z √Pmax/R
I = RMS ripple current (amperes)
E = RMS ripple voltage (volts)
Pmax = Maximum power dissipation(watts)
R = ESR at specified frequency (ohms)
Z = Impedance at specified frequency (Ohms)
Refer to part number listings for permittable Arms limits.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
6
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Reverse Voltage
Polymer aluminum capacitors are polar devices and may be permanently damaged or destroyed if connected in the wrong
polarity. These devices will withstand a certain degree of transient voltage reversal for short periods, as shown in the below
table. Please note that these parts may not be operated continuously in reverse, even within these limits.
Temperature
Permissible Transient Reverse Voltage
25°C
55°C
85°C
105°C
60% of rated voltage
50% of rated voltage
40% of rated voltage
30% of rated voltage
Table 2 – Land Dimensions/Courtyard
KEMET
Metric
Size
Code
Density Level A:
Maximum (Most) Land
Protrusion (mm)
Density Level B:
Median (Nominal) Land
Protrusion (mm)
Density Level C:
Minimum (Least) Land
Protrusion (mm)
Case
EIA
W
L
S
V1
V2
W
L
S
V1
V2
W
L
S
V1
V2
V
7343–21
2.55
2.77
3.67
10.22
5.60
2.43
2.37
3.87
9.12
5.10
2.33
1.99
4.03
8.26
4.84
Density Level A: For low-density product applications. Recommended for wave solder applications and provides a wider process window for reflow solder
processes.
Density Level B: For products with a moderate level of component density. Provides a robust solder attachment condition for reflow solder processes.
Density Level C: For high component density product applications. Before adapting the minimum land pattern variations the user should perform
qualification testing based on the conditions outlined in IPC standard 7351 (IPC–7351).
¹ Height of these chips may create problems in wave soldering.
2
Land pattern geometry is too small for silkscreen outline.
V1
L
L
W
W
V2
S
Grid Placement Courtyard
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
7
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Soldering Process
The KEMET families of surface mount capacitors are
compatible with wave (single or dual), convection, IR,
or vapor phase reflow techniques. Preheating of these
components is recommended to avoid extreme thermal
stress. KEMET's recommended profile conditions for
convection and IR reflow reflect the profile conditions of the
IPC/J-STD-020D standard for moisture sensitivity testing.
The devices can safely withstand a maximum of three reflow
passes at these conditions.
Notes:
Hand soldering leads to risk of damage. If performed use
tweezers to hold both capacitors terminals followed by
welding procedure. Avoid excessive force and touching
capacitor body while soldering. Once the capacitor is
removed from the board should not be weld again.
Profile Feature
SnPb Assembly
Pb-Free
Assembly
100°C
150°C
Preheat/Soak
Temperature Minimum (TSmin)
Temperature Maximum (TSmax)
150°C
200°C
Time (ts) from Tsmin to Tsmax)
60 – 120 seconds
60 – 120 seconds
Ramp-up Rate (TL to TP)
3°C/seconds maximum 3°C/seconds maximum
Liquidous Temperature (TL)
183°C
217°C
Time Above Liquidous (tL)
60 – 150 seconds
60 – 150 seconds
Peak Temperature (TP)
220°C*
235°C**
250°C*
260°C**
Time within 5°C of Maximum 20 seconds maximum 30 seconds maximum
Peak Temperature (tP)
Ramp-down Rate (TP to TL) 6°C/seconds maximum 6°C/seconds maximum
Time 25°C to Peak
6 minutes maximum
8 minutes maximum
Temperature
Note: All temperatures refer to the center of the package, measured on the
package body surface that is facing up during assembly reflow.
* For Case Size height > 2.5 mm
** For Case Size height ≤ 2.5 mm
TP
Temperature
TL
tP
Maximum Ramp Up Rate = 3°C/second
Maximum Ramp Down Rate = 6°C/second
tL
Tsmax
Tsmin
25
ts
25°C to Peak
Time
Storage
All AO-CAP Series are shipped in moisture barrier bags (MBBs) with desiccant and humidity indicator card (HIC). These
parts are classified as MSL3 (Moisture Sensitivity Level 3) per IPC/JEDEC J-STD-020 and packaged per
IPC/JEDEC J-STD-033. MSL3 specifies a floor time of 168H at 30°C maximum temperature and 60% relative humidity.
Unused capacitors should be sealed in a MBB with fresh desiccant.
The calculated shelf life in a sealed bag would be 12 months from a bag seal date in a storage environment of < 40°C and
humidity < 90% RH. It should be 24 months from a bag seal date in a storage environment of < 30°C and humidity < 70% RH.
If baking is required, refer to IPC/JEDEC J-STD-033 for bake procedure..
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
8
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Construction
Polarity Stripe (+)
Molded Epoxy
Case
Detailed Element Layer View
Leadframe
(+ Anode)
Silver Epoxy
Leadframe
(− Cathode)
Molded Epoxy
Case
Capacitor Marking
Date Code *
Polarity
Indicator (+)
Picofarad
Code
KEMET
ID
Year
H = 2017
I = 2018
J = 2019
K = 2020
Week
01 = 1st week of the year to
52 = 52nd week of the year
Rated
Voltage
Date
Code*
* H07 = 7th week of 2017
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
9
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Tape & Reel Packaging Information
KEMET’s molded chip capacitor families are packaged in 8 and 12 mm plastic tape on 7" and 13" reels in accordance with
EIA Standard 481: Embossed Carrier Taping of Surface Mount Components for Automatic Handling. This packaging system
is compatible with all tape-fed automatic pick-and-place systems.
Right hand
orientation
only
(+)
Embossed carrier
(−)
Embossment
Top tape thickness
0.10 mm (0.004”)
maximum thickness
180 mm (7.0”) or
330 mm (13.”)
8 mm (0.315”) or
12 mm (0.472”)
Table 3 – Packaging Quantity
Case Code
KEMET
V
EIA
7343-21
Tape Width
(mm)
7" Reel*
13" Reel*
12
1,000
3,000
* No C-Spec required for 7" reel packaging. C-7280 required for 13" reel packaging.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
10
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Figure 1 – Embossed (Plastic) Carrier Tape Dimensions
P2
T
T2
ØD0
P0
(10 pitches cumulative
tolerance on tape ±0.2 mm)
A0
E1
F
K0
B1
E2
B0
S1
W
P1
T1
Center Lines of Cavity
B1 is for tape feeder reference only,
including draft concentric about B0.
Embossment
For cavity size,
see Note 1, Table 4
ØD1
Cover Tape
User Direction of Unreeling
Table 4 – Embossed (Plastic) Carrier Tape Dimensions
Metric will govern
Constant Dimensions — Millimeters (Inches)
Tape Size
8 mm
12 mm
D1 Minimum
Note 1
D0
1.5 +0.10/−0.0
(0.059 +0.004/−0.0)
1.0
(0.039)
1.5
(0.059)
E1
P0
R Reference S1 Minimum
T1
T Maximum
Note 2
Note 3
Maximum
P2
1.75 ±0.10
4.0 ±0.10
2.0 ±0.05
(0.069 ±0.004) (0.157 ±0.004) (0.079 ±0.002)
25.0
(0.984)
30
(1.181)
0.600
(0.024)
0.600
(0.024)
0.100
(0.004)
Variable Dimensions — Millimeters (Inches)
Tape Size
Pitch
B1 Maximum
Note 4
8 mm
Single (4 mm)
4.35
(0.171)
6.25
(0.246)
12 mm
Single (4 mm)
and Double
(8 mm)
8.2
(0.323)
10.25
(0.404)
E2 Minimum
F
P1
3.5 ±0.05
2.0 ±0.05 or 4.0 ±0.10
(0.138 ±0.002) (0.079 ±0.002 or 0.157 ±0.004)
2.0 ±0.05 (0.079 ±0.002) or
5.5 ±0.05
4.0 ±0.10 (0.157 ±0.004) or
(0.217 ±0.002)
8.0 ±0.10 (0.315 ±0.004)
T2 Maximum W Maximum A0, B0 & K0
2.5
(0.098)
8.3
(0.327)
4.6
(0.181)
12.3
(0.484)
Note 5
1. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of embossment
location and hole location shall be applied independent of each other.
2. The tape, with or without components, shall pass around R without damage (see Figure 4).
3. If S1 < 1.0 mm, there may not be enough area for cover tape to be properly applied (see EIA Standard 481–D, paragraph 4.3, section b).
4. B1 dimension is a reference dimension for tape feeder clearance only.
5. The cavity defined by A0, B0 and K0 shall surround the component with sufficient clearance that:
(a) the component does not protrude above the top surface of the carrier tape.
(b) the component can be removed from the cavity in a vertical direction without mechanical restriction, after the top cover tape has been removed.
(c) rotation of the component is limited to 20° maximum for 8 and 12 mm tapes (see Figure 2).
(d) lateral movement of the component is restricted to 0.5 mm maximum for 8 mm and 12 mm wide tape (see Figure 3).
(e) see Addendum in EIA Standard 481–D for standards relating to more precise taping requirements.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
11
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Packaging Information Performance Notes
1. Cover tape break force: 1.0 kg minimum.
2. Cover tape peel strength: The total peel strength of the cover tape from the carrier tape shall be:
Tape Width
Peel Strength
8 mm
0.1 to 1.0 newton (10 to 100 gf)
12 mm
0.1 to 1.3 newton (10 to 130 gf)
The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier tape shall be
165° to 180° from the plane of the carrier tape. During peeling, the carrier and/or cover tape shall be pulled at a velocity of
300 ±10 mm/minute.
3. Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes. Refer to EIA
Standards 556 and 624.
Figure 2 – Maximum Component Rotation
°
T
Maximum Component Rotation
Top View
Maximum Component Rotation
Side View
Typical Pocket Centerline
Tape
Width (mm)
8, 12
Bo
Maximum
Rotation (
20
°
T)
°
s
Tape
Maximum
Width (mm) Rotation (
8, 12
20
Typical Component Centerline
°
S)
Ao
Figure 3 – Maximum Lateral Movement
Figure 4 – Bending Radius
8 mm & 12 mm Tape
0.5 mm maximum
0.5 mm maximum
Embossed
Carrier
Punched
Carrier
R
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Bending
Radius
R
T2078_A720 • 10/14/2021
12
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Figure 5 – Reel Dimensions
Full Radius,
See Note
W3
(Includes
flange distortion
at outer edge)
Access Hole at
Slot Location
(Ø 40 mm minimum)
W2
D
A
(See Note)
N
C
(Arbor hole
diameter)
B
(see Note)
(Measured at hub)
W1
(Measured at hub)
If present,
tape slot in core
for tape start:
2.5 mm minimum width x
10.0 mm minimum depth
Note: Drive spokes optional; if used, dimensions B and D shall apply.
Table 5 – Reel Dimensions
Metric will govern
Constant Dimensions — Millimeters (Inches)
Tape Size
A
B Minimum
C
D Minimum
8 mm
178 ±0.20
(7.008 ±0.008)
or
330 ±0.20
(13.000 ±0.008)
1.5
(0.059)
13.0 +0.5/−0.2
(0.521 +0.02/−0.008)
20.2
(0.795)
12 mm
Variable Dimensions — Millimeters (Inches)
Tape Size
8 mm
12 mm
N Minimum
W1
W2 Maximum
W3
50
(1.969)
8.4 +1.5/−0.0
(0.331 +0.059/−0.0)
12.4 +2.0/−0.0
(0.488 +0.078/−0.0)
14.4
(0.567)
18.4
(0.724)
Shall accommodate tape
width without interference
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
13
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
Figure 6 – Tape Leader & Trailer Dimensions
Embossed Carrier
Punched Carrier
8 mm & 12 mm only
END
Carrier Tape
Round Sprocket Holes
START
Top Cover Tape
Elongated Sprocket Holes
(32 mm tape and wider)
Trailer
160 mm minimum
Components
100 mm
minimum Leader
400 mm minimum
Top Cover Tape
Figure 7 – Maximum Camber
Elongated Sprocket Holes
(32 mm & wider tapes)
Carrier Tape
Round Sprocket Holes
1 mm maximum, either direction
Straight Edge
250 mm
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
14
Aluminum Organic Capacitor (AO-CAP)
A720 Polymer Aluminum
KEMET Electronics Corporation Sales Offices
For a complete list of our global sales offi ces, please visit www.kemet.com/sales.
Disclaimer
All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for
checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such
applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use.
The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes
no obligation or liability for the advice given or results obtained.
Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component
failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards
(such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury
or property damage.
Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other
measures may not be required.
KEMET is a registered trademark of KEMET Electronics Corporation.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2078_A720 • 10/14/2021
15
