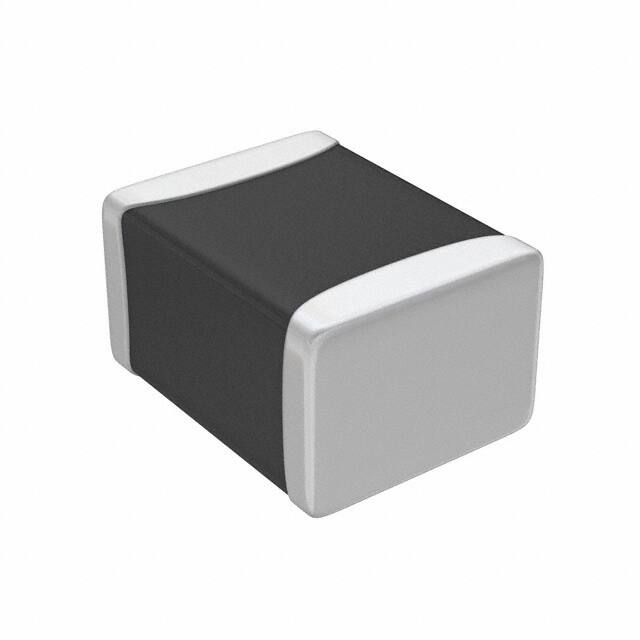

C1210X473KCRACTU

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs) High Voltage with Flexible Termination System (HV FT-CAP) X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Overview KEMET’s High Voltage with Flexible Termination (HV FT-CAP) surface mount MLCCs in X7R dielectric combine high voltage and flexible termination technologies. Featuring a 125°C maximum operating temperature and considered “temperature stable,” these devices address the primary failure mode of MLCCs—flex cracks, which are typically the result of excessive shear stresses produced during board flexure or thermal cycling. Utilizing a conductive silver epoxy between the base metal and nickel barrier layers of KEMET’s standard termination system, flexible termination technology directs board flex stress away from the ceramic body and into the termination area, therefore mitigating flex cracks which can result in low IR or short circuit failures. Although flexible termination technology does not eliminate the potential for mechanical damage that may propagate during extreme environmental and handling conditions, it does provide superior flex performance over standard termination systems. The HV FT-CAP offers low leakage current, exhibits low ESR at high frequencies and finds conventional use as snubbers or filters in applications such as switching power supplies and lighting ballasts. Their exceptional performance at high frequencies has made them a preferred choice of design engineers worldwide. In addition to their use in power supplies, these capacitors are widely used in industries related to telecommunications, medical, military, aerospace, semiconductors and test/diagnostic equipment. Combined with the stability of an X7R dielectric and designed to accommodate all capacitance requirements, these flex-robust devices are RoHS-compliant, offer up to 5mm of flex-bend capability and exhibit a predictable change in capacitance with respect to time and voltage. Capacitance change with reference to ambient temperature is limited to ±15% from -55°C to +125°C. Benefits • • • • • • • • • • -55°C to +125°C operating temperature range Superior flex performance (up to 5mm) Pb-Free and RoHS compliant EIA 0805, 1206, 1210, 1808, 1812, 1825, 2220 and 2225 case sizes DC voltage ratings of 500V, 630V, 1KV, 1.5KV, 2KV, 2.5KV and 3KV Capacitance offerings ranging from 62pF to 0.27μF Available capacitance tolerances of ±5%, ±10% or ±20%. Low ESR and ESL Non-polar device, minimizing installation concerns 100% pure matte tin-plated end metallization allowing for excellent solderability • SnPb plated end metallization option available upon request (5% min) Applications Typical applications include switch mode power supplies (input filters, resonators, tank circuits, snubber circuits, output filters), high voltage coupling and DC blocking, lighting ballasts, voltage multiplier circuits, DC/DC converters and coupling capacitors in Ćuk converters. Markets include power supply, LCD fluorescent backlight ballasts, HID lighting, telecom equipment, industrial and medical equipment/control, LAN/WAN interface, analog and digital modems, and automotive. X7R dielectrics are not designed for AC line filtering or pulse applications. Ordering Information C Ceramic 1210 X 473 Capacitance Code (pF) 2 Sig. Digits + Number of Zeros K Capacitance Tolerance J = ±5% K = ±10% M = ±20% C Voltage C = 500V B = 630V D = 1000V F = 1500V G = 2000V Z = 2500V H = 3000V R Dielectric R = X7R A Failure Rate/ Design A = N/A C End Metallization1 C = 100% Matte Sn L = SnPb (5% min) TU Packaging/Grade (C-Spec)2 Blank = Bulk TU = 7" Reel Unmarked TM = 7" Reel Marked Case Size Specification/ (L" x W") Series 0805 1206 1210 1808 1812 1825 2220 2225 X = Flexible Termination 1 2 Additional termination options may be available. Contact KEMET for details. Additional reeling or packaging options may be available. Contact KEMET for details. One WORLD One Brand One Strategy One Focus One Team One KEMET C1025-1 • 9/13/2010 1 © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Dimensions – Millimeters (Inches) T W L B S EIA Size Code 0805 1206 1210 1808 1812 1825 2220 2225 Metric Size Code 2012 3216 3225 4520 4532 4564 5650 5664 L Length 2.1 (.083) ± 0.30 (.012) 3.3 (.130) ± 0.40 (.016) 3.3 (.130) ± 0.40 (.016) 4.7 (.185) ± 0.50 (.020) 4.5 (.178) ± 0.40 (.016) 4.6 (.181) ± 0.40 (.016) 5.9 (.232) ± 0.75 (.030) 5.9 (.232) ± 0.75 (.030) W Width 1.25 (.049) ± 0.20 (.008) 1.60 (.063) ± 0.20 (.008) 2.50 (.098) ± 0.20 (.008) 2.00 (.079) ± 0.20 (.008) 3.20 (.126) ± 0.30 (.012) 6.40 (.252) ± 0.40 (.016) 5.00 (.197) ± 0.40 (.016) 6.40 (.248) ± 0.40 (.016) B Bandwidth 0.50 (0.02) ± 0.25 (.010) 0.60 (.024) ± 0.25 (.010) 0.60 (.024) ± 0.25 (.010) 0.70 (.028) ± 0.35 (.014) 0.70 (.028) ± 0.35 (.014) 0.70 (.028) ± 0.35 (.014) 0.70 (.028) ± 0.35 (.014) 0.70 (.028) ± 0.35 (.014) T Thickness Mounting Technique Solder Wave or Solder Reflow See Table 2 for Thickness Solder Reflow Only Qualification/Certification Commercial grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in Table 4, Performance and Reliability. Environmental Compliance RoHS PRC ( Peoples Republic of China) compliant Electrical Parameters/Characteristics Item Operating Temperature Range: Capacitance Change with Reference to +25°C and 0 Vdc Applied (TCC): Aging Rate (Max % Cap Loss/Decade Hour): Dielectric Withstanding Voltage: Dissipation Factor (DF) Maximum Limit @ 25ºC: Insulation Resistance (IR) Limit @ 25°C: Insulation Resistance (IR) Limit @ 125°C: -55°C to +125°C ±15% 3.5% 150% of rated voltage for voltage rating of < 1000V 120% of rated voltage for voltage rating of ≥ 1000V 2.5% 1000 megohm microfarads or 100GΩ 100 megohm microfarads or 10GΩ Parameters/Characteristics To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits. Capacitance and Dissipation Factor (DF) measured under the following conditions: 1kHz and 1 Vrms if capacitance >1000pF © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 2 SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Table 1A – (0805 - 1812 Case Sizes) Cap Cap Code Series Voltage Code C0805 C B D C B C1206 D F G C B C1210 D F G C B D C1808 F G Z H C B D C1812 F G Z H Voltage VDC 500 630 1000 500 630 1000 1500 2000 500 630 1000 1500 2000 500 630 1000 1500 2000 2500 3000 500 630 1000 1500 2000 2500 3000 Cap Tolerance Product Availability and Chip Thickness Codes - See Table 2 for Chip Thickness Dimensions 10 pF 100 J KM 11 pF 110 J KM 12 pF 120 J KM 13 pF 130 J KM 15 pF 150 J KM 16 pF 160 J KM 18 pF 180 J KM 20 pF 200 J KM 22 pF 220 J KM 24 pF 240 J KM 27 pF 270 J KM 30 pF 300 J KM 33 pF 330 J KM J KM 36 pF 360 39 pF 390 J KM 43 pF 430 J KM 47 pF 470 J KM 51 pF 510 J KM 56 pF 560 J KM 62 pF 620 J K M DG DG DG 68 pF 680 J K M DG DG DG 75 pF 750 J K M DG DG DG EG EG EG 82 pF 820 J K M DG DG DG EG EG EG 91 pF 910 J K M DG DG DG EG EG EG 100 pF 101 J K M DG DG DG EG EG EG 110 pF 111 J K M DG DG DG EF EF EF 120 pF 121 J K M DG DG DG EF EF EF 130 pF 131 J K M DG DG DG EF EF EF 150 pF 151 J K M DG DG DG EF EF EF 180 pF 181 J K M DG DG DG EF EF EF 220 pF 221 J K M DG DG DG EF EF EF 270 pF 271 J K M DG DG DG EF EF EF 330 pF 331 J K M DG DG DG EF EF EF 390 pF 391 J K M DG DG DG EF EF EF 470 pF 471 J K M DG DG DG EF EF EF 560 pF 561 J K M DG DG DG EF EF EF 680 pF 681 J K M DG DG DG EF EF EF 820 pF 821 J K M DG DG DG EF EF EF 1,000 pF 102 J K M DG DG DG EF EF EF 1,200 pF 122 J K M DG DG DG EF EF EF 1,500 pF 152 J K M DG DG DG EF EF EF 1,800 pF 182 J K M DG DG DG EF EF EF 2,000 pF 202 J K M DG DG DG EF EF EF 2,200 pF 222 J K M DG DG DG EF EF EF 2,700 pF 272 J K M DG DG DG EF EF EF 3,300 pF 332 J K M DG DG DG EF EF EF 3,900 pF 392 J K M DG UD UD EF EF EF 4,700 pF 472 J K M DG UD UD EF EF EF EF 5,600 pF 562 J K C 1210 M DG XUD UD EF 473 EF 6,800 pF 682 J K M DG UD UD EG EG EG Capacitance 8,200 pF Ceramic Case Size MSpecification/ 822 J K DG UD UD EG EG EG (L" x W") M UD UD UD EG EG(pF) Series Code EG 10,000 pF 103 J K 12,000 pF 123 J K M UD UD UD EG UD UD 0805 X = Flexible 2 Sig. Digits + 15,000 pF 153 J K M UD UD UD EG UD UD 1206 Termination Number of Zeros 18,000 pF 183 J K M UD UD UD UD UD UD 1210 M J K 22,000 pF 223 UD UD UD UD 27,000 pF 273 J1808 M UD K UD UD UD EG EG EG EG EF EF EF EF EF EF EF EF EF EF EF EF EF EF EG EG EG EG EG EG EG EG EG Cap 1812 1825 Cap Voltage Code C B D 2220 Code 2225 Series C0805 LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LB LA LA LA LA LB LB LB FL FL FL FL FL LA LA LA LA LB LB LB FL FL FL FL FL LA LA LA LA LB LB LB GK GK GK GK GK FL FL FL FL FL LA LA LA LA LB LB LB GK GK GK GK GK FL FL FL FL FL LA LA LA LA LB LB LB GK GK GK GK GK FL FL FL FL FL LA LA LA LA LB LB LC GK GK GK GK GK FL FL FL FL FL LA LA LA LA LB LB LC GK GK GK GK GK FL FL FL FL FL LA LA LA LA LB LB LC GK GK GK GK GK FL FL FL FL FL LA LA LA LA LB LB LC GH GH GH GH GH FL FL FL FL FL LA LA LA LA LB LB LC GH GH GH GH GH EG FL FL FL FL FL LA LA LA LA LB LC LC GH GH GH GH GH EG FL FL FL FL FL LA LA LA LA LB LC LC GH GH GH GH GH EG FL FL FL FL FL LA LA LA LA LB LC LC GH GH GH GH GH EG FL FL FL FL FM LB LB LB LB LC GH GH GH GH GH EG FL FL FL FL FM LA LA LA LB LC GH GH GH GH GH EG FL FL FL FL FM LA LA LA LB LC GH GH GH GH GH EG FL FL FL FL FM LA LA LA LB LC GH GH GH GH GH GH GH GH GH GH EG FL FL FL FL FM LA LA LA LB LC FL FL FL FL FM LA LA LA LB LC GH GH GH GH GK FL FL FL FL FM LA LA LA LB GH GH GH GH GK FL FL FL FL FK LA LA LA LB GH GH GH GH GK FL FL FL FL FK LA LA LA LB GH GH GH GH FL GH GH GH GK K FL FL C FM R LA LB ALB LC C TU FL FL FL FM LA LB LB LC GH GH GH GK Capacitance FL FL FK Packaging/Grade FL LA Failure Rate/ Voltage Dielectric LB LB LC End Metallization1 GH GH GH GK2 Design Tolerance FL FL FK FL LA LB LB LC GH GH (C-Spec) GH GK FL FL FL FK LA GH GK J = ±5% C = 500V R = X7R LC = N/A A LC C = 100% Matte Sn Blank =GK GK Bulk FL FL FL LA LC LC GH GK GK K = ±10% B = 630V L = SnPb (5% min) TU = 7" Reel FL FL FL LA UD UD GH GK GK M = ±20% FM = 1000V D FM Unmarked FL LA UD UD GH GK GK F FK FM FK = 1500V LA UD UD GH TM = 7" Reel Marked G C EG EG EG EG EG EG EG EG EG EG GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK GK Voltage VDC 500 630 1000 500 630 1000 1500 2000 500 630 1000 1500 2000 500 630 1000 1500 2000 2500 3000 500 630 1000 1500 2000 2500 3000 C B D C1206 F G C B D F C1808 G Z H C B D F C1812 G Z H C1210 G = 2000V Z = 2500V B = 3000VF HD UD = Under Developement © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 3 Roll Over for Order Info. SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Table 1A con't – (0805 - 1812 Case Sizes) Cap 33,000 pF 39,000 pF 47,000 pF 56,000 pF 68,000 pF 82,000 pF 0.10 uF 0.12 uF 0.15 uF 0.18 uF 0.22 uF 0.27 uF 0.33 uF Cap Code 333 393 473 563 683 823 104 124 154 184 224 274 334 Series Voltage Code C0805 C B D C B C1206 D F G C B C1210 D F G C B D C1808 F G Z H C B D C1812 F G Z H Voltage VDC 500 630 1000 500 630 1000 1500 2000 500 630 1000 1500 2000 500 630 1000 1500 2000 2500 3000 500 630 1000 1500 2000 2500 3000 Cap Tolerance J J J J J J J J J J J K K K K K K K K K K K M M M M M M M M M M M UD Product Availability and Chip Thickness Codes - See Table 2 for Chip Thickness Dimensions UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD FM FK FK UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD UD LC LC LC LC UD UD UD UD UD UD UD GH GH GH GH GK GK GK Cap Cap Voltage Code C Code Series Voltage VDC 500 630 1000 500 630 1000 1500 2000 500 630 1000 1500 2000 500 630 1000 1500 2000 2500 3000 500 630 1000 1500 2000 2500 3000 B C0805 D C B D C1206 F G C B D C1210 F G C B D F C1808 G Z H C B D F C1812 G Z H Table 1B – (1825 - 2225 Case Sizes) Cap Cap Code Series Voltage Code Voltage VDC Cap Tolerance 100 pF 101 J K M 110 pF 111 J K M 120 pF 121 J K M 130 pF 131 J K M 150 pF 151 J K M 180 pF 181 J K M 220 pF 221 J K M 270 pF 271 J K M 330 pF 331 J K M HG 390 pF 391 J K M HG K M HG 470 pF 471 J 560 pF 561 J K M HG 680 pF 681 J K M HG 820 pF 821 J K M HG 1,000 pF 102 J K M HG 1,200 pF 122 J K M HG 1,500 pF 152 J K M HG 1,800 pF 182 J K M HE C 202 1210 K M X HE 2,000 pF J 2,200 pF 222 Case SizeK Specification/ J M HE 2,700 pF Ceramic 272 J M HE (L" x W") K Series 3,300 pF 332 J K M HE 0805 K X M Flexible = 3,900 pF 392 J HE 1206 K Termination 4,700 pF 472 J M HE 5,600 pF 562 J M HE 1210 K 6,800 pF 682 J M HE 1808 K C 500 B 630 D C1825 F G Z H C 500 B 630 D 1000 1500 2000 2500 3000 C2220 F G Z H C 500 B 630 D 1000 1500 2000 2500 3000 C2225 F G Z H 1000 1500 2000 2500 3000 Product Availability and Chip Thickness Codes - See Table 2 for Chip Thickness Dimensions Cap Cap Code 1812 Voltage VDC 1825 Voltage Code 2220 2225Series HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HG HE HE HE 473 HE HE HE HE Capacitance HE HE HE HE HE Code (pF) HE HE HE HE2 Sig. Digits + HE HE Number of Zeros HE HE HE HE HE HE HE HE HE 630 B D F C1825 500 C G 2000V 1000 1500 2000 2500 3000 = 500 630 G Z H HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HG HG HG JP JP JP HE HG HG JP JP JP C JE R HE K HG HG JE JE HE HG JE JE Capacitance HG JE Voltage JEDielectric JE HE HG Tolerance HG JE HE HG HG JE JE JE J C = 500V JE R = JE X7R HE = ±5% JE K B = 630V JE HE = ±10% JE JE HE = ±20% D = 1000V JE JE JE M HE JE JE F = 1500V JE JP JP JP JP JP JP JP JP JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF JP JP JP JP KF KF KF KF KF A TU KF JE JE JP JP C KF KF KF KF JE JE JP KF KF KF KF KF Failure Rate/JP Packaging/Grade 1 EndJP MetallizationKE KE KE 2 JE JE KE Design JP (C-Spec)KE JE JE JP JP KE KE KE KE KE N/A JPC = 100% Matte Sn Blank = Bulk KE JE A = JE JP KE KE KE KE L = SnPb (5% min) TU = 7" Reel KE JE JP KE KE KE KE JE JP KE KE KE Unmarked KE KE JE JP KE KE TM = 7" Reel Marked KE KE KF 500 C 630 B F G Z H D F C2225 G KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF KF Z = 2500V C B H = 3000V 1000 1500 2000 2500 3000 D C2220 1000 1500 2000 2500 3000 Z H UD = Under Developement. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 4 Roll Over for Order Info. SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Table 1B con't – (1825 - 2225 Case Sizes) Cap 8,200 pF 10,000 pF 12,000 pF 15,000 pF 18,000 pF 22,000 pF 27,000 pF 33,000 pF 39,000 pF 47,000 pF 56,000 pF 68,000 pF 82,000 pF 0.10 uF 0.12 uF 0.15 uF 0.18 uF 0.22 uF 0.27 uF 0.33 uF 0.39 uF 0.47 uF 0.56 uF 0.68 uF 0.82 uF 1.0 uF 1.2 uF 1.5 uF 1.8 uF 2.2 uF 2.7 uF 3.3 uF Cap Code 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 125 155 185 225 275 335 Series Voltage Code Voltage VDC Cap Tolerance J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M HE HE HE HE HE HE HE HE HE HE HE HG HG HG HG HG HG HG C 500 B 630 HE HE HE HE HE HG HG HG HG HG D C1825 F G Z H C 500 JE JE JE JE JE JE JE JE JE JE JE JE JE JE JE JP JP JP B 630 JE JE JP JP JP JP JP JP JP JP D 1000 1500 2000 2500 3000 HE HE HE HE HE HG HG HG HG HG HE HE HG HG HG HG HG HE C2220 F G Z H C 500 KE KE KE KE KE KE KE KE KE KE KE KE KE KE KE KF KF KF KF B 630 KE KE KE KE KE KF KF KF KF KF KF KF KF D 1000 1500 2000 2500 3000 JE JE JP JP JP JP JP JP JP JP JE JE JP JP JP JP JP JP JP C2225 F G Z H 1000 1500 2000 2500 3000 KE KE KE KE KE KF KF KF KF KF KF KF KF KE KE KE KE KE KF KF KF KF KF KF KF KF Product Availability and Chip Thickness Codes - See Table 2 for Chip Thickness Dimensions Cap Cap Code Voltage VDC Voltage Code Series 500 C 630 B 1000 1500 2000 2500 3000 D F C1825 G Z H 500 C 630 B 1000 1500 2000 2500 3000 D F C2220 G Z H 500 C 630 B 1000 1500 2000 2500 3000 D F C2225 G Z H C Ceramic 1210 X 473 Capacitance Code (pF) 2 Sig. Digits + Number of Zeros K Capacitance Tolerance J = ±5% K = ±10% M = ±20% C Voltage C = 500V B = 630V D = 1000V F = 1500V G = 2000V Z = 2500V H = 3000V R Dielectric R = X7R A Failure Rate/ Design A = N/A C End Metallization1 C = 100% Matte Sn L = SnPb (5% min) TU Packaging/Grade (C-Spec)2 Blank = Bulk TU = 7" Reel Unmarked TM = 7" Reel Marked Case Size Specification/ (L" x W") Series 0805 1206 1210 1808 1812 1825 2220 2225 X = Flexible Termination © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 5 Roll Over for Order Info. SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Table 2 – Chip Thickness / Packaging Quantities Thickness Code AA AB BB CB CC CD DC DD DL DE DF DG DH EB EK EC EN ED EE EF EM EG EH EJ FB FC FD FE FF FG FL FO FH FP FM FJ FN FT FK FR FS PA MA NA NA LD LA LB LC GB GC GD GE GH GF GG GK GJ GN GL GM GO HB HC HD HE HF HG JB JC JD JE JF JP JG JH JO KB KC KD KE KF Chip Size 01005 0201 0402 0603 0603 0603 0805 0805 0805 0805 0805 0805 0805 1206 1206 1206 1206 1206 1206 1206 1206 1206 1206 1206 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1210 1220 1632 1706 1706 1808 1808 1808 1808 1812 1812 1812 1812 1812 1812 1812 1812 1812 1812 1812 1812 1812 1825 1825 1825 1825 1825 1825 2220 2220 2220 2220 2220 2220 2220 2220 2220 2225 2225 2225 2225 2225 Thickness ± Range (mm) 0.20 ± 0.02 0.30 ± 0.03 0.50 ± 0.05 0.80 ± 0.07 0.80 ± 0.10 0.80 ± 0.15 0.78 ± 0.10 0.90 ± 0.10 0.95 ± 0.10 1.00 ± 0.10 1.10 ± 0.10 1.25 ± 0.15 1.25 ± 0.20 0.78 ± 0.10 0.80 ± 0.10 0.90 ± 0.10 0.95 ± 0.10 1.00 ± 0.10 1.10 ± 0.10 1.20 ± 0.15 1.25 ± 0.15 1.60 ± 0.15 1.60 ± 0.20 1.70 ± 0.20 0.78 ± 0.10 0.90 ± 0.10 0.95 ± 0.10 1.00 ± 0.10 1.10 ± 0.10 1.25 ± 0.15 1.40 ± 0.15 1.50 ± 0.20 1.55 ± 0.15 1.60 ± 0.20 1.70 ± 0.20 1.85 ± 0.20 1.85 ± 0.20 1.90 ± 0.20 2.10 ± 0.20 2.25 ± 0.20 2.50 ± 0.20 0.80 ± 0.10 0.80 ± 0.10 0.90 ± 0.10 0.90 ± 0.10 0.90 ± 0.10 1.40 ± 0.15 1.60 ± 0.15 2.00 ± 0.15 1.00 ± 0.10 1.10 ± 0.10 1.25 ± 0.15 1.30 ± 0.10 1.40 ± 0.15 1.50 ± 0.10 1.55 ± 0.10 1.60 ± 0.20 1.70 ± 0.15 1.70 ± 0.20 1.90 ± 0.20 2.00 ± 0.20 2.50 ± 0.20 1.10 ± 0.15 1.15 ± 0.15 1.30 ± 0.15 1.40 ± 0.15 1.50 ± 0.15 1.60 ± 0.20 1.00 ± 0.15 1.10 ± 0.15 1.30 ± 0.15 1.40 ± 0.15 1.50 ± 0.15 1.60 ± 0.20 1.70 ± 0.15 1.80 ± 0.15 2.40 ± 0.15 1.00 ± 0.15 1.10 ± 0.15 1.30 ± 0.15 1.40 ± 0.15 1.60 ± 0.20 Qty per Reel 7" Plastic Qty per Reel 13" Plastic Qty per Reel 7" Paper 15000 15000 10000 4000 4000 4000 4000 4000 Qty per Reel 13" Paper 50000 10000 10000 10000 10000 10000 Qty per Bulk Cassette 50000 15000 4000 2500 2500 2500 2500 4000 2000 4000 4000 2500 2500 2500 2500 2000 2000 2000 4000 4000 4000 2500 2500 2500 2000 2000 2000 2000 2000 2000 2000 1500 2000 2000 1000 4000 4000 4000 4000 2500 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 500 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 500 1000 1000 1000 1000 1000 10000 10000 10000 10000 10000 10000 8000 10000 10000 10000 10000 10000 10000 8000 8000 8000 10000 10000 10000 10000 10000 10000 8000 8000 8000 8000 8000 8000 8000 4000 8000 8000 4000 10000 10000 10000 10000 10000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 2000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 4000 2000 4000 4000 4000 4000 4000 4000 10000 Package Quantity Based on Finished Chip Thickness Specifications © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 6 SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Soldering Process Recommended Soldering Technique: • Solder wave or solder reflow for case sizes 1206 and less • Case sizes 1210 and greater are limited to solder reflow only Recommended Soldering Profile • KEMET recommends following the guidelines outlined in IPC/JEDEC J-STD-020D.1 Table 3 – Chip Capacitor Land Pattern Design Recommendations per IPC-7351 (mm) EIA Size Code 0603 0805 1206 1210 1808 1812 1825 2220 2225 Metric Size Code C 1608 2012 3216 3225 4520 4532 4564 5650 5664 0.85 1.05 1.60 1.60 2.25 2.10 2.15 2.85 2.85 Density Level A: Maximum (Most) Land Protrusion (mm) Y 1.25 1.45 1.65 1.65 1.85 1.80 1.80 2.10 2.10 X 1.10 1.55 1.90 2.80 2.30 3.60 6.90 5.50 6.90 V1 4.00 4.60 5.90 5.90 7.40 7.00 7.10 8.80 8.80 V2 2.10 2.60 2.90 3.80 3.30 4.60 7.90 6.50 7.90 C 0.75 0.95 1.50 1.50 2.15 2.00 2.05 2.75 2.75 Density Level B: Median (Nominal) Land Protrusion (mm) Y 1.05 1.25 1.45 1.45 1.65 1.60 1.60 1.90 1.90 X 1.00 1.45 1.80 2.70 2.20 3.50 6.80 5.40 6.80 V1 3.10 3.70 5.00 5.00 6.50 6.10 6.20 7.90 7.90 V2 1.50 2.00 2.30 3.20 2.70 4.00 7.30 5.90 7.30 C 0.65 0.85 1.40 1.40 2.05 1.90 1.95 2.65 2.65 Density Level C: Minimum (Least) Land Protrusion (mm) Y 0.85 1.05 1.25 1.25 1.45 1.40 1.40 1.70 1.70 X 0.90 1.35 1.70 2.60 2.10 3.40 6.70 5.30 6.70 V1 2.40 3.00 4.30 4.30 5.80 5.40 5.50 7.20 7.20 V2 1.20 1.70 2.00 2.90 2.40 3.70 7.00 5.60 7.00 Density Level A: For low-density Product applications. Recommended for wave solder applications and provides a wider process window for reflow solder processes. KEMET only recommends wave soldering of EIA 0603, 0805 and 1206 case sizes. Density Level B: For products with a moderate level of component density. Provides a robust solder attachment condition for reflow solder processes. Density Level C: For high component density product applications. Before adapting the minimum land pattern variations the user should perform qualification testing based on the conditions outlined in IPC standard 7351 (IPC-7351). © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 7 SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Table 4 – Performance & Reliability: Test Methods and Conditions Stress Ripple Current Terminal Strength Board Flex Reference "Heat Generation ∆T : 20ºC max." JIS-C-6429 JIS-C-6429 Test or Inspection Method "Reflow solder the capacitor onto a PC board and apply voltage with 10kHz~1Mhz sine curve. (Ripple voltage must be < rated voltage)" Appendix 1, Note: Force of 1.8kg for 60 seconds. Appendix 2, Note: 2mm (min) for all except 3mm for C0G. Magnification 50X. Conditions: Solderability J-STD-002 a) Method B, 4 hrs @ 155°C, dry heat @ 235°C b) Method B @ 215°C category 3 c) Method D, category 3 @ 260°C Temperature Cycling Biased Humidity Moisture Resistance Thermal Shock High Temperature Life Storage Life Mechanical Shock Resistance to Solvents JESD22 Method JA-104 MIL-STD-202 Method 103 MIL-STD-202 Method 106 MIL-STD-202 Method 107 MIL-STD-202 Method 108 MIL-STD-202 Method 108 MIL-STD-202 Method 213 MIL-STD-202 Method 215 1000 Cycles (-55°C to +125°C), Measurement at 24 hrs. +/- 2 hrs after test conclusion. Load Humidity: 1000 hours 85°C/85%RH and 300VDC Max. Add 100K ohm resistor. Measurement at 24 hrs. +/- 2 hrs after test conclusion. Low Volt Humidity: 1000 hours 85C°/85%RH and 1.5V. Add 100K ohm resistor. Measurement at 24 hrs. +/- 2 hrs after test conclusion. t = 24 hours/cycle. Steps 7a & 7b not required. Unpowered. Measurement at 24 hrs. +/- 2 hrs after test conclusion. -55°C/+125°C. Note: Number of cycles required-300, Maximum transfer time-20 seconds, Dwell time-15 minutes. Air-Air. 1000 hours at 125°C (85°C for X5R, Z5U and Y5V) with rated voltage applied. 150°C, 0VDC, for 1000 Hours. Figure 1 of Method 213, Condition F. Add Aqueous wash chemical - OKEM Clean or equivalent. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 8 SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Tape & Reel Packaging Information KEMET offers Multilayer Ceramic Chip Capacitors packaged in 8mm, 12mm and 16mm tape on 7" and 13" reels in accordance with EIA standard 481. This packaging system is compatible with all tape fed automatic pick and place systems. See Table 2 for details on reeling quantities for commercial chips. Bar Code Label Anti-Static Reel KE ME T ® Embossed Plastic* or Punched Paper Carrier. Chip and KPS Orientation in Pocket (except 1825 Commercial, and 1825 & 2225 Military) Sprocket Holes Embossment or Punched Cavity 8mm, 12mm or 16mm Carrier Tape 178mm (7.00") or 330mm (13.00") Anti-Static Cover Tape (.10mm (.004") Max Thickness) *EIA 01005, 0201, 0402 and 0603 case sizes available on punched paper carrier only. Table 5 – Carrier Tape Configuration (mm) EIA Case Size 01005 - 0402 0603 - 1210 1805 - 1808 ≥ 1812 KPS 1210 KPS 1812 & 2220 Array 0508 & 0612 Tape size (W)* 8 8 12 12 12 16 8 Pitch (P1)* 2 4 4 8 8 12 4 *Refer to Figure 1 for W and P1 carrier tape reference locations. *Refer to Table 6 for tolerance specifications. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com C1025-1 • 9/13/2010 9 SMD MLCCs – High Voltage with Flexible Termination System (HV FT-CAP), X7R Dielectric, 500VDC-3000VDC (Commercial Grade) Figure 1 – Embossed (Plastic) Carrier Tape Dimensions T T2 P2 ØDo Po [10 pitches cumulative tolerance on tape ±0.2 mm] E1 Ao F Ko B1 Bo E2 W S1 T1 Cover Tape B 1 is for tape feeder reference only, including draft concentric about B o. Center Lines of Cavity P1 ØD 1 Embossment For cavity size, see Note 1 Table 6 User Direction of Unreeling Table 6 – Embossed (Plastic) Carrier Tape Dimensions Metric will govern Tape Size 8mm 12mm 16mm 1.5 +0.10/-0.0 (0.059 +0.004/-0.0) Constant Dimensions — Millimeters (Inches) D0 D1 Min. Note 1 1.0 (0.039) 1.5 (0.059) E1 P0 P2 R Ref. Note 2 25.0 (0.984) 30 (1.181) S1 Min. Note 3 0.600 (0.024) T Max. T1 Max. 1.75 ± 0.10 (0.069 ± 0.004) 4.0 ± 0.10 (0.157 ± 0.004) 2.0 ± 0.05 (0.079 ± 0.002) 0.600 (0.024) 0.100 (0.004) Variable Dimensions — Millimeters (Inches) Tape Size 8mm 12mm 16mm Pitch Single (4mm) Single (4mm) & Double (8mm) Triple (12mm) B1 Max. Note 4 4.35 (0.171) 8.2 (0.323) 12.1 (0.476) E2 Min. 6.25 (0.246) 10.25 (0.404) 14.25 (0.561) F 3.5 ± 0.05 (0.138 ± 0.002) 5.5 ± 0.05 (0.217 ± 0.002) 5.5 ± 0.05 (0.217 ± 0.002) P1 4.0 ± 0.10 (0.157 ± 0.004) 8.0 ± 0.10 (0.315 ± 0.004) 8.0 ± 0.10 (0.315 ± 0.004) T2 Max 2.5 (0.098) 4.6 (0.181) 4.6 (0.181) W Max 8.3 (0.327) 12.3 (0.484) 16.3 (0.642) A0,B0 & K0 Note 5 1. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of embossment location and hole location shall be applied independent of each other. 2. The tape with or without components shall pass around R without damage (see Figure 5). 3. If S1
