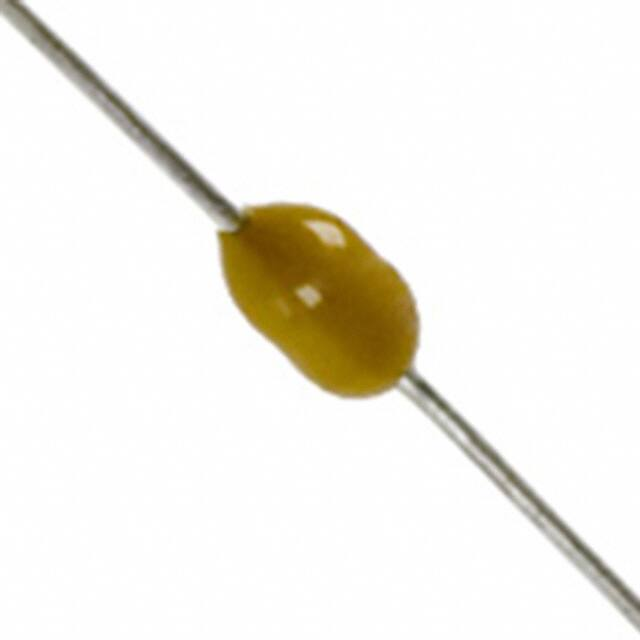

C420C334M5U5TA7200

Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 and 250 VDC (Commercial Grade) Overview KEMET’s Aximax conformally coated axial leaded ceramic capacitors in Z5U dielectric feature an 85°C maximum operating temperature and are considered “general-purpose.” The Electronics Industries Alliance (EIA) characterizes Z5U dielectric as a Class III material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling or other applications in which dielectric losses, high insulation resistance and capacitance stability are not of major importance. Z5U exhibits a predictable change in capacitance with respect to time and voltage and displays wide variations in capacitance with reference to ambient temperature. Capacitance change is limited to +22%, −56% from +10°C to +85°C. Benefits • Axial leaded form factor • Conformally coated • Operating temperature range of +10°C to +85°C • Lead (Pb)-free, RoHS and REACH compliant • DC voltage ratings of 25 V, 50 V, 100 V, 200 V, and 250 V • Capacitance offerings ranging from 1,000 pF to 2.2 μF • Available capacitance tolerances of ±20% and +80%/-20% • Non-polar device, minimizing installation concerns • 100% pure matte tin-plated lead finish allowing for excellent solderability • SnPb-plated lead finish option available upon request (Sn60/Pb40) • Encapsulation meets flammability standard UL 94V-0 Click image above for interactive 3D content Open PDF in Adobe Reader for full functionality Ordering Information C Ceramic 410 Style/ Specification/ Size Series 410 412 420 430 440 1 2 C C= Standard 105 Capacitance Code (pF) M Capacitance Tolerance1 First two digits M = ±20% represent Z =+80%, −20% significant figures. Third digit specifies number of zeros. 3 U 5 Rated Voltage Dielectric Design (VDC) 3 = 25 U= 5= 5 = 50 Z5U Multilayer 1 = 100 2 = 200 A = 250 T A 7200 Lead Finish2 Failure Rate Packaging (C-Spec) T = 100% Matte Sn H = SnPb (60/40) A= N/A Blank = Bulk 7200 = 12" Reel 7293 = Ammo Pack Additional capacitance tolerance offerings may be available. Contact KEMET for details. Lead materials: Standard: 100% matte tin (Sn) with nickel (Ni) underplate and steel core ( “T” designation). Alternative 1: 60% tin (Sn)/40% lead (Pb) finish with copper-clad steel core ( “H” designation). Alternative 2: 60% tin (Sn)/40% lead (Pb) finish with 100% copper core (available with “H” designation code with C-Spec). Contact KEMET for C-Spec details. Built Into Tomorrow © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 1 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Applications Typical applications include limited temperature, decoupling and bypass. Application Notes These devices are not recommended for use in overmold applications and/or processes. Dimensions – Inches (Millimeters) LL L D LD 1 0.015 (0.38) Maximum Series Style/ Size L Length Maximum D Diameter Maximum C41X 410 412 0.170 (4.32) 0.170 (4.32) 0.095 (2.41) 0.120 (3.05) C42X C43X C44X 420 430 440 0.200 (5.08) 0.240 (6.10) 0.260 (6.60) 0.100 (2.54) 0.150 (3.81) 0.150 (3.81) LD Lead Diameter LL Lead Length Minimum1 0.020+0.001/−0.003 (0.51+0.025/−0.076) 1.0 (25.4) Lead Length dimension only applicable for BULK packaging. Qualification/Certification Commercial Grade products are subject to internal qualification. Details regarding test methods and conditions are referenced in Table 2, Performance & Reliability. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 2 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Environmental Compliance Lead (Pb)-free, REACH and RoHS compliant without exemptions when ordered with a 100% tin (Sn) wire lead finish. Product ordered with tin/ lead (Sn60/Pb40) wire lead finish do not meet RoHS criteria. Series 400 (C4XX) 1 Termination Finish (Wire Lead) RoHS Compliant RoHS Exemption Code REACH Compliant1 Halogen Free 100% Matte Sn Yes n/a Yes Yes Sn60/Pb40 No n/a Yes Yes REACH compliance indicates product does not contain Substance/s of Very High Concern (SVHC) Electrical Parameters/Characteristics Item Parameters/Characteristics Operating Temperature Range Capacitance Change with Reference to +25°C and 0 VDC Applied (TCC) Aging Rate (Maximum % Cap Loss/Decade Hour) Dielectric Withstanding Voltage Dissipation Factor (DF) Maximum Limit at 25ºC Insulation Resistance (IR) Limit at 25°C +10°C to +85°C +22%, -56% 7.0% 250% of rated voltage (5±1 seconds and charge/discharge not exceeding 50 mA at 25ºC) 4.0% 100 megohm microfarads or 10GΩ (Rated voltage applied for 120±5 seconds at 25°C) Regarding aging rate: Capacitance measurements (including tolerance) are indexed to a referee time of 1,000 hours. To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits. Capacitance and dissipation factor (DF) measured under the following conditions: 1 kHz ±50 Hz and 1.0 ±0.2 Vrms if capacitance ≤ 10 µF 120 Hz ±10 Hz and 0.5 ±0.1 Vrms if capacitance > 10 µF Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 and Agilent E4980 have a feature known as Automatic Level Control (ALC). The ALC feature should be switched to "ON." Post Environmental Limits High Temperature Life, Biased Humidity and Storage Life Style/Size Rated DC Voltage Capacitance Value Dissipation Factor (Maximum %) Capacitance Shift All All All 5.0 ± 30% Insulation Resistance 10% of Initial Limit © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 3 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Table 1A – C410 Style/Size, Capacitance Range Waterfall C410 Style/Size (0.095" Diameter x 0.170" Length) Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A Capacitance 220pF 270pF 330pF 390pF 470pF 560pF 680pF 820pF 1000pF 1200pF 1500pF 1800pF 2200pF 2700pF 3300pF 3900pF 4700pF 5600pF 6800pF 8200pF 0.01µF 0.012µF 0.015µF 0.018µF 0.022µF 0.027µF 0.033µF 0.039µF 0.047µF 0.056µF 0.068µF 0.082µF 0.1µF 0.12µF 0.15µF 0.18µF 0.22µF 0.27µF 0.33µF 0.39µF 0.47µF 0.56µF 0.68µF 0.82µF 1.0µF Capacitance Tolerance Capacitance Code (Available Capacitance) 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A M = ±20% Z = +80%, -20% © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 4 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Table 1B – C412 Style/Size, Capacitance Range Waterfall C412 Style/Size (0.120" Diameter x 0.170" Length) Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A Capacitance 470pF 560pF 680pF 820pF 1000pF 1200pF 1500pF 1800pF 2200pF 2700pF 3300pF 3900pF 4700pF 5600pF 6800pF 8200pF 0.01µF 0.012µF 0.015µF 0.018µF 0.022µF 0.027µF 0.033µF 0.039µF 0.047µF 0.056µF 0.068µF 0.082µF 0.1µF 0.12µF 0.15µF 0.18µF 0.22µF 0.27µF 0.33µF 0.39µF 0.47µF 0.56µF 0.68µF 0.82µF 1.0µF Capacitance Tolerance Capacitance Code (Available Capacitance) 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A M = ±20% Z = +80%, -20% © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 5 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Table 1C – C420 Style/Size, Capacitance Range Waterfall C420 Style/Size (0.100" Diameter x 0.200" Length) Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A Capacitance 470pF 560pF 680pF 820pF 1000pF 1200pF 1500pF 1800pF 2200pF 2700pF 3300pF 3900pF 4700pF 5600pF 6800pF 8200pF 0.01µF 0.012µF 0.015µF 0.018µF 0.022µF 0.027µF 0.033µF 0.039µF 0.047µF 0.056µF 0.068µF 0.082µF 0.1µF 0.12µF 0.15µF 0.18µF 0.22µF 0.27µF 0.33µF 0.39µF 0.47µF 0.56µF 0.68µF 0.82µF 1.0µF Capacitance Tolerance Capacitance Code (Available Capacitance) 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A M = ±20% Z = +80%, -20% © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 6 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Table 1D – C430 Style/Size, Capacitance Range Waterfall C430 Style/Size (0.150" Diameter x 0.240" Length) Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A Capacitance 0.022µF 0.027µF 0.033µF 0.039µF 0.047µF 0.056µF 0.068µF 0.082µF 0.1µF 0.12µF 0.15µF 0.18µF 0.22µF 0.27µF 0.33µF 0.39µF 0.47µF 0.56µF 0.68µF 0.82µF 1.0µF 1.2µF 1.5µF 1.8µF 2.0µF 2.2µF 2.7µF 3.3µF 3.9µF 4.7µF Capacitance Tolerance Capacitance Code (Available Capacitance) 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 125 155 185 205 225 275 335 395 475 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 125 155 185 205 225 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 223 273 333 393 473 563 683 823 104 124 223 273 333 393 473 563 683 823 104 124 Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A M = ±20% Z = +80%, -20% © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 7 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Table 1E – C440 Style/Size, Capacitance Range Waterfall C440 Style/Size (0.150" Diameter x 0.260" Length) Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A Capacitance 0.033µF 0.039µF 0.047µF 0.056µF 0.068µF 0.082µF 0.1µF 0.12µF 0.15µF 0.18µF 0.22µF 0.27µF 0.33µF 0.39µF 0.47µF 0.56µF 0.68µF 0.82µF 1.0µF 1.2µF 1.5µF 1.8µF 2.0µF 2.2µF 2.7µF 3.3µF 3.9µF 4.7µF Capacitance Tolerance Capacitance Code (Available Capacitance) 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 125 155 185 205 225 275 335 395 475 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 125 155 185 205 225 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 333 393 473 563 683 823 104 124 333 393 473 563 683 823 104 124 Rated Voltage (VDC) 25 50 100 200 250 Voltage Code 3 5 1 2 A M = ±20% Z = +80%, -20% © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 8 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Soldering Process Recommended Soldering Methods: • Solder Wave • Hand Soldering (Manual) Recommended Soldering Profile: •Optimum Wave Solder Profile Solder Wave Peak Temperature 260ºC Entrance to Solder Wave Degrees – Cº Flux Zone 250 225 200 175 150 125 100 75 50 25 Exit from Solder Wave (Time in Wave – 2 to 4 Seconds) Preheat Zone Hot Air Debridging Exit from Solder Machine 80ºC to 120ºC Entrance to Solder Machine Free Air Cool Bottom Side Temperature Range Entrance to In-Line Cleaner Exit from In-Line Cleaner (time in cleaner may be less) Immersion in Cleaning Vapor 150ºC Maximum Top Side Nominal 0 1 2 3 Time (Minutes) 4 5 6 Mounting All encased capacitors will pass the Resistance to Soldering Heat of MIL-STD-202, Method 210, Condition C. This test simulates wave solder topside board mount product. This demonstration of resistance to solder heat is in accordance with what is believed to be the industry standard. More severe treatment must be considered reflective of an improper soldering process. The above figure is a recommended solder wave profile for both axial and radial leaded ceramic capacitors. • Hand Soldering (Manual) Manual Solder Profile with Pre-heating Soldering Gradual Cooling Gradual Preheat 60 – 120 Seconds Recommend 2.5°C/second Maximum 3 seconds Delta T < = 120ºC © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 9 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Table 2 – Performance & Reliability: Test Methods and Conditions Stress Reference Solderability J-STD-002 Temperature Cycling JESD22 Method JA-104 Test or Inspection Method Magnification 50X. Conditions: a) Method A, at 235°C, Category 3 5 cycles (−55°C to +125°C), measurement at 24 hours +/−4 hours after test conclusion. Load humidity, 1,000 hours 85°C/85%RH and rated voltage. Add 100 K ohm resistor. Measurement at 24 hours +/−4 hours after test conclusion. Low volt humidity, 1,000 hours 85C°/85%RH and 1.5 V. Add 100 K ohm resistor. Measurement at 24 hours +/−4 hours after test conclusion. t = 24 hours/cycle. Steps 7a & 7b not required. Unpowered. Measurement at 24 hours +/−4 hours after test conclusion. -55ºC to +125°C. Note: Number of cycles required = 300. Maximum transfer time = 20 seconds. Dwell time -15 minutes. Air – Air. Biased Humidity MIL-STD-202 Method 103 Moisture Resistance MIL-STD-202 Method 106 Thermal Shock MIL-STD-202 Method 107 High Temperature Life MIL-STD-202 Method 108 / EIA -198 Storage Life MIL-STD-202 Method 108 125°C, 0 VDC for 1,000 hours. MIL-STD-202 Method 204 5 g for 20 minutes, 12 cycles each of 3 orientations. Note: Use 8"X5" PCB .031" thick 7 secure points on one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10–2000 Hz. Vibration Resistance to Soldering MIL-STD-202 Method 210 Heat 1,000 hours at 125°C (85°C for Z5U) with 1 X rated voltage applied. Condition B. No preheat of samples. Note: single wave solder – procedure 2. Terminal Strength MIL-STD-202 Method 211 Conditions A (454g), Condition C (227g) Mechanical Shock MIL-STD-202 Method 213 Figure 1 of Method 213, Condition C. Resistance to Solvents MIL-STD-202 Method 215 Add aqueous wash chemical – OKEM Clean or equivalent. Storage & Handling The un-mounted storage life of a leaded ceramic capacitor is dependent upon storage and atmospheric conditions as well as packaging materials. While the ceramic chips enveloped under the epoxy coating themselves are quite robust in most environments, solderability of the wire lead on the final epoxy-coated product will be degraded by exposure to high temperatures, high humidity, corrosive atmospheres, and long term storage. In addition, packaging materials will be degraded by high temperature and exposure to direct sunlight–reels may soften or warp, and tape peel force may increase. KEMET recommends storing the un-mounted capacitors in their original packaging, in a location away from direct sunlight, and where the temperature and relative humidity do not exceed 40 degrees centigrade and 70% respectively. For optimum solderability, capacitor stock should be used promptly, preferably within 18 months of receipt. For applications requiring pre-tinning of components, storage life may be extended if solderability is verified. Before cleaning, bonding or molding these devices, it is important to verify that your process does not affect product quality and performance. KEMET recommends testing and evaluating the performance of a cleaned, bonded or molded product prior to implementing and/or qualifying any of these processes. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 10 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Construction Detailed Cross Section Finish Layer (Sn) Finish Layer (Sn) Epoxy Barrier Layer Encapsulation (Ni) External Electrode (Cu) Dielectric Material (BaTiO3) Barrier Layer (Ni) External Electrode (Cu) Inner Electrodes (Ni) Epoxy Encapsulation Lead Wire Lead Attach Solder (Sn95/Sb5) Inner Electrodes (Ni) Alt 1 Std Core Metal Barrier Layer Steel Cu Ni 100% 60% Sn Finish Layer Matte Sn 40% Pb Alt 2 Cu — 60% Sn 40% Pb Dielectric Material (BaTiO3) Inner Electrodes (Ni) Marking KEMET ID Capacitance Code Lot Code Voltage Code Dielectric Code Capacitance Tolerance Code 15 20 Manufacturing Year: 15 = 2015 Manufacturing Week: 20 = Week 20 (of mfg. calendar year) Date Code © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 11 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Packaging Quantities Style/Size Standard Bulk Quantity 410 300/Box 412 200/Box 420 300/Box 430 200/Box 440 200/Box Ammo Pack Quantity Maximum Reel Quantity Maximum (12" Reel) 4000 5000 2000 2500 © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 12 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) Tape & Reel Packaging Information KEMET offers standard reeling of molded and conformally coated axial leaded ceramic capacitors for automatic insertion or lead forming machines in accordance with EIA standard 296. KEMET’s internal specifi cation four-digit suffi x, 7200, is placed at the end of the part number to designate tape and reel packaging, e.g., C410C104Z5U5TA7200. Paper (50 lb.) test minimum is inserted between the layers of capacitors wound on reels for component pitch ≤ 0.400". Capacitor lead length may extend only a maximum of .0625" (1.59 mm) beyond the tapes’ edges. Capacitors are centered in a row between the two tapes and will deviate only ± 0.031" (0.79 mm) from the row center. A minimum of 36" (91.5 cm) leader tape is provided at each fi nished length of taped components. Universal splicing clips are used to connect the tape. C Table 3 – Ceramic Axial Tape and Reel Dimensions Metric will govern Dimensions — Millimeters (Inches) Axial Capacitor Body Diameter 0.0 to 5.0 (0.0 to 0.197) 1 Symbol Reference Table A ±0.5 (0.020) B ±1.5 (0.059)1 C ±0.70 (0.028) A Component Pitch 5.0 (0.197) 52.4 (2.062) 6.35 (0.250) B Inside Tape Spacing C Tape Width Inside tape spacing dimension (B) is determined by the body diameter of the capacitor. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 13 Axial Leaded Multilayer Ceramic Capacitors Aximax, 400, Conformally Coated, Z5U Dielectric, 25 – 250 VDC (Commercial Grade) KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com C1042_AXIMAX_Z5U • 12/14/2020 14
