ESD-R-291216H-NC23

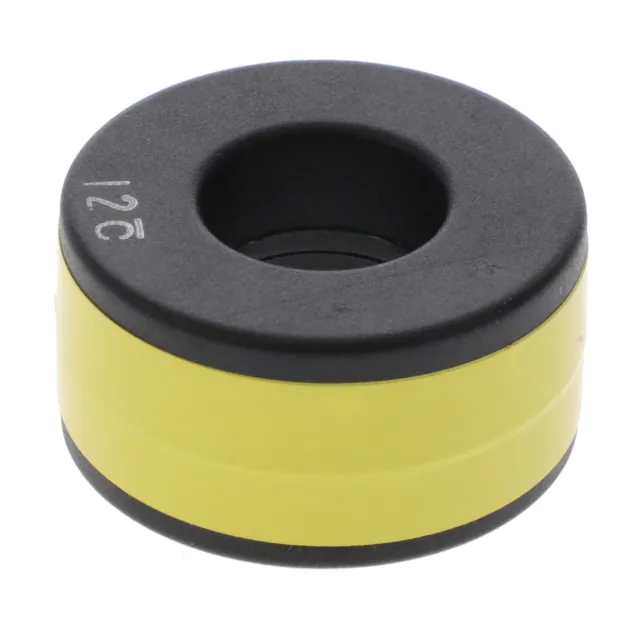

EMI Cores ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Overview Applications The KEMET ESD-R-NC Series solid toroidal cores are designed for use on round cables. KEMET’s nanocrystal material allows effective noise suppression in a wide frequency range, which is an impressive solution for any conducted or radiated noise in the kHz to MHz regions. The base type allows fixing the core in the application to avoid contact with other components or stabilizing the cables, and in addition the base’s structure can connect the cores together for make it even easier to install. • General purpose inverters • HVAC • Air conditioners • Power conditioners • Industrial equipment • Business multifunction printers EMI cores are part of a family of passive components which address the issues of noise or electromagnetic interference (EMI) in circuits or systems. Benefits • Wide frequency range • Solid construction • From small to large diameter ring type • Wide operating temperature range from −40°C to +120°C for standard type and −40°C to +130°C for base type • UL94 V-0 flame retardant rated case • Easy to install the with fixing base type with two screws Standard Case Type With Fixing Base Type One world. One KEMET © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 1 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Part Number System ESD- R- 291216H- NC 23 -BT Series Shape Type Core Size OD & ID & T Code (mm) Core Material Material Specification Type ESD- Ring See Table 1 Nanocrystal 21 23 Blank = Standard case BT = With fixing base Turns and Impedance Characteristics Figure 1 – How to count turns When the desired performance of an EMI core cannot be obtained with a single pass through the core, the impedance characteristics can be changed with multiple turns. A turn is counted by the number of lead-wire windings which pass through the inner hole of the core. Windings on the outside of the core do not count. 1T 2T 3T Figure 2 – Relationship between impedance and turn count. (Representative example: ESD-R-16C) See Figure 1 for examples of one, two, and three turns. 10,000 Adding turns will result in higher impedance while also lowering the effective frequency range. See Figure 2 for an example. Core Material and Effective Frequency Range 1,000 Impedance Increase Impedance (Ω) Resonance point changes to lower band 100 10 1 3T 2T 1T 1 10 100 1,000 Frequency (MHz) The Nanocrystal core material is typically effective for frequencies in the broadband range. See Figure 3. Figure 3 - Effective band range of Nanocrystal core material. (Representative example, measured with same-dimension ring core) It is recommended to measure the actual frequency range effectiveness in the target application. 1,000 Impedance (Ω) AM band range FM band range 100 Nanocrystal series core Ni-Zn series core 10 Mn-Zn series core 1 0.01 0.1 1 10 100 1,000 Frequency (MHz) © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 2 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Magnetic Permeability of Ferrite Material In order to achieve most efficient noise reduction, it is important to select the material according to the target frequency band. Depending on its magnetic permeability, a particular ferrite material or metal material will be effective in a certain frequency band. A schematic representation of the relationship between the magnetic permeability of each material and the corresponding effective band range is shown in Figure 4. Ferrite materials with higher magnetic permeability are effective in the lower frequency range, while those with lower magnetic permeability are effective in the higher frequency range. Thus, Mn-Zn products are mainly used for reducing conduction noise, while Ni-Zn products are commonly used for radiation noise countermeasures. Metal materials on the other hand are effective throughout the broadband frequency range, in low as well as high frequencies. The effective frequency range varies depending on core shape, size and number of turns. This frequency dependence of the magnetic permeability as shown in the figure serves for reference purposes only and it should be tested on the actual device to determine its effectiveness. S18H, S15H, 10H, 7H, 5H, 1400L and 700L are KEMET’s proprietary ferrite material names. Other materials can also be available on request. Figure 4 - Relationship between the magnetic permeability of each material and its effective frequency range Higher magnetic permeability: Higher noise suppression effect in the broadband frequency range Nanocrystalline Core Magnetic Permeability 20,000 Higher magnetic permeability: Higher noise suppression effect in the lower frequency range Mn-Zn Series S18H S15H Lower magnetic permeability: Higher noise suppression effect in the higher frequency range 10H 10,000 7H 5H Ni-Zn Series 0 10 kHz 1400L 700L 100 kHz 1 MHz 10 MHz 100 MHz 1 GHz Effective Frequency Range © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 3 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Environmental Compliance All KEMET EMI cores are RoHS compliant. Dimensions – Millimeters Standard Case Type With Fixing Base Type Front View OD ID OD Back View ID T D E T See Table 1 for dimensions © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 4 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Installation Example Standard Case Type With Fixing Base Type 2x M5 screws for ESD-R-783926H-NC21-BT 2x M6 screws for ESD-R-1317426H-NC21-BT Front Back Connecting Performance Characteristics Item Operating temperature Frequency range Outer diameter Inner diameter Thickness Type Case flame resistant rating Material Performance Characteristics Standard case : −40°C to +120°C With fixing base : −40°C to +130°C Broadband (low and high) frequency 29.0 – 146.0 mm 12.7 – 96.0 mm 16.0 – 37.0 mm Case, and with fixing base UL94 V–0 Nanocrystal © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 5 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Table 1 – Ratings & Part Number Reference Dimensions (mm) Part Number 1 OD Maximum ID ESD-R-291216H-NC23 ESD-R-341616H-NC23 ESD-R-421617H-NC23 ESD-R-512936H-NC23 ESD-R-512419H-NC23 ESD-R-613325H-NC23 ESD-R-854626H-NC23 ESD-R-1105826H-NC23 ESD-R-1469637H-NC23 29.0 34.0 42.0 51.0 51.0 61.0 85.0 110.0 146.0 12.7 ±1.0 16.5 ±1.0 16.7 ±1.0 29.5 ±1.0 24.4 ±1.0 33.2 ±1.0 46.0 ±1.0 58.5 ±1.0 96.0 ±1.0 16.0 16.0 17.0 36.0 19.0 25.0 26.0 26.0 37.0 ESD-R-783926H-NC21-BT ESD-R-1317426H-NC21-BT 78.0 131.0 39.5 Min. 74.0 Min. 26.0 26.0 Weight T D Maximum Maximum Frequency Range1 Case Color E (g) - - 20 30 57 145 68 186 345 615 1200 Black with yellow tape Black with yellow tape Black with yellow tape Black with yellow tape Black with yellow tape Black with yellow tape Black with yellow tape Black with yellow tape Black with yellow tape 95.0 181.0 80.0 ±0.5 150.0 ±0.5 186 560 Black Black Material ≤ 10 MHz (AM band range) ≤ 300 MHz (FM band range) X X X X X X X X X Nanocrystal Nanocrystal Nanocrystal Nanocrystal Nanocrystal Nanocrystal Nanocrystal Nanocrystal Nanocrystal X X X X Nanocrystal Nanocrystal X X X X X X X X X Frequency range is for reference only. Please test with actual device before use. Impedance vs. Frequency © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 6 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Impedance vs. Frequency cont. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 7 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Impedance vs. Frequency cont. Packaging Part Number ESD-R-291216H-NC23 ESD-R-341616H-NC23 ESD-R-421617H-NC23 ESD-R-512936H-NC23 ESD-R-512419H-NC23 ESD-R-613325H-NC23 ESD-R-854626H-NC23 ESD-R-1105826H-NC23 ESD-R-1469637H-NC23 ESD-R-783926H-NC21-BT ESD-R-1317426H-NC21-BT Packaging Type Pieces per Box 300 Tray © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com 200 60 100 60 24 12 6 30 9 E5011_ESD-R-NC • 3/31/2020 8 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) Handling Precautions EMI Cores should be stored in normal working environments. While the EMI Cores themselves are quite robust in other environments, avoid exposure to high temperatures, high humidity, corrosive atmospheres and long term storage for case, snap-on and split types. KEMET recommends that maximum storage temperature not exceed 40°C and maximum storage humidity not exceed 75% relative humidity. Atmospheres should be free of chlorine, sulfur and alkali bearing compounds. Avoid also storage near strong magnetic fields as this might magnetize the product. Temperature fluctuations should be minimized to avoid condensation or cracks on the parts. Mechanical shocks can bring to cracks as well. Export Control For customers in Japan For products that are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license specified by the law is required for export. For customers outside Japan EMI Core products should not be used or sold for use in the development, production, stockpiling or utilization of any conventional weapons or mass-destructive weapons (nuclear weapons, chemical or biological weapons, or missiles), or any other weapons. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 9 EMI Core – ESD-R-NC Toroidal Nanocrystal Cores for Round Cables for Low & High Frequency (with case & with fixing base) KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. When providing KEMET products and technologies contained herein to other countries, the customer must abide by the procedures and provisions stipulated in all applicable export laws and regulations, including without limitation the International Traffi c in Arms Regulations (ITAR), the US Export Administration Regulations (EAR) and the Japan Foreign Exchange and Foreign Trade Act. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com E5011_ESD-R-NC • 3/31/2020 10
