EMI-RFI Filters
GT Metal Box Single-Phase Filters
Overview
Applications
The KEMET GT metal box filters cover single-phase
requirements with a wide variety of characteristics. These
filters are optimized for conduction noise. Their input/
output terminals are screw type or Faston® type.
• Industrial equipment
• Electronic equipment
• Vending machines
Benefits
• Single-phase 250 VAC
• Current range from 3 to 20 A
• Operating temperature range from −25°C to +55°C
• UL, CSA, or TÜV approved versions available
• RoHS compliant
Part Number System
GT-
2
20
01V
Series
Phase
Rated Current (A)
Specification
GT
2 = Single-phase
0x = 0x A
xx = xx A
0 = Standard, no approvals
01 = High performance at low frequency,
single common choke, Faston® terminal
02 = High performance at low frequency,
double common choke, Faston® terminal
01V = High performance at low frequency,
single common choke, screw terminal
J = Faston® terminal with DC input support
R = High performance to pulse noise
U = UL, CSA, and/or TÜV approved
Note: Faston® is a registered trademark of
Tyco Electronics AMP
Built Into Tomorrow
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
1
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Dimensions – Millimeters
GT-205U, GT-2050R
Recommended torque (N-m) maximum
• Line terminal (M4: 0.78)
• Earth terminal (M4: 1.18)
GT-2150R, GT-2100, GT-2150, GT-2200, GT-210U, GT-215U, GT-220U
Recommended torque (N-m) maximum
• Line terminal (M4: 0.78)
• Earth terminal (M4: 1.18)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
2
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Dimensions – Millimeters cont.
GT-205J
Faston® is a registered trademark of Tyco Electronics AMP.
GT-210J, GT-215J
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
3
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Dimensions – Millimeters cont.
GT-20301, GT-21001, GT-20302
Faston® is a registered trademark of Tyco Electronics AMP.
Part Number
A
B
C
D
E
GT-20301
GT-21001
GT-20302
93.0
105.5
93.0
53.0
57.5
53.0
30.0
44.5
46.0
74.7
87.0
74.7
85.0
96.5
84.3
GT-20501V, GT-21001V,GT-22001V
Recommended torque (N-m) maximum
• Line terminal (M4: 0.78)
• Earth terminal (M4: 1.18)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
4
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Environmental Compliance
KEMET GT EMI-RFI Filters comply with EU RoHS Directive 2011/65/EU and (EU) 2015/863.
Products that fall under the exemptions listed in below table are also included.
Part Number
RoHS Compliant
RoHS Exemption Code
GT-205U
Yes
6(c) and 7(c)-I
GT-2050R
Yes
6(c)
GT-2150R
Yes
6(c)
GT-2100
Yes
6(c)
6(c)
GT-2150
Yes
GT-2200
Yes
6(c)
GT-210U
Yes
6(c) and 7(c)-I
GT-215U
Yes
6(c) and 7(c)-I
GT-220U
Yes
6(c) and 7(c)-I
GT-205J
Yes
7(c)-I
GT-210J
Yes
7(c)-I
GT-215J
Yes
7(c)-I
GT-20301
Yes
6(c) and 7(c)-I
GT-21001
Yes
6(c) and 7(c)-I
GT-20302
Yes
6(c) and 7(c)-I
GT-20501V
Yes
6(c) and 7(c)-I
GT-21001V
Yes
6(c) and 7(c)-I
GT-22001V
Yes
6(c) and 7(c)-I
Code
Exemption
6(c)
Copper alloy containing up to 4% lead by weight
7(c)-I
Electrical and electronic components containing lead in a glass
or ceramic other than dielectric ceramic in capacitors, e.g.
piezoelectronic devices, or in a glass or ceramic matrix compound
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
5
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Approvals
Certification Body
File Number
Part Number
UL
E59551
GT-205U, GT-210U, GT-215U, GT-220U, GT-205J, GT-210J, GT-215J,
GT-20301, GT-21001, GT-20302, GT-21001V and GT-22001V
CAS
LR50413
GT-205U, GT-210U, GT-205J, GT-210J, GT-215J, GT-20301, GT-21001,
GT-20302 and GT-21001V
R50004761
GT-21001V
R50007113
GT-22001V
R50014761
GT-205J, GT-210J and GT-215J
R50015833
GT-205U, GT-210U, GT-20301, GT-21001 and GT-20302
R9651191
GT-220U
TÜV Rheinland Japan
Ltd.
Performance Characteristics
Item
Rated Voltage
Rated Current Range
Performance Characteristics
Insulation Resistance
Leakage Current Range
Input/Output Terminal Type
250 V
3 – 20 A
1,500 VAC (1 minute, line to ground)
except GT-2**01V: 2,000 VAC (1 minute, line to ground)
300 MΩ minimum at 500 VDC (1 minute, line to ground)
0.5 – 1.0 mA maximum at 250 V/60 Hz
Screw and Faston®
Operating Temperature Range
−25°C to +55°C (not including self temperature rise)
Withstanding Voltage
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
6
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Table 1 – Ratings & Part Number Reference
Part
Number
Phase
Rated
Voltage
AC (V)
Rated
Current
AC (A)
Leakage
Operating
DC
Current at 250 Temperature
Rise (K)
Temperature
Available V/60 Hz (mA) Maximum
Range
Maximum
Terminal
Type
Approval
UL, CSA and TÜV
Weight
(g)
GT-205U
Single-phase
250
5
Yes
0.5
35
−25°C to +55°C
Screw
GT-2050R
Single-phase
250
5
Yes
0.5
35
−25°C to +55°C
Screw
160
170
GT-2150R
Single-phase
250
15
Yes
0.5
35
−25°C to +55°C
Screw
280
GT-2100
Single-phase
250
10
Yes
0.5
35
−25°C to +55°C
Screw
260
GT-2150
Single-phase
250
15
Yes
0.5
35
−25°C to +55°C
Screw
270
GT-2200
Single-phase
250
20
Yes
0.5
35
−25°C to +55°C
Screw

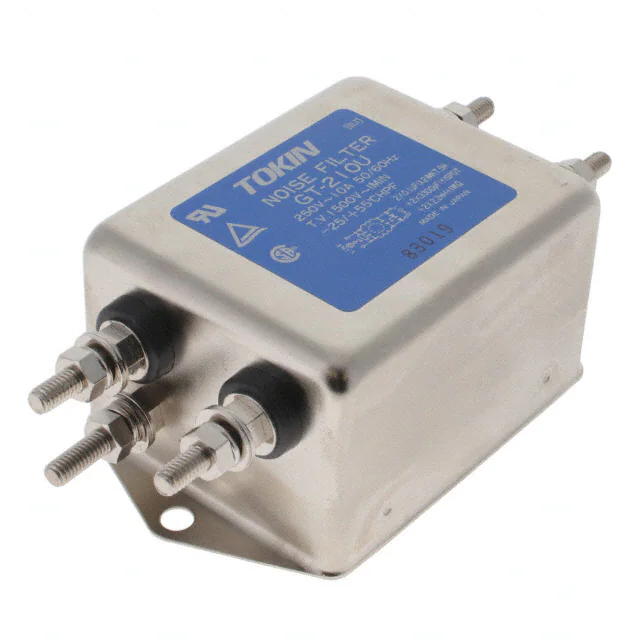

GT-210U
Single-phase
250
10
Yes
0.5
35
−25°C to +55°C
Screw
UL, CSA and TÜV
260
270
GT-215U
Single-phase
250
15
Yes
0.5
35
−25°C to +55°C
Screw
UL
270

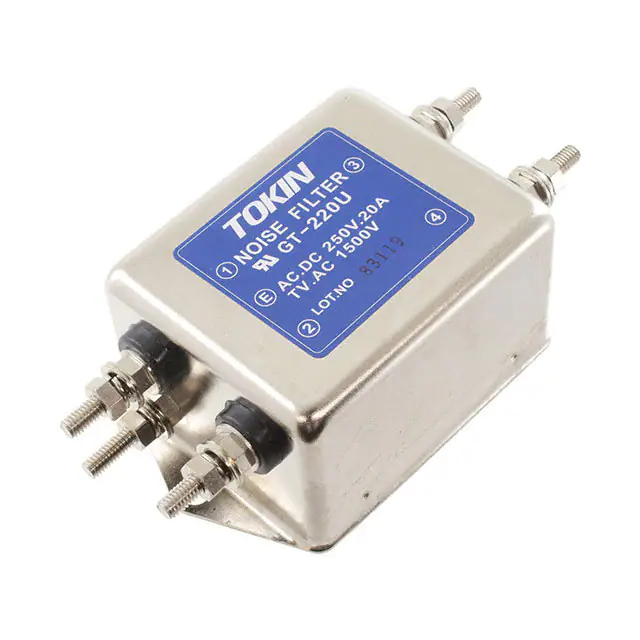

GT-220U
Single-phase
250
20
Yes
0.5
35
−25°C to +55°C
Screw
UL and TÜV
270
GT-205J
Single-phase
250
5
Yes
0.5
35
−25°C to +55°C
Faston
UL, CSA and TÜV
135
GT-210J
Single-phase
250
10
Yes
0.5
35
−25°C to +55°C
Faston
UL, CSA and TÜV
240
GT-215J
Single-phase
250
15
Yes
0.5
35
−25°C to +55°C
Faston
UL, CSA and TÜV
255
GT-20301
Single-phase
250
3
No
1.0
30
−25°C to +55°C
Faston
UL, CSA and TÜV
160
300
GT-21001
Single-phase
250
10
No
1.0
30
−25°C to +55°C
Faston
UL, CSA and TÜV
GT-20302
Single-phase
250
3
No
1.0
30
−25°C to +55°C
Faston
UL, CSA and TÜV
GT-20501V
Single-phase
250
5
No
0.5
35
−25°C to +55°C
Screw
215
220
GT-21001V
Single-phase
250
10
No
0.5
35
−25°C to +55°C
Screw
UL, CSA and TÜV
280
GT-22001V
Single-phase
250
20
No
0.5
35
−25°C to +55°C
Screw
UL and TÜV
285
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
7
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Circuit Diagram
GT-2**0, GT-2**0R
GT-2**U, GT-2**01V
GT-2**J, GT-2**01
GT-2**02
Measuring Circuit - Common Mode
Measuring Circuit - Normal Mode
(Only for GT-2**01V, GT-2**01, GT-2**02)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
8
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Pulse Attenuation Characteristics
Pulse Attenuation Example
Pulse Attenuation Example
Pulse Characteristic Measuring Circuit
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
9
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Attenuation (Static Characteristics)
GT-205U
GT-2050R
GT-2150R
GT-2100, GT-210U
GT-2150, GT-215U
GT-2200, GT-220U
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
10
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Attenuation (Static Characteristics) cont.
GT-205J
GT-210J
GT-215J
GT-20301, GT-21001
GT-20302
GT-20501V
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
11
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Attenuation (Static Characteristics) cont.
GT-21001V
GT-22001V
Packaging
Part Type
GT-205U
GT-2050R
GT-2150R
GT-2100
GT-2150
GT-2200
GT-210U
GT-215U
GT-220U
GT-205J
GT-210J
GT-215J
GT-20301
GT-21001
GT-20302
GT-20501V
GT-21001V
GT-22001V
Packaging Type
Pieces per Box
Tray
10
30
20
40
10
10
40
10
10
50
40
40
30
32
30
40
10
40
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
12
EMI-RFI Filters – GT Metal Box Single-Phase Filters
Handling Precautions
Precautions for product storage
EMI-RFI Filters should be stored in normal working environments. While the filters themselves are quite robust in other
environments, solderability will be degraded by exposure to high temperatures, high humidity, corrosive atmospheres, and
long term storage.
KEMET recommends that maximum storage temperature not exceed 40°C, maximum storage humidity not exceed 70%
relative humidity, and atmospheres should be free of chlorine and sulfur bearing compounds. Temperature fluctuations
should be minimized to avoid condensation on the parts. Also, avoid storage near strong magnetic fields as this might
magnetize the product.
EMI-RFI Filters’ stock should be used promptly, preferably within 12 months of receipt.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
13
EMI-RFI Filters – GT Metal Box Single-Phase Filters
KEMET Electronics Corporation Sales Offices
For a complete list of our global sales offi ces, please visit www.kemet.com/sales.
Disclaimer
All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for
checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such
applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use.
The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no
obligation or liability for the advice given or results obtained.
Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component
failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards
(such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or
property damage.
Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other
measures may not be required.
When providing KEMET products and technologies contained herein to other countries, the customer must abide by the procedures and provisions stipulated in all
applicable export laws and regulations, including without limitation the International Traffi c in Arms Regulations (ITAR), the US Export Administration Regulations
(EAR) and the Japan Foreign Exchange and Foreign Trade Act.
KEMET is a registered trademark of KEMET Electronics Corporation.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
ERF0002_GT • 12/2/2020
14
