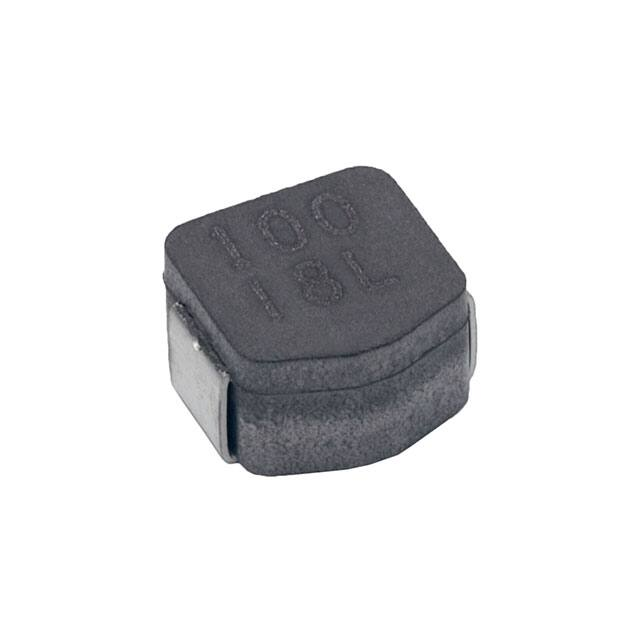

SMD Inductors Large-Current Power Inductors MPLCV Overview Applications The KEMET MPLCV metal composite inductors are ideal for use in DC to DC switching power supplies for automotive applications. The combination of composite core material and round wire allows these inductors to be used in applications with high switching frequencies and where efficiency is important. • Automotive ECU applications • LED head lights • Meter cluster panels • Head-up displays (HUD) • Electric water pumps (EWP) • Electric oil pumps (EOP) • Electric power steering (EPS) Benefits • Metal composite powder • Operating temperature up to +155°C • High current • Low DCR • Low acoustic noise • Low magnetic flux leakage • AEC–Q200 qualified Part Number System MPLCV 0645 L 100 Series Size Code Inductor Inductance Code µH MPLCV 0645 0654 1054 The first two digits represent the inductance value. The third digit inidcates the number of zeros to be added. R = decimal point Example: 4R7 = 4.7 µH One world. One KEMET © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com L9009_MPLCV • 3/27/2019 1 SMD Inductors Large-Current Power Inductors MPLCV Performance Characteristics Item Operating Temperature Rated Inductance Range Inductance Tolerance Rated DC Resistance Range DC Resistance Tolerance Rated Current Range Performance Characteristics –55°C to +155°C (including self-temperature rise) 4.7 – 47.0 µH at 100 kHz, 1 mA ±20% 20 – 175 mΩ ±10% 2.1 – 7.1 A Table 1 – Ratings & Part Number Reference Rated Current (A) Part Number Inductance (µH) at 100 kHz, 1 mA Inductance Tolerance DC Resistance (mΩ) ±10% Irms (Ref.) Isat2 (Ref.) MPLCV0645L100 10.0 ±20% 45 4.0 6.5 MPLCV0654L4R7 4.7 ±20% 20 6.3 10.5 MPLCV0654L220 22.0 ±20% 94 3.0 4.2 MPLCV0654L330 33.0 ±20% 140 2.6 4.0 MPLCV0654L470 47.0 ±20% 175 2.1 3.0 MPLCV1054L100 10.0 ±20% 25 7.1 12.0 MPLCV1054L220 22.0 ±20% 47 5.5 7.0 1 T = 40 K rise at rated current Inductance drop 30% at rated current All electrical characteristics data is referenced to 20°C. 1 2 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com L9009_MPLCV • 3/27/2019 2 SMD Inductors Large-Current Power Inductors MPLCV DC-Superposed Characteristics 50 MPLCV06 25 MPLCV10 45 20 35 Inductance (µH) Inductance (µH) 40 0645L470 30 25 20 0645L330 15 0645L220 0645L100 10 5 15 1054L220 10 5 1054L100 0654L4R7 0 0 0 5 10 15 0 5 IDC (A) 10 15 IDC (A) Dimensions Case Size Dimensions (mm) 4.5 maximum (1.4) (1.4) 6.7 ±0.4 MPLCV0645 3.2 ±0.3 4.1 7.9 maximum Land Pattern (mm) (4.6) 5.4 maximum 3.6 2.5 2.5 3.6 2.5 3.2 5.7 3.2 (1.4) (1.4) 6.7 ±0.4 MPLCV0654 3.2 ±0.3 4.1 7.9 maximum 2.5 (4.6) 5.4 maximum (2.0) (2.0) 3.5 ±0.3 MPLCV1054 10.0 ±0.4 4.8 11.5 maximum (7.0) © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com L9009_MPLCV • 3/27/2019 3 SMD Inductors Large-Current Power Inductors MPLCV Taping Specification Dimensions of Indented Square Hole Plastic Tape F P2 D0 REEL E1 Lot No. Part No. W P0 T Dimensions of Indented Square Hole Plastic Tape REEL P1 F P2 D0 REEL Dimensions of Indented Square Hole Plastic Tape MPLCV0645 MPLCV0654 Reel Quantity REEL 1,000 REEL P0 P2 W Tolerance Nominal ±0.30 16.00 P 1 F D0 Lot No. T Dimensions (mm) F E1 E1 Part No. Case Size E1 ±0.10 7.50 P1 W T ±0.10 1.75 ±0.10 12.00 W P0 P2 ±0.10 2.00 P0 ±0.10 4.00 øD0 ±0.05 1.55 T ±0.05 0.40 2R 2 1R 5 Dimensions of Indented Square Hole Plastic Tape REEL P1 P0 T F P2 Reel Dimensions D0 REEL E1 2R 2 1R 5 W W2 Reel Quantity MPLCV1054 1,000 F ±0.30 24.00 Enlarged Dimensions (mm) W W21 W Tolerance Nominal D A0 C ±0.10 11.50 E1 A Case Size A0 C Enlarged B Reel Dimensions B P1 A REEL ±0.10 1.75 P1 ±0.10 16.00 P2 ±0.10 2.00 P0 ±0.10 4.00 øD0 ±0.05 1.55 T ±0.05 0.40 D W1 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com L9009_MPLCV • 3/27/2019 4 T 2 1 D0 1R 5 W REEL SMD Inductors Large-Current Power Inductors MPLCV REEL P1 Reel Specifications Reel Dimensions A0 C Enlarged A B W2 D W1 Dimensions (mm) Case Size A B C D A0 W1 W2 MPLCV0645 MPLCV0654 Tolerance Nominal ±2.0 ø380 ±2.0 ø80 ±0.2 ø13.0 ±0.8 ø21.0 ±0.5 2.3 17.5 21.5 MPLCV1054 Tolerance Nominal ±2.0 ø380 ±2.0 ø80 ±0.2 ø13.0 ±0.8 ø21.0 ±0.5 2.3 25.5 29.5 Soldering Process Recommended Reflow Soldering Profile Reference ICP/JEDEC J-STD-020E Pb-Free Assembly Preheat/Soak Temperature Minimum (TSmin) Temperature Maximum (TSmax) Time (ts) from Tsmin to Tsmax 150°C 200°C 60 – 120 seconds Ramp-up Rate (TL to TP) 3°C/second maximum Liquidous Temperature (TL) 217°C Time Above Liquidous (tL) 60 – 150 seconds Peak Temperature (TP) 250°C for MPLCV06xx 245°C for MPLCV1xxx Time within 5°C of Maximum Peak Temperature (tP) 30 seconds maximum Ramp-down Rate (TP to TL) 6°C/second maximum Time 25°C to Peak Temperature 8 minutes maximum © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com TP TL Temperature Profile Feature tP Maximum Ramp-up Rate = 3°C/second Maximum Ramp-down Rate = 6°C/second tL Tsmax Tsmin 25 ts 25°C to Peak Time L9009_MPLCV • 3/27/2019 5 SMD Inductors Large-Current Power Inductors MPLCV Handling Precautions Inductors should be stored in normal working environments. While the inductors themselves are quite robust in other environments, solderability will be degraded by exposure to high temperatures, high humidity, corrosive atmospheres, and long term storage. KEMET recommends that maximum storage temperature not exceed 40°C and maximum storage humidity not exceed 70% relative humidity. Atmospheres should be free of chlorine and sulfur bearing compounds. Temperature fluctuations should be minimized to avoid condensation on the parts. For optimized solderability, inductors’ stock should be used promptly, preferably within six months of receipt. Export Control For customers in Japan For products which are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license specified by the law is required for export. For customers outside Japan Inductors should not be used or sold for use in the development, production, stockpiling or utilization of any conventional weapons or mass-destruction weapons (nuclear, chemical, biological weapons or missiles), or any other weapons. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com L9009_MPLCV • 3/27/2019 6 SMD Inductors Large-Current Power Inductors MPLCV KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com L9009_MPLCV • 3/27/2019 7
