AC Line EMI Suppression and RC Networks

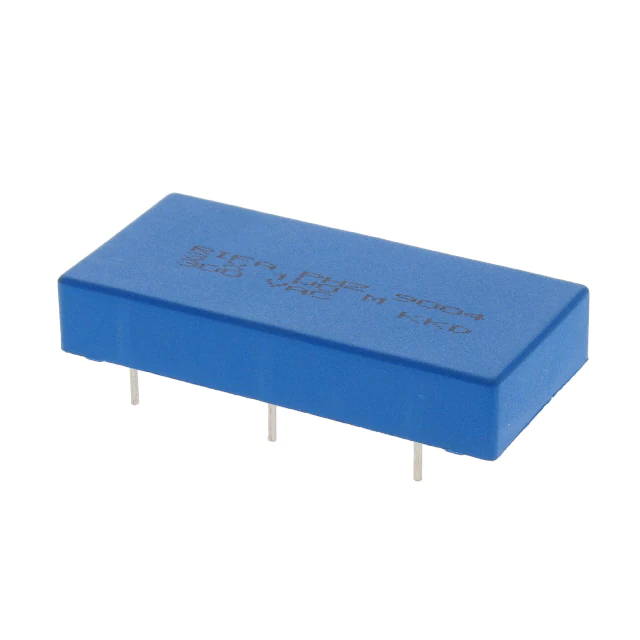

PHZ9004 Series Metallized Polypropylene Film, 300 VAC
3x X2 with Separate Terminals for Three-Phase Filtering
Overview
Applications
The PHZ9004 Series is constructed of metallized
polypropylene film encapsulated with self-extinguishing
resin in a box of material meeting the requirements of
UL 94 V–0.
Typical applications include worldwide use as an
electromagnetic interference suppressor in X2 and acrossthe-line applications for three phases.
Benefits
• Rated voltage: 300 VAC 50/60 Hz
• Capacitance range: 3 x 1.0 µF
• Lead spacing: 27.5 mm
• Capacitance tolerance: ±20%, other tolerances on request
• Climatic category: 55/105/56, IEC 60068–1
• Tape and reel in accordance with IEC 60286–2
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55°C to +105°C
• 100% screening factory test at 2,200 VDC
Legacy Part Number System
PHZ9004
E
F
7100
M
R06L2
Series
Rated Voltage (VAC)
Lead Spacing (mm)
Capacitance Code (pF)
Capacitance
Tolerance
Packaging
Triple Capacitor
X2, Metallized
Polypropylene
E = 300
F = 27.5
The last three digits
represent significant
figures. The first digit
specifies the total
number of digits.
M = ±20%
See Ordering
Options Table
New KEMET Part Number System
9004
AA
Capacitor Class Size Code
Triple
Capacitor X2,
Metallized
Polypropylene
See
Dimension
Table
105
M
300
C
DECT
V680
Capacitance Code (pF)
Capacitance
Tolerance
Rated Voltage
(VAC)
Packaging
C-Spec
V-Spec
M = ±20%
300 = 300
See Ordering
Options Table
Optional
additional
characters
at KEMET’s
option.
Part Number
specific
version code
First two digits represent
significant figures. Third
digit specifies number of
zeros.
Built Into Tomorrow
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
1
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Ordering Options Table
Lead
Spacing
Nominal
(mm)
Type of Leads and Packaging
Lead Length
(mm)
KEMET
Legacy
Lead and
Lead and
Packaging Packaging
Code
Code
Standard Lead and Packaging Options
27.5
Bulk (Tray) – Short Leads
6+0/−1
C
R06L2
Dimensions – Millimeters
FRONT VIEW
SIDE VIEW
L
B
H
d
LL
p
p1
p
p1
B
H
L
d
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
Nominal
Tolerance
27.5
+/−0.5
21
+/−0.5
30
Maximum
11.5
Maximum
64
Maximum
1
+/−0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
2
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
300 VAC 50/60 Hz
3 x 1.0 µF
±20%, other tolerances on request
−55°C to +105°C
55/105/56
Maximum Values at +23°C
Dissipation Factor
Test Voltage Between Terminals
1 kHz
0.10%
10 kHz
0.50%
The 100% screening factory test is carried out at 2,200 VDC.
The voltage level is selected to meet the requirements in
applicable equipment standards. All electrical characteristics
are checked after the test. This test may not be repeated due to
potential capacitor damage. KEMET is not liable in such case
for any failures.
Minimum Value Between Terminals
Insulation Resistance
≥ 10,000 MΩ • µF
Minimum Value Between Terminals and Case
≥ 100,000 MΩ
Environmental Test Data
Test
IEC Publication
Procedure
1.25 x VR VAC 50 Hz, once every hour increase to 1,000 VAC for 0.1
second, 1,000 hours at upper rated temperature
Endurance
IEC 60384–14
Vibration
IEC 60068–2–6 Test Fc
3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98 m/s2
Bump
IEC 60068–2–29 Test Eb
1,000 bumps at 390 m/s2
Change of Temperature
IEC 60068–2–14 Test Na
Upper and lower rated temperature 5 cycles
Active Flammability
IEC 60384–14
VR + 20 surge pulses at 2.5 kV (pulse every 5 seconds)
Passive Flammability
IEC 60384–14
IEC 60384–1, IEC 60695–11–5 Needle-flame test
Humidity
IEC 60068–2–3 Test Ca
+40°C and 90 – 95% RH, 56 days
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
3
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
Table 1 – Ratings & Part Number Reference
VAC
Cap
Value
(µF)
300
3 x 1.0
Max Dimensions in mm
B
H
L
Lead
Spacing (p)
30.0
11.5
64.0
27.5
Package
Quantity
C (R06l2)
dV/dt
(V/µs)
72
100
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
New KEMET
Part Number
Legacy Part
Number
9004AA105M300CDECTV680 PHZ9004EF7100MR06L2
F3021_PHZ9004_3xX2_300 • 2/10/2022
4
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Soldering Process
The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder.
This has increased the liquidus temperature from that of 183ºC for SnPb eutectic alloy to 217 – 221°C for the new alloys. As a
result, the heat stress to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave
temperatures. Polypropylene capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170°C).
Wave soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 mm to
15 mm), and great care has to be taken during soldering. The recommended solder profiles from KEMET should be used. Please
consult KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760–1 Edition 2 serves as a solid
guideline for successful soldering. Please see Figure 1.
Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the
above the recommended limits may result to degradation or permanent damage to the capacitors.
Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert
through-hole parts after the curing of surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven,
if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended.
Please allow time for the capacitor surface temperature to return to a normal temperature before the second soldering cycle.
Manual Soldering Recommendations
Wave Soldering Recommendations
300
Following is the recommendation for manual
soldering with a soldering iron.
2+3 seconds maximum
260°C
250
Second Wave
First Wave
Temperature (°C)
Recommended Soldering Temperature
400
Soldering Iron Bit Temperature (°C)
350
300
200
∆T<
150°C
150
Preheating
Cooling
ca. 2°C/second
ca. 3.5°C/second typical
ca. 5°C/second
Tpreheat
100
Typical
250
50
200
150
0
100
0
40
80
120
160
200
240
Time (seconds)
50
0
0
1
2
3
4
5
6
7
8
Soldering Time (seconds)
The soldering iron tip temperature should
be set at 350°C (+10°C maximum) with the
soldering duration not to exceed more than 3
seconds.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
5
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Soldering Process cont.
Wave Soldering Recommendations cont'd
1. The table indicates the maximum set-up temperature of the soldering process
Figure 1
Dielectric
Film Material
Maximum Preheat
Temperature
Maximum
Peak Soldering
Temperature
Capacitor Capacitor Capacitor Capacitor Capacitor
Pitch
Pitch
Pitch
Pitch
Pitch
≤ 10 mm = 15 mm > 15 mm ≤ 15 mm > 15 mm
Polyester
130°C
130°C
130°C
270°C
270°C
Polypropylene
100°C
110°C
130°C
260°C
270°C
Paper
130°C
130°C
140°C
270°C
270°C
Polyphenylene
Sulphide
150°C
150°C
160°C
270°C
270°C
2. The maximum temperature measured inside the capacitor:
Set the temperature so that inside the element the maximum temperature is below the limit:
Dielectric Film Material
Maximum temperature
measured inside the element
Polyester
160°C
Polypropylene
110°C
Paper
160°C
Polyphenylene Sulphide
160°C
Temperature monitored inside the capacitor.
Selective Soldering Recommendations
Selective dip soldering is a variation of reflow soldering. In this method, the printed circuit board with through-hole
components to be soldered is preheated and transported over the solder bath as in normal flow soldering without touching
the solder. When the board is over the bath, it is stopped and pre-designed solder pots are lifted from the bath with molten
solder only at the places of the selected components, and pressed against the lower surface of the board to solder the
components.
The temperature profile for selective soldering is similar to the double wave flow soldering outlined in this document,
however, instead of two baths, there is only one bath with a time from 3 to 10 seconds. In selective soldering, the risk of
overheating is greater than in double wave flow soldering, and great care must be taken so that the parts are not overheated.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
6
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Construction
FILM WINDING SCHEME
OPTIONS
Single-sided
Metallized
Polypropylene Film
(Second Layer)
Molded Plastic
Metal Contact
Case
Layer
Single-sided Metallized Polypropylene Film
Margin
Double-sided
Single-sided Metallized
Polypropylene Film
(First Layer)
Single-sided
Metallized
Polypropylene
Film
Double-sided
Metallized
Polyester
Carrier
Film
Single-sided
Metallized
Polypropylene
Film
Polypro
Film Die
Margin
1 Section
2 Sections
1 Section
Leads
Detailed Cross
Single-sided
Metallized
Polypropylene
Section
Film
Molded Plastic
Case
L
Self-Extinguishing Resin
3 Sections
Double-sided
Metallized
Polyester
Carrier
Film
Single-sided
Metallized
Polypropylene
Film
4 Sections
Polyprop
Film Diel
B
H
3 Sections
Margin
d
Metallized Impregnated Paper
Winding Scheme
Metal Contact
Layer
LL
Lead
Metallized Polyphenylene
Sulfide Film (SMR)
p1
Electrical Scheme
C
Metallized
Impregnated
Paper
C
C
Single-sided Metallized Polyester Film
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
Single-sided
Metallized
Polyester
Metal Foil
Polyp
Poly
Film
Metallized Polyphenylene Sulfide Film with
Vacuum-Evaporated
Aluminum Electrodes
1 Section
1 Section
p
1 Section
AXIAL - Polyprop
F3021_PHZ9004_3xX2_300 • 2/10/2022
Polypropylene
Film Dielectric
7
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
Marking
TOP
Series
Capcitance,
Capacitance
Tolerance
Triple
Capacitor
Rated
Voltage
Manufacturing Date Code (IEC–60062)
Y = Year, Z = Month
Year
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026
2027
2028
2029
2030
Code
A
B
C
D
E
F
H
J
K
L
M
N
P
R
S
T
U
V
W
X
A
Month
January
February
March
April
May
June
July
August
September
October
November
December
Code
1
2
3
4
5
6
7
8
9
O
N
D
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
8
Film Capacitors – AC Line EMI Suppression and RC Networks
PHZ9004 Series Metallized Polypropylene Film, 300 VAC 3x X2 with Separate Terminals for Three-Phase Filtering
KEMET Electronics Corporation Sales Offices
For a complete list of our global sales offi ces, please visit www.kemet.com/sales.
Disclaimer
All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for
checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such
applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use.
The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes
no obligation or liability for the advice given or results obtained.
Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component
failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards
(such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury
or property damage.
Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other
measures may not be required.
KEMET is a registered trademark of KEMET Electronics Corporation.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3021_PHZ9004_3xX2_300 • 2/10/2022
9
