R413I210050T0K

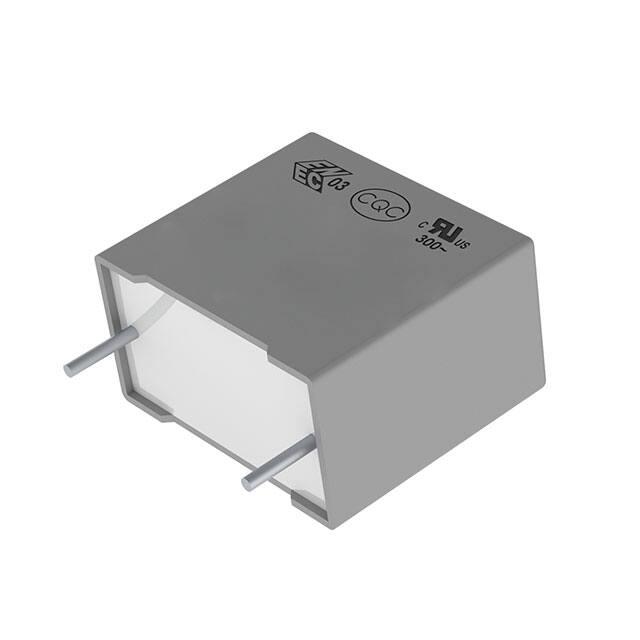

Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Overview Applications The R41 is constructed of metallized polypropylene film encapsulated with self-extinguishing resin, in a box of material meeting the requirements of UL 94 V–0. For use in electromagnetic interference (EMI) suppression filter in "line-to-ground" and "across-the-line" applications, requiring Y2/X1 safety classification. Suitable for use in situations where failure of the capacitor could lead to danger of electric shock. Not for use in "series with mains" type applications. Automotive Grade devices meet the demanding Automotive Electronics Council's AEC–Q200 qualification requirements. Benefits • Approvals: ENEC, UL, cUL, CQC • Class Y2/X1 (IEC 60384-14) • THB Grade IIIB: 85°C, 85% RH, 1,000 hours at 300 V URAC/1,500 V URDC acc. to IEC 60384-14: 2013/AMD1: 2016 • Rated voltage: 300 VAC 50/60 Hz • Capacitance range: 0.0047 – 0.22 µF • Lead spacing: 15 – 22.5 mm • Capacitance tolerance: ±20%, ±10% • Climatic category 40/110/56, IEC 60068-1 • Tape and reel in accordance with IEC 60286-2 • RoHS compliant and lead-free terminations • Operating temperature range of −40°C to +125°C • 100% screening factory test at 5,000 VDC/2,500 VAC • Self-healing properties • Automotive (AEC–Q200) grades available Click image above for interactive 3D content Open PDF in Adobe Reader for full functionality Part Number System R41 3 I 2330 00 T0 M Series Rated Voltage (VAC) Lead Spacing (mm) Capacitance Code (pF) Packaging Internal Use Capacitance Tolerance Y2, Metallized Polypropylene 3 = 300 See Ordering Options Table T0 T1 I = 15.0 N = 22.5 The last three digits represent significant figures. The first digit specifies number of zeros to be added. K = ±10% M = ±20% One world. One KEMET © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 1 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Ordering Options Table Lead Spacing Nominal (mm) Type of Leads and Packaging Lead Length (mm) Lead and Packaging Code Standard Lead and Packaging Options Bulk (Bag) – Short Leads Ammo Pack Other Lead and Packaging Options 4 +2/−0 H0= 18.5 ±0.5 00 DQ Tape & Reel (Large Reel) H0= 18.5 ±0.5 CK Tape & Reel (Standard Reel) H0 = 18.5±0.5 GY Bulk (Bag) – Short Leads 3.5 +0.5/−0 JB Bulk (Bag) – Short Leads 4.0 +0.5/−0 JE Bulk (Bag) – Short Leads 3.2 +0.3/−0.2 JH Bulk (Bag) – Long Leads 18 ±1 JM Bulk (Bag) – Long Leads 30 +5/−0 40 Bulk (Bag) – Long Leads 25 +2/−1 50 15 22.5 Dimensions – Millimeters FRONT VIEW SIDE VIEW L B H d LL p p B H L d Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 5.0 6.0 7.5 8.5 10.0 11.0 6.0 7.0 8.5 10.0 11.0 13.0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 +0.2/−0 11.0 12.0 13.5 14.5 16.0 19.0 15.0 16.0 17.0 18.5 20.0 22.0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 +0.1/−0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 +0.3/−0 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 Note: See Ordering Options Table for lead length (LL/H0) options. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 2 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Performance Characteristics Dielectric Plates Winding Leads Protection Related Documents Rated Voltage (VR) Polypropylene film Metal layer deposited by evaporation under vacum Non-inductive type Tinned wire Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL 94 IEC 60384-14, EN 60384-14 300 VAC (50/60 Hz), 1,500 VDC Capacitance Range 0.0047 – 0.22 µF Capacitance Values E6 series (IEC 60063) Capacitance Tolerance Temperature Range Climatic Category Reliability ±10%, ±20% −40°C to +125°C 40/110/56 IEC 60068-1 Operational life > 100,000 hours at 85°C; > 2,000 hours at 125°C Storage time: ≤ 24 months from the date marked on the label package Average relative humidity per year ≤ 70% Storage Conditions RH ≤ 85% for 30 days randomly distributed throughout the year Dew is absent Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below) Approvals Dissipation Factor (tanδ) Test Voltage Between Terminals ENEC, UL, cUL, CQC ≤ 0.3% (0.2%*) at 1 kHz , +25°C ±5°C (* typical value) The 100% screening factory test is carried out at 5,000 VDC/2,500 VAC. The voltage level is selected to meet the requirements in applicable equipment standards. All electrical characteristics are checked after the test. It is not permitted to repeat this test as there is a risk to damage the capacitor. KEMET is not liable in such case for any failures. Hi-Pot test 4.0kVdc (EOL 2 seconds/Typtest 60 seconds, each ramp 5 seconds) Terminal-to-terminal/to-housing. Measured at +25°C ±5°C, according to IEC 60384–2 Insulation Resistance Minimum Values Between Terminals Voltage Charge Voltage Charge Time C ≤ 0.33 μF C > 0.33 μF 1 minute ≥ 1 • 10 MΩ ( ≥ 5 • 105 MΩ )* ≥ 30,000 MΩ • µF ( ≥ 150,000 MΩ • µF )* 100 VDC In DC Applications 5 Recommended voltage ≤ 1,500 VDC * Typical value © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 3 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Performance Characteristics cont. Maximum Humidity in Storage Condition 100 Relative Humidity (%) 90 80 70 60 50 40 30 Days Annual Average 30 20 10 0 −40 −20 0 20 40 Temperature (°C) 60 80 Qualification Automotive grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com. Impedance Graph © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 4 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Environmental Test Data Test IEC Publication Procedure Endurance IEC 60384-14 1.7 x VR VAC 50 Hz, once every hour increase to 1,000 VAC for 0.1 second, 1,000 hours at upper rated temperature" Vibration IEC 60068-2-6 Test Fc 3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98m/s2 Bump IEC 60068-2-29 Test Eb 1,000 bumps at 390 m/s2 Change of Temperature IEC 60068-2-14 Test Na Upper and lower rated temperature 5 cycles Active Flammability IEC 60384-14 VR +20 surge pulses at 5 kV (pulse every 5 seconds) Passive Flammability IEC 60384-14 IEC 60384-1, IEC 60695-11-5 Needle Flame Test Damp Heat Steady State IEC 60068-2-78 Test Cab +40°C and 93% RH, 56 days 65°C, 93% RH and 1,000 VDC, 1,600 hours Capacitance change (Δ C/C): ≤ 10% Dissipation factor change (Δtanδ): ≤ 150 * 10−4 (at 1 kHz for Cap > 1 µF) Dissipation factor change (Δtanδ): ≤ 240 * 10−4 (at 10 kHz for Cap ≤ 1 µF) IR ≥ 50% of initial limit or minimum 200 MΩ 85°C, 85% RH and 1,500 VDC, 1,000 hours Capacitance change (Δ C/C): ≤ 10% Dissipation factor change (Δtanδ): ≤ 150 * 10−4 (at 1 kHz for Cap > 1 µF) Dissipation factor change (Δtanδ): ≤ 240 * 10−4 (at 10 kHz for Cap ≤ 1 µF) IR ≥ 50% of initial limit or minimum 200 MΩ 85°C, 85% RH and 300 VAC, 1,000 hours Capacitance change (Δ C/C): ≤ 10% Dissipation factor change (Δtanδ): ≤ 150 * 10−4 (at 1 kHz for Cap > 1 µF) Dissipation factor change (Δtanδ): ≤ 240 * 10−4 (at 10 kHz for Cap ≤ 1 µF) IR ≥ 50% of initial limit or minimum 200 MΩ THB test1 THB test2 THB test3 Approvals Mark Specification File Number EN/IEC 60384-14 V4160 UL 60384-14 and CAN/CSA E60384-14 (300 VAC) E97797 IEC 60384-14 CQC13001087758 CQC13001101264 CQC14001116018 CQC14001116611 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 5 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Environmental Compliance All KEMET EMI capacitors are RoHS Compliant. Table 1 – Ratings & Part Number Reference Dimensions in mm Capacitance Value (µF) L Lead Spacing (p) dV/dt (V/µs) New KEMET Part Number Legacy Part Number B H 0.0047 0.0068 0.010 0.015 0.015 0.022 0.022 0.033 0.033 0.047 0.068 0.047 0.068 0.10 0.10 0.15 0.15 0.22 5.0 5.0 5.0 5.0 6.0 6.0 7.5 7.5 8.5 10.0 11.0 6.0 7.0 8.5 10.0 10.0 11.0 13.0 11.0 11.0 11.0 11.0 12.0 12.0 13.5 13.5 14.5 16.0 19.0 15.0 16.0 17.0 18.5 18.5 20.0 22.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 600 600 600 600 600 600 600 600 600 600 600 500 500 500 500 500 500 500 413I1470(1)T0(2) 413I1680(1)T0(2) 413I2100(1)T0(2) 413I2150(1)T1(2) 413I2150(1)T0(2) 413I2220(1)T1(2) 413I2220(1)T0(2) 413I2330(1)T1(2) 413I2330(1)T0(2) 413I2470(1)T0(2) 413I2680(1)T0(2) 413N2470(1)T0(2) 413N2680(1)T0(2) 413N3100(1)T1(2) 413N3100(1)T0(2) 413N3150(1)T1(2) 413N3150(1)T0(2) 413N3220(1)T0(2) R413I1470(1)T0(2) R413I1680(1)T0(2) R413I2100(1)T0(2) R413I2150(1)T1(2) R413I2150(1)T0(2) R413I2220(1)T1(2) R413I2220(1)T0(2) R413I2330(1)T1(2) R413I2330(1)T0(2) R413I2470(1)T0(2) R413I2680(1)T0(2) R413N2470(1)T0(2) R413N2680(1)T0(2) R413N3100(1)T1(2) R413N3100(1)T0(2) R413N3150(1)T1(2) R413N3150(1)T0(2) R413N3220(1)T0(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) New KEMET Part Number Legacy Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) M = ±20%, K = ±10% (3) M = ±20% (only available tolerance). © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 6 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Soldering Process The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder. This has increased the liquidus temperature from that of 183°C for SnPb eutectic alloy to 217 – 221°C for the new alloys. As a result, the heat stress to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave temperatures. Polypropylene capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170°C). Wave soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 mm to 15 mm), and great care has to be taken during soldering. The recommended solder profiles from KEMET should be used. Please consult KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760-1 Edition 2 serves as a solid guideline for successful soldering. Please see Figure 1. Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the above the recommended limits may result to degradation or permanent damage to the capacitors. Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert through-hole parts after the curing of surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven, if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended. Please allow time for the capacitor surface temperature to return to a normal temperature before the second soldering cycle. Wave Soldering Recommendations Manual Soldering Recommendations 300 The following is the recommendation for manual soldering with a soldering iron. 2 +3 seconds maximum 260°C 250 First Wave Recommended Soldering Temperature Temperature (°C) 200 400 350 Soldering Iron Bit Temperature (°C) Second Wave 300 Cooling ∆T < 150°C Preheating 150 ca 2°C/second ca 3.5°C/second typical ca 5°C/second 115 ° T preheat 100 250 50 200 150 0 0 100 40 80 120 160 200 240 Time (s) 50 0 0 1 2 3 4 5 6 7 8 Soldering Time (seconds) The soldering iron tip temperature should be set at 350°C (+10°C maximum) with the soldering duration not to exceed more than 3 seconds. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 7 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Soldering Process cont. Wave Soldering Recommendations cont. 1. The table indicates the maximum set-up temperature of the soldering process Figure 1 Dielectric Film Material Maximum Preheat Temperature Maximum Peak Soldering Temperature Capacitor Capacitor Capacitor Capacitor Pitch Pitch Pitch Pitch ≤ 15 mm > 15 mm ≤ 15 mm > 15 mm Polyester 130°C 130°C 270°C 270°C Polypropylene 110°C 130°C 260°C 270°C Paper 130°C 140°C 270°C 270°C Polyphenylene Sulphide 150°C 160°C 270°C 270°C 2. The maximum temperature measured inside the capacitor: Set the temperature so that inside the element the maximum temperature is below the limit: Dielectric Film Material Maximum temperature measured inside the element Polyester 160°C Polypropylene 110°C Paper 160°C Polyphenylene sulphide 160°C Temperature monitored inside the capacitor. Selective Soldering Recommendations Selective dip soldering is a variation of reflow soldering. In this method, the printed circuit board with through-hole components to be soldered is preheated and transported over the solder bath as in normal flow soldering without touching the solder. When the board is over the bath, it is stopped and pre-designed solder pots are lifted from the bath with molten solder only at the places of the selected components, and pressed against the lower surface of the board to solder the components. The temperature profile for selective soldering is similar to the double wave flow soldering outlined in this document, however, instead of two baths, there is only one bath with a time from 3 to 10 seconds. In selective soldering, the risk of overheating is greater than in double wave flow soldering, and great care must be taken so that the parts are not overheated. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 8 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Construction 2 Sections Molded Plastic Case Single-sided Metallized Polypropylene Film (First Layer) Detailed Cross Section Molded Plastic Self-Extinguishing Case Resin Single-sided Metallized Polypropylene Film (Second Layer) Margin Margin Metal Contact Layer Metal Contact Layer FILM WINDINGMargin SCHEME OPTIONS Leads etallized Polypropylene Film Double-sided Metallized Polyester Film Winding Scheme sided ized pylene m Single-sided Metallized Polypropylene Film 2 Sections 1 Section 2 Sections sided ized pylene m Double-sided Metallized Polypropylene Polyester Carrier Film Dielectric Film Double-sided Metallized Polyester Carrier Film Single-sided Metallized Polypropylene Film Double-sided Metallized Polyester Carrier Film 4 Sections ©Metallized KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Polyphenylene Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com Sulfide Film (SMR) Polypropylene Film Dielectric Double-sided Metallized Polyester Carrier Film 3 Sections 4 Sections F3120_R41-T_Y2_300 • 10/14/2019 Polypropylene Film/Foil 9 IEC Climatic Category Date Code Metallized Polypropylene Film EMI Suppression Capacitors Passive Flammability R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Category Grade) Manufacturing Plant NOTE: Hot imprinting with or without color or ink jet or laser marking Marking Lead Spacing 15 mm, 22.5 mm (small case sizes) FRONT TOP Capacitance Tolerance Series, Dielectric Code, Safety Class, Self Healing Capacitance, Rated Voltage Approval Marks Manufacturer’s Logo IEC Climatic Category Date Code Passive Flammability Category: B for volume ≥ 1750 mm3 C for volume < 1750 mm3 Manufacturing Plant NOTE: Hot imprinting with or without color or ink jet or laser marking Lead Spacing 22.5 and 27.5 mm (alternatives*) and 37.5 mm FRONT TOP Series Dielectric Code Safety Class Self Healing Capacitance, Capacitance Tolerance, Rated Voltage Manufacturer’s Logo Approval Marks IEC Climatic Category QA Number Passive Flammability Category Manufacturing Plant Date Code Manufacturing Date Code (IEC 60062) Y = Year, Z = Month Year Code Year Code Year Code Month Code Month Code 2010 2011 2012 2013 2014 2015 2016 A B C D E F H 2017 2018 2019 2020 2021 2022 2023 J K L M N P R 2024 2025 2026 2027 2028 2029 2030 S T U V W X M January February March April May June 1 2 3 4 5 6 July August September October November December 7 8 9 O N D © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 10 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Packaging Quantities Lead Spacing (mm) Thickness (mm) Height (mm) Length (mm) Bulk Short Leads Bulk Long Leads Standard Reel ø 355 mm Large Reel ø 500 mm Ammo Taped 15 5.0 6.0 7.5 8.5 11.0 11.0 12.0 13.5 14.5 19.0 18.0 18.0 18.0 18.0 18.0 2000 1750 1000 1000 450 1000 900 700 500 350 600 500 350 300 – 1,250 1,000 800 700 500 800 680 500 440 340 22.5 6.0 7.0 8.5 10.0 13.0 15.0 16.0 17.0 18.5 22.0 26.5 26.5 26.5 26.5 26.5 805 700 468 396 300 500 500 300 300 200 – – – – – 700 550 450 350 300 464 380 280 235 – © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 11 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Lead Taping & Packaging (IEC 60286–2) Figure 1 Lead Spacing 10 mm Figure 2 Lead Spacing 15 mm Figure 3 Lead Spacing 22.5 – 27.5 mm P W2 P2 ød A B W W0 W1 H0 P1 P0 F P h h D0 P1 P2 A-B t Taping Specification Dimensions (mm) Description Symbol 10 Fig. 1 Lead Space 15 22.5 Fig. 2 Fig. 3 27.5 Fig. 3 Tol. Lead wire diameter d 0.6 0.6–0.8 0.8 0.8 ±0.05 Taping lead space P 25.4 25.4 38.1 38.1 ±1 Feed hole lead space * P0 12.7 12.7 12.7 12.7 ±0.2 ** Centering of the lead wire P1 7.7 5.2 7.8 5.3 ±0.7 Centering of the body P2 12.7 12.7 19.05 19.05 ±1.3 Lead spacing (pitch) *** F 10 15 22.5 27.5 +0.6/−0.1 Component alignment Δh 0 0 0 0 ±2 Height of component from tape center H 0 **** 18.5 18.5 18.5 18.5 ±0.5 Carrier tape width W 18 18 18 18 +1/−0.5 Hold down tape width W0 9 10 10 10 Minimum Hole position W1 9 9 9 9 ±0.5 Hold down tape position W2 3 3 3 3 Maximum Feed hole diameter D0 4 4 4 4 ±0.2 Total tape thickness t 0.7 0.7 0.7 0.7 ±0.2 * 15 mm also available ** Maximum of 1 mm on 20 lead spaces *** Pitches 15 mm and 10 mm taped to 7.5 mm (crimped leads) available upon request **** H0 = 16.5 mm is available upon request © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 12 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) Lead Taping & Packaging (IEC 60286–2) cont. Ammo Specifications Dimensions (mm) H W T 360 340 59 H T W Reel Specifications Reel Size Standard Large Dimensions (mm) D H W 355 500 30 25 55 Maximum D H W © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 13 Metallized Polypropylene Film EMI Suppression Capacitors R41-T, THB, Class Y2, 300 VAC, 125°C (Automotive Grade) KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3120_R41-T_Y2_300 • 10/14/2019 14
