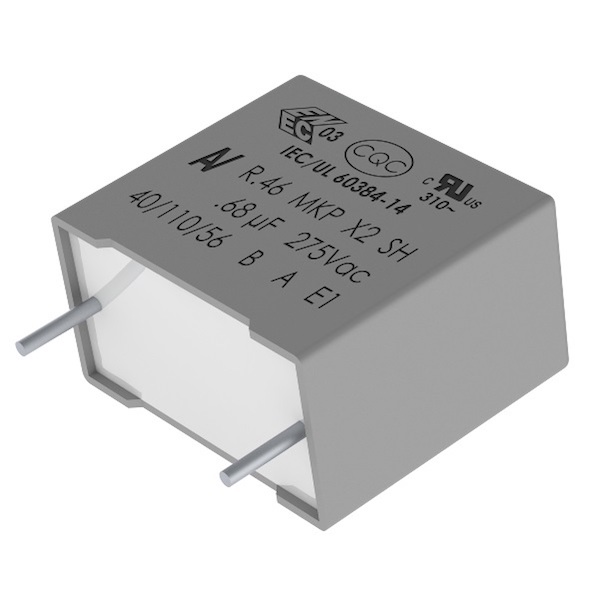

Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Overview Applications The R46 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0. For worldwide use in electromagnetic interference (EMI) suppression in across-the-line applications requiring X2 safety classification. Intended for use in situations where capacitor failure would not result in exposure to electric shock. Not for use in “series with mains” type applications. Benefits • Approvals: ENEC, UL, cUL, CQC • Class X2 (IEC 60384-14) • Rated voltage: 275 VAC 50/60 Hz • Capacitance range: 0.033 – 10 µF • Lead spacing: 10.0 – 37.5 mm • Capacitance tolerance: ±20%, ±10% • Climatic category: 40/110/56, IEC 60068–1 • Tape and reel in accordance with IEC 60286–2 • RoHS Compliant and lead-free terminations • Operating temperature range of −40˚C to +110˚C • 100% screening factory test at 2,200 VDC/1,500 VAC • Self-healing properties Click image above for interactive 3D content Open PDF in Adobe Reader for full functionality Part Number System R46 K I 3470 00 P0 M Series Rated Voltage (VAC) Lead Spacing (mm) Capacitance Code (pF) Packaging Internal Use Capacitance Tolerance See Ordering Options Table P0 P1 P2 P3 X2, Metallized Polypropylene K = 275 F = 10.0 I = 15.0 N = 22.5 R = 27.5 W = 37.5 The last three digits represent significant figures. The first digit specifies number of zeros to be added. K = ±10% M = ±20% One world. One KEMET © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 1 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Ordering Options Table Lead Spacing Nominal (mm) Lead Length (mm) Lead and Packaging Code 4 +2/-0 H0= 18.5 +/-0.5 00 DQ Tape & Reel (Large Reel) H0= 18.5 +/-0.5 CK Bulk (Bag) – Short Leads 2.7 +0.5/-0 JA Bulk (Bag) – Short Leads 3.5 +0.5/-0 JB Bulk (Bag) – Short Leads 4.0 +0.5/-0 JE Bulk (Bag) – Short Leads 3.2 +0.3/-0.2 JH Bulk (Bag) – Long Leads 18 +1/-1 JM Bulk (Bag) – Long Leads 30 +5/-0 40 Bulk (Bag) – Long Leads 25 +2/-1 50 Bulk (Bag) – Insulated Rigid Leads 30 +5/-0 (sp 8+2/-2) 51 Bulk (Bag) – Insulated Flexible Leads 150 +5/-5 (sp 8+2/-2) 52 4 +2/-0 H0= 18.5 +/-0.5 00 CK 2.7 +0.5/-0 3.5 +0.5/-0 4.0 +0.5/-0 3.2 +0.3/-0.2 18 +1/-1 30 +5/-0 25 +2/-1 30 +5/-0 (sp 8+2/-2) 150 +5/-5 (sp 8+2/-2) JA JB JE JH JM 40 50 51 52 4 +2/-0 00 2.7 +0.5/-0 3.5 +0.5/-0 4.0 +0.5/-0 3.2 +0.3/-0.2 18 +1/-1 30 +5/-0 25 +2/-1 30 +5/-0 (sp 8+2/-2) 150 +5/-5 (sp 8+2/-2) JA JB JE JH JM 40 50 51 52 Type of Leads and Packaging Standard Lead and Packaging Options Bulk (Bag) – Short Leads Ammo Pack Other Lead and Packaging Options 10, 15, 22.5 Standard Lead and Packaging Options 27.5 Bulk (Bag) – Short Leads Tape & Reel (Large Reel) Other Lead and Packaging Options Bulk (Bag) – Short Leads Bulk (Bag) – Short Leads Bulk (Bag) – Short Leads Bulk (Bag) – Short Leads Bulk (Bag) – Long Leads Bulk (Bag) – Long Leads Bulk (Bag) – Long Leads Bulk (Bag) – Insulated Rigid Leads Bulk (Bag) – Insulated Flexible Leads Standard Lead and Packaging Options 37.5 Bulk (Bag) – Short Leads Other Lead and Packaging Options Bulk (Bag) – Short Leads Bulk (Bag) – Short Leads Bulk (Bag) – Short Leads Bulk (Bag) – Short Leads Bulk (Bag) – Long Leads Bulk (Bag) – Long Leads Bulk (Bag) – Long Leads Bulk (Bag) – Insulated Rigid Leads Bulk (Bag) – Insulated Flexible Leads © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 2 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Dimensions – Millimeters Loose Insulated Rigid Leads Insulated Flexible Leads 0.5 mm2 FRONT VIEW SIDE VIEW FRONT VIEW SIDE VIEW FRONT VIEW SIDE VIEW L B L B L B H H d H LL p B H 8 ±2 8 ±2 d 150 ±5 35 +0/-5 p L d Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 +/-0.4 4.0 5.0 6.0 5.0 6.0 6.0 7.5 7.5 8.5 9.0 10.0 11.0 6.0 7.0 8.5 10.0 11.0 13.0 9.0 11.0 13.0 14.0 18.0 22.0 11.0 13.0 16.0 19.0 20.0 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.3 +0.3 +0.3 +0.3 +0.3 9.0 11.0 12.0 11.0 12.0 17.5 13.5 18.5 14.5 12.5 16.0 19.0 15.0 16.0 17.0 18.5 20.0 22.0 17.0 20.0 22.0 28.0 33.0 37.0 22.0 24.0 28.5 32.0 40.0 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 +0.2 +0.2 +0.2 +0.3 +0.3 +0.3 +0.5 +0.5 +0.5 +0.5 +0.5 +0.5 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1.0 1.0 1.0 1.0 1.0 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 +/-0.05 Note: See Ordering Options Table for lead length (LL/H 0) options. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 3 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Performance Characteristics Dielectric Plates Winding Leads Protection Related documents Rated Voltage (VR) Polypropylene film Metal layer deposited by evaporation under vacuum Non-inductive type Tinned wire Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94. IEC 60384-14, EN 60384-14 275 VAC (50/60 Hz), 560 VDC Capacitance Range 0.033 µF to 10 µF Capacitance Values E6 series (IEC 60063) measured @ 1 kHz and +20 ±1°C Capacitance Tolerance Temperature Range Climatic Category ±10%, ±20% −40ºC to +110°C 40/110/56 IEC 60068-1 Storage time: ≤ 24 months from the date marked on the label package Average relative humidity per year ≤ 70% Storage Conditions RH ≤ 85% for 30 days randomly distributed throughout the year Dew is absent Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below) Approvals ENEC, UL, cUL, CQC © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 4 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Performance Characteristics cont'd Dissipation Factor (tanδ) Test Voltage Between Terminals ≤ 0.1% (0.06%*) @ 1 kHz , +25°C ±5°C (* typical value) The 100% screening factory test is carried out at 2,200 VDC/1,500 VAC. The voltage level is selected to meet the requirements in applicable equipment standards. All electrical characteristics are checked after the test. It is not permitted to repeat this test as there is a risk to damage the capacitor. KEMET is not liable in such case for any failures. Measured at +25°C ±5°C, according to IEC 60384–2 Insulation Resistance Minimum Values Between Terminals Voltage Charge Voltage Charge Time C ≤ 0.33 μF C > 0.33 μF 1 minute ≥ 1 • 105 MΩ ( ≥ 5 • 105 MΩ )* ≥ 30,000 MΩ • µF ( ≥ 150,000 MΩ • µF )* 100 VDC In DC Applications Recommended voltage ≤ 560 VDC * Typical value Impedance Graph © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 5 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Environmental Test Data Test IEC Publication Procedure Endurance EN/IEC 60384–14 Vibration IEC 60068–2–6 Test Fc 3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98 m/s2 Bump IEC 60068–2–29 Test Eb 1,000 bumps at 390 m/s2 Change of Temperature IEC 60068–2–14 Test Na Upper and lower rated temperature 5 cycles Active Flammability IEC 60384–14 VR + 20 surge pulses at 2.5 kV (pulse every 5 seconds) Passive Flammability IEC 60384–14 IEC 60384–1, IEC 60695–11–5 Needle flame test Damp Heat Steady State IEC 60068–2–78 Test Cab 1.25 x VR VAC 50 Hz, once every hour increase to 1,000 VAC for 0.1 second, 1,000 hours at upper rated temperature +40°C and 93% RH, 56 days Approvals Mark Specification File Number EN/IEC 60384-14 V4413 UL 60384-14 and CAN/CSA E60384-14 (310VAC) E97797 IEC 60384-14 CQC08001026549 CQC11001060118 CQC13001087757 CQC14001116028 CQC13001101266 CQC14001116000 Environmental Compliance All KEMET EMI capacitors are RoHS Compliant. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 6 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Table 1 – Ratings & Part Number Reference Dimensions in mm Capacitance Value (µF) B H 0.033 0.047 0.068 0.10 0.10 0.15 0.15 0.22 0.33 0.33 0.33 0.47 0.47 0.47 0.47 0.68 0.68 0.82 0.47 0.56 0.56 0.68 1.0 1.0 1.5 1.5 2.2 1.0 1.5 2.2 3.3 4.7 4.7 6.8 2.2 3.3 4.7 6.8 10.0 4.0 4.0 5.0 5.0 6.0 6.0 5.0 6.0 7.5 9.0 6.0 8.5 9.0 6.0 7.5 10.0 11.0 11.0 6.0 6.0 7.0 7.0 8.5 10.0 10.0 11.0 13.0 9.0 11.0 13.0 14.0 14.0 18.0 22.0 11.0 13.0 16.0 19.0 20.0 9.0 9.0 11.0 11.0 12.0 12.0 11.0 12.0 13.5 12.5 17.5 14.5 12.5 17.5 18.5 16.0 19.0 19.0 15.0 15.0 16.0 16.0 17.0 18.5 18.5 20.0 22.0 17.0 20.0 22.0 28.0 28.0 33.0 37.0 22.0 24.0 28.5 32.0 40.0 Capacitance Value (µF) B (mm) H (mm) L Lead Spacing (p) dV/dt (V/µs) New KEMET Part Number Legacy Part Number 13.0 13.0 13.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 500 500 500 500 500 500 400 400 400 400 400 400 400 400 400 400 400 400 200 200 200 200 200 200 200 200 200 150 150 150 150 150 150 150 100 100 100 100 100 46KF2330(1)P0(2) 46KF2470(1)P0(2) 46KF2680(1)P0(2) 46KF3100(1)P1(3) 46KF3100(1)P0(2) 46KF3150(1)P0(3) 46KI3150(1)P0(2) 46KI3220(1)P0(2) 46KI3330(1)P0(2) 46KI3330(1)P1(2) 46KI3330(1)P2(2) 46KI3470(1)P0(2) 46KI3470(1)P1(3) 46KI3470(1)P2(3) 46KI3470(1)P3(2) 46KI3680(1)P1(3) 46KI3680(1)P0(2) 46KI3820(1)P0(3) 46KN3470(1)P1(2) 46KN3560(1)P1(3) 46KN3560(1)P0(2) 46KN3680(1)P0(2) 46KN4100(1)P1(3) 46KN4100(1)P0(2) 46KN4150(1)P1(3) 46KN4150(1)P0(2) 46KN4220(1)P0(3) 46KR4100(1)P0(2) 46KR4150(1)P0(2) 46KR4220(1)P0(2) 46KR4330(1)P0(2) 46KR4470(1)P1(3) 46KR4470(1)P0(2) 46KR4680(1)P0(2) 46KW4220(1)P0(2) 46KW4330(1)P0(2) 46KW4470(1)P0(2) 46KW4680(1)P0(2) 46KW5100(1)P0(2) R46KF2330(1)P0(2) R46KF2470(1)P0(2) R46KF2680(1)P0(2) R46KF3100(1)P1(3) R46KF3100(1)P0(2) R46KF3150(1)P0(3) R46KI3150(1)P0(2) R46KI3220(1)P0(2) R46KI3330(1)P0(2) R46KI3330(1)P1(2) R46KI3330(1)P2(2) R46KI3470(1)P0(2) R46KI3470(1)P1(3) R46KI3470(1)P2(3) R46KI3470(1)P3(2) R46KI3680(1)P1(3) R46KI3680(1)P0(2) R46KI3820(1)P0(3) R46KN3470(1)P1(2) R46KN3560(1)P1(3) R46KN3560(1)P0(2) R46KN3680(1)P0(2) R46KN4100(1)P1(3) R46KN4100(1)P0(2) R46KN4150(1)P1(3) R46KN4150(1)P0(2) R46KN4220(1)P0(3) R46KR4100(1)P0(2) R46KR4150(1)P0(2) R46KR4220(1)P0(2) R46KR4330(1)P0(2) R46KR4470(1)P1(3) R46KR4470(1)P0(2) R46KR4680(1)P0(2) R46KW4220(1)P0(2) R46KW4330(1)P0(2) R46KW4470(1)P0(2) R46KW4680(1)P0(2) R46KW5100(1)P0(2) L (mm) Lead Spacing (p) dV/dt (V/µs) New KEMET Part Number Legacy Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) M = ±20%, K = ±10% (3) M = ±20% (only available tolerance). © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 7 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Soldering Process The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder. This has increased the liquidus temperature from that of 183ºC for SnPb eutectic alloy to 217 – 221ºC for the new alloys. As a result, the heat stress to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave temperatures. Polypropylene capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170ºC). Wave soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 mm to 15 mm), and great care has to be taken during soldering. The recommended solder profiles from KEMET should be used. Please consult KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760-1 Edition 2 serves as a solid guideline for successful soldering. Please see Figure 1. Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the above the recommended limits may result to degradation or permanent damage to the capacitors. Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert through-hole parts after the curing of surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven, if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended. Please allow time for the capacitor surface temperature to return to a normal temperature before the second soldering cycle. Manual Soldering Recommendations Wave Soldering Recommendations 300 Following is the recommendation for manual soldering with a soldering iron. 2+3s max 260°C 250 First wave Temperature (°C) Recommended Soldering Temperature Soldering iron bit temperature (deg C) 400 350 300 Second wave 200 Cooling ΔT 15 mm ≤ 15 mm > 15 mm Polyester 130°C 130°C 130°C 270°C 270°C Polypropylene 100°C 110°C 130°C 260°C 270°C Paper 130°C 130°C 140°C 270°C 270°C Polyphenylene Sulphide 150°C 150°C 160°C 270°C 270°C 2. The maximum temperature measured inside the capacitor: Set the temperature so that inside the element the maximum temperature is below the limit: Dielectric Film Material Maximum temperature measured inside the element Polyester 160°C Polypropylene 110°C Paper 160°C Polyphenylene sulphide 160°C Temperature monitored inside the capacitor. Selective Soldering Recommendations Selective dip soldering is a variation of reflow soldering. In this method, the printed circuit board with through-hole components to be soldered is preheated and transported over the solder bath as in normal flow soldering without touching the solder. When the board is over the bath, it is stopped and pre-designed solder pots are lifted from the bath with molten solder only at the places of the selected components, and pressed against the lower surface of the board to solder the components. The temperature profile for selective soldering is similar to the double wave flow soldering outlined in this document, however, instead of two baths, there is only one bath with a time from 3 to 10 seconds. In selective soldering, the risk of overheating is greater than in double wave flow soldering, and great care must be taken so that the parts are not overheated. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 9 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Construction Molded Plastic Case Single-sided Metallized Polypropylene Film (First Layer) Detailed Cross Section Molded Plastic Self-Extinguishing Case Resin Single-sided Metallized Polypropylene Film (Second Layer) Margin Margin Metal Contact Layer Metal Contact Layer Margin FILM WINDING SCHEME OPTIONS Leads Single-sided Metallized Polypropylene Film Double-sided Winding Scheme Single-sided Metallized Polypropylene Film 1 Section Single-sided Metallized Polypropylene Film 2 Sections Single-sided Metallized Polypropylene Film 3 Sections Double-sided Metallized Polyester Carrier Film Polypro Film Die 1 Section Single-sided Metallized Polypropylene Film 4 Sections Metallized Impregnated Paper Metallized Polyphenylene © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com Sulfide Film (SMR) Double-sided Metallized Polyester Carrier Film Polyprop Film Die 3 Sections F3094_R46_X2_275_110C_MIN • 7/31/2018 10 Polyp Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Marking Lead Spacing 10 mm FRONT TOP Series, Dielectric Code, Safety Class, Self Healing Capacitance, Rated Voltage Approval Marks Manufacturer’s Logo IEC Climatic Category Capacitance Tolerance Date Code Passive Flammability Category Manufacturing Plant Lead Spacing 15 mm, 22.5 mm (small case sizes) FRONT TOP Series, Dielectric Code, Safety Class, Self Healing Capacitance, Rated Voltage Approval Marks Manufacturer’s Logo IEC Climatic Category Capacitance Tolerance Date Code Passive Flammability Category: B for volume ≥ 1750 mm3 C for volume < 1750 mm3 Manufacturing Plant Lead Spacing 22.5 mm (large case sizes), 27.5 mm, 37.5 mm FRONT TOP Series Dielectric Safety Code Class Approval Marks Manufacturer’s Logo IEC Climatic Category Passive Flammability © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com Category Self Healing Capacitance, Capacitance Tolerance, Rated Voltage QA Number Manufacturing Date Code F3094_R46_X2_275_110C_MIN • 7/31/2018 Plant 11 Manufacturing Plant Passive Flammability Category:Capacitors Metallized Polypropylene Film EMI Suppression B for volume ≥ 1750 mm3 R46 (Miniature) Series, Class X2, 275volume VAC, 110°C C for < 1750 mm3 Marking cont'd Lead Spacing 22.5 mm (large case sizes), 27.5 mm, 37.5 mm FRONT TOP Series Dielectric Safety Code Class Self Healing Capacitance, Capacitance Tolerance, Rated Voltage Manufacturer’s Logo Approval Marks IEC Climatic Category QA Number Passive Flammability Category Manufacturing Plant Date Code Manufacturing Date Code (IEC 60062) Y = Year, Z = Month Year Code Month Code 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 M N P R S T U V W X A B C D E F H J K L M January February March April May June July August September October November December 1 2 3 4 5 6 7 8 9 O N D © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 12 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Packaging Quantities Lead Spacing (mm) Thickness (mm) Height (mm) Length (mm) Bulk Short Leads Bulk Long Leads Standard Reel ø 355 mm Large Reel ø 500 mm Ammo Taped 10 4 5 6 9 11 12 13 13 13 2000 1300 1000 1800 1500 1200 750 600 500 1500 1250 1000 1000 800 680 15 5 6 6 7.5 7.5 8.5 9 10 11 11 12 17.5 13.5 18.5 14.5 12.5 16 19 18 18 18 18 18 18 18 18 18 2000 1750 1000 1000 900 1000 1000 750 450 1000 900 700 700 500 500 520 500 350 600 500 500 350 – 300 270 300 – 1250 1000 1000 800 800 700 650 600 500 800 680 680 500 500 440 410 380 340 22.5 6 7 8.5 10 11 13 15 16 17 18.5 20 22 26.5 26.5 26.5 26.5 26.5 26.5 805 700 468 396 360 300 500 500 300 300 250 200 – – – – – – 700 550 450 350 350 300 464 380 280 235 217 – 27.5 9 11 13 14 18 22 22 17 20 22 28 33 37 37 32 32 32 32 32 32 32 816 560 480 352 256 168 168 408 336 288 176 128 112 112 – – – – – – – 450 350 300 – – – – – – – – – – – 37.5 11 13 16 19 20 22 24 28.5 32 40 41.5 41.5 41.5 41.5 41.5 420 360 216 192 126 252 216 108 96 84 – – – – – – – – – – – – – – – © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 13 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Lead Taping & Packaging (IEC 60286–2) Figure 1 Lead Spacing 10 mm Figure 2 Lead Spacing 15 mm Figure 3 Lead Spacing 22.5 – 27.5 mm P W2 P2 ød A B W W0 W1 H0 P1 P0 F P h h D0 P1 P2 A-B t Taping Specification Dimensions (mm) Description Symbol 10 Fig. 1 Lead Space 15 22.5 Fig. 2 Fig. 3 27.5 Fig. 3 Tol. Lead wire diameter d 0.6 0.6-0.8 0.8 0.8 ±0.05 Taping lead space P 25.4 25.4 38.1 38.1 ±1 Feed hole lead space * P0 12.7 12.7 12.7 12.7 ±0.2 ** Centering of the lead wire P1 7.7 5.2 7.8 5.3 ±0.7 Centering of the body P2 12.7 12.7 19.05 19.05 ±1.3 Lead spacing (pitch) *** F 10 15 22.5 27.5 +0.6/−0.1 Component alignment ∆h 0 0 0 0 ±2 Height of component from tape center H 0 **** 18.5 18.5 18.5 18.5 ±0.5 Carrier tape width W 18 18 18 18 +1 / −0.5 Hold down tape width W0 9 10 10 10 Minimum Hole position W1 9 9 9 9 ±0.5 Hold down tape position W2 3 3 3 3 Maximum Feed hole diameter D0 4 4 4 4 ±0.2 Total tape thickness t 0.7 0.7 0.7 0.7 ±0.2 * Available also in 15 mm. ** Maximum 1 mm on 20 lead spaces. *** Pitches 15 mm and 10 mm taped to 7.5 mm (crimped leads) available upon request. **** H0 = 16.5 mm available upon request. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 14 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C Lead Taping & Packaging (IEC 60286–2) cont'd Ammo Specifications Dimensions (mm) H W T 360 340 59 H T W Reel Specifications Reel Size Standard Large Dimensions (mm) D H W 355 500 30 25 55 Maximum D H W © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 15 Metallized Polypropylene Film EMI Suppression Capacitors R46 (Miniature) Series, Class X2, 275 VAC, 110°C KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com F3094_R46_X2_275_110C_MIN • 7/31/2018 16 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: KEMET: R46KF310000P1M R46KN415040P1M R46KN418040P1M R46KN422040P0M R46KF310050P0K R46KR422050P0M R46KR447050P1M R46KI347045P2M R46KI347050P0K R46KI347050P1M R46KI368000P1M R46KN368000P0M R46KN415000P0M R46KN415045P1M R46KF315045P0M R46KF315050P0M R46KF3150CKP0M R46KI333000P2M R46KI356045P0M R46KI368045P1M R46KI368050P1M R46KI3680JPP1M R46KI382045P0M R46KN3470JHP0M R46KI3330JEP0K R46KF310040P1M R46KI322000P0K R46KI322040P0K R46KR410000P0K R46KF310000P0K R46KI3470HAP1M R46KF3100DQP1M R46KI368045P1MA R46KI3470DQP2M R46KI3680DQP1M R46KN3680JPP0M R46KF315000P0M R46KI3820JHP0M R46KN4220JHP0M R46KF3150JHP0M R46KN415000P1M R46KI3680JHP0K R46KN410000P0K R46KI3220JHP0M R46KR447000P1M R46KI3470JBP0K R46KR415000P0M R46KI3470JHP0K R46KI347000P2M R46KI3680JHP1M R46KF3100JEP1M R46KR433050P0K R46KF3150JEP0M R46KI347045P1M R46KR410000P0M R46KI315050P0M R46KW4470ZBP1J R46KN4220JEP0M R46KN4150JHP1M R46KN368045P0M R46KN422000P0M R46KI322000P0M R46KN410000P1M R46KI368000P0K R46KI382040P0M R46KI3220CKP0M R46KF247040P0M R46KF268040P0M R46KN368040P0M R46KI347040P0M R46KI322040P0M R46KI333040P0M R46KF315040P0M R46KN415040P0M R46KI368040P1M R46KI347040P3M R46KF233040P0M R46KN410040P0M R46KI333040P2M R46KI368040P0M R46KI333040P1M R46KI347040P1M R46KI315040P0M R46KF310040P0M R46KI3330DQP0M R46KR415050P0K R46KW422040P0M
