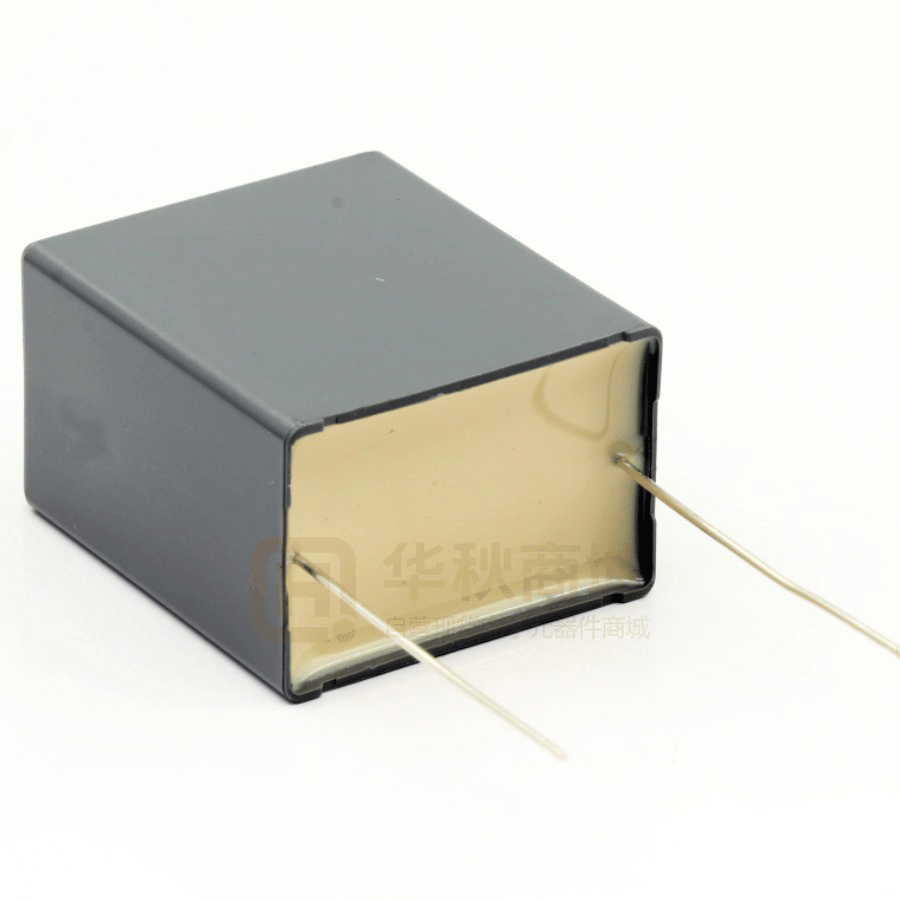

R76UR32204030J

Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Overview Applications The R76 Series is constructed of polypropylene film and double metallized polyester film as electrodes with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material meeting the UL 94V–0 requirements. Two different winding constructions are used depending on voltage parameters. Please see the Performance Characteristics for more information. Typical applications include deflection circuits in televisions (S-correction and flyback tuning) and monitors, switching spikes suppression in switched mode power supplies (SMPS), lamp capacitors for electronic ballasts and compact lamps, and snubber and silicon-controlled rectifier (SCR) commutation circuits as well as applications with high voltage and high current. Not suitable for across-theline application (see Suppressor Capacitors). Automotive grade devices are available (up to lead spacing 22.5 mm) and meet the demanding Automotive Electronics Council's AEC–Q200 qualification requirements. Benefits • Voltage range: 250 – 2,000 VDC • Capacitance range: 100 pF – 15 µF • Lead Spacing: 7.5 mm – 37.5 mm • Capacitance tolerance: ±5%, ±10%, ±20% • Climatic category: 55/105/56 IEC 60068–1 • Operating temperature range of −55°C to +105°C • RoHS compliance and lead-free terminations • Tape and reel packaging in accordance with IEC 60286–2 • Self-healing • Automotive (AEC–Q200) grades available up to lead spacing 22.5mm Click image above for interactive 3D content Open PDF in Adobe Reader for full functionality Part Number System R76 Series Double Metallized Polypropylene I Rated Voltage (VDC) I = 250 M = 400 P = 630 Q = 1,000 T = 1,600 U = 2,000 D Lead Spacing (mm) D = 7.5 F = 10 I = 15 N = 22.5 R = 27.5 W = 37.5 1680 Capacitance Code (pF) The last three digits represent significant figures. The first digit specifies the total number of zeros to be added. SE 30 K Packaging Internal Use See Ordering Options Table 00 10 30 40 50 60 70 80 Capacitance Tolerance H = 2.5% J = ±5% K = ±10% One world. One KEMET © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 1 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Ordering Options Table Lead Spacing Nominal (mm) Lead Length (mm) Lead and Packaging Code 4 +2/−0 H0= 18.5 ±0.5 SE DQ Tape & Reel (Standard Reel Ø 355 mm) Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads H0=18.5 ±0.5 2.7 +0.5/−0 3.5 +0.5/−0 4.0 +0.5/−0 3.2 +0.3/−0.2 CK JA JB JE JH Bulk (Bag)–Long Leads Bulk (Bag)–Long Leads 18 ±1 17 +1/−2 JM Z3 4 +2/−0 H0= 18.5 ±0.5 SE DQ Tape & Reel (Standard Reel Ø 355 mm) H0=18.5 ±0.5 GY Tape & Reel (Large Reel Ø 500 mm) H0=18.5 ±0.5 CK Bulk (Bag)–Short Leads 2.7 +0.5/−0 JA Bulk (Bag)–Short Leads 3.5 +0.5/−0 JB Bulk (Bag)–Short Leads 10 ±1 JC Bulk (Bag)–Short Leads 4.0 +0.5/−0 JE Bulk (Bag)–Short Leads 3.2 +0.3/−0.2 JH Bulk (Bag)–Long Leads 18 ±1 JM Bulk (Bag)–Long Leads 30 +5/−0 40 Bulk (Bag)–Long Leads 25 +2/−1 50 4 +2/−0 SE H0=18.5 ±0.5 3.5 +0.5/−0 4.0 +0.5/−0 3.2 +0.3/−0.2 30 +5/−0 25 +2/−1 CK JB JE JH 40 50 Type of Leads and Packaging Standard Lead and Packaging Options Bulk (Bag) – Short Leads Ammo Pack Other Lead and Packaging Options 7.5 Standard Lead and Packaging Options Bulk (Bag) – Short Leads Ammo Pack Other Lead and Packaging Options 10 15 22.5 Standard Lead and Packaging Options Bulk (Bag) – Short Leads Other Lead and Packaging Options 27.5 Tape & Reel (Large Reel Ø 500 mm) Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads Bulk (Bag)–Long Leads Bulk (Bag) – Long Leads © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 2 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Ordering Options Table cont'd Lead Spacing Nominal (mm) Type of Leads and Packaging Lead Length (mm) Lead and Packaging Code 4 +2/−0 SE 3.5 +0.5/−0 4.0 +0.5/−0 3.2 +0.3/−0.2 30 +5/−0 25 +2/−1 JB JE JH 40 50 Standard Lead and Packaging Options Bulk (Bag)–Short Leads Other Lead and Packaging Options Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads Bulk (Bag)–Short Leads Bulk (Bag)–Long Leads Bulk (Bag) – Long Leads 37.5 Dimensions – Millimeters FRONT VIEW SIDE VIEW L B H d LL p p B H L d Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance 7.5 7.5 7.5 7.5 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 3.0 4.0 5.0 6.0 4.0 5.0 6.0 4.0 5.0 6.0 7.5 8.5 9.0 10.0 +0.1 +0.1 +0.1 +0.1 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 8.0 9.0 10.5 12.0 9.0 11.0 12.0 10.0 11.0 12.0 13.5 14.5 12.5 16.0 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 10.0 10.0 10.0 10.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.3 +0.3 +0.3 +0.5 +0.5 +0.5 +0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 0.8 0.8 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 Note: See Ordering Options Table for lead length (LL/Ho) options. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 3 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Dimensions – Millimeters cont'd FRONT VIEW SIDE VIEW L B H d LL p p B H L d Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 ±0.4 11.0 13.0 6.0 7.0 8.5 10.0 11.0 13.0 9.0 11.0 13.0 13.0 14.0 18.0 22.0 11.0 13.0 16.0 19.0 20.0 24.0 30.0 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.2 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 19.0 12.0 15.0 16.0 17.0 18.5 20.0 22.0 17.0 20.0 22.0 25.0 28.0 33.0 37.0 22.0 24.0 28.5 32.0 40.0 44.0 45.0 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 +0.1 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 +0.5 +0.5 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 +0.3 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 1.0 1.0 1.0 1.0 1.0 1.0 1.0 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 Note: See Ordering Options Table for lead length (LL/Ho) options. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 4 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Performance Characteristic Dielectric Polypropylene film Plates Double sided metallized polyester film Winding Non-inductive type Leads Tinned wire Protection Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94. Related Documents IEC 60384–16 Sections 1 2 Voltage Range (VDC) 250 400 630 630 1,000 1,000 1,600 2,000 Voltage Range (VAC) 180 250 250 400 400 600 650 700 Capacitance Range (µF) 0.0068– 12 0.0027 – 8.2 0.00068 – 0.012 0.00039 – 4.7 0.00022 – 0.0033 0.00047 – 2.2 0.0033 – 1.2 0.0001 – 0.68 Capacitance Values E12 series (IEC 60063) measured at 1 kHz and +20±1°C Capacitance Tolerance ±2.5%, ±5%, ±10% Operating Temperature Range −55°C to +105°C Rated Temperature TR +85°C for VR (DC) +75°C for VR (AC) The following decreasing factor has to be applied on the rated voltage: +85°C to +105°C: 1.25% per °C for VR (DC) +75°C to +105°C: 1.35% per °C for VR (AC) Voltage Derating Climatic Category 55/105/56 IEC 60068–1 Maximum Humidity in Storage Conditions Relative Humidity (%) 100 90 80 70 60 50 40 30 20 10 0 −40 30 Days Annual Average −20 0 20 40 Temperature (°C) 60 80 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 5 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Performance Characteristics cont'd Storage time: ≤ 24 months from the date marked on the label package Average relative humidity per year ≤ 70% Storage Conditions RH ≤ 85% for 30 days randomly distributed throughout the year Dew is absent Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below) Test Voltage Capacitance Drift Maximum Pulse Steepness Temperature Coefficient Self-Inductance L (Lead Length ~ 2 mm) 1.6 x VR VDC for 2 seconds (between terminations) at +25°C ±5°C Maximum 0.5% after a 2 year storage period at a temperature of +10°C to +40°C and a relative humidity of 40% to 60% dV/dt according to Table 1. For peak to peak voltages lower than rated voltage (Vpp 4.7 µF 1 kHz 0.04% 0.05% 0.06% 0.10% 10 kHz 0.06% 0.08% - - 100 kHz 0.25% - - - Measured at +25°C, 100 VDC 60 seconds Insulation Resistance Minimum Values Between Terminals C ≤ 0.33 μF C > 0.33 μF ≥ 100,000 MΩ ( ≥ 500,000 MΩ )* ≥ 30,000 MΩ • µF ( ≥ 150,000 MΩ • µF )* * Typical value Qualification Automotive Grade products meet or exceed the requirements outlined by the Automotive Electronics Council. Details regarding test methods and conditions are referenced in document AEC–Q200, Stress Test Qualification for Passive Components. For additional information regarding the Automotive Electronics Council and AEC–Q200, please visit their website at www.aecouncil.com. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 6 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Maximum Voltage (Vrms) vs. Frequency (Sinusoidal Waveform/Th ≤ 40ºC) 250 VDC/180 VAC 1,000 100 Vrms [V] Vrms [V] 100 0.015 µF p=7.5 0.033 µF p=10.0 0.1 µF p=15.0 0.47 µF p=22.5 0.82 µF p=27.5 5.6 µF p=37.5 10 1 0.1 1 0.015 µF p=7.5 0.033 µF p=10.0 0.1 µF p=15.0 0.22 µF p=22.5 1 µF p=27.5 5.6 µF p=37.5 10 10 f [kHz] 100 1 1,000 630 VDC/400 VAC 1,000 0.1 1 10 f [kHz] 100 1,000 100 1,000 100 1,000 1,000 VDC/600 VAC 1,000 100 0.01 µF 0.033 µF 0.1 µF 0.15 µF 2.2 µF 0.1 Vrms [V] Vrms [V] 100 10 1 400 VDC/250 VAC 1,000 p=10.0 p=15.0 p=22.5 p=27.5 p=37.5 1 10 f [kHz] 100 1 1,000 0.1 p=10.0 p=15.0 p=22.5 p=27.5 p=37.5 1 1,600 VDC/650 VAC 1,000 10 f [kHz] 2,000 VDC/700 VAC 1,000 100 0.01 µF 0.047 µF 0.1 µF 0.33 µF 1 µF 0.1 1 Vrms [V] Vrms [V] 100 10 1 2,200 pF 0.015 µF 0.047 µF 0.47 µF 1.5 µF 10 p=15.0 p=22.5 p=27.5 p=27.5 p=37.5 0.01 µF 0.022 µF 0.047 µF 0.1 µF 0.47 µF 10 10 f [kHz] 100 1,000 1 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com 0.1 1 p=15.0 p=22.5 p=27.5 p=27.5 p=37.5 10 f [kHz] F3034_R76 • 11/7/2018 7 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Maximum Current (Irms) vs. Frequency (Sinusoidal Waveform/Th ≤ 40ºC) 250 VDC/180 VAC 100 10 Irms [A] Irms [A] 10 1 0.015 µF p=7.5 0.033 µF p=10.0 0.1 µF p=15.0 0.47 µF p=22.5 0.82 µF p=27.5 5.6 µF p=37.5 0.1 0.01 0.1 1 10 100 1 1,000 630 VDC/400 VAC 100 0.01 1 10 100 f [kHz] 1,000 1,000 VDC/600 VAC 10 Irms [A] Irms [A] 0.1 100 10 1 0.01 µF p=10.0 0.033 µF p=15.0 0.1 µF p=22.5 0.15 µF p=27.5 2.2 µF p=27.5 0.1 0.1 1 10 100 1 1,000 1,600 VDC/650 VAC 100 0.01 0.1 1 10 100 f [kHz] 1,000 2,000 VDC/700 VAC 100 10 Irms [A] 10 1 0.01 µF p=15.0 0.047 µF p=22.5 0.1 µF p=27.5 0.33 µF p=27.5 1 µF p=37.5 0.1 0.01 2,200 pF p=10.0 0.015 µF p=15.0 0.047 µF p=22.5 0.47 µF p=27.5 1.5 µF p=27.5 0.1 f [kHz] Irms [A] 0.015 µF p=7.5 0.033 µF p=10.0 0.1 µF p=15.0 0.22 µF p=22.5 1 µF p=27.5 5.6 µF p=37.5 0.1 f [kHz] 0.01 400 VDC/250 VAC 100 0.1 1 10 100 1 0.01 µF p=15.0 0.022 µF p=22.5 0.047 µF p=27.5 0.1 µF p=27.5 0.47 µF p=37.5 0.1 1,000 0.01 f [kHz] 0.1 1 10 f [kHz] 100 1,000 Note: p (pitch) in mm. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 8 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Environmental Test Data Damp Heat, Steady State Test Test Conditions: Temperature: Relative humidity (RH): Test duration: Endurance Test +40°C ±2°C 93% ±2% 56 days Test Conditions Temperature: Voltage applied: Test duration: Resistance to Soldering Heat Test +85°C ±2°C 1.25 x VR (DC) 2,000 hours Test Conditions Solder bath temperature: Dipping time (with heat screen): 260°C ±5°C 10 seconds ±1 second Performances |Δ C/C| ≤ 2%, Δ tanδ ≤ 0.001 at 1 kHz IR after test ≥ 50% of initial limit Performances |Δ C/C| ≤ 2%, Δ tanδ ≤ 0.001 at 10 kHz for C ≤ 1µF Δ tanδ ≤ 0.001 at 1 kHz for C > 1µF IR after test ≥ 50% of initial limit Performances |Δ C/C| ≤ 1%, Δ tanδ ≤ 0.001 at 10 kHz for C ≤ 1µF Δ tanδ ≤ 0.001 at 1 kHz for C > 1µF IR after test ≥ initial limit Environmental Compliance All KEMET pulse capacitors are RoHS Compliant. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 9 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference VDC VAC Capacitance Value (µF) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.0068 0.0082 0.010 0.012 0.015 0.018 0.022 0.027 0.033 0.039 0.047 0.027 0.033 0.039 0.047 0.056 0.068 0.082 0.068 0.082 0.10 0.12 0.15 0.18 0.18 0.22 0.22 0.27 0.27 0.33 0.33 0.39 0.47 0.22 0.27 0.33 0.39 0.47 0.56 0.68 0.82 1.0 1.2 0.82 1.0 1.0 1.2 1.2 1.5 1.5 1.8 1.8 2.2 2.7 3.3 3.9 4.7 5.6 3.0 3.0 3.0 4.0 4.0 4.0 4.0 5.0 5.0 6.0 6.0 4.0 4.0 4.0 5.0 5.0 6.0 6.0 5.0 5.0 5.0 6.0 6.0 7.5 9.0 7.5 9.0 8.5 9.0 10.0 13.0 10.0 11.0 6.0 6.0 6.0 7.0 7.0 8.5 10.0 10.0 11.0 13.0 9.0 11.0 24.0 11.0 24.0 13.0 24.0 13.0 24.0 14.0 18.0 18.0 18.0 22.0 22.0 8.0 8.0 8.0 9.0 9.0 9.0 9.0 10.5 10.5 12.0 12.0 9.0 9.0 9.0 11.0 11.0 12.0 12.0 11.0 11.0 11.0 12.0 12.0 13.5 12.5 13.5 12.5 14.5 12.5 16.0 12.0 16.0 19.0 15.0 15.0 15.0 16.0 16.0 17.0 18.5 18.5 20.0 22.0 17.0 20.0 15.0 20.0 15.0 22.0 15.0 25.0 15.0 28.0 33.0 33.0 33.0 37.0 37.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.5 10.5 13.0 13.0 13.0 13.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 1,100 1,100 1,100 1,100 1,100 1,100 1,100 1,100 1,100 1,100 1,100 1,000 1,000 1,000 1,000 1,000 1,000 1,000 550 550 550 550 550 550 550 550 550 550 550 550 550 550 550 250 250 250 250 250 250 250 250 250 250 200 200 200 200 200 200 200 200 200 200 200 200 200 200 200 550,000 550,000 550,000 550,000 550,000 550,000 550,000 550,000 550,000 550,000 550,000 500,000 500,000 500,000 500,000 500,000 500,000 500,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 275,000 125,000 125,000 125,000 125,000 125,000 125,000 125,000 125,000 125,000 125,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 100,000 76ID1680(1)30(2) 76ID1820(1)30(2) 76ID2100(1)30(2) 76ID2120(1)40(2) 76ID2150(1)40(2) 76ID2180(1)40(2) 76ID2220(1)40(2) 76ID2270(1)40(2) 76ID2330(1)40(2) 76ID2390(1)30(2) 76ID2470(1)30(2) 76IF2270(1)30(2) 76IF2330(1)30(2) 76IF2390(1)30(2) 76IF2470(1)30(2) 76IF2560(1)30(2) 76IF2680(1)30(2) 76IF2820(1)30(2) 76II2680(1)30(2) 76II2820(1)30(2) 76II3100(1)30(2) 76II3120(1)30(2) 76II3150(1)30(2) 76II3180(1)30(2) 76II3180(1)70(2) 76II3220(1)30(2) 76II3220(1)70(2) 76II3270(1)30(2) 76II3270(1)70(2) 76II3330(1)30(2) 76II3330(1)70(2) 76II3390(1)30(2) 76II3470(1)30(2) 76IN3220(1)00(2) 76IN3270(1)30(2) 76IN3330(1)30(2) 76IN3390(1)30(2) 76IN3470(1)30(2) 76IN3560(1)30(2) 76IN3680(1)30(2) 76IN3820(1)30(2) 76IN4100(1)30(2) 76IN4120(1)30(2) 76IR3820(1)30(2) 76IR4100(1)30(2) 76IR4100(1)LO(2) 76IR4120(1)40(2) 76IR4120(1)LO(2) 76IR4150(1)30(2) 76IR4150(1)LO(2) 76IR4180(1)20(2) 76IR4180(1)LO(2) 76IR4220(1)40(2) 76IR4270(1)30(2) 76IR4330(1)30(2) 76IR4390(1)30(2) 76IR4470(1)30(2) 76IR4560(1)40(2) R76ID1680(1)30(2) R76ID1820(1)30(2) R76ID2100(1)30(2) R76ID2120(1)40(2) R76ID2150(1)40(2) R76ID2180(1)40(2) R76ID2220(1)40(2) R76ID2270(1)40(2) R76ID2330(1)40(2) R76ID2390(1)30(2) R76ID2470(1)30(2) R76IF2270(1)30(2) R76IF2330(1)30(2) R76IF2390(1)30(2) R76IF2470(1)30(2) R76IF2560(1)30(2) R76IF2680(1)30(2) R76IF2820(1)30(2) R76II2680(1)30(2) R76II2820(1)30(2) R76II3100(1)30(2) R76II3120(1)30(2) R76II3150(1)30(2) R76II3180(1)30(2) R76II3180(1)70(2) R76II3220(1)30(2) R76II3220(1)70(2) R76II3270(1)30(2) R76II3270(1)70(2) R76II3330(1)30(2) R76II3330(1)70(2) R76II3390(1)30(2) R76II3470(1)30(2) R76IN3220(1)00(2) R76IN3270(1)30(2) R76IN3330(1)30(2) R76IN3390(1)30(2) R76IN3470(1)30(2) R76IN3560(1)30(2) R76IN3680(1)30(2) R76IN3820(1)30(2) R76IN4100(1)30(2) R76IN4120(1)30(2) R76IR3820(1)30(2) R76IR4100(1)30(2) R76IR4100(1)LO(2) R76IR4120(1)40(2) R76IR4120(1)LO(2) R76IR4150(1)30(2) R76IR4150(1)LO(2) R76IR4180(1)20(2) R76IR4180(1)LO(2) R76IR4220(1)40(2) R76IR4270(1)30(2) R76IR4330(1)30(2) R76IR4390(1)30(2) R76IR4470(1)30(2) R76IR4560(1)40(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 10 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 1.2 1.5 1.5 1.8 1.8 2.2 2.2 2.7 2.7 3.3 3.3 3.9 4.7 5.6 6.8 8.2 10 12 0.0027 0.0033 0.0039 0.0047 0.0056 0.0068 0.0082 0.010 0.012 0.015 0.018 0.022 0.027 0.010 0.012 0.015 0.018 0.022 0.027 0.033 0.039 0.047 0.033 0.039 0.047 0.056 0.068 0.082 0.10 0.10 0.12 0.12 0.15 0.15 0.18 0.18 0.22 0.27 0.12 0.15 11.0 11.0 24.0 11.0 24.0 13.0 24.0 16.0 24.0 16.0 24.0 16.0 19.0 20.0 20.0 24.0 24.0 30.0 3.0 3.0 3.0 3.0 3.0 4.0 4.0 4.0 4.0 5.0 5.0 6.0 6.0 4.0 4.0 4.0 4.0 4.0 5.0 5.0 6.0 6.0 5.0 5.0 5.0 5.0 6.0 6.0 7.5 9.0 7.5 9.0 8.5 13.0 10.0 13.0 10.0 11.0 6.0 6.0 22.0 22.0 15.0 22.0 15.0 24.0 15.0 28.5 19.0 28.5 19.0 28.5 32.0 40.0 40.0 44.0 44.0 45.0 8.0 8.0 8.0 8.0 8.0 9.0 9.0 9.0 9.0 10.5 10.5 12.0 12.0 9.0 9.0 9.0 9.0 9.0 11.0 11.0 12.0 12.0 11.0 11.0 11.0 11.0 12.0 12.0 13.5 12.5 13.5 12.5 14.5 12.0 16.0 12.0 16.0 19.0 15.0 15.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.5 10.5 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 900 900 900 900 900 900 900 900 900 900 900 900 900 900 900 900 500 500 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 50,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,360,000 1,200,000 1,200,000 1,200,000 1,200,000 1,200,000 1,200,000 1,200,000 1,200,000 1,200,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 720,000 400,000 400,000 76IW4120(1)30(2) 76IW4150(1)30(2) 76IW4150(1)LO(2) 76IW4180(1)30(2) 76IW4180(1)LO(2) 76IW4220(1)30(2) 76IW4220(1)LO2) 76IW4270(1)20(2) 76IW4270(1)LO(2) 76IW4330(1)30(2) 76IW4330(1)LO(2) 76IW4390(1)30(2) 76IW4470(1)30(2) 76IW4560(1)20(2) 76IW4680(1)30(2) 76IW4820(1)20(2) 76IW5100(1)30(2) 76IW5120(1)30(2) 76MD1270(1)30(2) 76MD1330(1)30(2) 76MD1390(1)30(2) 76MD1470(1)30(2) 76MD1560(1)30(2) 76MD1680(1)40(2) 76MD1820(1)40(2) 76MD2100(1)40(2) 76MD2120(1)40(2) 76MD2150(1)40(2) 76MD2180(1)40(2) 76MD2220(1)30(2) 76MD2270(1)30(2) 76MF2100(1)00(2) 76MF2120(1)00(2) 76MF2150(1)30(2) 76MF2180(1)30(2) 76MF2220(1)30(2) 76MF2270(1)30(2) 76MF2330(1)30(2) 76MF2390(1)30(2) 76MF2470(1)30(2) 76MI2330(1)00(2) 76MI2390(1)30(2) 76MI2470(1)30(2) 76MI2560(1)30(2) 76MI2680(1)30(2) 76MI2820(1)30(2) 76MI3100(1)30(2) 76MI3100(1)70(2) 76MI3120(1)30(2) 76MI3120(1)70(2) 76MI3150(1)30(2) 76MI3150(1)70(2) 76MI3180(1)30(2) 76MI3180(1)70(2) 76MI3220(1)30(2) 76MI3270(1)30(2) 76MN3120(1)30(2) 76MN3150(1)30(2) R76IW4120(1)30(2) R76IW4150(1)30(2) R76IW4150(1)LO(2) R76IW4180(1)30(2) R76IW4180(1)LO(2) R76IW4220(1)30(2) R76IW4220(1)LO2) R76IW4270(1)20(2) R76IW4270(1)LO(2) R76IW4330(1)30(2) R76IW4330(1)LO(2) R76IW4390(1)30(2) R76IW4470(1)30(2) R76IW4560(1)20(2) R76IW4680(1)30(2) R76IW4820(1)20(2) R76IW5100(1)30(2) R76IW5120(1)30(2) R76MD1270(1)30(2) R76MD1330(1)30(2) R76MD1390(1)30(2) R76MD1470(1)30(2) R76MD1560(1)30(2) R76MD1680(1)40(2) R76MD1820(1)40(2) R76MD2100(1)40(2) R76MD2120(1)40(2) R76MD2150(1)40(2) R76MD2180(1)40(2) R76MD2220(1)30(2) R76MD2270(1)30(2) R76MF2100(1)00(2) R76MF2120(1)00(2) R76MF2150(1)30(2) R76MF2180(1)30(2) R76MF2220(1)30(2) R76MF2270(1)30(2) R76MF2330(1)30(2) R76MF2390(1)30(2) R76MF2470(1)30(2) R76MI2330(1)00(2) R76MI2390(1)30(2) R76MI2470(1)30(2) R76MI2560(1)30(2) R76MI2680(1)30(2) R76MI2820(1)30(2) R76MI3100(1)30(2) R76MI3100(1)70(2) R76MI3120(1)30(2) R76MI3120(1)70(2) R76MI3150(1)30(2) R76MI3150(1)70(2) R76MI3180(1)30(2) R76MI3180(1)70(2) R76MI3220(1)30(2) R76MI3270(1)30(2) R76MN3120(1)30(2) R76MN3150(1)30(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 11 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 250 400 400 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.18 0.22 0.27 0.33 0.39 0.47 0.56 0.68 0.39 0.47 0.56 0.68 0.68 0.82 0.82 1.0 1.0 1.2 1.2 1.5 1.8 2.2 2.7 1.0 1.0 1.2 1.2 1.5 1.5 1.8 1.8 2.2 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 0.00068 0.0008 0.0010 0.0012 0.0015 0.0018 0.0022 0.0027 0.0033 0.0039 0.0047 0.0056 0.0068 0.0082 0.010 0.012 0.0039 0.0047 6.0 7.0 8.5 8.5 10.0 10.0 11.0 13.0 9.0 9.0 11.0 11.0 24.0 13.0 24.0 13.0 24.0 14.0 24.0 18.0 18.0 22.0 22.0 11.0 24.0 13.0 24.0 13.0 24.0 16.0 24.0 19.0 24.0 19.0 19.0 20.0 20.0 24.0 30.0 30.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 4.0 4.0 4.0 4.0 4.0 5.0 5.0 6.0 6.0 4.0 4.0 15.0 16.0 17.0 17.0 18.5 18.5 20.0 22.0 17.0 17.0 20.0 20.0 15.0 22.0 15.0 22.0 15.0 28.0 15.0 33.0 33.0 37.0 37.0 22.0 15.0 24.0 15.0 24.0 15.0 28.5 19.0 32.0 19.0 32.0 32.0 40.0 40.0 44.0 45.0 45.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 9.0 9.0 9.0 9.0 9.0 10.5 10.5 12.0 12.0 9.0 9.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.5 10.5 13.0 13.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 10.0 10.0 500 500 500 500 500 500 500 500 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 2,800 3,000 3,000 400,000 400,000 400,000 400,000 400,000 400,000 400,000 400,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 240,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 144,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,528,000 3,780,000 3,780,000 76MN3180(1)30(2) 76MN3220(1)30(2) 76MN3270(1)30(2) 76MN3330(1)30(2) 76MN3390(1)30(2) 76MN3470(1)30(2) 76MN3560(1)30(2) 76MN3680(1)30(2) 76MR3390(1)30(2) 76MR3470(1)30(2) 76MR3560(1)30(2) 76MR3680(1)30(2) 76MR3680(1)LO(2) 76MR3820(1)30(2) 76MR3820(1)LO(2) 76MR4100(1)40(2) 76MR4100(1)LO(2) 76MR4120(1)40(2) 76MR4120(1)LO(2) 76MR4150(1)30(2) 76MR4180(1)30(2) 76MR4220(1)30(2) 76MR4270(1)30(2) 76MW4100(1)30(2) 76MW4100(1)LO(2) 76MW4120(1)30(2) 76MW4120(1)LO2) 76MW4150(1)30(2) 76MW4150(1)LO(2) 76MW4180(1)30(2) 76MW4180(1)LO(2) 76MW4220(1)30(2) 76MW4220(1)LO(2) 76MW4270(1)30(2) 76MW4330(1)30(2) 76MW4390(1)30(2) 76MW4470(1)30(2) 76MW4560(1)30(2) 76MW4680(1)30(2) 76MW4820(1)30(2) 76PD0680(1)00(2) 76PD0820(1)00(2) 76PD1100(1)00(2) 76PD1120(1)00(2) 76PD1150(1)00(2) 76PD1180(1)00(2) 76PD1220(1)00(2) 76PD1270(1)40(2) 76PD1330(1)40(2) 76PD1390(1)40(2) 76PD1470(1)40(2) 76PD1560(1)40(2) 76PD1680(1)40(2) 76PD1820(1)40(2) 76PD2100(1)30(2) 76PD2120(1)30(2) 76PF1390(1)00(2) 76PF1470(1)00(2) R76MN3180(1)30(2) R76MN3220(1)30(2) R76MN3270(1)30(2) R76MN3330(1)30(2) R76MN3390(1)30(2) R76MN3470(1)30(2) R76MN3560(1)30(2) R76MN3680(1)30(2) R76MR3390(1)30(2) R76MR3470(1)30(2) R76MR3560(1)30(2) R76MR3680(1)30(2) R76MR3680(1)LO(2) R76MR3820(1)30(2) R76MR3820(1)LO(2) R76MR4100(1)40(2) R76MR4100(1)LO(2) R76MR4120(1)40(2) R76MR4120(1)LO(2) R76MR4150(1)30(2) R76MR4180(1)30(2) R76MR4220(1)30(2) R76MR4270(1)30(2) R76MW4100(1)30(2) R76MW4100(1)LO(2) R76MW4120(1)30(2) R76MW4120(1)LO2) R76MW4150(1)30(2) R76MW4150(1)LO(2) R76MW4180(1)30(2) R76MW4180(1)LO(2) R76MW4220(1)30(2) R76MW4220(1)LO(2) R76MW4270(1)30(2) R76MW4330(1)30(2) R76MW4390(1)30(2) R76MW4470(1)30(2) R76MW4560(1)30(2) R76MW4680(1)30(2) R76MW4820(1)30(2) R76PD0680(1)00(2) R76PD0820(1)00(2) R76PD1100(1)00(2) R76PD1120(1)00(2) R76PD1150(1)00(2) R76PD1180(1)00(2) R76PD1220(1)00(2) R76PD1270(1)40(2) R76PD1330(1)40(2) R76PD1390(1)40(2) R76PD1470(1)40(2) R76PD1560(1)40(2) R76PD1680(1)40(2) R76PD1820(1)40(2) R76PD2100(1)30(2) R76PD2120(1)30(2) R76PF1390(1)00(2) R76PF1470(1)00(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 12 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.0056 0.0068 0.0082 0.010 0.012 0.015 0.018 0.012 0.015 0.018 0.022 0.027 0.033 0.039 0.047 0.047 0.056 0.056 0.068 0.068 0.082 0.082 0.10 0.12 0.047 0.056 0.068 0.082 0.10 0.12 0.15 0.18 0.22 0.27 0.33 0.39 0.15 0.18 0.22 0.27 0.33 0.39 0.39 0.47 0.47 0.56 0.56 0.68 0.68 0.82 1.0 1.2 1.5 1.8 0.33 0.39 0.47 0.56 4.0 4.0 4.0 5.0 5.0 6.0 6.0 5.0 5.0 5.0 5.0 5.0 6.0 6.0 7.5 9.0 7.5 9.0 8.5 9.0 8.5 13.0 10.0 11.0 6.0 6.0 6.0 6.0 6.0 7.0 8.5 8.5 10.0 11.0 11.0 13.0 9.0 9.0 9.0 9.0 11.0 11.0 24.0 13.0 24.0 13.0 24.0 13.0 24.0 14.0 18.0 18.0 22.0 22.0 11.0 11.0 11.0 11.0 9.0 9.0 9.0 11.0 11.0 12.0 12.0 11.0 11.0 11.0 11.0 11.0 12.0 12.0 13.5 12.5 13.5 12.5 14.5 12.5 14.5 12.0 16.0 19.0 15.0 15.0 15.0 15.0 15.0 16.0 17.0 17.0 18.5 20.0 20.0 22.0 17.0 17.0 17.0 17.0 20.0 20.0 15.0 22.0 15.0 22.0 15.0 25.0 15.0 28.0 33.0 33.0 37.0 37.0 22.0 22.0 22.0 22.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 3,000 3,000 3,000 3,000 3,000 3,000 3,000 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 2,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 900 900 900 900 900 900 900 900 900 900 900 900 900 900 900 900 900 900 450 450 450 450 3,780,000 3,780,000 3,780,000 3,780,000 3,780,000 3,780,000 3,780,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 3,150,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,890,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 1,134,000 567,000 567,000 567,000 567,000 76PF1560(1)00(2) 76PF1680(1)00(2) 76PF1820(1)00(2) 76PF2100(1)30(2) 76PF2120(1)30(2) 76PF2150(1)30(2) 76PF2180(1)30(2) 76PI2120(1)00(2) 76PI2150(1)00(2) 76PI2180(1)00(2) 76PI2220(1)30(2) 76PI2270(1)30(2) 76PI2330(1)30(2) 76PI2390(1)30(2) 76PI2470(1)30(2) 76PI2470(1)70(2) 76PI2560(1)30(2) 76PI2560(1)70(2) 76PI2680(1)30(2) 76PI2680(1)70(2) 76PI2820(1)30(2) 76PI2820(1)70(2) 76PI3100(1)30(2) 76PI3120(1)30(2) 76PN2470(1)00(2) 76PN2560(1)00(2) 76PN2680(1)00(2) 76PN2820(1)30(2) 76PN3100(1)30(2) 76PN3120(1)30(2) 76PN3150(1)30(2) 76PN3180(1)30(2) 76PN3220(1)30(2) 76PN3270(1)30(2) 76PN3330(1)30(2) 76PN3390(1)30(2) 76PR3150(1)30(2) 76PR3180(1)30(2) 76PR3220(1)30(2) 76PR3270(1)30(2) 76PR3330(1)40(2) 76PR3390(1)30(2) 76PR3390(1)LO(2) 76PR3470(1)30(2) 76PR3470(1)LO(2) 76PR3560(1)30(2) 76PR3560(1)LO(2) 76PR3680(1)40(2) 76PR3680(1)LO(2) 76PR3820(1)30(2) 76PR4100(1)30(2) 76PR4120(1)30(2) 76PR4150(1)30(2) 76PR4180(1)30(2) 76PW3330(1)30(2) 76PW3390(1)30(2) 76PW3470(1)30(2) 76PW3560(1)30(2) R76PF1560(1)00(2) R76PF1680(1)00(2) R76PF1820(1)00(2) R76PF2100(1)30(2) R76PF2120(1)30(2) R76PF2150(1)30(2) R76PF2180(1)30(2) R76PI2120(1)00(2) R76PI2150(1)00(2) R76PI2180(1)00(2) R76PI2220(1)30(2) R76PI2270(1)30(2) R76PI2330(1)30(2) R76PI2390(1)30(2) R76PI2470(1)30(2) R76PI2470(1)70(2) R76PI2560(1)30(2) R76PI2560(1)70(2) R76PI2680(1)30(2) R76PI2680(1)70(2) R76PI2820(1)30(2) R76PI2820(1)70(2) R76PI3100(1)30(2) R76PI3120(1)30(2) R76PN2470(1)00(2) R76PN2560(1)00(2) R76PN2680(1)00(2) R76PN2820(1)30(2) R76PN3100(1)30(2) R76PN3120(1)30(2) R76PN3150(1)30(2) R76PN3180(1)30(2) R76PN3220(1)30(2) R76PN3270(1)30(2) R76PN3330(1)30(2) R76PN3390(1)30(2) R76PR3150(1)30(2) R76PR3180(1)30(2) R76PR3220(1)30(2) R76PR3270(1)30(2) R76PR3330(1)40(2) R76PR3390(1)30(2) R76PR3390(1)LO(2) R76PR3470(1)30(2) R76PR3470(1)LO(2) R76PR3560(1)30(2) R76PR3560(1)LO(2) R76PR3680(1)40(2) R76PR3680(1)LO(2) R76PR3820(1)30(2) R76PR4100(1)30(2) R76PR4120(1)30(2) R76PR4150(1)30(2) R76PR4180(1)30(2) R76PW3330(1)30(2) R76PW3390(1)30(2) R76PW3470(1)30(2) R76PW3560(1)30(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 13 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 630 630 630 630 630 630 630 630 630 630 630 630 630 630 630 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.68 0.68 0.82 0.82 1.0 1.0 1.2 1.2 1.5 1.5 1.8 2.2 2.7 3.3 3.9 0.00022 0.00027 0.00033 0.00039 0.00047 0.00056 0.00068 0.00082 0.0010 0.0012 0.0015 0.0018 0.0022 0.0027 0.0033 0.00047 0.00056 0.00068 0.00082 0.0010 0.0012 0.0015 0.0018 0.0022 0.0027 0.0033 0.0039 0.0047 0.0056 0.0068 0.0082 0.0082 0.010 0.010 0.012 0.015 0.018 0.022 0.022 0.027 0.027 0.033 0.033 11.0 24.0 13.0 24.0 16.0 24.0 16.0 24.0 16.0 24.0 19.0 20.0 20.0 24.0 30.0 3.0 3.0 3.0 3.0 3.0 3.0 4.0 4.0 4.0 4.0 5.0 5.0 5.0 6.0 6.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 5.0 5.0 6.0 6.0 4.0 5.0 4.0 5.0 5.0 5.0 5.0 6.0 9.0 7.5 9.0 7.5 13.0 22.0 15.0 24.0 15.0 28.5 15.0 28.5 19.0 28.5 19.0 32.0 40.0 40.0 44.0 45.0 8.0 8.0 8.0 8.0 8.0 8.0 9.0 9.0 9.0 9.0 10.5 10.5 10.5 12.0 12.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 11.0 11.0 12.0 12.0 10.0 11.0 10.0 11.0 11.0 11.0 11.0 12.0 12.5 13.5 12.5 13.5 12.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.5 10.5 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 13.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 7.5 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 4,800 3,300 3,300 3,300 3,300 3,300 3,300 3,300 3,300 3,300 3,300 3,300 3,300 3,300 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 567,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 12,000,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 6,600,000 76PW3680(1)30(2) 76PW3680(1)LO(2) 76PW3820(1)30(2) 76PW3820(1)LO(2) 76PW4100(1)30(2) 76PW4100(1)LO(2) 76PW4120(1)30(2) 76PW4120(1)LO(2) 76PW4150(1)30(2) 76PW4150(1)LO(2) 76PW4180(1)30(2) 76PW4220(1)30(2) 76PW4270(1)30(2) 76PW4330(1)30(2) 76PW4390(1)30(2) 76QD0220(1)00(2) 76QD0270(1)00(2) 76QD0330(1)00(2) 76QD0390(1)00(2) 76QD0470(1)00(2) 76QD0560(1)00(2) 76QD0680(1)40(2) 76QD0820(1)40(2) 76QD1100(1)40(2) 76QD1120(1)40(2) 76QD1150(1)40(2) 76QD1180(1)40(2) 76QD1220(1)40(2) 76QD1270(1)00(2) 76QD1330(1)00(2) 76QF0470(1)00(2) 76QF0560(1)00(2) 76QF0680(1)00(2) 76QF0820(1)00(2) 76QF1100(1)00(2) 76QF1120(1)00(2) 76QF1150(1)00(2) 76QF1180(1)00(2) 76QF1220(1)00(2) 76QF1270(1)00(2) 76QF1330(1)30(2) 76QF1390(1)30(2) 76QF1470(1)30(2) 76QF1560(1)30(2) 76QF1680(1)30(2) 76QI1820(1)40(2) 76QI1820(1)00(2) 76QI2100(1)40(2) 76QI2100(1)30(2) 76QI2120(1)30(2) 76QI2150(1)40(2) 76QI2180(1)40(2) 76QI2220(1)40(2) 76QI2220(1)70(2) 76QI2270(1)40(2) 76QI2270(1)70(2) 76QI2330(1)40(2) 76QI2330(1)70(2) R76PW3680(1)30(2) R76PW3680(1)LO(2) R76PW3820(1)30(2) R76PW3820(1)LO(2) R76PW4100(1)30(2) R76PW4100(1)LO(2) R76PW4120(1)30(2) R76PW4120(1)LO(2) R76PW4150(1)30(2) R76PW4150(1)LO(2) R76PW4180(1)30(2) R76PW4220(1)30(2) R76PW4270(1)30(2) R76PW4330(1)30(2) R76PW4390(1)30(2) R76QD0220(1)00(2) R76QD0270(1)00(2) R76QD0330(1)00(2) R76QD0390(1)00(2) R76QD0470(1)00(2) R76QD0560(1)00(2) R76QD0680(1)40(2) R76QD0820(1)40(2) R76QD1100(1)40(2) R76QD1120(1)40(2) R76QD1150(1)40(2) R76QD1180(1)40(2) R76QD1220(1)40(2) R76QD1270(1)00(2) R76QD1330(1)00(2) R76QF0470(1)00(2) R76QF0560(1)00(2) R76QF0680(1)00(2) R76QF0820(1)00(2) R76QF1100(1)00(2) R76QF1120(1)00(2) R76QF1150(1)00(2) R76QF1180(1)00(2) R76QF1220(1)00(2) R76QF1270(1)00(2) R76QF1330(1)30(2) R76QF1390(1)30(2) R76QF1470(1)30(2) R76QF1560(1)30(2) R76QF1680(1)30(2) R76QI1820(1)40(2) R76QI1820(1)00(2) R76QI2100(1)40(2) R76QI2100(1)30(2) R76QI2120(1)30(2) R76QI2150(1)40(2) R76QI2180(1)40(2) R76QI2220(1)40(2) R76QI2220(1)70(2) R76QI2270(1)40(2) R76QI2270(1)70(2) R76QI2330(1)40(2) R76QI2330(1)70(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 14 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 650 650 650 650 650 650 650 650 650 650 650 650 650 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.039 0.047 0.027 0.033 0.039 0.047 0.056 0.068 0.082 0.10 0.12 0.15 0.10 0.12 0.15 0.18 0.18 0.22 0.22 0.27 0.27 0.33 0.39 0.47 0.56 0.68 0.18 0.22 0.27 0.27 0.33 0.33 0.39 0.39 0.47 0.47 0.56 0.56 0.68 0.82 1.0 1.2 1.5 1.8 2.2 0.0033 0.0033 0.0039 0.0039 0.0047 0.0047 0.0056 0.0056 0.0068 0.0082 0.010 0.012 0.015 8.5 8.5 6.0 6.0 6.0 7.0 7.0 8.5 10.0 10.0 11.0 13.0 9.0 9.0 11.0 13.0 24.0 13.0 24.0 13.0 24.0 14.0 18.0 18.0 22.0 22.0 11.0 11.0 13.0 24.0 13.0 24.0 16.0 24.0 16.0 24.0 16.0 24.0 19.0 20.0 20.0 24.0 24.0 30.0 30.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 5.0 5.0 5.0 6.0 6.0 14.5 14.5 15.0 15.0 15.0 16.0 16.0 17.0 18.5 18.5 20.0 22.0 17.0 17.0 20.0 22.0 15.0 22.0 15.0 25.0 15.0 28.0 33.0 33.0 37.0 37.0 22.0 22.0 24.0 15.0 24.0 15.0 28.5 15.0 28.5 19.0 28.5 19.0 32.0 40.0 40.0 44.0 44.0 45.0 45.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 11.0 11.0 11.0 12.0 12.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 3,300 3,300 2,100 2,100 2,100 2,100 2,100 2,100 2,100 2,100 2,100 2,100 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 1,000 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,000 6,600,000 6,600,000 4,200,000 4,200,000 4,200,000 4,200,000 4,200,000 4,200,000 4,200,000 4,200,000 4,200,000 4,200,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 2,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 1,000,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 76QI2390(1)40(2) 76QI2470(1)40(2) 76QN2270(1)00(2) 76QN2330(1)30(2) 76QN2390(1)30(2) 76QN2470(1)30(2) 76QN2560(1)30(2) 76QN2680(1)30(2) 76QN2820(1)30(2) 76QN3100(1)30(2) 76QN3120(1)30(2) 76QN3150(1)30(2) 76QR3100(1)40(2) 76QR3120(1)40(2) 76QR3150(1)30(2) 76QR3180(1)30(2) 76QR3180(1)LO(2) 76QR3220(1)30(2) 76QR3220(1)LO(2) 76QR3270(1)40(2) 76QR3270(1)LO(2) 76QR3330(1)30(2) 76QR3390(1)30(2) 76QR3470(1)30(2) 76QR3560(1)30(2) 76QR3680(1)30(2) 76QW3180(1)30(2) 76QW3220(1)30(2) 76QW3270(1)30(2) 76QW3270(1)LO(2) 76QW3330(1)30(2) 76QW3330(1)LO(2) 76QW3390(1)30(2) 76QW3390(1)LO(2) 76QW3470(1)30(2) 76QW3470(1)LO(2) 76QW3560(1)30(2) 76QW3560(1)LO(2) 76QW3680(1)30(2) 76QW3820(1)30(2) 76QW4100(1)30(2) 76QW4120(1)30(2) 76QW4150(1)30(2) 76QW4180(1)30(2) 76QW4220(1)30(2) 76TI1330(1)40(2) 76TI1330(1)30(2) 76TI1390(1)40(2) 76TI1390(1)30(2) 76TI1470(1)40(2) 76TI1470(1)30(2) 76TI1560(1)40(2) 76TI1560(1)30(2) 76TI1680(1)30(2) 76TI1820(1)40(2) 76TI2100(1)40(2) 76TI2120(1)40(2) 76TI2150(1)40(2) R76QI2390(1)40(2) R76QI2470(1)40(2) R76QN2270(1)00(2) R76QN2330(1)30(2) R76QN2390(1)30(2) R76QN2470(1)30(2) R76QN2560(1)30(2) R76QN2680(1)30(2) R76QN2820(1)30(2) R76QN3100(1)30(2) R76QN3120(1)30(2) R76QN3150(1)30(2) R76QR3100(1)40(2) R76QR3120(1)40(2) R76QR3150(1)30(2) R76QR3180(1)30(2) R76QR3180(1)LO(2) R76QR3220(1)30(2) R76QR3220(1)LO(2) R76QR3270(1)40(2) R76QR3270(1)LO(2) R76QR3330(1)30(2) R76QR3390(1)30(2) R76QR3470(1)30(2) R76QR3560(1)30(2) R76QR3680(1)30(2) R76QW3180(1)30(2) R76QW3220(1)30(2) R76QW3270(1)30(2) R76QW3270(1)LO(2) R76QW3330(1)30(2) R76QW3330(1)LO(2) R76QW3390(1)30(2) R76QW3390(1)LO(2) R76QW3470(1)30(2) R76QW3470(1)LO(2) R76QW3560(1)30(2) R76QW3560(1)LO(2) R76QW3680(1)30(2) R76QW3820(1)30(2) R76QW4100(1)30(2) R76QW4120(1)30(2) R76QW4150(1)30(2) R76QW4180(1)30(2) R76QW4220(1)30(2) R76TI1330(1)40(2) R76TI1330(1)30(2) R76TI1390(1)40(2) R76TI1390(1)30(2) R76TI1470(1)40(2) R76TI1470(1)30(2) R76TI1560(1)40(2) R76TI1560(1)30(2) R76TI1680(1)30(2) R76TI1820(1)40(2) R76TI2100(1)40(2) R76TI2120(1)40(2) R76TI2150(1)40(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 15 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 1,600 2,000 2,000 2,000 2,000 2,000 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 650 700 700 700 700 700 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.018 0.018 0.022 0.022 0.027 0.033 0.015 0.018 0.022 0.027 0.033 0.039 0.047 0.056 0.068 0.082 0.10 0.039 0.047 0.056 0.068 0.082 0.10 0.12 0.12 0.15 0.15 0.18 0.18 0.22 0.27 0.33 0.39 0.47 0.082 0.10 0.12 0.15 0.18 0.18 0.22 0.22 0.27 0.27 0.33 0.33 0.39 0.47 0.56 0.68 0.82 1.0 1.2 0.00010 0.00012 0.00015 0.00018 0.00022 7.5 9.0 7.5 13.0 8.5 8.5 6.0 6.0 6.0 6.0 6.0 7.0 7.0 8.5 10.0 10.0 11.0 9.0 9.0 9.0 9.0 11.0 11.0 13.0 24.0 13.0 24.0 14.0 24.0 18.0 18.0 18.0 22.0 22.0 11.0 11.0 11.0 11.0 13.0 24.0 13.0 24.0 13.0 24.0 16.0 24.0 16.0 19.0 20.0 20.0 24.0 24.0 30.0 4.0 4.0 4.0 4.0 4.0 13.5 12.5 13.5 12.0 14.5 14.5 15.0 15.0 15.0 15.0 15.0 16.0 16.0 17.0 18.5 18.5 20.0 17.0 17.0 17.0 17.0 20.0 20.0 22.0 15.0 25.0 15.0 28.0 15.0 33.0 33.0 33.0 37.0 37.0 22.0 22.0 22.0 22.0 24.0 15.0 24.0 15.0 24.0 19.0 28.5 19.0 28.5 32.0 40.0 40.0 44.0 44.0 45.0 10.0 10.0 10.0 10.0 10.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 18.0 18.0 18.0 18.0 18.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 15.0 15.0 15.0 15.0 15.0 6,000 6,000 6,000 6,000 6,000 6,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000 3,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 1,200 9,500 9,500 9,500 9,500 9,500 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 19,200,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 9,600,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 6,400,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 3,840,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 76TI2180(1)40(2) 76TI2180(1)70(2) 76TI2220(1)40(2) 76TI2220(1)70(2) 76TI2270(1)40(2) 76TI2330(1)40(2) 76TN2150(1)30(2) 76TN2180(1)30(2) 76TN2220(1)30(2) 76TN2270(1)30(2) 76TN2330(1)40(2) 76TN2390(1)40(2) 76TN2470(1)40(2) 76TN2560(1)40(2) 76TN2680(1)40(2) 76TN2820(1)40(2) 76TN3100(1)40(2) 76TR2390(1)30(2) 76TR2470(1)30(2) 76TR2560(1)30(2) 76TR2680(1)30(2) 76TR2820(1)30(2) 76TR3100(1)30(2) 76TR3120(1)30(2) 76TR3120(1)LO(2) 76TR3150(1)40(2) 76TR3150(1)LO(2) 76TR3180(1)40(2) 76TR3180(1)LO(2) 76TR3220(1)30(2) 76TR3270(1)30(2) 76TR3330(1)30(2) 76TR3390(1)30(2) 76TR3470(1)30(2) 76TW2820(1)30(2) 76TW3100(1)30(2) 76TW3120(1)30(2) 76TW3150(1)30(2) 76TW3180(1)30(2) 76TW3180(1)LO(2) 76TW3220(1)30(2) 76TW3220(1)LO(2) 76TW3270(1)30(2) 76TW3270(1)LO(2) 76TW3330(1)30(2) 76TW3330(1)LO(2) 76TW3390(1)30(2) 76TW3470(1)30(2) 76TW3560(1)30(2) 76TW3680(1)30(2) 76TW3820(1)30(2) 76TW4100(1)30(2) 76TW4120(1)30(2) 76UI0100(1)40(2) 76UI0120(1)40(2) 76UI0150(1)40(2) 76UI0180(1)40(2) 76UI0220(1)40(2) R76TI2180(1)40(2) R76TI2180(1)70(2) R76TI2220(1)40(2) R76TI2220(1)70(2) R76TI2270(1)40(2) R76TI2330(1)40(2) R76TN2150(1)30(2) R76TN2180(1)30(2) R76TN2220(1)30(2) R76TN2270(1)30(2) R76TN2330(1)40(2) R76TN2390(1)40(2) R76TN2470(1)40(2) R76TN2560(1)40(2) R76TN2680(1)40(2) R76TN2820(1)40(2) R76TN3100(1)40(2) R76TR2390(1)30(2) R76TR2470(1)30(2) R76TR2560(1)30(2) R76TR2680(1)30(2) R76TR2820(1)30(2) R76TR3100(1)30(2) R76TR3120(1)30(2) R76TR3120(1)LO(2) R76TR3150(1)40(2) R76TR3150(1)LO(2) R76TR3180(1)40(2) R76TR3180(1)LO(2) R76TR3220(1)30(2) R76TR3270(1)30(2) R76TR3330(1)30(2) R76TR3390(1)30(2) R76TR3470(1)30(2) R76TW2820(1)30(2) R76TW3100(1)30(2) R76TW3120(1)30(2) R76TW3150(1)30(2) R76TW3180(1)30(2) R76TW3180(1)LO(2) R76TW3220(1)30(2) R76TW3220(1)LO(2) R76TW3270(1)30(2) R76TW3270(1)LO(2) R76TW3330(1)30(2) R76TW3330(1)LO(2) R76TW3390(1)30(2) R76TW3470(1)30(2) R76TW3560(1)30(2) R76TW3680(1)30(2) R76TW3820(1)30(2) R76TW4100(1)30(2) R76TW4120(1)30(2) R76UI0100(1)40(2) R76UI0120(1)40(2) R76UI0150(1)40(2) R76UI0180(1)40(2) R76UI0220(1)40(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 16 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.00022 0.00027 0.00027 0.00033 0.00033 0.00039 0.00039 0.00047 0.00047 0.00056 0.00056 0.00068 0.00068 0.00082 0.00082 0.0010 0.0010 0.0012 0.0012 0.0015 0.0015 0.0018 0.0018 0.0022 0.0022 0.0027 0.0027 0.0033 0.0039 0.0047 0.0056 0.0068 0.0082 0.010 0.010 0.012 0.015 0.0010 0.0012 0.0015 0.0018 0.0022 0.0027 0.0033 0.0039 0.0047 0.0056 0.0068 0.0082 0.010 0.012 0.015 0.018 0.022 0.027 0.033 0.039 0.047 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 4.0 5.0 5.0 5.0 5.0 6.0 6.0 6.0 7.5 13.0 8.5 8.5 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 7.0 7.0 8.5 10.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 10.0 11.0 11.0 11.0 11.0 12.0 12.0 12.0 13.5 12.0 14.5 14.5 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 16.0 16.0 17.0 18.5 18.5 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 26.5 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 15.0 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 9,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 3,500 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 38,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 14,000,000 76UI0220(1)00(2) 76UI0270(1)40(2) 76UI0270(1)00(2) 76UI0330(1)40(2) 76UI0330(1)00(2) 76UI0390(1)40(2) 76UI0390(1)00(2) 76UI0470(1)40(2) 76UI0470(1)00(2) 76UI0560(1)40(2) 76UI0560(1)00(2) 76UI0680(1)40(2) 76UI0680(1)00(2) 76UI0820(1)40(2) 76UI0820(1)00(2) 76UI1100(1)40(2) 76UI1100(1)30(2) 76UI1120(1)40(2) 76UI1120(1)30(2) 76UI1150(1)40(2) 76UI1150(1)30(2) 76UI1180(1)40(2) 76UI1180(1)30(2) 76UI1220(1)40(2) 76UI1220(1)30(2) 76UI1270(1)40(2) 76UI1270(1)30(2) 76UI1330(1)40(2) 76UI1390(1)40(2) 76UI1470(1)40(2) 76UI1560(1)40(2) 76UI1680(1)40(2) 76UI1820(1)40(2) 76UI2100(1)40(2) 76UI2100(1)70(2) 76UI2120(1)40(2) 76UI2150(1)40(2) 76UN1100(1)00(2) 76UN1120(1)00(2) 76UN1150(1)00(2) 76UN1180(1)00(2) 76UN1220(1)00(2) 76UN1270(1)00(2) 76UN1330(1)00(2) 76UN1390(1)00(2) 76UN1470(1)00(2) 76UN1560(1)00(2) 76UN1680(1)00(2) 76UN1820(1)30(2) 76UN2100(1)30(2) 76UN2120(1)30(2) 76UN2150(1)40(2) 76UN2180(1)40(2) 76UN2220(1)40(2) 76UN2270(1)40(2) 76UN2330(1)40(2) 76UN2390(1)40(2) 76UN2470(1)40(2) R76UI0220(1)00(2) R76UI0270(1)40(2) R76UI0270(1)00(2) R76UI0330(1)40(2) R76UI0330(1)00(2) R76UI0390(1)40(2) R76UI0390(1)00(2) R76UI0470(1)40(2) R76UI0470(1)00(2) R76UI0560(1)40(2) R76UI0560(1)00(2) R76UI0680(1)40(2) R76UI0680(1)00(2) R76UI0820(1)40(2) R76UI0820(1)00(2) R76UI1100(1)40(2) R76UI1100(1)30(2) R76UI1120(1)40(2) R76UI1120(1)30(2) R76UI1150(1)40(2) R76UI1150(1)30(2) R76UI1180(1)40(2) R76UI1180(1)30(2) R76UI1220(1)40(2) R76UI1220(1)30(2) R76UI1270(1)40(2) R76UI1270(1)30(2) R76UI1330(1)40(2) R76UI1390(1)40(2) R76UI1470(1)40(2) R76UI1560(1)40(2) R76UI1680(1)40(2) R76UI1820(1)40(2) R76UI2100(1)40(2) R76UI2100(1)70(2) R76UI2120(1)40(2) R76UI2150(1)40(2) R76UN1100(1)00(2) R76UN1120(1)00(2) R76UN1150(1)00(2) R76UN1180(1)00(2) R76UN1220(1)00(2) R76UN1270(1)00(2) R76UN1330(1)00(2) R76UN1390(1)00(2) R76UN1470(1)00(2) R76UN1560(1)00(2) R76UN1680(1)00(2) R76UN1820(1)30(2) R76UN2100(1)30(2) R76UN2120(1)30(2) R76UN2150(1)40(2) R76UN2180(1)40(2) R76UN2220(1)40(2) R76UN2270(1)40(2) R76UN2330(1)40(2) R76UN2390(1)40(2) R76UN2470(1)40(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 17 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Table 1 – Ratings & Part Number Reference cont'd VDC VAC Capacitance Value (µF) 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 2,000 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 700 VDC VAC Dimensions in mm Lead Spacing (p) Max dV/dt K0 (V2/ (V/µs) µs) KEMET Internal Part Number Customer Part Number B H L 0.056 0.022 0.027 0.033 0.039 0.047 0.047 0.056 0.056 0.068 0.068 0.082 0.082 0.10 0.12 0.15 0.18 0.22 0.033 0.039 0.047 0.056 0.068 0.082 0.082 0.10 0.10 0.12 0.12 0.15 0.15 0.18 0.18 0.22 0.27 0.33 0.39 0.47 0.56 11.0 9.0 9.0 9.0 11.0 11.0 24.0 13.0 24.0 13.0 24.0 13.0 24.0 14.0 18.0 18.0 22.0 22.0 11.0 11.0 11.0 11.0 11.0 11.0 24.0 13.0 24.0 13.0 24.0 16.0 24.0 16.0 24.0 19.0 20.0 20.0 24.0 24.0 30.0 20.0 17.0 17.0 17.0 20.0 20.0 15.0 22.0 15.0 22.0 15.0 25.0 15.0 28.0 33.0 33.0 37.0 37.0 22.0 22.0 22.0 22.0 22.0 22.0 15.0 24.0 15.0 24.0 15.0 28.5 19.0 28.5 19.0 32.0 40.0 40.0 44.0 44.0 45.0 26.5 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 41.5 22.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 27.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 37.5 3,500 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 2,300 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 1,500 14,000,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 9,200,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 6,000,000 76UN2560(1)40(2) 76UR2220(1)30(2) 76UR2270(1)30(2) 76UR2330(1)30(2) 76UR2390(1)20(2) 76UR2470(1)30(2) 76UR2470(1)LO(2) 76UR2560(1)30(2) 76UR2560(1)LO(2) 76UR2680(1)30(2) 76UR2680(1)LO(2) 76UR2820(1)40(2) 76UR2820(1)LO(2) 76UR3100(1)30(2) 76UR3120(1)30(2) 76UR3150(1)30(2) 76UR3180(1)30(2) 76UR3220(1)30(2) 76UW2330(1)30(2) 76UW2390(1)30(2) 76UW2470(1)30(2) 76UW2560(1)30(2) 76UW2680(1)30(2) 76UW2820(1)30(2) 76UW2820(1)30(2) 76UW3100(1)30(2) 76UW3100(1)30(2) 76UW3120(1)30(2) 76UW3120(1)30(2) 76UW3150(1)30(2) 76UW3150(1)30(2) 76UW3180(1)30(2) 76UW3180(1)30(2) 76UW3220(1)30(2) 76UW3270(1)30(2) 76UW3330(1)30(2) 76UW3390(1)30(2) 76UW3470(1)30(2) 76UW3560(1)30(2) R76UN2560(1)40(2) R76UR2220(1)30(2) R76UR2270(1)30(2) R76UR2330(1)30(2) R76UR2390(1)20(2) R76UR2470(1)30(2) R76UR2470(1)LO(2) R76UR2560(1)30(2) R76UR2560(1)LO(2) R76UR2680(1)30(2) R76UR2680(1)LO(2) R76UR2820(1)40(2) R76UR2820(1)LO(2) R76UR3100(1)30(2) R76UR3120(1)30(2) R76UR3150(1)30(2) R76UR3180(1)30(2) R76UR3220(1)30(2) R76UW2330(1)30(2) R76UW2390(1)30(2) R76UW2470(1)30(2) R76UW2560(1)30(2) R76UW2680(1)30(2) R76UW2820(1)30(2) R76UW2820(1)30(2) R76UW3100(1)30(2) R76UW3100(1)30(2) R76UW3120(1)30(2) R76UW3120(1)30(2) R76UW3150(1)30(2) R76UW3150(1)30(2) R76UW3180(1)30(2) R76UW3180(1)30(2) R76UW3220(1)30(2) R76UW3270(1)30(2) R76UW3330(1)30(2) R76UW3390(1)30(2) R76UW3470(1)30(2) R76UW3560(1)30(2) Capacitance Value (µF) B (mm) H (mm) L (mm) Lead Spacing (p) dV/dt (V/µs) Max K0 (V2/µs) KEMET Internal Part Number Customer Part Number (1) Insert lead and packaging code. See Ordering Options Table for available options. (2) H = 2.5%, J = 5%, K = 10% © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 18 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Soldering Process The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder. This has increased the liquidus temperature from that of 183°C for SnPb eutectic alloy to 217 – 221°C for the new alloys. As a result, the heat stress to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave temperatures. Polypropylene capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170°C). Wave soldering can be destructive, especially for mechanically small polypropylene capacitors (with lead spacing of 5 mm to 15 mm), and great care has to be taken during soldering. The recommended solder profiles from KEMET should be used. Please consult KEMET with any questions. In general, the wave soldering curve from IEC Publication 61760–1 Edition 2 serves as a solid guideline for successful soldering. Please see Figure 1. Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the above the recommended limits may result to degradation or permanent damage to the capacitors. Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert through-hole parts after the curing of surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven, if through-hole components must pass through the adhesive curing process. A maximum two soldering cycles is recommended. Please allow time for the capacitor surface temperature to return to a normal temperature before the second soldering cycle. Manual Soldering Recommendations Wave Soldering Recommendations 300 Following is the recommendation for manual soldering with a soldering iron. 2 +3 seconds maximum 260°C 250 First wave 200 Temperature (°C) Recommended Soldering Temperature 400 350 Soldering iron bit temperature (°C) Second wave 300 Cooling ∆T < 150°C Preheating 150 ca 2°C/second ca 3.5°C/second typical T preheat 100 ca 5°C/second 115 °C max 100 °C Typical 250 50 200 150 0 0 100 40 80 120 160 200 240 Time (s) 50 0 0 1 2 3 4 5 6 7 8 Soldering time (seconds) The soldering iron tip temperature should be set at 350°C (+10°C maximum) with the soldering duration not to exceed more than 3 seconds. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 19 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Soldering Process cont'd Wave Soldering Recommendations cont'd 1. The table indicates the maximum set-up temperature of the soldering process Figure 1 Dielectric Film Material Maximum Preheat Temperature Maximum Peak Soldering Temperature Capacitor Capacitor Capacitor Capacitor Capacitor Pitch Pitch Pitch Pitch Pitch ≤ 10 mm = 15 mm > 15 mm ≤ 15 mm > 15 mm Polyester 130°C 130°C 130°C 270°C 270°C Polypropylene 100°C 110°C 130°C 260°C 270°C Paper 130°C 130°C 140°C 270°C 270°C Polyphenylene Sulphide 150°C 150°C 160°C 270°C 270°C 2. The maximum temperature measured inside the capacitor: Set the temperature so that inside the element the maximum temperature is below the limit: Dielectric Film Material Maximum temperature measured inside the element Polyester 160°C Polypropylene 110°C Paper 160°C Polyphenylene Sulphide 160°C Temperature monitored inside the capacitor. Selective Soldering Recommendations Selective dip soldering is a variation of reflow soldering. In this method, the printed circuit board with through-hole components to be soldered is preheated and transported over the solder bath as in normal flow soldering without touching the solder. When the board is over the bath, it is stopped and pre-designed solder pots are lifted from the bath with molten solder only at the places of the selected components, and pressed against the lower surface of the board to solder the components. The temperature profile for selective soldering is similar to the double wave flow soldering outlined in this document, however, instead of two baths, there is only one bath with a time from 3 to 10 seconds. In selective soldering, the risk of overheating is greater than in double wave flow soldering, and great care must be taken so that the parts are not overheated. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 20 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Construction 1 Section Molded Plastic Case Detailed Cross Section Double-Sided Metallized Polyester Film (Fourth Layer) Molded Plastic Self-Extinguishing Case Resin Polypropylene Film (Third Layer) Margin Double-Sided Metallized Polyester Film (Second Layer) Polypropylene Film (First Layer) Metal Contact Layer Metal Contact Layer DING SCHEME OPTIONS Margin Margin Leads Double-sided Metallized Polyester Film Winding Schemes Polypropylene Film Dielectric Double-sided Metallized Polypropylene Polyester Carrier Film Dielectric Film Double-sided Metallized Polyester Carrier Film 2 Sections 1 Section Double-sided Metallized Polyester Carrier Film Single-sided Metallized Polypropylene Film Polypropylene Film Dielectric Polypropylene Film Dielectric Double-sided Metallized Polyester Carrier Film 3 Sections © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 Polypropylene • www.kemet.com Film/Foil Single-sided Metallized Polypropylene Film 4 Sections F3034_R76 • 11/7/2018 21 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Marking FRONT Series TOP Dielectric Code Manufacturing Date Code © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com Capacitance Capacitance Tolerance Rated Voltage F3034_R76 • 11/7/2018 22 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Packaging Quantities Lead Spacing Thickness (mm) Height (mm) Length (mm) Bulk Short Leads Bulk Long Leads 7.5 3.0 4.0 5.0 6.0 8.0 9.0 10.5 12.0 10.0 10.0 10.0 10.5 1,500 2,000 1,500 1,000 1,750 1,500 1,000 800 2,100 1,500 1,200 1,000 10 4.0 5.0 6.0 9.0 11.0 12.0 13.0 13.0 13.0 2,000 1,300 1,000 1,800 1,500 1,200 750 600 500 1,500 1,250 1,000 1,000 800 680 15 4.0 5.0 6.0 7.5 8.5 9.0 10.0 11.0 13.0 10.0 11.0 12.0 13.5 14.5 12.5 16.0 19.0 12.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 18.0 2,500 2,000 1,750 1,000 1,000 1,000 750 450 750 1,500 1,000 900 700 500 520 500 350 490 600 500 350 300 270 300 200 1,500 1,250 1,000 800 700 650 600 500 480 1,000 800 680 500 440 410 380 340 280 22.5 6.0 7.0 8.5 10.0 11.0 13.0 15.0 16.0 17.0 18.5 20.0 22.0 26.5 26.5 26.5 26.5 26.5 26.5 805 700 468 396 360 300 500 500 300 300 250 200 700 550 450 350 350 300 464 380 280 235 217 - 17.0 20.0 22.0 25.0 28.0 33.0 37.0 32.0 32.0 32.0 32.0 32.0 32.0 32.0 816 560 480 480 352 256 168 408 336 288 288 176 128 112 450 350 300 27.5 9.0 11.0 13.0 13.0 14.0 18.0 22.0 37.5 11.0 13.0 16.0 19.0 20.0 24.0 30.0 22.0 24.0 28.5 32.0 40.0 44.0 45.0 41.5 41.5 41.5 41.5 41.5 41.5 41.5 420 360 216 192 126 108 90 252 216 108 96 84 72 60 © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com Standard Reel Large Reel ø 355 mm ø 500 mm Ammo Taped 2,800 2,100 1,600 1,350 F3034_R76 • 11/7/2018 23 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Lead Taping & Packaging (IEC 60286–2) Lead Spacing 10 & 15 mm Figure 1 — Lead Spacing 7.5 mm P P2 P Lead Spacing 22.5 & 27.5 mm P P1 ∆h ∆h ∆h P2 P ∆h W2 A H0 B Ød W0 P0 F W1 W2 H0 W0 W D0 W1 B W t t P1 F A−B t A Ød P0 D0 A−B P1 P2 t Taping Specification Description Dimensions (mm) Symbol 7.5 10.0 Lead Spacing 15.0 22.5 27.5 Tolerance Lead wire diameter d 0.5 – 0.6 0.6 0.6 – 0.8 0.8 0.8 ±0.05 Taping lead space P 12.7 25.4 25.4 38.1 38.1 ±1 Feed hole lead space * P0 12.7 12.7 12.7 12.7 12.7 ±0.2 ** Centering of the lead wire P1 2.6 7.7 5.2 7.8 5.3 ±0.7 Centering of the body P2 6.35 12.7 12.7 19.05 19.05 ±1.3 F 7.5 10.0 15.0 22.5 27.5 +0.6/−0.1 Component alignment Lead spacing *** ∆h 0 0 0 0 0 ±2 Component deviation ∆p 0 0 0 0 0 ±1 Height of component from tape center H0 **** 18.5 18.5 18.5 18.5 18.5 ±0.5 Carrier tape width W 18 18 18 18 18 +1/−0.5 Hold down tape width W0 6 9 10 10 10 Minimum Hole position W1 9 9 9 9 9 ±0.5 Hold down tape position W2 3 3 3 3 3 Maximum Feed hole diameter D0 4 4 4 4 4 ±0.2 Total Tape thickness t 0.7 0.7 0.7 0.7 0.7 ±0.2 * Available also 15 mm. ** Maximum 1 mm on 20 lead spacing. *** 15 mm and 10 mm taped to 7.5 mm (crimped leads) available upon request. **** H0 = 16.5 mm is available upon request. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 24 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) Lead Taping & Packaging (IEC 60286–2) cont'd Ammo Specifications Dimensions (mm) H W T 360 340 59 H T Reel Specifications W Dimensions (mm) D H W 355 500 30 25 55 Maximum D H Manufacturing Date Code (IEC–60062) Y = Year, Z = Month Year 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024 2025 2026 2027 2028 2029 2030 Code A B C D E F H J K L M N P R S T U V W X A Month January February March April May June July August September October November December Code 1 2 3 4 5 6 7 8 9 O N D © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com W F3034_R76 • 11/7/2018 25 Film Capacitors – Polypropylene Pulse/High Frequency Capacitors R76 Series Double Metallized Polypropylene Film, Radial, DC and Pulse Applications (Automotive Grade) KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com F3034_R76 • 11/7/2018 26 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: KEMET: R76IF2470SE30J R76II3100SE30K R76II3220SE30K R76IN4100SE30J R76MF2220SE30J R76MI2470SE30K R76MN3470SE30J R76PD1220SE00J R76PF1680SE00K R76PF2100DQ30J R76PF2100SE30J R76PI3100SE30J R76PI3100SE30K R76PN3100SE30K R76QD0220SE00J R76QD0470SE00J R76QF1180DQ00J R76QF1220SE00J R76QN2330SE30J R76QN3100SE30J R76UN1220SE00J R76UN1220SE00K R76IR4220SE40K R76MD1680SE40J R76PR3470SE30K R76ID2470SE30J R76PD1470SE40J R76UI1470SE40J R76MN3220SE30K R76TN3100SE40K R76MR3470SE30K R76PR3470SE30J R76PR3680SE40J R76QR3100SE40J R76QR3100SE40K R76QR3220SE30J R76QR3680SE30K R76QW3220SE30K R76QW4100SE30K R76TR3100SE30J R76TR3330SE30J R76UR2680SE30J R76UR3100SE30K R76UW3100SE30K R76TR3220SE30K R76QD1100SE40J R76QR3220SE30K R76MR4100SE40K R76MI3100SE70K R76MI3100SE30K R76II2680DQ30J R76QR3100CK40K R76PI2120SE00J R76QI2150DQ30J R76MN3220SE30H R76QI2220SE30J R76TI16805030J R76QF1330DQ30K R76QN2680DQ30J R76TI2220SE40J R76II3180SE30G R76UI0150SE40J R76II33305030J R76TN2100SE00J R76TN2470SE40K R76TN3100JH40K R76QF1220500EJ R76QI2150DQ40J R76II3330SE30J R76IF2330SE30J R76MN3220SE30J R76TI2330SE40K R76IN3220SE00J R76QF1150DQ00J R76PI2680SE30K R76QI2150DQ30V R76UI0330SE00J R76UI1100DQ30K R76QI2100DQ40J R76QI2220SE30K R76MI2680DQ30J R76QR3470SE30K R76TW3560SE30H R76UI0390DQ00J R76UW3150SE30J R76UN2150DQ30J R76QR3330SE30J R76MF2220DQ30J R76PI2220JH3EJ R76UR2220SE30J R76II3150DQ30K R76QI2470DQ40K R76PI23904030J R76QI2150504EJA R76UN2220SE40J R76QW3560SE30J R76MI2330DQ00J R76UI05605000J R76UI0220SE00J R76QF1470JH3EJ
