SS11VL-R17036

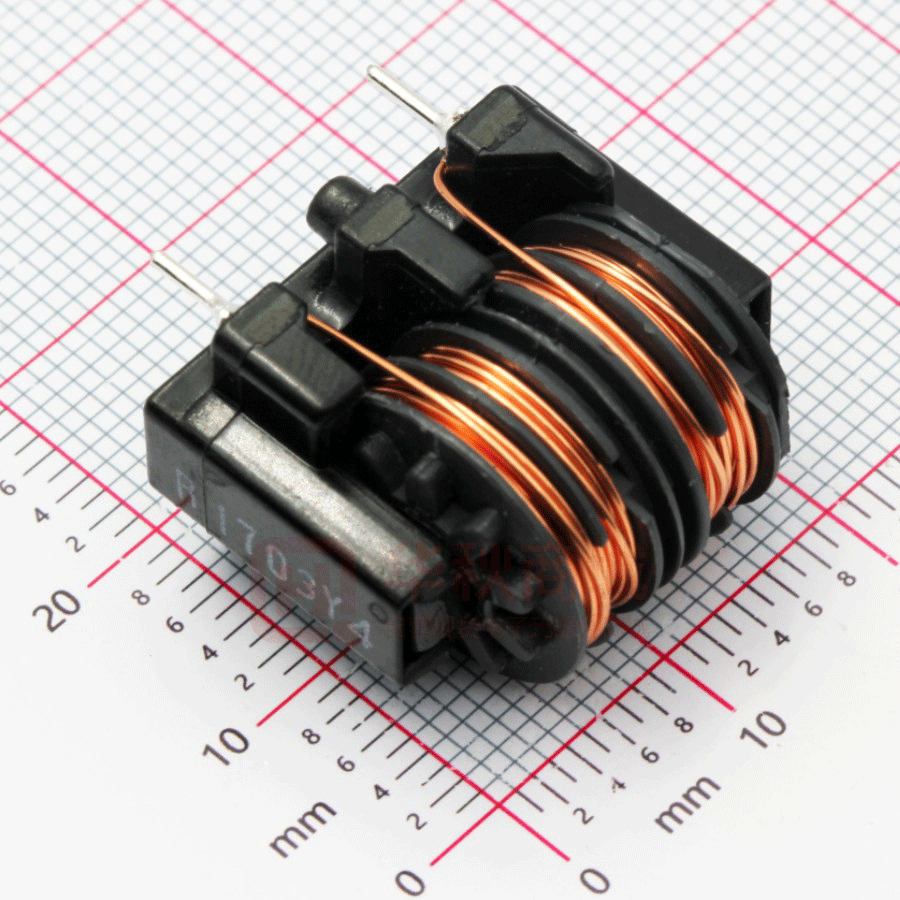

AC Line Filters SS Coils, SS11VL High Frequency Type Overview Applications The KEMET SS Coils, SS11VL Type AC line filters are offered in a wide variety of sizes and specifications. • Consumer Electronics • Common mode choke Benefits • Wide variety of sizes and specifications • Super low profile: 20.5 mm maximum • Inductances up to 82 mH • Rated Currents up to 3 A • DC Resistances as low as 0.06 Ω Part Number System SS 11 VL- R 03 550 Series Core Size (mm) Core Orientation Core Type Rated Current (A) Minimum Inductance (mH) SS 11 = 11.0 VL- = Vertical Blank = Standard R = High permeability 0x = 0.x A (e.g., 03 = 0.3 A) xx = x.x A (e.g., 13 = 1.3 A) xx0 = xx mH (e.g., 550 = 55 mH) 0xx = x.x mH (e.g., 024 = 2.4 mH) One world. One KEMET © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com LF0022_SS11VL • 3/30/2017 1 AC Line Filters – SS Coils, SS11VL High Frequency Type Dimensions – Millimeters Marking ø0.8±0.1 13±0.5 22±1.0 10±0.5 14.5±1.0 N2 3.5±1.0 N1 10 19.5 ±1.0 13 Environmental Compliance All KEMET AC Line Filters are RoHS Compliant. RoHS Compliant Table 1 – Ratings & Part Number Reference Part Number Rated Current AC (A) Inductance (mH) Minimum DC Resistance/ Line (Ω) Maximum Temperature Rise (K) Maximum Marking Weight (g) Approximate SS11VL-03550 SS11VL-04350 SS11VL-05230 SS11VL-06180 SS11VL-07120 SS11VL-08083 SS11VL-10062 SS11VL-11050 SS11VL-13035 SS11VL-17024 SS11VL-22013 SS11VL-30006 SS11VL-R03820 SS11VL-R04520 SS11VL-R05350 SS11VL-R06270 SS11VL-R07190 SS11VL-R08125 SS11VL-R10093 SS11VL-R11076 SS11VL-R13052 SS11VL-R17036 SS11VL-R22020 SS11VL-R30009 0.3 0.4 0.5 0.6 0.7 0.8 1.0 1.1 1.3 1.7 2.2 3.0 0.3 0.4 0.5 0.6 0.7 0.8 1.0 1.1 1.3 1.7 2.2 3.0 55 35 23 18 12 8.3 6.2 5.0 3.5 2.4 1.3 0.6 82 52 35 27 19 12.5 9.3 7.6 5.2 3.6 2.0 0.9 4.1 2.6 1.8 1.3 0.90 0.74 0.44 0.40 0.28 0.19 0.12 0.06 4.1 2.6 1.8 1.3 0.90 0.74 0.44 0.40 0.28 0.19 0.12 0.06 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 03 Lot No. 04 Lot No. 05 Lot No. 06 Lot No. 07 Lot No. 08 Lot No. 10 Lot No. 11 Lot No. 13 Lot No. 17 Lot No. 22 Lot No. 30 Lot No. R03 Lot No. R04 Lot No. R05 Lot No. R06 Lot No. R07 Lot No. R08 Lot No. R10 Lot No. R11 Lot No. R13 Lot No. R17 Lot No. R22 Lot No. R30 Lot No. 10.5 10.7 10.5 11.1 10.8 9.8 11.1 10.7 10.5 10.8 10.4 9.6 10.5 10.7 10.5 11.1 10.8 9.8 11.1 10.7 10.5 10.8 10.4 9.6 © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com LF0022_SS11VL • 3/30/2017 2 AC Line Filters – SS Coils, SS11VL High Frequency Type Specifications Item SS11VL Rated Voltage 250 VAC Withstanding Voltage 2,400 VAC (2 seconds, between lines) Insulation Resistance > 100 MΩ at 500 VDC (between lines) Thermal Class E (120°C) Operating Temperature Range −25°C to T (T = 120 – temperature rise) Inductance Measurement Condition 1 kHz, 1 V, KC530 Common mode Frequency Characteristics Frequency characteristic 1K 100 10 1 6 3 1 6 3 Impedance () 100K 10K 1K 100 10 1 6 3 1 6 3 Impedance () 100K 10K 1K 100 10 06180 3 6 1 3 10K 6 1 3 6 100K 1 3 6 1M 1 10M Frequency (Hz) 3 100K 13035 1 6 3 22013 1 6 3 6 1 3 10K 6 1 3 6 100K 1 3 6 1M 1 10M Frequency (Hz) 3 100 100K R07190 R10093 R11076 10K 1K 100 10 3 6 1 10K 3 6 1 100K 3 6 1 1M Frequency (Hz) 3 6 1 10M 3 30M 1 6 3 1 6 3 08083 07120 1 6 3 11050 1 6 3 1 6 3 10062 3 6 1 3 6 10K 1 3 6 100K 1 3 6 1M 1 10M Frequency (Hz) 3 30M 1 6 3 1 6 3 R03820 1 6 3 R04520 1 6 3 R06270 R05350 1 6 3 1 6 3 1 1K 30M R08125 1 6 3 1 1K 1K 1M 1 6 3 1 6 3 10K 10 30006 3 1 6 3 1 6 3 100 1 6 3 1 1K 30M 17024 1 6 3 1 6 3 1K 1M 1 6 3 1 6 3 10K 10 1 6 3 1 1K 1M 05230 1 6 3 1 1K 1M 100K 03550 Impedance () 10K 04350 Impedance () Impedance () 100K 1M 1 6 3 Impedance () 1M 3 6 1 3 10K 6 1 3 6 100K 1 3 6 1M 1 10M Frequency (Hz) 3 30M 1 6 3 1 6 3 1 6 3 R17036 R13052 1 6 3 R22020 1 6 3 1 6 3 1 1K R30009 3 6 1 3 10K © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com 6 1 100K 3 6 1 1M Frequency (Hz) 3 6 1 10M 3 30M LF0022_SS11VL • 3/30/2017 3 AC Line Filters – SS Coils, SS11VL High Frequency Type Notes on Use Shelf Life • Use within 6 months. If the product is used after a storage period of 6 months or longer, confirm its solderability before use. Storage Condition • Avoid storage in high temperature and high humidity environment, as such condition may deteriorate the solderability of external electrode. • Avoid storage in atmosphere containing toxic gases or acid (e.g., sulphur and chlorine), as such gas may deteriorate the solderability of external electrode. • Avoid storage near strong magnetic field, as such condition may magnetize the product. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com LF0022_SS11VL • 3/30/2017 4 AC Line Filters – SS Coils, SS11VL High Frequency Type KEMET Electronic Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com LF0022_SS11VL • 3/30/2017 5
