AC Line Filters
Common Mode SS Coils, 24V/H-CH Series
Overview
Applications
The KEMET SS Coils, SS24V/H-CH Type AC line filters are
offered in a wide variety of sizes and specifications.
• Consumer Electronics
• Common mode choke
Benefits
• Wide variety of sizes and specifications
• Inductances up to 60 mH
• Rated Currents up to 2 A
• DC Resistances as low as 0.17 Ω
Part Number System
SS
24
V-
Series Core Size (mm) Core Orientation
SS
24 = 24.0 mm
V- = Vertical
H- = Horizontal
R
05
600-
CH
Core Type
Rated Current AC (A)
Inductance (mH)
Product
Type
Blank = Standard
0x = 0.x A
K = High permeability (μ ≈ 8,000) xx = x.x A
R = High permeability (μ ≈ 10,000)
Examples:
03 = 0.3 A
13 = 1.3 A
xx0 = xx mH
0xx = x.x mH
CH
Examples:
660 = 66 mH
025 = 2.5 mH
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0029_SS24V-H-CH • 1/31/2020
1
AC Line Filters – Common Mode SS Coils, 24V/H-CH Series
Dimensions – Millimeters
SS24V-CH
13
21 Maximum
21 Maximum
21
15 ±0.5 15 ±0.5
26 Maximum
26 Maximum
15
26 Maximum
26 Maximum
4.0 ±1.0
21 ±0.5 21 ±0.5
10
19 Maximum
19 Maximum
10
13
10 ±0.5 10 ±0.5
ø0.8
15
26 Maximum
26 Maximum
ø0.8
4.0 ±1.0
31.5 Maximum
4.0 ±1.0
13 ±0.5 13 ±0.5
31.5 Maximum
ø0.8
4.0 ±1.0
ø0.8
SS24H-CH
21
Environmental Compliance
All KEMET AC Line Filters are RoHS Compliant.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0029_SS24V-H-CH • 1/31/2020
2
AC Line Filters – Common Mode SS Coils, 24V/H-CH Series
Table 1 – Ratings & Part Number Reference
Part Number
Rated Current AC
(A)
SS24H-05350-CH
SS24V-05350-CH
SS24H-08150-CH
SS24V-08150-CH
SS24H-10100-CH
SS24V-10100-CH
SS24H-15045-CH
SS24V-15045-CH
SS24H-20025-CH
SS24V-20025-CH
SS24H-K05570-CH
SS24V-K05570-CH
SS24H-K08240-CH
SS24V-K08240-CH
SS24H-K10165-CH
SS24V-K10165-CH
SS24H-K15070-CH
SS24V-K15070-CH
SS24H-K20040-CH
SS24V-K20040-CH
SS24H-R05600-CH
SS24V-R05600-CH
SS24H-R08250-CH
SS24V-R08250-CH

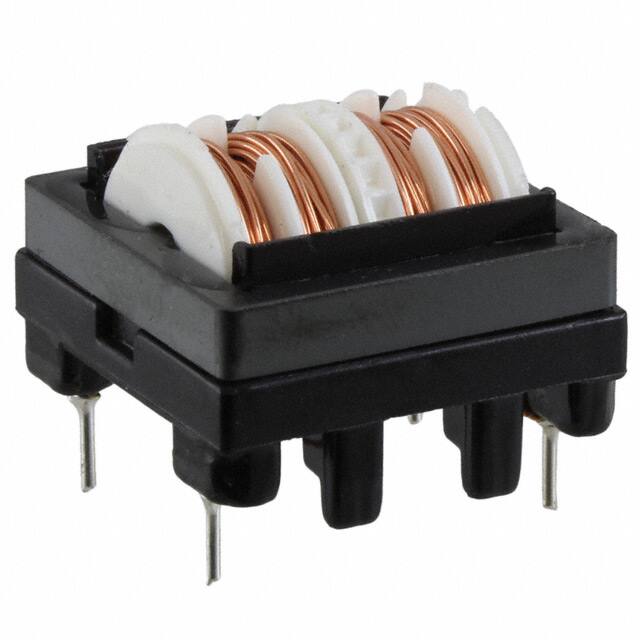

SS24H-R10170-CH
SS24V-R10170-CH
SS24H-R15080-CH
SS24V-R15080-CH
SS24H-R20045-CH
SS24V-R20045-CH
0.5
0.5
0.8
0.8
1.0
1.0
1.5
1.5
2.0
2.0
0.5
0.5
0.8
0.8
1.0
1.0
1.5
1.5
2.0
2.0
0.5
0.5
0.8
0.8
1.0
1.0
1.5
1.5
2.0
2.0
Inductance
(mH)
Minimum
DC Resistance/ Temperature Rise Weight (g)
Line (Ω) Maximum (K) Maximum
Approximate
35.0
35.0
15.0
15.0
10.0
10.0
4.5
4.5
2.5
2.5
57.0
57.0
24.0
24.0
16.5
16.5
7.0
7.0
4.0
4.0
60.0
60.0
25.0
25.0
17.0
17.0
8.0
8.0
4.5
4.5
1.75
1.75
0.75
0.75
0.55
0.55
0.24
0.24
0.17
0.17
1.75
1.75
0.75
0.75
0.55
0.55
0.24
0.24
0.17
0.17
1.75
1.75
0.75
0.75
0.55
0.55
0.24
0.24
0.17
0.17
45
45
50
50
45
45
45
45
50
50
45
45
50
50
45
45
45
45
50
50
45
45
50
50
45
45
45
45
50
50
17.1
18.8
17.1
18.8
16.9
18.6
17.3
19.0
16.6
18.3
17.1
18.8
17.1
18.8
16.9
18.6
17.3
19.0
16.6
18.3
17.1
18.8
17.1
18.8
16.9
18.6
17.3
19.0
16.6
18.3
Performance Characteristics
Item
SS24V/H-CH
Rated Voltage
250 VAC
Withstanding Voltage
2,400 VAC (2 seconds, between lines)
Insulation Resistance
> 100 MΩ at 500 VDC (between lines)
Rated Current AC Range
0.5 – 2.0 A
Rated Inductance Range
2.5 – 60.0 mH minimum
Inductance Measurement Condition
1 kHz
Thermal Class
E (120°C)
Operating Temperature Range
−25°C to +120°C (include self temperature rise)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0029_SS24V-H-CH • 1/31/2020
3
Common mode
AC Line Filters – Common Mode SS Coils, 24V/H-CH Series
Impedance
vs. Frequency
Frequency
Characteristics
1M 1
1M 1
6
3
6
3
100K 1
10100
6
3
08150
10K 1
05350
6
3
20025
1K 1
100
10
Impedance ( )
Impedance ( )
100K 1
15045
6
3
1
6
3
1
6
3
1
1K
6
3
10K 1
6
3
6
1
3
10K
6
1
3
6
100K
1
3
6
1M
1
10M
Frequency (Hz)
3
30M
K20040
1K 1
100
10
3
K10165
K08240
K05570
K15070
6
3
1
6
3
1
6
3
1
1K
3
6
1
10K
3
6
1
100K
3
6
1
1M
Frequency (Hz)
3
6
1
10M
3
30M
1M 1
6
3
Impedance ( )
100K 1
6
3
10K 1
R10170
R08250
R05600 R15080
6
3
R20045
1K 1
100
10
R15080
6
3
1
6
3
1
6
3
1
1K
3
6
1
10K
3
6
1
100K
3
6
1
1M
Frequency (Hz)
3
6
1
10M
3
30M
Handling Precautions
Precautions for product storage
AC Line Filters should be stored in normal working environments. While the chokes themselves are quite robust in other
environments, solderability will be degraded by exposure to high temperatures, high humidity, corrosive atmospheres, and
long term storage.
KEMET recommends that maximum storage temperature not exceed 40°C and maximum storage humidity not exceed 70%
relative humidity. Atmospheres should be free of chlorine and sulfur bearing compounds. Temperature fluctuations should
be minimized to avoid condensation on the parts. Avoid storage near strong magnetic fields, as this might magnetize the
product.
For optimized solderability, AC line filters stock should be used promptly and preferably within 6 months of receipt.
Product temperature rise values
The values listed for temperature rise are the result of self-heating in wires when the rated current (commercial frequency)
is applied.
When using the product, check and evaluate the value of the core temperature rise under actual operating conditions.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
AC Line Filters
LF0029_SS24V-H-CH • 1/31/2020
49
4
AC Line Filters – Common Mode SS Coils, 24V/H-CH Series
Export Control
For customers in Japan
For products that are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license
specified by the law is required for export.
For customers outside Japan
AC line filters should not be used or sold for the use in the development, production, stockpiling, or utilization of any
conventional weapons, mass-destruction weapons (nuclear, chemical, biological weapons, or missiles), or any other
weapons.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0029_SS24V-H-CH • 1/31/2020
5
