Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO2
Overview
The KEMET T490, designed for customer product
applications (low temperature demanding applications),
meets RoHS compliance with leads constructed of 100%
matte tin and a green molding compound. The T490 is
classified as MSL (Moisture Sensitivity Level) 1 under J STD
020: unlimited floor lifetime at ≤ 30°C/85% RH. Tin/lead (Sn/
Pb) terminations are available upon request for any part
number. Gold-plated terminations are also available for use
with conductive epoxy attachment processes. Standard
packaging of these devices is Tape & Reel in accordance with
EIA 481. This system provides perfect compatibility with all
tape-fed placement units.
Benefits
• Tape & Reel standard packaging per EIA 481
• Symmetrical compliant terminations
• Optional gold-plated terminations
• Laser-marked case
• Suitable for 3 x 260°C reflow passes
• Halogen-free epoxy
• Capacitance values of 47 – 470 μF
• Tolerance of ±20%
• Voltage rating of 4 – 10 VDC
• 0.2% per 1,000 hours at 85°C 0.5 VR Reliability
• Small and low profile case sizes
• RoHS Compliant and lead-free terminations
• MSL Reflow Temp ≤ 260°C = 1
• Operating temperature range of −55°C to +125°C
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in communications end applications such as cellphones and consumer
mobile.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
1
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
Ordering Information
T
490
B
227
Capacitor
Class
Series
Case
Size
Capacitance
Code (pF)
A
B
T
First two digits
represent
significant figures.
Third digit specifies
number of zeros.
T=
Tantalum
Industrial
M
006
A
T
Capacitance Rated Voltage Failure Rate/
Tolerance
(VDC)
Design
M = ±20%
004 = 4
006 = 6
010 = 10
A = N/A
Termination Finish
Packaging
(C-Spec)
T = 100% Matte Tin (Sn) plated Blank = 7" Reel
H = Standard solder coated
7280 = 13" Reel
(SnPb 5% Pb minimum)
G = Gold-plated (A, B only)
Performance Characteristics
Item
Performance Characteristics
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
ESR (100 kHz)
Leakage Current
−55°C to 125°C
47 – 470 µF at 120 Hz/25°C
M Tolerance (20%)
4 – 10 V
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (μA) at rated voltage after 5 minutes
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
2
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Qualification
Test
Condition
Endurance
Characteristics
40°C at 1.0 VR 85°C at 1/2 VR and 125°C at 1/5 rated
voltage, 1,000 hours
Δ C/C
Within 2 x initial limit
ESR
Within 2.5 x initial limits
Δ C/C
Storage Life
Humidity
Temperature Stability
85°C at 0 volts, 1,000 hours
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
Within 1.25 x initial limit
ESR
Within initial limits
DCL
40°C, 1.32 x rated voltage 1,000 cycles
Within −5%/+35% of initial value
Within 2.0 x initial limit
+25°C
−55°C
+85°C
+125°C
Δ C/C
IL*
±10%
±20%
±30%
DCL
IL
N/A
10 x IL
15 x IL
Δ C/C
Surge Voltage
Within +10%/−20% of initial value
DCL
Δ C/C
40°C, 93% RH, 1,000 hours, no load
Within +10%/−20% of initial value
DCL
Within +10%/−20% of initial value
DCL
Within 2.0 x initial limits
ESR
Within 1.25 x initial limits
*IL = Initial limit
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
3
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Electrical Characteristics
ESR vs. Frequency
Impedance & ESR (Ohms)
100
490A107/006 Imp
490B227/006 Imp
490B337/004 Imp
490A107/006 ESR
490B227/006 ESR
490B337/004 ESR
10
1
0.1
100
1,000
10,000
100,000
Frequency (Hz)
1,000,000
10,000,000
Capacitance vs. Frequency
1,000.0
490A107/006 Cap
490B227/006 Cap
490B337/004 Cap
Capacitance (µF)
100.0
10.0
1.0
0.1
100
1,000
10,000
100,000
1,000,000
Frequency (Hz)
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
4
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Dimensions – Millimeters (Inches)
Metric will govern
CATHODE (-) END VIEW
SIDE VIEW
ANODE (+) END VIEW
BOTTOM VIEW
A
B
W
B
H
X
T
S
G
S
P
Termination cutout
at KEMET's option,
either end
Case Size
KEMET EIA
F
E
R
L
Component
L
W
H
F ±0.1
±(.004)
S
B ±0.15
(Ref) ±.006
A
3.2 ±0.2
1.6 ±0.2
1.6 ±0.2
1.2
3216–18 (0.126 ±0.008) (0.063 ±0.008) (0.063 ±0.008) (0.047)
0.80 (0.032)
+0.2 (0.008)/−0.3 (0.011)
0.4
(.016)
B
3.5 ±0.2
2.8 ±0.2
1.9 ±0.2
2.2
3528–21 (0.138 ±0.008) (0.110 ±0.008) (0.075 ±0.008) (0.087)
0.80 (0.032)
+0.2 (0.008)/−0.3 (0.011)
0.4
(.016)
T
3.5 ±0.2
2.8 ±0.2
1.1 ±0.1
2.2
3528–12 (0.138 ±0.008) (0.110 ±0.008) (0.043 ±0.004) (0.087)
0.80 (0.032)
+0.2 (0.008)/−0.3 (0.011)
N/A
X
(Ref)
P
R
T
A
G
E
(Ref) (Ref) (Ref) (Min) (Ref) (Ref)
1.2
0.4
0.13
1.1
1.3
(0.016) (0.005) (0.047) (0.043) (0.051)
1.9
0.10 ±0.10
0.5
1.0
0.13
1.8
2.2
(0.004 ±0.004) (0.020) (0.039) (0.005) (0.075) (0.071) (0.087)
1.9
0.13
0.05
1.8
2.2
N/A
N/A
(0.005) (0.075) (0.071) (0.087)
(0.002)
0.10 ±0.10
0.4
(0.004 ±0.004) (0.016)
Notes: (Ref) – Dimensions provided for reference only. For low profile cases, no dimensions are provided for B, P, or R because these cases do not have
a bevel or a notch.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
5
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Table 1 – Ratings & Part Number Reference
Rated
Voltage
Rated
Capacitance
Case
Code/
Case Size
KEMET Part
Number
VDC at 40°C
µF
KEMET/EIA
(See below for
part options)
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
10
10
10
10
10
10
100
150
150
220
330
470
47
68
68
100
100
100
150
150
220
220
330
47
47
47
150
150
220
A/3216-18
A/3216-18
T/3528-12
B/3528-21
B/3528-21
B/3528-21
T/3528-12
A/3216-18
T/3528-12
A/3216-18
A/3216-18
T/3528-12
B/3528-21
B/3528-21
B/3528-21
B/3528-21
B/3528-21
T/3528-12
A/3216-18
A/3216-18
B/3528-21
B/3528-21
B/3528-21
T490A107M004A(1)E500
T490A157M004A(1)E800
T490T157M004A(1)E1K1
T490B227M004A(1)E500
T490B337M004A(1)E800
T490B477M004A(1)E1K0
T490T476M006A(1)E800
T490A686M006A(1)E1K0
T490T686M006A(1)E600
T490A107M006A(1)E500
T490A107M006A(1)E800
T490T107M006A(1)E1K0
T490B157M006A(1)E500
T490B157M006A(1)E800
T490B227M006A(1)E300
T490B227M006A(1)E500
T490B337M006A(1)E800
T490T476M010A(1)E1K0

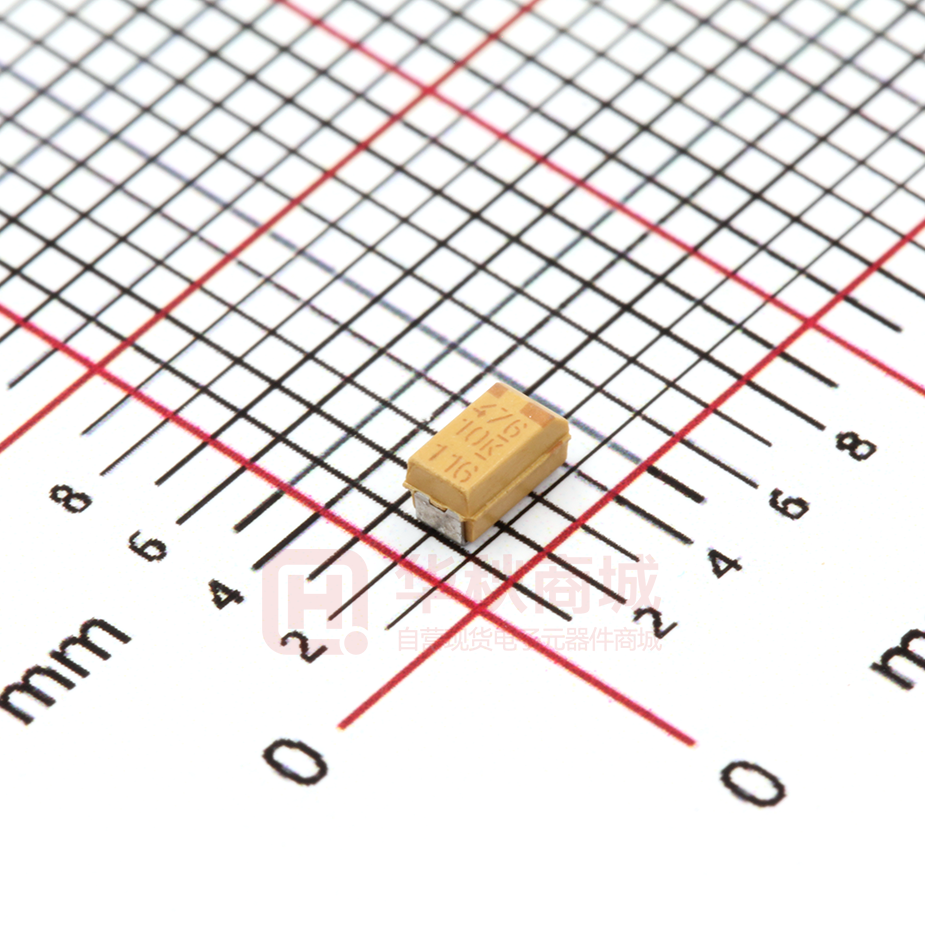

T490A476M010A(1)E1K0
T490A476M010A(1)E1K2
T490B157M010A(1)E500
T490B157M010A(1)E800
T490B227M010A(1)E800
VDC at 40°C
µF
KEMET/EIA
(See below for
part options)
Rated
Voltage
Rated
Capacitance
Case Code/
Case Size
KEMET Part Number
DC
Leakage
ESR
µA at +20°C
Maximum/
5 Minutes
4.0
6.0
6.0
8.8
13.2
18.8
2.8
4.1
4.1
6.0
6.0
6.0
9.0
9.0
13.2
13.2
19.8
4.7
4.7
4.7
15.0
15.0
22.0
µA at +20°C
Maximum/
5 Minutes
Ω at +20°C
100 kHz
Maximum
0.5
0.8
1.1
0.5
0.8
1.0
0.8
1.0
0.6
0.5
0.8
1.0
0.5
0.8
0.3
0.5
0.8
1.0
1.0
1.2
0.5
0.8
0.8
Ω at +20°C
100 kHz
Maximum
DC
Leakage
ESR
Maximum
Allowable
Ripple
Current
Maximum
Operating
Temp
mA at +25°C
100 kHz
°C
387
306
252
412
326
291
295
274
342
387
306
265
412
326
532
412
326
265
274
250
412
326
326
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
mA at +25°C
100 kHz
ºC
Maximum
Allowable
Ripple Current
Maximum
Operating Temp
MSL
Reflow
Temp
≤ 260°C
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reflow
Temp
≤ 260°C
MSL
(1) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold-plated, H = Standard solder coated (SnPb 5% Pb minimum).
Designates termination finish.
Blue color text denotes "Under Development."
Refer to Ordering Information for additional detail.
The ESR value may increase up to 1.5 x Initial Limit post mounting.
The DCL value may increase up to 2.0 x Initial Limit post mounting.
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will
be marked with the higher voltage rating. Substitutions can include better than series.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
6
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Recommended Voltage Derating Guidelines
Recommended
Maximum
Application
Voltage
40°C to 85°C
85°C to 125°C
100% of Vr
50% of Vr
20% of Vr
120%
100%
50% of Vr
25% of Vr
% Working Voltage
% Change in
Working DC
Voltage with
Temperature
−55°C to 40°C
10% of Vr
80%
% Change in Working DC
Voltage with Temperature
60%
50%
40%
Recommended Maximum
Application Voltage
20%
0%
−55
25
20%
40
85
105
125
Temperature (°C)
Ripple Current/Ripple Voltage
Permissible AC ripple voltage and current are related to
equivalent series resistance (ESR) and the power dissipation
capabilities of the device. Permissible AC ripple voltage
which may be applied is limited by two criteria:
1. The positive peak AC voltage plus the DC bias voltage,
if any, must not exceed the DC voltage rating of the
capacitor.
2. The negative peak AC voltage in combination with
bias voltage, if any, must not exceed the allowable limits
specified for the reverse voltage. See the Reverse Voltage
section for allowable limits.
The maximum power dissipation by case size can be
determined using the table at right. The maximum power
dissipation rating stated in the table must be reduced with
increasing environmental operating temperatures. Refer to
the table below for temperature compensation requirements.
KEMET
Case Code
EIA
Case Code
Maximum Power
Dissipation (P max)
mWatts at 25°C
w/+20°C Rise
A
B
T
3216–18
3528–21
3528–12
75
85
70
Using the P max of the device, the maximum allowable rms
ripple current or voltage may be determined.
I(max) = √P max/R
E(max) = Z √P max/R
I = rms ripple current (amperes)
E = rms ripple voltage (volts)
P max = maximum power dissipation (watts)
R = ESR at specified frequency (ohms)
Z = Impedance at specified frequency (ohms)
Temperature Compensation Multipliers
for Maximum Ripple Current
T ≤ 25°C
1.00
T ≤ 40°C
0.90
T ≤ 125°C
0.40
T = Environmental Temperature
The maximum power dissipation rating must be reduced with increasing
environmental operating temperatures. Refer to the Temperature
Compensation Multiplier table for details.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
7
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Reverse Voltage
Solid tantalum capacitors are polar devices and may be permanently damaged or destroyed if connected with the wrong
polarity. The positive terminal is identified on the capacitor body by a stripe, plus, in some cases a beveled edge. A small
degree of transient reverse voltage is permissible for short periods per the table. The capacitors should not be operated
continuously in reverse mode, even within these limits.
Temperature
Permissible Transient Reverse Voltage
25°C
40°C
85°C
15% of Rated Voltage
5% of Rated Voltage
1% of Rated Voltage
Table 2 – Land Dimensions/Courtyard
KEMET
Metric
Size
Code
Density Level A:
Maximum (Most) Land
Protrusion (mm)
Density Level B:
Median (Nominal) Land
Protrusion (mm)
Density Level C:
Minimum (Least) Land
Protrusion (mm)
Case
EIA
W
L
S
V1
V2
W
L
S
V1
V2
W
L
S
V1
V2
A
3216–18
1.35
2.20
0.62
6.02
2.80
1.23
1.80
0.82
4.92
2.30
1.13
1.42
0.98
4.06
2.04
B
3528–21
2.35
2.21
0.92
6.32
4.00
2.23
1.80
1.12
5.22
3.50
2.13
1.42
1.28
4.36
3.24
T
3528–12
2.35
2.20
0.92
6.32
4.00
2.23
1.80
1.12
5.22
3.50
2.13
1.42
1.28
4.36
3.24
Density Level A: For low-density product applications. Recommended for wave solder applications and provides a wider process window for reflow
solder processes.
Density Level B: For products with a moderate level of component density. Provides a robust solder attachment condition for reflow solder processes.
Density Level C: For high component desity product applications. Before adapting the minimum land pattern variations, the user should perform
qualification testing based on the conditions outlined in IPC standard 7351 (IPC–7351).
1
Height of these chips may create problems in wave soldering.
2
Land pattern geometry is too small for silkscreen outline.
V1
L
L
W
W
V2
S
Grid Placement Courtyard
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
8
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Soldering Process
KEMET’s families of surface mount capacitors are compatible
with wave (single or dual), convection, IR, or vapor phase
reflow techniques. Preheating of these components is
recommended to avoid extreme thermal stress. KEMET's
recommended profile conditions for convection and IR
reflow reflect the profile conditions of the IPC/J–STD–020D
standard for moisture sensitivity testing. The devices can
safely withstand a maximum of three reflow passes at these
conditions.
Please note that although the X/7343–43 case size can
withstand wave soldering, the tall profile (4.3 mm maximum)
dictates care in wave process development.
Profile Feature
SnPb Assembly Pb-Free Assembly
Preheat/Soak
Temperature Minimum (TSmin)
100°C
150°C
Temperature Maximum (TSmax)
150°C
200°C
Time (t s) from Tsmin to Tsmax)
60 – 120 seconds
60 – 120 seconds
Ramp-up Rate (TL to TP)
3°C/second maximum
3°C/second maximum
Liquidous Temperature (TL)
183°C
217°C
Time Above Liquidous (t L)
60 – 150 seconds
220°C*
235°C**
60 – 150 seconds
250°C*
260°C**
20 seconds maximum
30 seconds maximum
6°C/second maximum
6°C/second maximum
6 minutes maximum
8 minutes maximum
Peak Temperature (TP)
Time within 5°C of Maximum
Peak Temperature (t P)
Ramp-down Rate (TP to TL)
Time 25°C to Peak
Temperature
Note: All temperatures refer to the center of the package, measured on the
During typical reflow operations, a slight darkening of the
gold-colored epoxy may be observed. This slight darkening is
normal and not harmful to the product. Marking permanency
is not affected by this change.
Temperature
Hand soldering should be performed with care due to the
package body surface that is facing up during assembly reflow.
difficulty in process control. If performed, care should be
* For Case Size height > 2.5 mm
** For Case Size height ≤ 2.5 mm
taken to avoid contact of the soldering iron to the molded
case. The iron should be used to heat the solder pad, applying
solder between the pad and the termination, until reflow
TP
tP
Maximum Ramp-up Rate = 3°C/second
occurs. Once reflow occurs, the iron should be removed
Maximum Ramp-down Rate = 6°C/second
TL
immediately. “Wiping” the edges of a chip and heating the top
tL
surface is not recommended.
Tsmax
Tsmin
25
ts
25°C to Peak
Time
Storage
Tantalum chip capacitors should be stored in normal working environments. While the chips themselves are quite robust in
other environments, solderability will be degraded by exposure to high temperatures, high humidity, corrosive atmospheres,
and long term storage. In addition, packaging materials will be degraded by high temperature – reels may soften or warp
and tape peel force may increase. KEMET recommends that maximum storage temperature not exceed 40°C and maximum
storage humidity not exceed 60% relative humidity. Temperature fluctuations should be minimized to avoid condensation on
the parts and atmospheres should be free of chlorine and sulphur bearing compounds. For optimized solderability chip stock
should be used promptly, preferably within three years of receipt.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
9
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Construction
Molded Epoxy
Case
Polarity Stripe (+)
Detailed Cross Section
Silver Paint
(Fourth Layer)
Tantalum Wire
Leadframe
(− Cathode)
Washer
Tantalum Wire
Weld
(to attach wire)
Carbon
(Third Layer)
Silver Adhesive
Leadframe
(+ Anode)
Molded Epoxy
Case
MnO2
(Second Layer)
Washer
Ta2O5 Dielectric
(First Layer)
Tantalum
Capacitor Marking
KEMET
Industrial
Grade MnO2
Polarity
Indicator (+)
Picofarad
Code
KEMET
ID
Rated
Voltage
Date
Code*
Date Code *
1 digit = last number of year
6 = 2016
7 = 2017
8 = 2018
9 = 2019
0 = 2020
2nd and 3rd digit = week of the
year
01 = 1st week of the year to
52 = 52nd week of the year
st
* 230 = 30th week of 2012
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
10
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Tape & Reel Packaging Information
KEMET’s molded chip capacitor families are packaged in 8 and 12 mm plastic tape on 7" and 13" reels in accordance with
EIA Standard 481: Embossed Carrier Taping of Surface Mount Components for Automatic Handling. This packaging system
is compatible with all tape-fed automatic pick-and-place systems.
Right hand
orientation
only
(+)
Embossed carrier
(−)
Embossment
Top tape thickness
0.10 mm (0.004”)
maximum thickness
180 mm (7.0”) or
330 mm (13.”)
8 mm (0.315”) or
12 mm (0.472”)
Table 3 – Packaging Quantity
Case Code
KEMET
S
T
M
U
L
W
Z
V
A
B
C
D
Q
Y
X
E/T428P
H
O
EIA
3216-12
3528-12
3528-15
6032-15
6032-19
7343-15
7343-17
7343-20
3216-18
3528-21
6032-28
7343-31
7343-12
7343-40
7343-43
7360-38
7360-20
7360-43
Tape Width
(mm)
7" Reel*
13" Reel*
8
8
8
12
12
12
12
12
8
8
12
12
12
12
12
12
12
12
2,500
3,000
2,500
1,000
1,000
1,000
1,000
1,000
2,000
2,000
500
500
1,000
500
500
500
1,000
250
10,000
10,000
8,000
5,000
3,000
3,000
3,000
3,000
9,000
8,000
3,000
2,500
3,000
2,000
2,000
2,000
2,500
1,000
* No C-Spec required for 7" reel packaging. C-7280 required for 13" reel packaging.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
11
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Figure 1 – Embossed (Plastic) Carrier Tape Dimensions
P2
T
T2
ØD0
P0
(10 pitches cumulative
tolerance on tape ±0.2 mm)
A0
E1
F
K0
B1
E2
B0
S1
W
P1
T1
Center Lines of Cavity
B1 is for tape feeder reference only,
including draft concentric about B0.
Embossment
For cavity size,
see Note 1, Table 4
ØD1
Cover Tape
User Direction of Unreeling
Table 4 – Embossed (Plastic) Carrier Tape Dimensions
Metric will govern
Constant Dimensions — Millimeters (Inches)
Tape Size
8 mm
12 mm
D1 Minimum
Note 1
D0
1.5 +0.10/−0.0
(0.059 +0.004/−0.0)
1.0
(0.039)
1.5
(0.059)
E1
P0
R Reference S1 Minimum
T1
T Maximum
Note 2
Note 3
Maximum
P2
1.75 ±0.10
4.0 ±0.10
2.0 ±0.05
(0.069 ±0.004) (0.157 ±0.004) (0.079 ±0.002)
25.0
(0.984)
30
(1.181)
0.600
(0.024)
0.600
(0.024)
0.100
(0.004)
Variable Dimensions — Millimeters (Inches)
Tape Size
Pitch
B1 Maximum
Note 4
8 mm
Single (4 mm)
4.35
(0.171)
6.25
(0.246)
12 mm
Single (4 mm)
and Double
(8 mm)
8.2
(0.323)
10.25
(0.404)
E2 Minimum
F
P1
3.5 ±0.05
2.0 ±0.05 or 4.0 ±0.10
(0.138 ±0.002) (0.079 ±0.002 or 0.157 ±0.004)
2.0 ±0.05 (0.079 ±0.002) or
5.5 ±0.05
4.0 ±0.10 (0.157 ±0.004) or
(0.217 ±0.002)
8.0 ±0.10 (0.315 ±0.004)
T2 Maximum W Maximum A0, B0 & K0
2.5
(0.098)
8.3
(0.327)
4.6
(0.181)
12.3
(0.484)
Note 5
1. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of embossment
location and hole location shall be applied independent of each other.
2. The tape, with or without components, shall pass around R without damage (see Figure 4).
3. If S1 < 1.0 mm, there may not be enough area for cover tape to be properly applied (see EIA Standard 481–D, paragraph 4.3, section b).
4. B1 dimension is a reference dimension for tape feeder clearance only.
5. The cavity defined by A0, B0 and K0 shall surround the component with sufficient clearance that:
(a) the component does not protrude above the top surface of the carrier tape.
(b) the component can be removed from the cavity in a vertical direction without mechanical restriction, after the top cover tape has been removed.
(c) rotation of the component is limited to 20° maximum for 8 and 12 mm tapes (see Figure 2).
(d) lateral movement of the component is restricted to 0.5 mm maximum for 8 mm and 12 mm wide tape (see Figure 3).
(e) see Addendum in EIA Standard 481–D for standards relating to more precise taping requirements.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
12
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Packaging Information Performance Notes
1. Cover tape break force: 1.0 kg minimum.
2. Cover tape peel strength: The total peel strength of the cover tape from the carrier tape shall be:
Tape Width
Peel Strength
8 mm
0.1 to 1.0 newton (10 to 100 gf)
12 mm
0.1 to 1.3 newton (10 to 130 gf)
The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier tape shall be
165° to 180° from the plane of the carrier tape. During peeling, the carrier and/or cover tape shall be pulled at a velocity of
300 ±10 mm/minute.
3. Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes. Refer to EIA
Standards 556 and 624.
Figure 2 – Maximum Component Rotation
°
T
Maximum Component Rotation
Top View
Maximum Component Rotation
Side View
Typical Pocket Centerline
Tape
Width (mm)
8, 12
Bo
Maximum
Rotation (
20
°
T)
°
s
Tape
Maximum
Width (mm) Rotation (
8, 12
20
Typical Component Centerline
°
S)
Ao
Figure 3 – Maximum Lateral Movement
Figure 4 – Bending Radius
8 mm & 12 mm Tape
0.5 mm maximum
0.5 mm maximum
Embossed
Carrier
Punched
Carrier
R
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
Bending
Radius
R
T2004_T490 • 2/17/2020
13
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Figure 5 – Reel Dimensions
Full Radius,
See Note
W3
(Includes
flange distortion
at outer edge)
Access Hole at
Slot Location
(Ø 40 mm minimum)
W2
D
A
(See Note)
N
C
(Arbor hole
diameter)
B
(see Note)
(Measured at hub)
W1
(Measured at hub)
If present,
tape slot in core
for tape start:
2.5 mm minimum width x
10.0 mm minimum depth
Note: Drive spokes optional; if used, dimensions B and D shall apply.
Table 5 – Reel Dimensions
Metric will govern
Constant Dimensions — Millimeters (Inches)
Tape Size
A
B Minimum
C
D Minimum
8 mm
178 ±0.20
(7.008 ±0.008)
or
330 ±0.20
(13.000 ±0.008)
1.5
(0.059)
13.0 +0.5/−0.2
(0.521 +0.02/−0.008)
20.2
(0.795)
12 mm
Variable Dimensions — Millimeters (Inches)
Tape Size
8 mm
12 mm
N Minimum
W1
W2 Maximum
W3
50
(1.969)
8.4 +1.5/−0.0
(0.331 +0.059/−0.0)
12.4 +2.0/−0.0
(0.488 +0.078/−0.0)
14.4
(0.567)
18.4
(0.724)
Shall accommodate tape
width without interference
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
14
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
Figure 6 – Tape Leader & Trailer Dimensions
Embossed Carrier
Punched Carrier
8 mm & 12 mm only
END
Carrier Tape
Round Sprocket Holes
START
Top Cover Tape
Elongated Sprocket Holes
(32 mm tape and wider)
Trailer
160 mm minimum
Components
100 mm
minimum Leader
400 mm minimum
Top Cover Tape
Figure 7 – Maximum Camber
Elongated Sprocket Holes
(32 mm & wider tapes)
Carrier Tape
Round Sprocket Holes
1 mm maximum, either direction
Straight Edge
250 mm
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
15
Tantalum Surface Mount Capacitors – Standard Tantalum
T490 Commercial Grade MnO 2
KEMET Electronics Corporation Sales Offices
For a complete list of our global sales offi ces, please visit www.kemet.com/sales.
Disclaimer
All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for
checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given
herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such
applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use.
The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes
no obligation or liability for the advice given or results obtained.
Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component
failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards
(such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury
or property damage.
Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other
measures may not be required.
KEMET is a registered trademark of KEMET Electronics Corporation.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2004_T490 • 2/17/2020
16
工商网监
湘ICP备2023018690号
