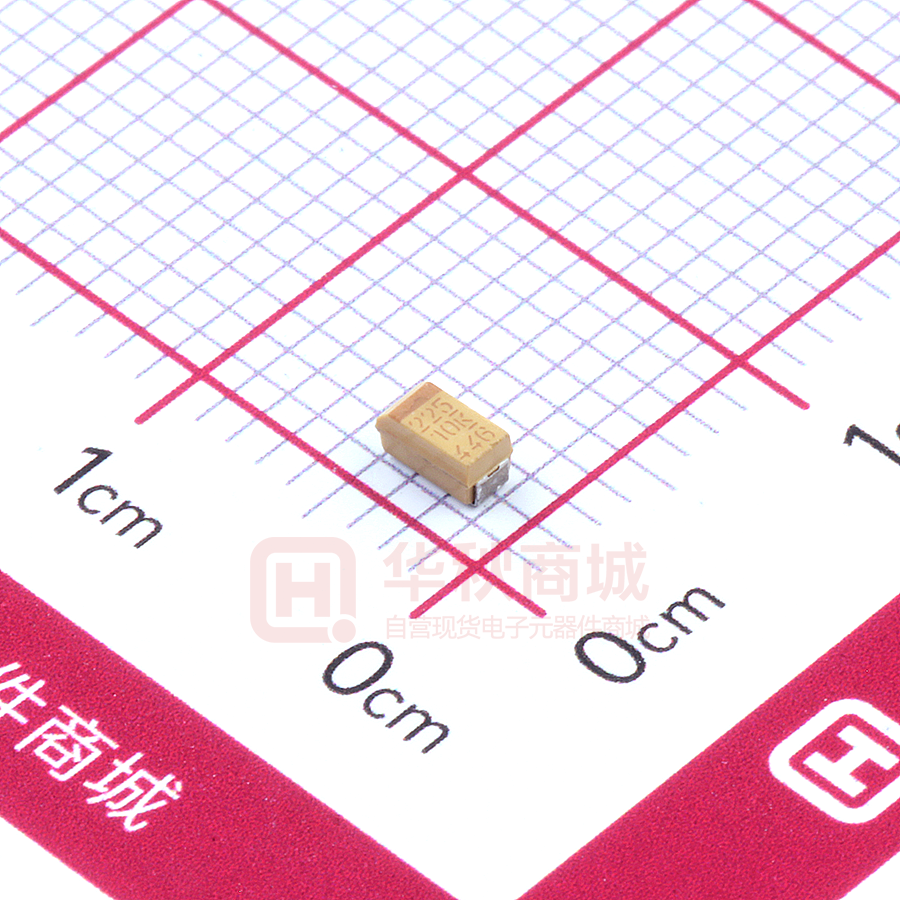

T491A225K010AT

Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO2 Overview The KEMET T491 Series, designed specifically for today’s highly automated surface mount processes and equipment, is the leading choice for surface mount designs. The T491 combines KEMET’s proven solid tantalum technology, acclaimed and respected throughout the world, with the latest in materials, processes and automation, resulting in unsurpassed total performance and value. This product meets or exceeds the requirements of EIA standard 535BAAC. This series is classified as MSL (Moisture Sensitivity Level) 1 under J STD 020: unlimited floor life time at ≤ 30°C/85% RH. The T491 standard terminations are available in 100% matte tin and provide excellent wetting characteristics and compatibility with today's surface mount solder systems. Tin/lead (Sn/Pb) terminations are available upon request for any part number. Gold-plated terminations are also available for use with conductive epoxy attachment processes. Standard packaging of these devices is tape and reel in accordance with EIA 481. This system provides perfect compatibility with all tape-fed placement units. Benefits • Meets or exceeds EIA Standard 535BAAC • Taped and reeled per EIA 481 • Symmetrical, compliant terminations • Optional gold-plated terminations • Laser-marked case • 100% surge current test on C, D, E, U, V, X sizes • Halogen free epoxy • Capacitance 0.1 µF to 1,000 µF • Tolerance ±10%, ±20% • Voltage 2.5 – 50 VDC • Extended range values • Low profile case sizes • RoHS Compliant and lead-free terminations (See www.kemet.com for transition information) • Operating temperature: −55°C to +125°C Click image above for interactive 3D content Open PDF in Adobe Reader for full functionality Applications Typical applications include decoupling and filtering in industrial and automotive end applications such as DC/DC converters, portable electronics, telecommunications, and control units. Environmental Compliance RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder, Gold plated or Non-magnetic 100% Sn solder. One world. One KEMET © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 1 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 K-SIM For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels. Ordering Information T 491 X 157 K 020 A T Capacitor Class Series Case Size Capacitance Code (pF) Capacitance Tolerance Rated Voltage (VDC) Failure Rate/ Design Termination Finish Packaging (C-Spec) T= Tantalum Industrial A, B, C, D, E, M, S, T, U, V, W, X First two digits represent significant figures. Third digit specifies number of zeros. K = ±10% M = ±20% 2R5 = 2.5 003 = 3 004 = 4 006 = 6.3 010 = 10 016 = 16 020 = 20 025 = 25 035 = 35 050 = 50 A= N/A T = 100% Matte Tin (Sn) plated H = Standard solder coated (SnPb 5% Pb minimum) G = Gold plated (A, B, C, D, X only) N = Non-magnetic 100% Tin (Sn) M = Non-magnetic (SnPb) Blank = 7" Reel 7280 = 13" Reel Performance Characteristics Item Performance Characteristics Operating Temperature Rated Capacitance Range Capacitance Tolerance Rated Voltage Range −55°C to 125°C 0.1 – 1,000 µF at 120 Hz/25°C K Tolerance (10%), M Tolerance (20%) 2.5 – 50 V DF (120 Hz) Refer to Part Number Electrical Specification Table ESR (100 kHz) Refer to Part Number Electrical Specification Table Leakage Current ≤ 0.01 CV (µA) at rated voltage after 5 minutes © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 2 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Qualification Test Condition Characteristics Δ C/C Endurance 85°C at rated voltage, 2,000 hours 125°C at 2/3 rated voltage, 2,000 hours Within initial limits DCL Within 1.25 x initial limit ESR Within initial limits Δ C/C Storage Life 125°C at 0 volts, 2,000 hours Temperature Stability MIL–STD–202, Method 107, Condition B, mounted, −55°C to 125°C, 1,000 cycles Extreme temperature exposure at a succession of continuous steps at +25°C, −55°C, +25°C, +85°C, +125°C, +25°C. Within initial limits DCL Within 1.25 x initial limit ESR Within initial limits Mechanical Shock/ Vibration Within ±5% of initial value DF Within initial limits DCL Within 1.25 x initial limit ESR Within initial limits +25°C −55°C +85°C +125°C Δ C/C IL* ±10% ±10% ±20% DF IL IL 1.5 x IL 1.5 x IL DCL IL N/A 10 x IL 12 x IL Δ C/C Surge Voltage Within ±10% of initial value DF Δ C/C Thermal Shock Within ±10% of initial value DF 85°C, 1.32 x rated voltage 1,000 cycles (125°C, 1.2 x rated voltage). MIL–STD–202, Method 213, Condition I, 100 G peak MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz, 20 G peak Within ±5% of initial value DF Within initial limits DCL Within initial limits ESR Within initial limits Δ C/C Within ±10% of initial value DF Within initial limits DCL Within initial limits *IL = Initial limit © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 3 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Electrical Characteristics Capacitance vs. Frequency ESR vs. Frequency 100 1,000 T491C336M025AT_IMP T491C336M025AT 10 T491D476M025AT T491X107M025AT_IMP T491X107M025AT T491C336M025AT_ESR Capacitance (µF) Impedance, ESR (Ohms) T491D476M025AT_IMP T491D476M025AT_ESR T491X107M025AT_ESR 1 0.1 0.01 100 1,000 10,000 100,000 1,000,000 Frequency (Hz) 100 10 1 10,000,000 100 1,000 10,000 100,000 1,000,000 Frequency (Hz) 10,000,000 Dimensions – Millimeters (Inches) Metric will govern CATHODE (-) END VIEW SIDE VIEW ANODE (+) END VIEW BOTTOM VIEW A B W B H X T S G S Termination cutout at KEMET's option, either end Case Size KEMET EIA F E P R L Component L W H F ±0.1 ±(0.004) S B ±0.15 (Ref)±0.006 X (Ref) P R T A G E (Ref) (Ref) (Ref) (Min) (Ref) (Ref) A 3.2±0.2 1.6±0.2 1.6±0.2 3216–18 (0.126±0.008) (0.063±0.008) (0.063±0.008) 1.2 (0.047) 0.80(0.032) +0.2(0.008)/−0.3(0.011) 0.4 (0.016) 0.10±0.10 0.4 0.4 0.13 1.2 1.1 1.3 (0.004±0.004) (0.016) (0.016) (0.005) (0.047) (0.043) (0.051) B 3.5±0.2 2.8±0.2 1.9±0.2 3528–21 (0.138±0.008) (0.110±0.008) (0.075±0.008) 2.2 (0.087) 0.80(0.032) +0.1(0.004)/−0.3(0.011) 0.4 (0.016) 0.10±0.10 0.5 1.0 0.13 1.9 1.8 2.2 (0.004±0.004) (0.020) (0.039) (0.005) (0.075) (0.071) (0.087) C 6.0±0.3 3.2±0.3 2.5±0.3 6032–28 (0.236±0.012) (0.126±0.012) (0.098±0.012) 2.2 (0.087) 1.30 (0.051) ±0.3 (0.011) 0.5 (0.020) 0.10±0.10 0.9 1.0 0.13 2.9 2.8 2.4 (0.004±0.004) (0.035) (0.039) (0.005) (0.114) (0.110) (0.094) D 7.3±0.3 4.3±0.3 2.8±0.3 7343–31 (0.287±0.012) (0.169±0.012) (0.110±0.012) 2.4 (0.094) 1.30 (0.051) ±0.3 (0.011) 0.5 (0.020) 0.10±0.10 0.9 1.0 0.13 3.6 3.5 3.5 (0.004±0.004) (0.035) (0.039) (0.005) (0.142) (0.138) (0.138) X 7.3±0.3 4.3±0.3 4.0±0.3 7343–43 (0.287±0.012) (0.169±0.012) (0.157±0.012) 2.4 (0.094) 1.30 (0.051) ±0.3 (0.011) 0.5 (0.020) 0.10 ±0.10 1.7 1.0 0.13 3.6 3.5 3.5 (0.004 ±0.004) (0.067) (0.039) (0.005) (0.142) (0.138) (0.138) E 7.3±0.3 6.0±0.3 3.6±0.2 7360–38 (0.287±0.012) (0.236±0.012) (0.142±0.008) 4.1 (0.161) 1.30 (0.051) ±0.3 (0.011) 0.5 (0.020) 0.10±0.10 (0.004±0.004) N/A N/A 0.13 3.6 3.5 3.5 (0.005) (0.142) (0.138) (0.138) M 3.5±0.2 2.8±0.2 1.4±0.1 3528–15 (0.138±0.008) (0.110±0.008) (0.055±0.004) 2.2 (.087) 0.8 (0.031) N/A 0.05 (0.002) N/A N/A 0.13 1.9 1.8 (.005) (0.075) (.071) S 3.2±0.2 1.6±0.2 3216–12 (0.126±0.008) (0.063±0.008) 1.2 (0.047) 1.2 (0.047) 0.80(0.032) +0.2(0.008)/−0.3(0.011) N/A 0.05 (0.002) N/A N/A 0.13 1.2 1.1 1.3 (0.005) (0.047) (0.043) (0.051) T 3.5±0.2 2.8±0.2 3528–12 (0.138±0.008) (0.110±0.008) 1.2 (0.047) 2.2 (0.087) 0.80(0.032) +0.1(0.004)/−0.3(0.011) N/A 0.05 (0.002) N/A N/A 0.13 1.9 1.8 2.2 (0.005) (0.075) (0.071) (0.087) U 6.0±0.3 3.2±0.2 6032–15 (0.236±0.012) (0.110±0.008) 1.5 (0.059) 2.2 (0.087) 1.30 (0.051) ±0.3 (0.011) N/A 0.05 (0.002) N/A N/A 0.13 2.9 2.8 2.4 (0.005) (0.114) (0.110) (0.094) V 7.3±0.3 4.3±0.3 7343–20 (0.287±0.012) (0.169±0.012) 2.0 (0.079) 2.4 (0.094) 1.30 (0.051) ±0.3 (0.011) N/A 0.05 (0.002) N/A N/A 0.13 3.6 3.5 3.5 (0.005) (0.142) (0.138) (0.138) W 7.3±0.3 4.3±0.3 7343–15 (0.287±0.012) (0.169±0.012) 1.5 (0.059) 2.4 (0.094) 1.30 (0.051) ±0.3 (0.011) N/A 0.05 (0.002) N/A N/A 0.13 3.6 3.5 3.5 (0.005) (0.142) (.0138) (0.138) 2.2 (.087) Notes: (Ref) – Dimensions provided for reference only. For low profile cases, no dimensions are provided for B, P or R because these cases do not have a bevel or a notch. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 4 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 2.5 2.5 3 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 100 220 33 3.3 4.7 6.8 6.8 10 10 10 15 15 15 15 22 22 22 22 22 33 33 33 33 33 47 47 47 47 47 68 68 68 68 68 100 100 100 100 100 100 150 150 150 150 150 220 T/3528-12 D/7343-31 A/3216-18 A/3216-18 A/3216-18 A/3216-18 S/3216-12 B/3528-21 A/3216-18 S/3216-12 B/3528-21 A/3216-18 T/3528-12 S/3216-12 C/6032-28 B/3528-21 A/3216-18 T/3528-12 S/3216-12 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 D/7343-31 C/6032-28 U/6032-15 B/3528-21 A/3216-18 D/7343-31 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 D/7343-31 U/6032-15 V/7343-20 C/6032-28 B/3528-21 V/7343-20 T491T107(1)2R5A(2) T491D227(1)2R5A(2) T491A336(1)003A(2) T491A335(1)004A(2) T491A475(1)004A(2) T491A685(1)004A(2) T491S685(1)004A(2) T491B106(1)004A(2) T491A106(1)004A(2) T491S106(1)004A(2) T491B156(1)004A(2) T491A156(1)004A(2) T491T156(1)004A(2) T491S156(1)004A(2) T491C226(1)004A(2) T491B226(1)004A(2) T491A226(1)004A(2) T491T226(1)004A(2) T491S226(1)004A(2) T491C336(1)004A(2) T491U336(1)004A(2) T491B336(1)004A(2) T491A336(1)004A(2) T491T336(1)004A(2) T491C476(1)004A(2) T491U476(1)004A(2) T491B476(1)004A(2) T491A476(1)004A(2) T491T476(M)004A(2) T491D686(1)004A(2) T491C686(1)004A(2) T491U686(1)004A(2) T491B686(1)004A(2) T491A686(1)004A(2) T491D107(1)004A(2) T491C107(1)004A(2) T491U107(1)004A(2) T491B107(1)004A(2) T491A107(M)004A(2) T491T107(M)004A(2) T491D157(1)004A(2) T491U157(1)004AT T491V157(1)004A(2) T491C157(1)004A(2) T491B157(1)004A(2) T491V227(1)004A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 2.5 5.5 1.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.9 0.9 0.9 0.9 0.9 1.3 1.3 1.3 1.3 1.3 1.9 1.9 1.9 1.9 1.9 2.7 2.7 2.7 2.7 2.7 4.0 4.0 4.0 4.0 4.0 4.0 6.0 6.0 6.0 6.0 6.0 8.8 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 24.0 8.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 10.0 6.0 6.0 6.0 6.0 10.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 10.0 12.0 6.0 6.0 6.0 6.0 30.0 8.0 8.0 10.0 8.0 30.0 30.0 8.0 8.0 8.0 8.0 12.0 8.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 3.9 0.3 4.0 8.0 8.0 6.0 15.0 3.5 4.5 15.0 3.5 4.0 5.0 15.0 1.8 3.0 3.5 5.0 10.0 1.8 1.8 2.5 3.0 5.0 1.6 1.8 2.0 2.5 6.0 0.8 1.5 1.8 1.8 4.0 0.8 1.2 1.8 0.9 4.0 5.0 0.8 1.3 0.7 1.2 2.0 0.7 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 134 707 137 97 97 112 63 156 129 63 156 137 118 63 247 168 137 118 77 247 224 184 137 118 262 224 206 173 108 433 271 224 217 137 433 303 224 307 137 118 433 263 423 303 206 423 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 121 636 123 87 87 101 57 140 116 57 140 123 106 57 222 151 123 106 69 222 202 166 123 106 236 202 185 156 97 390 244 202 195 123 390 273 202 276 123 106 390 237 381 273 185 381 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 54 283 55 39 39 45 25 62 52 25 62 55 47 25 99 67 55 47 31 99 90 74 55 47 105 90 82 69 43 173 108 90 87 55 173 121 90 123 55 47 173 105 169 121 82 169 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 5 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 220 220 220 220 330 330 330 330 470 470 680 680 1000 1000 2.2 3.3 4.7 4.7 6.8 6.8 6.8 10 10 10 10 15 15 15 15 15 22 22 22 22 22 33 33 33 33 33 47 47 47 47 47 47 B/3528-21 C/6032-28 D/7343-31 W/7343-15 D/7343-31 V/7343-20 C/6032-28 X/7343-43 X/7343-43 D/7343-31 X/7343-43 D/7343-31 X/7343-43 E/7360-38 A/3216-18 A/3216-18 A/3216-18 S/3216-12 B/3528-21 A/3216-18 S/3216-12 B/3528-21 A/3216-18 T/3528-12 S/3216-12 C/6032-28 B/3528-21 A/3216-18 T/3528-12 S/3216-12 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 D/7343-31 C/6032-28 U/6032-15 V/7343-20 B/3528-21 A/3216-18 T491B227(1)004A(2) T491C227(1)004AT T491D227(1)004AT T491W227(1)004AT T491D337(1)004A(2) T491V337(1)004A(2) T491C337(1)004A(2) T491X337(1)004AT T491X477(1)004A(2) T491D477(1)004A(2) T491X687(1)004A(2) T491D687(1)004A(2) T491X108(1)004A(2) T491E108(M)004A(2) T491A225(1)006A(2) T491A335(1)006A(2) T491A475(1)006A(2) T491S475(1)006A(2) T491B685(1)006A(2) T491A685(1)006A(2) T491S685(1)006A(2) T491B106(1)006A(2) T491A106(1)006A(2) T491T106(1)006A(2) T491S106(1)006A(2) T491C156(1)006A(2) T491B156(1)006A(2) T491A156(1)006A(2) T491T156(1)006A(2) T491S156(1)006A(2) T491C226(1)006A(2) T491U226(1)006A(2) T491B226(1)006A(2) T491A226(1)006A(2) T491T226(1)006A(2) T491C336(1)006A(2) T491U336(1)006A(2) T491B336(1)006A(2) T491A336(1)006A(2) T491T336(1)006A(2) T491D476(1)006A(2) T491C476(1)006A(2) T491U476(1)006A(2) T491V476(1)006AT T491B476(1)006A(2) T491A476(1)006A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 8.8 8.8 8.8 8.8 13.2 13.2 13.2 13.2 18.8 18.8 27.2 27.2 40.0 40.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.9 0.9 0.9 0.9 0.9 1.4 1.4 1.4 1.4 1.4 2.1 2.1 2.1 2.1 2.1 3.0 3.0 3.0 3.0 3.0 3.0 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 18.0 15.0 8.0 8.0 8.0 12.0 10.0 8.0 8.0 8.0 12.0 12.0 12.0 15.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 10.0 6.0 6.0 6.0 6.0 15.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 12.0 12.0 6.0 6.0 6.0 6.0 6.0 12.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 0.5 1.2 0.8 0.8 0.7 0.7 0.9 0.8 0.5 0.8 0.5 0.5 0.5 0.2 8.0 7.0 5.5 15.0 3.5 6.0 15.0 3.5 4.0 5.0 15.0 1.8 3.0 3.5 3.5 10.0 1.8 1.8 2.0 3.0 5.0 1.6 1.8 2.2 2.5 6.0 0.8 1.5 1.8 0.7 2.0 3.5 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 412 303 433 474 463 423 350 454 574 433 574 548 574 1000 97 97 112 63 156 112 63 156 137 118 63 247 168 146 141 77 247 224 206 158 118 247 224 168 173 108 433 262 224 423 206 146 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 371 273 390 427 417 381 315 409 517 390 517 493 517 900 87 87 101 57 140 101 57 140 123 106 57 222 151 131 127 69 222 202 185 142 106 222 202 151 156 97 390 236 202 381 185 131 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 165 121 173 190 185 169 140 182 230 173 230 219 230 400 39 39 45 25 62 45 25 62 55 47 25 99 67 58 56 31 99 90 82 63 47 99 90 67 69 43 173 105 90 169 82 58 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 6 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 10 10 10 10 10 10 10 10 10 47 68 68 68 68 68 68 100 100 100 100 100 100 150 150 150 150 150 150 150 220 220 220 220 220 330 330 330 330 330 470 470 470 470 680 680 1000 1 1.5 2.2 2.2 3.3 3.3 4.7 4.7 4.7 T/3528-12 D/7343-31 C/6032-28 U/6032-15 V/7343-20 B/3528-21 A/3216-18 D/7343-31 V/7343-20 C/6032-28 U/6032-15 B/3528-21 M/3528-15 B/3528-21 D/7343-31 C/6032-28 V/7343-20 U/6032-15 W/7343-15 X/7343-43 X/7343-43 D/7343-31 C/6032-28 V/7343-20 W/7343-15 C/6032-28 V/7343-20 X/7343-43 D/7343-31 E/7360-38 X/7343-43 D/7343-31 V/7343-20 E/7360-38 X/7343-43 E/7360-38 X/7343-43 A/3216-18 A/3216-18 B/3528-21 A/3216-18 A/3216-18 S/3216-12 B/3528-21 A/3216-18 S/3216-12 T491T476(1)006A(2) T491D686(1)006A(2) T491C686(1)006A(2) T491U686(1)006A(2) T491V686(1)006AT T491B686(1)006A(2) T491A686(1)006A(2) T491D107(1)006A(2) T491V107(1)006A(2) T491C107(1)006A(2) T491U107(1)006A(2) T491B107(1)006A(2) T491M107(1)006A(2) T491B157(1)006A(2) T491D157(1)006A(2) T491C157(1)006A(2) T491V157(1)006A(2) T491U157(1)006AT T491W157(1)006AT T491X157(1)006A(2) T491X227(1)006A(2) T491D227(1)006A(2) T491C227(1)006A(2) T491V227(1)006A(2) T491W227(1)006AT T491C337(1)006A(2) T491V337(1)006AT T491X337(1)006A(2) T491D337(1)006A(2) T491E337(1)006A(2) T491X477(1)006A(2) T491D477(1)006A(2) T491V477(1)006A(2) T491E477(1)006A(2) T491X687(1)006A(2) T491E687(M)006A(2) T491X108(1)006AT T491A105(1)010A(2) T491A155(1)010A(2) T491B225(1)010A(2) T491A225(1)010A(2) T491A335(1)010A(2) T491S335(1)010A(2) T491B475(1)010A(2) T491A475(1)010A(2) T491S475(1)010A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 3.0 4.3 4.3 4.3 4.3 4.3 4.3 6.3 6.3 6.3 6.3 6.3 6.3 9.5 9.5 9.5 9.5 9.5 9.5 9.5 13.9 13.9 13.9 13.9 13.9 20.8 20.8 20.8 20.8 20.8 29.6 29.6 29.6 29.6 42.8 42.8 63.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 10.0 6.0 6.0 10.0 6.0 8.0 30.0 8.0 8.0 8.0 10.0 12.0 20.0 15.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 10.0 8.0 8.0 12.0 8.0 8.0 8.0 8.0 8.0 12.0 15.0 10.0 15.0 12.0 15.0 4.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 2.0 0.8 1.2 1.8 0.7 0.9 4.0 0.8 0.7 0.9 1.8 2.0 3.0 3.0 0.7 1.2 0.7 0.6 0.8 0.7 0.7 0.7 1.0 0.7 0.8 1.2 0.7 0.4 0.4 0.5 0.4 0.4 0.7 0.4 0.6 0.5 0.6 10.0 8.0 3.5 7.0 5.5 15.0 3.5 4.0 15.0 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 187 433 303 224 423 307 137 433 423 350 224 206 200 168 463 303 423 387 474 486 486 463 332 423 474 303 423 642 612 632 642 612 423 707 524 632 524 87 97 156 97 117 63 156 137 63 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 168 390 273 202 381 276 123 390 381 315 202 185 180 151 417 273 381 348 427 437 437 417 299 381 427 273 381 578 551 569 578 551 381 636 472 569 472 78 87 140 87 105 57 140 123 57 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 75 173 121 90 169 123 55 173 169 140 90 82 80 67 185 121 169 155 190 194 194 185 133 169 190 121 169 257 245 253 257 245 169 283 210 253 210 35 39 62 39 47 25 62 55 25 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 7 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 6.8 6.8 6.8 6.8 10 10 10 10 10 15 15 15 15 15 22 22 22 22 22 22 33 33 33 33 33 33 33 47 47 47 47 47 68 68 68 68 68 68 100 100 100 100 100 100 150 150 B/3528-21 A/3216-18 T/3528-12 S/3216-12 C/6032-28 B/3528-21 A/3216-18 T/3528-12 S/3216-12 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 D/7343-31 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 D/7343-31 V/7343-20 C/6032-28 U/6032-15 B/3528-21 T/3528-12 A/3216-18 D/7343-31 V/7343-20 C/6032-28 U/6032-15 B/3528-21 D/7343-31 V/7343-20 C/6032-28 W/7343-15 U/6032-15 B/3528-21 B/3528-21 D/7343-31 U/6032-15 W/7343-15 C/6032-28 V/7343-20 X/7343-43 D/7343-31 T491B685(1)010A(2) T491A685(1)010A(2) T491T685(1)010A(2) T491S685(1)010A(2) T491C106(1)010A(2) T491B106(1)010A(2) T491A106(1)010A(2) T491T106(1)010A(2) T491S106(1)010A(2) T491C156(1)010A(2) T491U156(1)010A(2) T491B156(1)010A(2) T491A156(1)010A(2) T491T156(1)010A(2) T491D226(1)010A(2) T491C226(1)010A(2) T491U226(1)010A(2) T491B226(1)010A(2) T491A226(1)010A(2) T491T226(1)010A(2) T491D336(1)010A(2) T491V336(1)010A(2) T491C336(1)010A(2) T491U336(1)010A(2) T491B336(1)010A(2) T491T336(1)010A(2) T491A336(1)010A(2) T491D476(1)010A(2) T491V476(1)010A(2) T491C476(1)010A(2) T491U476(1)010A(2) T491B476(1)010A(2) T491D686(1)010A(2) T491V686(1)010A(2) T491C686(1)010A(2) T491W686(1)010AT T491U686(1)010A(2) T491B686(1)010A(2) T491B107(1)010A(2) T491D107(1)010A(2) T491U107(1)010AT T491W107(1)010AT T491C107(1)010A(2) T491V107(1)010A(2) T491X157(1)010A(2) T491D157(1)010A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 0.7 0.7 0.7 0.7 1.0 1.0 1.0 1.0 1.0 1.5 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2 2.2 2.2 3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.7 4.7 4.7 4.7 4.7 6.8 6.8 6.8 6.8 6.8 6.8 10.0 10.0 10.0 10.0 10.0 10.0 15.0 15.0 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 6.0 6.0 6.0 10.0 6.0 6.0 6.0 6.0 10.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 6.0 6.0 8.0 12.0 6.0 6.0 6.0 6.0 6.0 24.0 15.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 6.0 10.0 8.0 15.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 3.5 4.0 5.0 15.0 1.8 3.0 3.8 3.0 15.0 1.8 1.8 2.0 6.0 2.8 0.8 1.6 1.8 2.0 3.2 8.0 0.8 0.7 1.5 1.8 1.8 5.0 6.0 0.8 0.7 1.2 1.4 1.0 0.8 0.7 1.0 1.2 1.8 1.0 1.2 0.7 0.7 0.8 1.0 0.7 0.7 0.7 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 156 137 118 63 247 156 137 153 63 247 224 206 112 158 433 247 224 206 112 94 433 423 271 224 217 118 112 433 423 303 254 292 433 423 332 387 224 292 266 463 359 474 332 423 486 463 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 140 123 106 57 222 140 123 138 57 222 202 185 101 142 390 222 202 185 101 85 390 381 244 202 195 106 101 390 381 273 229 263 390 381 299 348 202 263 239 417 323 427 299 381 437 417 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 62 55 47 25 99 62 55 61 25 99 90 82 45 63 173 99 90 82 45 38 173 169 108 90 87 47 45 173 169 121 102 117 173 169 133 155 90 117 106 185 144 190 133 169 194 185 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 8 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 10 10 10 10 10 10 10 10 10 10 10 10 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 150 150 220 220 220 220 330 330 330 330 470 470 1 1.5 2.2 2.2 2.2 3.3 3.3 4.7 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 10 10 15 15 15 15 22 22 22 22 33 33 33 33 47 47 47 C/6032-28 V/7343-20 C/6032-28 X/7343-43 D/7343-31 V/7343-20 D/7343-31 V/7343-20 X/7343-43 E/7360-38 X/7343-43 E/7360-38 A/3216-18 A/3216-18 A/3216-18 S/3216-12 B/3528-21 B/3528-21 A/3216-18 C/6032-28 B/3528-21 A/3216-18 T/3528-12 C/6032-28 B/3528-21 A/3216-18 C/6032-28 U/6032-15 B/3528-21 A/3216-18 T/3528-12 C/6032-28 U/6032-15 B/3528-21 A/3216-18 D/7343-31 C/6032-28 U/6032-15 B/3528-21 D/7343-31 C/6032-28 U/6032-15 B/3528-21 D/7343-31 V/7343-20 C/6032-28 T491C157(1)010A(2) T491V157(1)010A(2) T491C227(1)010A(2) T491X227(1)010A(2) T491D227(1)010A(2) T491V227(1)010A(2) T491D337(1)010A(2) T491V337(1)010A(2) T491X337(1)010A(2) T491E337(1)010A(2) T491X477(1)010A(2) T491E477(1)010A(2) T491A105(1)016A(2) T491A155(1)016A(2) T491A225(1)016A(2) T491S225(1)016A(2) T491B225(1)016A(2) T491B335(1)016A(2) T491A335(1)016A(2) T491C475(1)016A(2) T491B475(1)016A(2) T491A475(1)016A(2) T491T475(1)016A(2) T491C685(1)016A(2) T491B685(1)016A(2) T491A685(1)016A(2) T491C106(1)016A(2) T491U106(1)016A(2) T491B106(1)016A(2) T491A106(1)016A(2) T491T106(1)016A(2) T491C156(1)016A(2) T491U156(1)016A(2) T491B156(1)016A(2) T491A156(1)016A(2) T491D226(1)016A(2) T491C226(1)016A(2) T491U226(1)016A(2) T491B226(1)016A(2) T491D336(1)016A(2) T491C336(1)016A(2) T491U336(1)016A(2) T491B336(1)016A(2) T491D476(1)016A(2) T491V476(1)016A(2) T491C476(1)016A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 15.0 15.0 22.0 22.0 22.0 22.0 33.0 33.0 33.0 33.0 47 47.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 1.1 1.1 1.1 1.6 1.6 1.6 1.6 1.6 2.4 2.4 2.4 2.4 3.5 3.5 3.5 3.5 5.3 5.3 5.3 5.3 7.5 7.5 7.5 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 10.0 8.0 10.0 8.0 8.0 8.0 10.0 12.0 10.0 10.0 10 12.0 4.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 8.0 6.0 6.0 10.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 0.9 0.7 0.9 0.5 0.5 0.7 0.5 0.7 0.5 0.5 0.2 0.5 10.0 8.0 6.0 15.0 3.5 3.5 5.0 2.4 3.5 4.0 5.0 1.9 2.5 3.5 1.8 1.8 2.0 3.0 8.0 1.6 1.8 2.0 3.5 0.8 1.5 3.0 2.2 0.8 1.2 1.0 2.0 0.8 0.7 1.0 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 350 423 350 574 548 423 548 423 574 632 908 632 87 97 112 63 156 156 122 214 156 137 118 241 184 146 247 224 206 158 94 247 224 192 146 433 262 173 197 433 303 300 206 433 423 332 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 315 381 315 517 493 381 493 381 517 569 817.2 569 78 87 101 57 140 140 110 193 140 123 106 217 166 131 222 202 185 142 85 222 202 173 131 390 236 156 177 390 273 270 185 390 381 299 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 140 169 140 230 219 169 219 169 230 253 363.2 253 35 39 45 25 62 62 49 86 62 55 47 96 74 58 99 90 82 63 38 99 90 77 58 173 105 69 79 173 121 120 82 173 169 133 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 9 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 16 16 16 16 16 16 16 16 16 16 16 16 16 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 68 68 68 68 100 100 100 100 150 150 220 220 220 0.68 0.47 1 1 1.5 1.5 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 6.8 6.8 6.8 6.8 10 10 10 10 15 15 15 22 22 22 22 33 33 33 33 V/7343-20 C/6032-28 W/7343-15 D/7343-31 X/7343-43 C/6032-28 V/7343-20 D/7343-31 X/7343-43 D/7343-31 D/7343-31 X/7343-43 E/7360-38 A/3216-18 A/3216-18 A/3216-18 S/3216-12 A/3216-18 S/3216-12 B/3528-21 A/3216-18 B/3528-21 A/3216-18 T/3528-12 C/6032-28 B/3528-21 A/3216-18 C/6032-28 U/6032-15 B/3528-21 A/3216-18 C/6032-28 U/6032-15 B/3528-21 A/3216-18 D/7343-31 B/3528-21 C/6032-28 D/7343-31 V/7343-20 C/6032-28 B/3528-21 D/7343-31 C/6032-28 V/7343-20 B/3528-21 T491V686(1)016A(2) T491C686(1)016AT T491W686(1)016AT T491D686(1)016A(2) T491X107(1)016A(2) T491C107(1)016AT T491V107(1)016A(2) T491D107(1)016A(2) T491X157(1)016A(2) T491D157(1)016A(2) T491D227(1)016A(2) T491X227(1)016A(2) T491E227(1)016A(2) T491A684(1)020A(2) T491A474(1)020A(2) T491A105(1)020A(2) T491S105(1)020A(2) T491A155(1)020A(2) T491S155(1)020A(2) T491B225(1)020A(2) T491A225(1)020A(2) T491B335(1)020A(2) T491A335(1)020A(2) T491T335(1)020A(2) T491C475(1)020A(2) T491B475(1)020A(2) T491A475(1)020A(2) T491C685(1)020A(2) T491U685(1)020A(2) T491B685(1)020A(2) T491A685(1)020A(2) T491C106(1)020A(2) T491U106(1)020A(2) T491B106(1)020A(2) T491A106(1)020A(2) T491D156(1)020A(2) T491B156(1)020AT T491C156(1)020A(2) T491D226(1)020A(2) T491V226(1)020A(2) T491C226(1)020A(2) T491B226(1)020A(2) T491D336(1)020A(2) T491C336(1)020A(2) T491V336(1)020A(2) T491B336(M)020A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 10.9 10.9 10.9 10.9 16.0 16.0 16.0 16.0 24.0 24.0 35.2 35.2 35.2 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.7 0.7 0.7 0.9 0.9 0.9 1.4 1.4 1.4 1.4 2.0 2.0 2.0 2.0 3.0 3.0 3.0 4.4 4.4 4.4 4.4 6.6 6.6 6.6 6.6 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 6.0 6.0 6.0 6.0 8.0 10.0 8.0 8.0 8.0 10.0 15.0 10.0 7.2 4.0 4.0 4.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 10.0 6.0 6.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 8.0 10.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 0.7 1.0 0.8 0.7 0.7 1.0 0.7 0.7 0.5 0.7 0.9 0.5 0.9 12.0 14.0 9.0 18.0 6.5 15.0 3.5 6.0 3.0 4.0 5.0 2.4 3.0 4.0 1.9 1.9 2.0 6.0 1.6 1.8 2.0 5.0 1.0 2.0 1.7 0.8 0.7 1.2 4.0 0.8 1.2 0.7 4.0 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 423 303 474 463 486 332 423 463 574 463 408 574 471 79 73 91 58 107 63 156 104 168 129 118 214 168 137 241 218 206 112 247 224 201 122 387 206 254 433 423 303 146 433 303 423 146 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 381 273 427 417 437 299 381 417 517 417 367 517 424 71 66 82 52 96 57 140 94 151 116 106 193 151 123 217 196 185 101 222 202 181 110 348 185 229 390 381 273 131 390 273 381 131 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 169 121 190 185 194 133 169 185 230 185 163 230 188 32 29 36 23 43 25 62 42 67 52 47 86 67 55 96 87 82 45 99 90 80 49 155 82 102 173 169 121 58 173 121 169 58 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 10 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 20 20 20 20 20 20 20 20 20 20 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 47 47 47 68 68 68 100 100 100 150 0.33 0.47 0.68 1 1 1 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 15 15 15 15 22 22 22 33 33 33 47 47 68 C/6032-28 X/7343-43 D/7343-31 X/7343-43 D/7343-31 C/6032-28 X/7343-43 D/7343-31 E/7360-38 X/7343-43 A/3216-18 A/3216-18 A/3216-18 B/3528-21 A/3216-18 S/3216-12 B/3528-21 A/3216-18 C/6032-28 A/3216-18 B/3528-21 C/6032-28 A/3216-18 B/3528-21 C/6032-28 B/3528-21 A/3216-18 D/7343-31 C/6032-28 B/3528-21 D/7343-31 C/6032-28 B/3528-21 D/7343-31 V/7343-20 C/6032-28 B/3528-21 D/7343-31 C/6032-28 V/7343-20 X/7343-43 D/7343-31 C/6032-28 X/7343-43 D/7343-31 X/7343-43 T491C476(1)020A(2) T491X476(1)020AT T491D476(1)020A(2) T491X686(1)020A(2) T491D686(1)020A(2) T491C686(1)020A(2) T491X107(1)020A(2) T491D107(1)020AT T491E107(1)020A(2) T491X157(1)020A(2) T491A334(1)025A(2) T491A474(1)025A(2) T491A684(1)025A(2) T491B105(1)025A(2) T491A105(1)025A(2) T491S105(1)025A(2) T491B155(1)025A(2) T491A155(1)025A(2) T491C225(1)025A(2) T491A225(1)025A(2) T491B225(1)025A(2) T491C335(1)025A(2) T491A335(1)025A(2) T491B335(1)025A(2) T491C475(1)025A(2) T491B475(1)025A(2) T491A475(1)025A(2) T491D685(1)025A(2) T491C685(1)025A(2) T491B685(1)025A(2) T491D106(1)025A(2) T491C106(1)025A(2) T491B106(1)025A(2) T491D156(1)025A(2) T491V156(1)025AT T491C156(1)025A(2) T491B156(1)025A(2) T491D226(1)025A(2) T491C226(1)025A(2) T491V226(1)025A(2) T491X336(1)025A(2) T491D336(1)025A(2) T491C336(1)025A(2) T491X476(1)025A(2) T491D476(1)025A(2) T491X686(1)025A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 9.4 9.4 9.4 13.6 13.6 13.6 20.0 20.0 20.0 30.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 1.2 1.2 1.2 1.7 1.7 1.7 2.5 2.5 2.5 3.8 3.8 3.8 3.8 5.5 5.5 5.5 8.3 8.3 8.3 11.8 11.8 17.0 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 6.0 6.0 6.0 6.0 6.0 8.0 8.0 8.0 8.0 10.0 4.0 4.0 4.0 4.0 4.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 8.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 0.9 0.8 0.7 0.7 0.7 0.5 0.5 0.9 0.5 0.4 15.0 13.0 10.0 5.0 8.0 18.0 5.0 7.0 3.5 7.0 4.5 2.5 7.0 3.5 2.3 1.5 6.0 1.8 1.9 2.8 1.0 1.5 2.0 1.0 1.0 1.5 4.0 0.8 1.0 0.7 0.7 0.7 0.9 0.7 0.7 0.7 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 350 454 463 486 463 469 574 408 632 642 71 76 87 130 97 58 130 104 177 104 137 210 104 156 214 238 112 289 241 174 387 271 168 387 354 271 146 433 280 423 486 463 350 486 463 486 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 315 409 417 437 417 422 517 367 569 578 64 68 78 117 87 52 117 94 159 94 123 189 94 140 193 214 101 260 217 157 348 244 151 348 319 244 131 390 252 381 437 417 315 437 417 437 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 140 182 185 194 185 188 230 163 253 257 28 30 35 52 39 23 52 42 71 42 55 84 42 62 86 95 45 116 96 70 155 108 67 155 142 108 58 173 112 169 194 185 140 194 185 194 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 11 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 25 25 25 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 50 50 50 50 50 50 68 100 100 0.1 0.15 0.22 0.33 0.47 0.47 0.68 0.68 1 1 1.5 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 15 15 15 22 22 33 33 47 47 0.1 0.15 0.15 0.22 0.22 0.33 D/7343-31 X/7343-43 E/7360-38 A/3216-18 A/3216-18 A/3216-18 A/3216-18 B/3528-21 A/3216-18 B/3528-21 A/3216-18 B/3528-21 A/3216-18 A/3216-18 C/6032-28 B/3528-21 C/6032-28 A/3216-18 B/3528-21 C/6032-28 B/3528-21 D/7343-31 D/7343-31 B/3528-21 C/6032-28 D/7343-31 V/7343-20 C/6032-28 D/7343-31 C/6032-28 V/7343-20 C/6032-28 X/7343-43 D/7343-31 X/7343-43 D/7343-31 X/7343-43 D/7343-31 X/7343-43 E/7360-38 A/3216-18 B/3528-21 A/3216-18 B/3528-21 A/3216-18 A/3216-18 T491D686(1)025A(2) T491X107(1)025A(2) T491E107(1)025A(2) T491A104(1)035A(2) T491A154(1)035A(2) T491A224(1)035A(2) T491A334(1)035A(2) T491B474(1)035A(2) T491A474(1)035A(2) T491B684(1)035A(2) T491A684(1)035A(2) T491B105(1)035A(2) T491A105(1)035A(2) T491A155(1)035A(2) T491C155(1)035A(2) T491B155(1)035A(2) T491C225(1)035A(2) T491A225(1)035AT T491B225(1)035A(2) T491C335(1)035A(2) T491B335(1)035A(2) T491D335(1)035A(2) T491D475(1)035A(2) T491B475(1)035AT T491C475(1)035A(2) T491D685(1)035A(2) T491V685(1)035AT T491C685(1)035A(2) T491D106(1)035A(2) T491C106(1)035A(2) T491V106(1)035A(2) T491C156(1)035A(2) T491X156(1)035A(2) T491D156(1)035A(2) T491X226(1)035A(2) T491D226(1)035A(2) T491X336(1)035A(2) T491D336(1)035A(2) T491X476(1)035A(2) T491E476(1)035A(2) T491A104(1)050A(2) T491B154(1)050A(2) T491A154(1)050A(2) T491B224(1)050A(2) T491A224(1)050AT T491A334(1)050A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 17.0 25.0 25.0 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 1.2 1.2 1.2 1.6 1.6 1.6 2.4 2.4 2.4 3.5 3.5 3.5 5.3 5.3 5.3 7.7 7.7 11.6 11.6 16.5 16.5 0.5 0.5 0.5 0.5 0.5 0.5 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 10.0 8.0 8.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 10.0 4.0 4.0 4.0 4.0 4.0 4.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 0.7 0.3 0.5 20.0 19.0 18.0 15.0 8.0 11.0 6.5 8.0 5.0 7.0 7.0 4.5 5.0 3.2 4.0 4.0 2.0 3.5 2.0 1.5 3.0 2.0 1.2 1.2 1.8 1.0 1.6 1.0 1.0 0.9 0.8 0.7 0.7 0.6 0.6 0.6 0.5 20.0 16.0 15.0 14.0 18.0 14.0 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 463 742 632 61 63 65 71 103 79 114 97 130 100 104 156 130 185 129 146 235 156 274 316 166 224 340 323 247 387 262 250 332 428 433 486 463 524 500 524 632 61 73 71 78 65 73 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 417 668 569 55 57 59 64 93 71 103 87 117 90 94 140 117 167 116 131 212 140 247 284 149 202 306 291 222 348 236 225 299 385 390 437 417 472 450 472 569 55 66 64 70 59 66 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 185 297 253 24 25 26 28 41 32 46 39 52 40 42 62 52 74 52 58 94 62 110 126 66 90 136 129 99 155 105 100 133 171 173 194 185 210 200 210 253 24 29 28 31 26 29 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 12 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Table 1 – Ratings & Part Number Reference cont'd Rated Rated Voltage Cap Case Code/ Case Size KEMET Part Number VDC at 85ºC µF KEMET/EIA (See below for part options) 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 0.33 0.47 0.47 0.47 0.68 0.68 0.68 1 1 1 1 1.5 1.5 2.2 2.2 3.3 3.3 4.7 4.7 6.8 6.8 10 10 15 22 B/3528-21 A/3216-18 C/6032-28 B/3528-21 A/3216-18 C/6032-28 B/3528-21 A/3216-18 C/6032-28 B/3528-21 V/7343-20 D/7343-31 C/6032-28 D/7343-31 C/6032-28 C/6032-28 D/7343-31 C/6032-28 D/7343-31 X/7343-43 D/7343-31 X/7343-43 D/7343-31 X/7343-43 X/7343-43 T491B334(1)050A(2) T491A474(1)050A(2) T491C474(1)050A(2) T491B474(1)050A(2) T491A684(1)050A(2) T491C684(1)050A(2) T491B684(1)050A(2) T491A105(1)050A(2) T491C105(1)050A(2) T491B105(1)050A(2) T491V105(1)050A(2) T491D155(1)050A(2) T491C155(1)050A(2) T491D225(1)050A(2) T491C225(1)050A(2) T491C335(1)050AT T491D335(1)050A(2) T491C475(1)050A(2) T491D475(1)050A(2) T491X685(1)050A(2) T491D685(1)050A(2) T491X106(1)050A(2) T491D106(1)050A(2) T491X156(1)050A(2) T491X226(1)050A(2) VDC at 85ºC µF KEMET/EIA (See below for part options) Rated Voltage Rated Cap Case Code/ Case Size KEMET Part Number DC Leakage DF ESR µA at +20ºC Maximum/ 5 Minutes 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 1.1 1.1 1.7 1.7 2.4 2.4 3.4 3.4 5.0 5.0 7.5 11.0 µA at +20ºC Maximum/ 5 Minutes % at +20ºC 120 Hz Maximum 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 4.0 6.0 4.0 6.0 6.0 6.0 6.0 6.0 6.0 4.0 6.0 6.0 6.0 6.0 6.0 8.0 10.0 % at +20ºC 120 Hz Maximum Ω at +20ºC 100 kHz Maximum 10.0 9.5 7.2 9.0 8.0 6.4 8.0 7.0 4.8 6.0 6.0 3.5 4.0 2.5 3.0 2.0 1.6 1.4 1.2 0.8 0.8 0.7 0.8 0.7 0.6 Ω at +20ºC 100 kHz Maximum DC Leakage DF ESR Maximum Allowable Ripple Current mA at +25ºC 100 kHz 92 280 117 97 97 125 103 104 148 119 144 207 166 245 191 235 274 280 354 406 387 486 433 486 524 mA at +25ºC 100 kHz mA at +85ºC 100 kHz 83 253 105 87 87 113 93 94 133 107 130 186 149 221 172 212 247 252 319 365 348 437 390 437 472 mA at +85ºC 100 kHz mA at +125ºC 100 kHz 37 112 47 39 39 50 41 42 59 48 58 83 66 98 76 94 110 112 142 162 155 194 173 194 210 mA at +125ºC 100 kHz Maximum Allowable Ripple Current Maximum Operating Temp MSL ºC Reflow Temp ≤ 260 ºC 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ºC Reflow Temp ≤ 260 ºC Maximum Operating Temp MSL (1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance. (2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish. Refer to Ordering Information for additional detail. Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked with the higher voltage rating. Substitutions can include better than series. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 13 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Recommended Voltage Derating Guidelines 85°C to 125°C VR 67% of VR 50% of VR 33% of VR 120% 100% % Working Voltage % Change in Working DC Voltage with Temperature Recommended Maximum Application Voltage −55°C to 85°C 80% % Change in Working DC Voltage with Temperature 67% 60% 40% 20% 0% −55 Recommended Maximum Application Voltage (As % of Rated Voltage) 25 33% 85 Temperature (ºC) 125 Ripple Current/Ripple Voltage Permissible AC ripple voltage and current are related to equivalent series resistance (ESR) and the power dissipation capabilities of the device. Permissible AC ripple voltage which may be applied is limited by two criteria: 1. The positive peak AC voltage plus the DC bias voltage, if any, must not exceed the DC voltage rating of the capacitor. 2. The negative peak AC voltage in combination with bias voltage, if any, must not exceed the allowable limits specified for reverse voltage. See the Reverse Voltage section for allowable limits. The maximum power dissipation by case size can be determined using the table at right. The maximum power dissipation rating stated in the table must be reduced with increasing environmental operating temperatures. Refer to the table below for temperature compensation requirements. Temperature Compensation Multipliers for Maximum Ripple Current T ≤ 25°C 1.00 T ≤ 85°C 0.90 T ≤ 125°C 0.40 T= Environmental Temperature The maximum power dissipation rating must be reduced with increasing environmental operating temperatures. Refer to the Temperature Compensation Multiplier table for details. KEMET Case Code EIA Case Code Maximum Power Dissipation (P max) mWatts at 25°C w/+20°C Rise A B C D X E M S T U V W T510X T510E 3216–18 3528–21 6032–28 7343–31 7343–43 7360–38 3528–15 3216–12 3528–12 6032–15 7343–20 7343–15 7343–43 7360–38 75 85 110 150 165 200 120 60 70 90 125 180 270 285 Using the P max of the device, the maximum allowable rms ripple current or voltage may be determined. I(max) = √P max/R E(max) = Z √P max/R I = rms ripple current (amperes) E = rms ripple voltage (volts) P max = maximum power dissipation (watts) R = ESR at specified frequency (ohms) Z = Impedance at specified frequency (ohms) © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 14 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Reverse Voltage Solid tantalum capacitors are polar devices and may be permanently damaged or destroyed if connected with the wrong polarity. The positive terminal is identified on the capacitor body by a stripe plus in some cases a beveled edge. A small degree of transient reverse voltage is permissible for short periods per the table. The capacitors should not be operated continuously in reverse mode, even within these limits. Temperature Permissible Transient Reverse Voltage 25°C 85°C 125°C 15% of Rated Voltage 5% of Rated Voltage 1% of Rated Voltage Table 2 – Land Dimensions/Courtyard KEMET Metric Size Code Density Level A: Maximum (Most) Land Protrusion (mm) Density Level B: Median (Nominal) Land Protrusion (mm) Density Level C: Minimum (Least) Land Protrusion (mm) Case EIA W L S V1 V2 W L S V1 V2 W L S V1 V2 A 3216–18 1.35 2.20 0.62 6.02 2.80 1.23 1.80 0.82 4.92 2.30 1.13 1.42 0.98 4.06 2.04 B 3528–21 2.35 2.21 0.92 6.32 4.00 2.23 1.80 1.12 5.22 3.50 2.13 1.42 1.28 4.36 3.24 C 6032–25 2.35 2.77 2.37 8.92 4.50 2.23 2.37 2.57 7.82 4.00 2.13 1.99 2.73 6.96 3.74 D 7343–31 2.55 2.77 3.67 10.22 5.60 2.43 2.37 3.87 9.12 5.10 2.33 1.99 4.03 8.26 4.84 E 7360–38 4.25 2.77 3.67 10.22 7.30 4.13 2.37 3.87 9.12 6.80 4.03 1.99 4.03 8.26 6.54 3528-15 2.35 2.20 0.92 6.32 4.00 2.23 1.80 1.12 5.22 3.50 2.13 1.42 1.28 4.36 3.24 1 M 2 3216–12 1.35 2.20 0.62 6.02 2.80 1.23 1.80 0.82 4.92 2.30 1.13 1.42 0.98 4.06 2.04 T 3528–12 2.35 2.20 0.92 6.32 4.00 2.23 1.80 1.12 5.22 3.50 2.13 1.42 1.28 4.36 3.24 U 6032–15 2.35 2.77 2.37 8.92 4.50 2.23 2.37 2.57 7.82 4.00 2.13 1.99 2.73 6.96 3.74 S V 7343–20 2.55 2.77 3.67 10.22 5.60 2.43 2.37 3.87 9.12 5.10 2.33 1.99 4.03 8.26 4.84 W 7343–15 2.55 2.77 3.67 10.22 5.60 2.43 2.37 3.87 9.12 5.10 2.33 1.99 4.03 8.26 4.84 X 7343–43 2.55 2.77 3.67 10.22 5.60 2.43 2.37 3.87 9.12 5.10 2.33 1.99 4.03 8.26 4.84 1 Density Level A: For low-density product applications. Recommended for wave solder applications and provides a wider process window for reflow solder processes. Density Level B: For products with a moderate level of component density. Provides a robust solder attachment condition for reflow solder processes. Density Level C: For high component desity product applications. Before adapting the minimum land pattern variations the user should perform qualification testing based on the conditions outlined in IPC standard 7351 (IPC–7351). 1 Height of these chips may create problems in wave soldering. 2 Land pattern geometry is too small for silkscreen outline. V1 L L W W V2 S Grid Placement Courtyard © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 15 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Soldering Process KEMET’s families of surface mount capacitors are compatible with wave (single or dual), convection, IR, or vapor phase reflow techniques. Preheating of these components is recommended to avoid extreme thermal stress. KEMET's recommended profile conditions for convection and IR reflow reflect the profile conditions of the IPC/J–STD–020D standard for moisture sensitivity testing. The devices can safely withstand a maximum of three reflow passes at these conditions. Please note that although the X/7343–43 case size can withstand wave soldering, the tall profile (4.3 mm maximum) dictates care in wave process development. Profile Feature SnPb Assembly Pb-Free Assembly Preheat/Soak Temperature Minimum (TSmin) 100°C 150°C Temperature Maximum (TSmax) 150°C 200°C Time (t s) from Tsmin to Tsmax) 60 – 120 seconds 60 – 120 seconds Ramp-up Rate (TL to TP) 3°C/seconds maximum 3°C/seconds maximum Liquidous Temperature (TL) 183°C 217°C Time Above Liquidous (t L) 60 – 150 seconds 220°C* 235°C** 60 – 150 seconds 250°C* 260°C** Peak Temperature (TP) Time within 5°C of Maximum 20 seconds maximum 30 seconds maximum Peak Temperature (t P) Ramp-down Rate (TP to TL) 6°C/seconds maximum 6°C/seconds maximum Time 25°C to Peak 6 minutes maximum 8 minutes maximum Temperature Note: All temperatures refer to the center of the package, measured on the During typical reflow operations, a slight darkening of the gold-colored epoxy may be observed. This slight darkening is normal and not harmful to the product. Marking permanency is not affected by this change. Temperature Hand soldering should be performed with care due to the package body surface that is facing up during assembly reflow. difficulty in process control. If performed, care should be *Case Size D, E, P, Y, and X **Case Size A, B, C, H, I, K, M, R, S, T, U, V, W, and Z taken to avoid contact of the soldering iron to the molded case. The iron should be used to heat the solder pad, applying solder between the pad and the termination, until reflow TP tP Maximum Ramp Up Rate = 3ºC/second occurs. Once reflow occurs, the iron should be removed Maximum Ramp Down Rate = 6ºC/second TL immediately. “Wiping” the edges of a chip and heating the top tL surface is not recommended. Tsmax Tsmin 25 ts 25ºC to Peak Time Storage Tantalum chip capacitors should be stored in normal working environments. While the chips themselves are quite robust in other environments, solderability will be degraded by exposure to high temperatures, high humidity, corrosive atmospheres, and long term storage. In addition, packaging materials will be degraded by high temperature – reels may soften or warp and tape peel force may increase. KEMET recommends that maximum storage temperature not exceed 40°C and maximum storage humidity not exceed 60% relative humidity. Temperature fluctuations should be minimized to avoid condensation on the parts and atmospheres should be free of chlorine and sulphur bearing compounds. For optimized solderability chip stock should be used promptly, preferably within three years of receipt. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 16 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Construction Polarity Stripe (+) Molded Epoxy Case Detailed Cross Section Silver Paint (Fourth Layer) Polarity Bevel (+) Tantalum Wire Leadframe (− Cathode) Washer Tantalum Wire Weld (to attach wire) Carbon (Third Layer) Silver Adhesive Leadframe (+ Anode) Molded Epoxy Case MnO2 (Second Layer) Washer Ta2O5 Dielectric (First Layer) Tantalum Capacitor Marking Date Code * KEMET Industrial Grade MnO2 Polarity Indicator (+) 1 digit = Last number of Year 2 = 2012 3 = 2013 4 = 2014 5 = 2015 6 = 2016 7 = 2017 2nd and 3rd digit = Week of the Year 01 = 1st week of the Year to 52 = 52nd week of the Year st Picofarad Code KEMET ID Rated Voltage Date Code* * 230 = 30th week of 2012 © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 17 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Tape & Reel Packaging Information KEMET’s molded chip capacitor families are packaged in 8 and 12 mm plastic tape on 7" and 13" reels in accordance with EIA Standard 481: Embossed Carrier Taping of Surface Mount Components for Automatic Handling. This packaging system is compatible with all tape-fed automatic pick-and-place systems. 8 mm (0.315") or 12 mm (0.472") Top Tape Thickness 0.10 mm (0.004") Maximum Thickness 180 mm (7.0") or 330 mm (13.0") Table 3 – Packaging Quantity Case Code KEMET S T M U L W Z V A B C D Q Y X E/T428P H EIA 3216-12 3528-12 3528-15 6032-15 6032-19 7343-15 7343-17 7343-20 3216-18 3528-21 6032-28 7343-31 7343-12 7343-40 7343-43 7360-38 7360-20 Tape Width (mm) 7" Reel* 13" Reel* 8 8 8 12 12 12 12 12 8 8 12 12 12 12 12 12 12 2,500 2,500 2,000 1,000 1,000 1,000 1,000 1,000 2,000 2,000 500 500 1,000 500 500 500 1,000 10,000 10,000 8,000 5,000 3,000 3,000 3,000 3,000 9,000 8,000 3,000 2,500 3,000 2,000 2,000 2,000 2,500 * No C-Spec required for 7" reel packaging. C-7280 required for 13" reel packaging. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 18 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Figure 1 – Embossed (Plastic) Carrier Tape Dimensions P2 T T2 [10 pitches cumulative tolerance on tape ± 0.2 mm] Po ØDo E1 Ao F Ko B1 E2 Bo S1 W P1 T1 Center Lines of Cavity ØD Cover Tape B 1 is for tape feeder reference only, including draft concentric about B o. Embossment For cavity size, see Note 1 Table 4 1 User Direction of Unreeling Table 4 – Embossed (Plastic) Carrier Tape Dimensions Metric will govern Constant Dimensions — Millimeters (Inches) Tape Size D0 8 mm 12 mm 16 mm 1.5+0.10/−0.0 (0.059+0.004/−0.0) D1 Minimum Note 1 1.0 (0.039) 1.5 (0.059) E1 P0 P2 2.0±0.05 (0.079±0.002) 1.75±0.10 4.0±0.10 (0.069±0.004) (0.157±0.004) 2.0±0.1 (0.079±0.059) R Reference S1 Minimum T1 T Maximum Note 2 Note 3 Maximum 25.0 (0.984) 0.600 0.600 0.100 30 (0.024) (0.024) (0.004) (1.181) Variable Dimensions — Millimeters (Inches) B1 Maximum Tape Size Pitch Note 4 4.35 8 mm Single (4 mm) (0.171) Single (4 mm) 8.2 12 mm & Double (8 (0.323) mm) 12.1 16 mm Triple (12 mm) (0.476) E2 Minimum F 6.25 (0.246) 3.5±0.05 (0.138±0.002) 10.25 (0.404) 14.25 (0.561) P1 2.0±0.05 or 4.0±0.10 (0.079±0.002 or 0.157±0.004) 2.0±0.05 (0.079±0.002) or 5.5±0.05 4.0±0.10 (0.157±0.004) or (0.217±0.002) 8.0±0.10 (0.315 ±0.004) 7.5±0.10 4.0±0.10 (0.157±0.004) (0.295±0.004) to 12.0±0.10 (0.472±0.004) T2 Maximum W Maximum A0, B0 & K0 2.5 (0.098) 8.3 (0.327) 4.6 (0.181) 12.3 (0.484) 8.0 (0.315) 16.3 (0.642) Note 5 1. The embossment hole location shall be measured from the sprocket hole controlling the location of the embossment. Dimensions of embossment location and hole location shall be applied independent of each other. 2. The tape, with or without components, shall pass around R without damage (see Figure 4). 3. If S1 < 1.0 mm, there may not be enough area for cover tape to be properly applied (see EIA Standard 481–D, paragraph 4.3, section b). 4. B1 dimension is a reference dimension for tape feeder clearance only. 5. The cavity defined by A0, B0 and K0 shall surround the component with sufficient clearance that: (a) the component does not protrude above the top surface of the carrier tape. (b) the component can be removed from the cavity in a vertical direction without mechanical restriction, after the top cover tape has been removed. (c) rotation of the component is limited to 20° maximum for 8 and 12 mm tapes and 10° maximum for 16 mm tapes (see Figure 2). (d) lateral movement of the component is restricted to 0.5 mm maximum for 8 mm and 12 mm wide tape and to 1.0 mm maximum for 16 mm tape (see Figure 3). (e) see Addendum in EIA Standard 481–D for standards relating to more precise taping requirements. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 19 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Packaging Information Performance Notes 1. Cover Tape Break Force: 1.0 Kg minimum. 2. Cover Tape Peel Strength: The total peel strength of the cover tape from the carrier tape shall be: Tape Width Peel Strength 8 mm 0.1 to 1.0 Newton (10 to 100 gf) 12 and 16 mm 0.1 to 1.3 Newton (10 to 130 gf) The direction of the pull shall be opposite the direction of the carrier tape travel. The pull angle of the carrier tape shall be 165° to 180° from the plane of the carrier tape. During peeling, the carrier and/or cover tape shall be pulled at a velocity of 300 ±10 mm/minute. 3. Labeling: Bar code labeling (standard or custom) shall be on the side of the reel opposite the sprocket holes. Refer to EIA Standards 556 and 624. Figure 2 – Maximum Component Rotation ° T Maximum Component Rotation Top View Maximum Component Rotation Side View Typical Pocket Centerline Tape Maximum Width (mm) Rotation ( 8,12 20 16 – 200 10 Bo ° T) Typical Component Centerline Ao Figure 3 – Maximum Lateral Movement 8 mm & 12 mm Tape 0.5 mm maximum 0.5 mm maximum ° s Tape Width (mm) 8,12 16 – 56 72 – 200 Maximum Rotation ( 20 10 5 Figure 4 – Bending Radius Embossed Carrier 16 mm Tape ° S) Punched Carrier 1.0 mm maximum 1.0 mm maximum R Bending Radius © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com R T2005_T491 • 5/8/2017 20 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Figure 5 – Reel Dimensions Full Radius, See Note W3 (Includes flange distortion at outer edge) Access Hole at Slot Location (Ø 40 mm minimum) W2 D A (See Note) N C (Arbor hole diameter) B (see Note) (Measured at hub) W1 (Measured at hub) If present, tape slot in core for tape start: 2.5 mm minimum width x 10.0 mm minimum depth Note: Drive spokes optional; if used, dimensions B and D shall apply. Table 5 – Reel Dimensions Metric will govern Constant Dimensions — Millimeters (Inches) Tape Size A B Minimum C D Minimum 8 mm 178±0.20 (7.008±0.008) or 330±0.20 (13.000±0.008) 1.5 (0.059) 13.0+0.5/−0.2 (0.521+0.02/−0.008) 20.2 (0.795) 12 mm 16 mm Variable Dimensions — Millimeters (Inches) Tape Size N Minimum W1 W2 Maximum W3 50 (1.969) 8.4+1.5/−0.0 (0.331+0.059/−0.0) 12.4+2.0/−0.0 (0.488+0.078/−0.0) 16.4+2.0/−0.0 (0.646+0.078/−0.0) 14.4 (0.567) 18.4 (0.724) 22.4 (0.882) Shall accommodate tape width without interference 8 mm 12 mm 16 mm © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 21 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 Figure 6 – Tape Leader & Trailer Dimensions Embossed Carrier Punched Carrier 8 mm & 12 mm only END Carrier Tape Round Sprocket Holes START Top Cover Tape Elongated Sprocket Holes (32 mm tape and wider) Trailer 160 mm Minimum Components 100 mm Minimum Leader 400 mm Minimum Top Cover Tape Figure 7 – Maximum Camber Elongated Sprocket Holes (32 mm & wider tapes) Carrier Tape Round Sprocket Holes 2 mm Maximum, either direction for 8 mm wide tape Straight Edge 250 mm © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 22 Tantalum Surface Mount Capacitors – Standard Tantalum T491 Series Industrial Grade MnO 2 KEMET Electronics Corporation Sales Offices For a complete list of our global sales offi ces, please visit www.kemet.com/sales. Disclaimer All product specifi cations, statements, information and data (collectively, the “Information”) in this datasheet are subject to change. The customer is responsible for checking and verifying the extent to which the Information contained in this publication is applicable to an order at the time the order is placed. All Information given herein is believed to be accurate and reliable, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied. Statements of suitability for certain applications are based on KEMET Electronics Corporation’s (“KEMET”) knowledge of typical operating conditions for such applications, but are not intended to constitute – and KEMET specifi cally disclaims – any warranty concerning suitability for a specifi c customer application or use. The Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by KEMET with reference to the use of KEMET’s products is given gratis, and KEMET assumes no obligation or liability for the advice given or results obtained. Although KEMET designs and manufactures its products to the most stringent quality and safety standards, given the current state of the art, isolated component failures may still occur. Accordingly, customer applications which require a high degree of reliability or safety should employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies) in order to ensure that the failure of an electrical component does not result in a risk of personal injury or property damage. Although all product–related warnings, cautions and notes must be observed, the customer should not assume that all safety measures are indicted or that other measures may not be required. KEMET is a registered trademark of KEMET Electronics Corporation. © KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com T2005_T491 • 5/8/2017 23
