HT7533

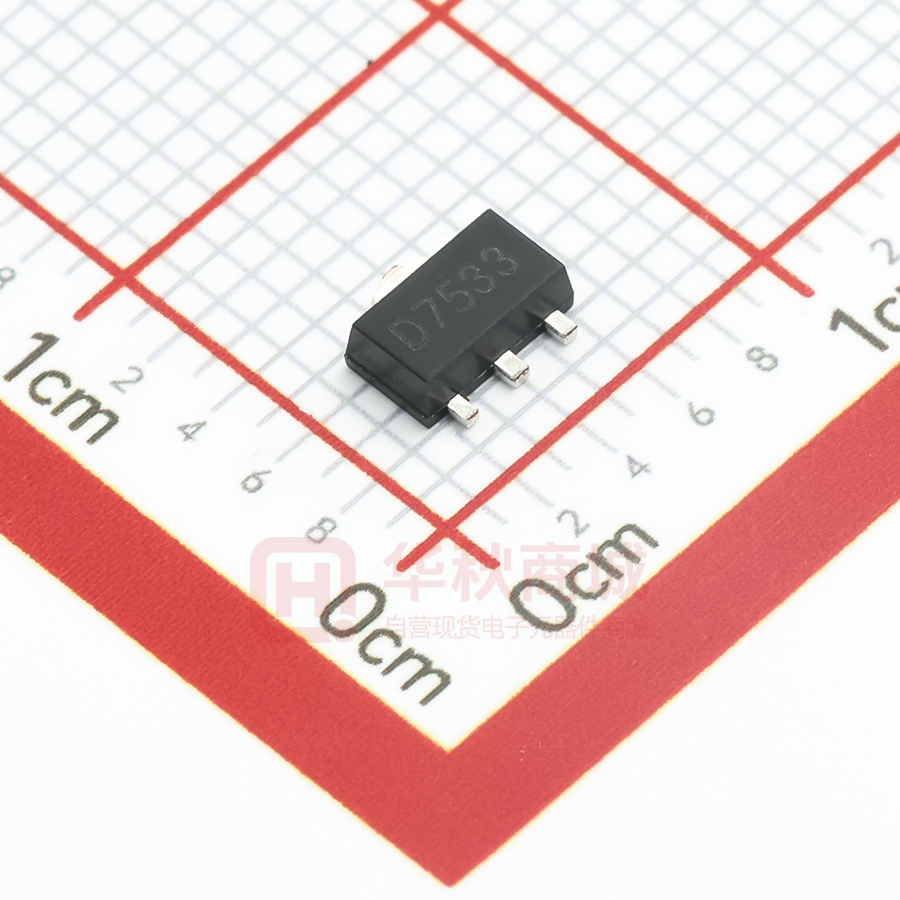

IC SMD Type High Driver Regulator HT75XX SOT-89 ■ Features Unit:mm 1.70 0.1 ● Low power consumption ● Low voltage drop ● Low temperature coefficient ● High input voltage (up to 24V) 0.42 0.1 ● High output current : 100mA 0.46 0.1 1.GND 2.VIN 3.VOUT ■ Selection Table Part No. Output Voltage Tolerance HT7530 3V ±5% HT7533 3.3V ±5% HT7536 3.6V ±5% HT7544 4.4V ±5% HT7550 5V ±5% HT7580 8V ±5% ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Supply Voltage VSS -0.3 to 26 V Power Consumption PC 250 mW Junction Temperature TJ 125 Operating Temperature Topr 0 to 70 Storage Temperature range Tstg -50 to 125 ℃ ■ Marking NO. HT7530 HT7533 HT7536 HT7544 HT7550 HT7580 Marking D7530 ***** D7533 ***** D7536 ***** D7544 ***** D7550 ***** D7580 ***** www.kexin.com.cn 1 IC SMD Type High Driver Regulator HT75XX ■ Electrical Characteristics Ta = 25℃ HT7530, +3.0V output type Parameter Symbol Test Conditions VIN Output Voltage Tolerance VOUT 5V Output Current IOUT 5V △VOUT 5V Load Regulation Voltage Drop Current Consumption Line Regulation Input Voltage Temperature Coefficient VDIF ISS 5V △VOUT △VINX△VOUT Conditions IOUT= 10mA Min Typ Max Unit 2.85 3 3.15 V 60 100 150 mV 1mA≤IOUT≤50mA 60 IOUT= 1mA 100 No load 10 4V≤VIN≤12V IOUT=1mA 0.2 mV 20 5V IOUT=10mA 0 ℃
