AA3528SECK

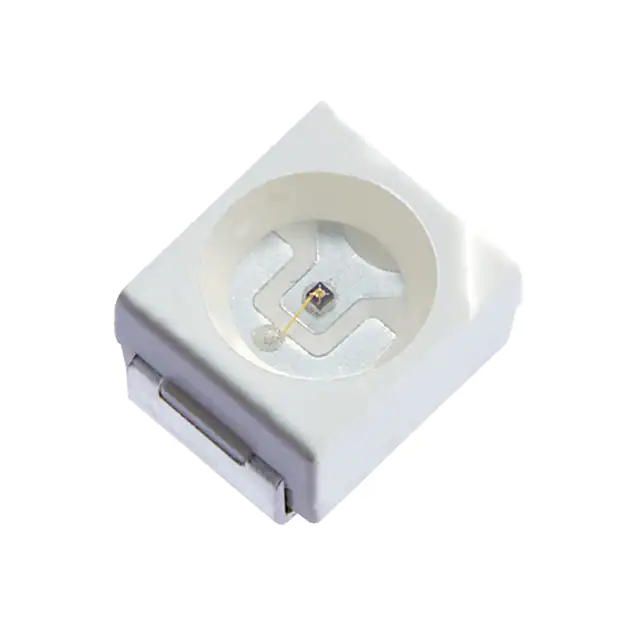

AA3528SECK 3.5 x 2.8 mm Surface Mount LED Lamp DESCRIPTIONS



PACKAGE DIMENSIONS The Super Bright Orange device is made with AlGaInP (on GaAs substrate) light emitting diode chip Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs All devices, equipments and machineries must be electrically grounded FEATURES







Single color Suitable for all SMD assembly and solder process Available on tape and reel Ideal for backlighting Package: 2000 pcs / reel Moisture sensitivity level: 3 Halogen-free RoHS compliant APPLICATIONS




Backlight Status indicator Home and smart appliances Wearable and portable devices Healthcare applications RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) ATTENTION Observe precautions for handling electrostatic discharge sensitive devices Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SELECTION GUIDE Part Number AA3528SECK Emitting Color (Material) ■ Super Bright Orange Iv (mcd) @ 20mA [2] Viewing Angle [1] Lens Type Min. Typ. 200 350 *120 *230 120° Water Clear (AlGaInP) 2θ1/2 Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. © 2020 Kingbright. All Rights Reserved. Spec No: DSAD1230 / 1201004775 Rev No: V.11A Date: 05/29/2020 Page 1 / 4 AA3528SECK ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25°C Value Parameter Symbol Wavelength at Peak Emission IF = 20mA Emitting Color Unit Typ. Max. λpeak Super Bright Orange 610 - nm λdom [1] Super Bright Orange 605 - nm Spectral Bandwidth at 50% Φ REL MAX IF = 20mA ∆λ Super Bright Orange 29 - nm Capacitance C Super Bright Orange 15 - pF Forward Voltage IF = 20mA VF [2] Super Bright Orange 2.1 2.5 V Reverse Current (VR = 5V) IR Super Bright Orange - 10 µA Temperature Coefficient of λpeak IF = 20mA, -10°C ≤ T ≤ 85°C TCλpeak Super Bright Orange 0.13 - nm/°C Temperature Coefficient of λdom IF = 20mA, -10°C ≤ T ≤ 85°C TCλdom Super Bright Orange 0.06 - nm/°C Temperature Coefficient of VF IF = 20mA, -10°C ≤ T ≤ 85°C TCV Super Bright Orange -1.9 - mV/°C Dominant Wavelength IF = 20mA Notes: 1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. ) 2. Forward voltage: ±0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure. ABSOLUTE MAXIMUM RATINGS at TA=25°C Parameter Symbol Value Unit Power Dissipation PD 75 mW Reverse Voltage VR 5 V Junction Temperature Tj 115 °C Operating Temperature Top -40 to +85 °C Storage Temperature Tstg -40 to +85 °C DC Forward Current IF 30 mA IFM [1] 195 mA Electrostatic Discharge Threshold (HBM) - 3000 V Thermal Resistance (Junction / Ambient) Rth JA [2] 400 °C/W Thermal Resistance (Junction / Solder point) Rth JS [2] 240 °C/W Peak Forward Current Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. Rt h JA ,Rt h JS Results from mounting on PC board FR4 (pad size ≥ 16 mm 2 per pad). 3. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033. © 2020 Kingbright. All Rights Reserved. Spec No: DSAD1230 / 1201004775 Rev No: V.11A Date: 05/29/2020 Page 2 / 4 AA3528SECK TECHNICAL DATA SPATIAL DISTRIBUTION RELATIVE INTENSITY vs. WAVELENGTH Orange Relative Intensity (a. u.) 100% Ta = 25 °C Ta = 25 °C 80% -15° 0° 15° 30° -30° 45° -45° 60% 60° -60° 40% 20% 75° -75° 0% 350 400 450 500 550 600 Wavelength (nm) 650 700 750 800 -90° 1.0 0.5 0.0 90° 1.0 0.5 SUPER BRIGHT ORANGE Forward current (mA) Ta = 25 °C 40 30 20 10 1.7 1.9 2.1 2.3 Forward voltage (V) 2.5 2.5 Permissible forward current (mA) Luminous intensity normalised at 20 mA 50 0 1.5 Forward Current Derating Curve Luminous Intensity vs. Forward Current Ta = 25 °C 2.0 1.5 1.0 0.5 0.0 0 10 20 30 40 Forward current (mA) 50 REFLOW SOLDERING PROFILE for LEAD-FREE SMD PROCESS 50 Luminous Intensity vs. Ambient Temperature Luminous intensity normalised at Ta = 25 °C Forward Current vs. Forward Voltage 40 30 20 10 0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) TAPE SPECIFICATIONS (units : mm) REEL DIMENSION (units : mm) Notes: 1. Don't cause stress to the LEDs while it is exposed to high temperature. 2. The maximum number of reflow soldering passes is 2 times. 3. Reflow soldering is recommended. Other soldering methods are not recommended as they might cause damage to the product. © 2020 Kingbright. All Rights Reserved. Spec No: DSAD1230 / 1201004775 Rev No: V.11A Date: 05/29/2020 Page 3 / 4 AA3528SECK PACKING & LABEL SPECIFICATIONS PRECAUTIONARY NOTES 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at https://www.KingbrightUSA.com/ApplicationNotes © 2020 Kingbright. All Rights Reserved. Spec No: DSAD1230 / 1201004775 Rev No: V.11A Date: 05/29/2020 Page 4 / 4
