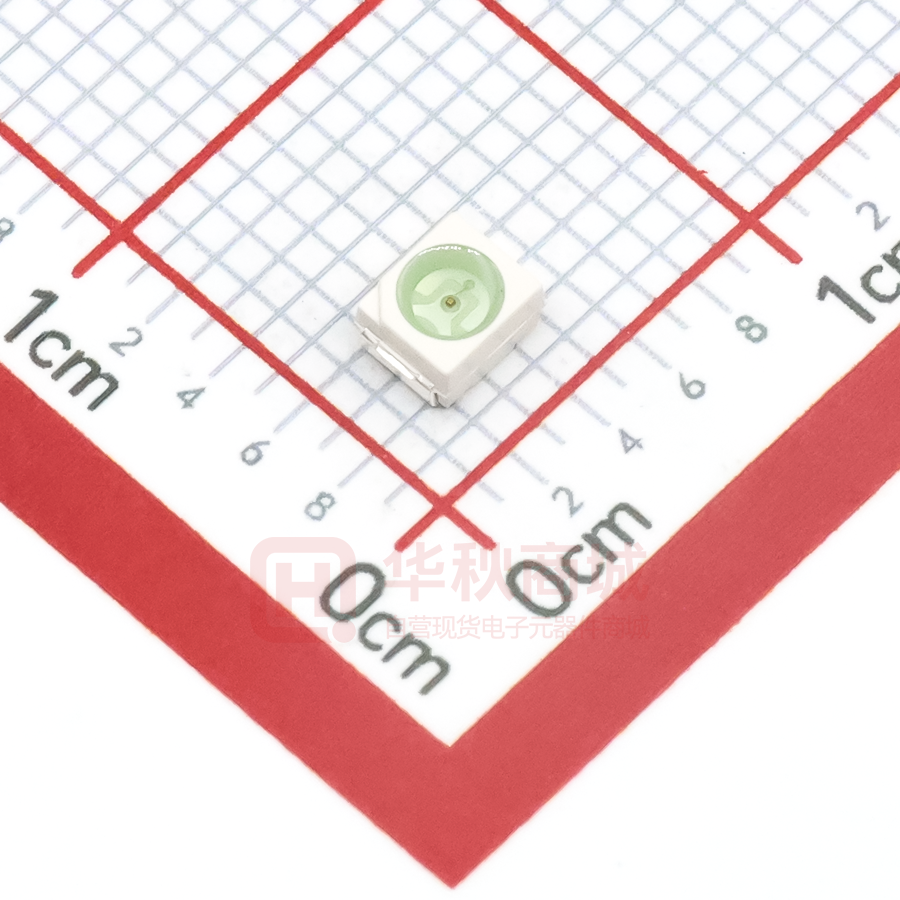

AA3528SGT

3.5x2.8 mm SMD CHIP LED LAMP AA3528SGT SUPER BRIGHT GREEN Features SINGLE COLOR. SUITABLE FOR ALL SMT ASSEMBLY AND SOLDER PROCESS. AVAILABLE ON TAPE AND REEL. IDEAL FOR BACKLIGHTING. PACKAGE : 1500PCS / REEL. R oHS COMPLIANT. Description The Super Bright Green source color devices are made with Gallium Phosphide Green Light Emitting Diode. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Specifications are subject to change without notice. S PEC NO: DSAD1232 APPROVED: J. Lu REV NO: V.2 CHECKED: Allen Liu DATE: JAN/19/2005 DRAWN: Y.W.WANG PAGE: 1 OF 4 Selection Guide Part No. Dice Lens Type Iv (mcd) @ 20mA Min. AA3528SGT SUPER BRIGHT GREEN (GaP) GREEN TRANSPARENT 7 Typ. 18 Viewing Angle 2 θ 1/2 120° Note: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. Electrical / Optical Characteristics at TA=25°C Symbol λpeak λD ∆λ1/2 C VF IR Parameter Peak Wavelength Dominant Wavelength Spectral Line Half-width Capacitance Forward Voltage Reverse Current Device Super Bright Green Super Bright Green Super Bright Green Super Bright Green Super Bright Green Super Bright Green Typ. 565 568 30 15 2.2 2.5 10 Max. Units nm nm nm pF V uA Test Conditions IF=20mA IF=20mA IF=20mA VF=0V;f=1MHz IF=20mA VR= 5V Absolute Maximum Ratings at TA=25°C Parameter Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating/Storage Temperature Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. Super Bright Green 62.5 25 140 5 -40°C To +85°C Units mW mA mA V S PEC NO: DSAD1232 APPROVED: J. Lu REV NO: V.2 CHECKED: Allen Liu DATE: JAN/19/2005 DRAWN: Y.W.WANG PAGE: 2 OF 4 Super Bright Green AA3528SGT S PEC NO: DSAD1232 APPROVED: J. Lu REV NO: V.2 CHECKED: Allen Liu DATE: JAN/19/2005 DRAWN: Y.W.WANG PAGE: 3 OF 4 AA3528SGT Recommended Soldering Pattern (Units : mm) Tape Specifications (Units : mm) S PEC NO: DSAD1232 APPROVED: J. Lu REV NO: V.2 CHECKED: Allen Liu DATE: JAN/19/2005 DRAWN: Y.W.WANG PAGE: 4 OF 4
