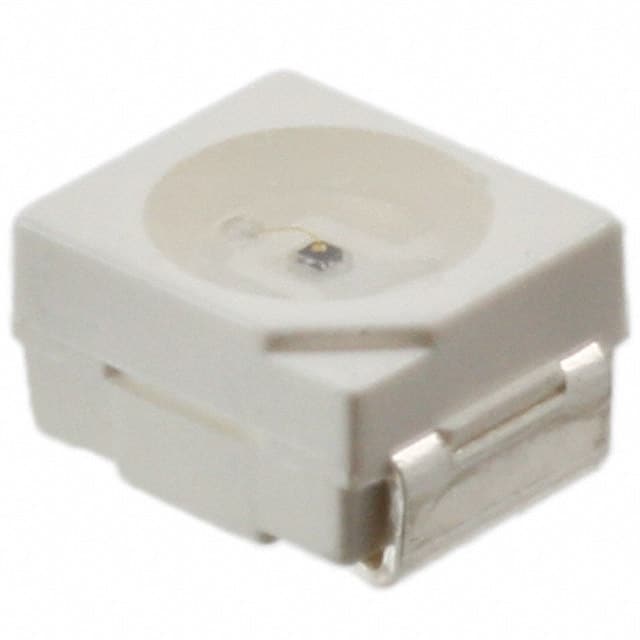

AA3528SRS

3.5x2.8mm SURFACE MOUNT LED LAMP Part Number: AA3528SRS Super Bright Red Features Description z Single color. The Super Bright Red source color devices are made with z Suitable for all SMT assembly and solder process. Gallium Aluminum Arsenide Red Light Emitting Diode. z Available on tape and reel. z Ideal for backlighting. z Package : 1500pcs / reel. z Moisture sensitivity level : level 3. z RoHS compliant. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4.The device has a single mounting surface. The device must be mounted according to the specifications. SPEC NO: DSAL2028 REV NO: V.2 DATE: MAR/25/2011 PAGE: 1 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: C.H.Han ERP: 1201006979 Handling Precautions Compare to epoxy encapsulant that is hard and brittle, silicone is softer and flexible. Although its characteristic significantly reduces thermal stress, it is more susceptible to damage by external mechanical force. As a result, special handling precautions need to be observed during assembly using silicone encapsulated LED products. Failure to comply might lead to damage and premature failure of the LED. 1. Handle the component along the side surfaces by using forceps or appropriate tools. 2. Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry. 3. Do not stack together assembled PCBs containing exposed LEDs. Impact may scratch the silicone lens or damage the internal circuitry. 4.1. The outer diameter of the SMD pickup nozzle should not exceed the size of the LED to prevent air leaks. The inner diameter of the nozzle should be as large as possible. 4.2. A pliable material is suggested for the nozzle tip to avoid scratching or damaging the LED surface during pickup. 4.3. The dimensions of the component must be accurately programmed in the pick-and-place machine to insure precise pickup and avoid damage during production. 5. As silicone encapsulation is permeable to gases, some corrosive substances such as H2S might corrode silver plating of leadframe. Special care should be taken if an LED with silicone encapsulation is to be used near such substances. SPEC NO: DSAL2028 REV NO: V.2 DATE: MAR/25/2011 PAGE: 2 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: C.H.Han ERP: 1201006979 Selection Guide Part No. Dice AA3528SRS Lens Type Super Bright Red (GaAlAs) Water Clear Iv (mcd) [2] @ 20mA Viewing Angle [1] Min. Typ. 2θ1/2 80 150 120° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Device Typ. λpeak Peak Wavelength Super Bright Red λD [1] Dominant Wavelength Δλ1/2 Max. Units Test Conditions 660 nm IF=20mA Super Bright Red 640 nm IF=20mA Spectral Line Half-width Super Bright Red 20 nm IF=20mA C Capacitance Super Bright Red 45 pF VF=0V;f=1MHz VF [2] Forward Voltage Super Bright Red 1.85 2.5 V IF=20mA IR Reverse Current Super Bright Red 10 uA VR=5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Super Bright Red Units Power dissipation 75 mW DC Forward Current 30 mA Peak Forward Current [1] 155 mA 5 V Reverse Voltage Operating Temperature -40°C To +85°C Storage Temperature -40°C To +85°C Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. SPEC NO: DSAL2028 REV NO: V.2 DATE: MAR/25/2011 PAGE: 3 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: C.H.Han ERP: 1201006979 Super Bright Red AA3528SRS SPEC NO: DSAL2028 REV NO: V.2 DATE: MAR/25/2011 PAGE: 4 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: C.H.Han ERP: 1201006979 AA3528SRS Reflow soldering is recommended and the soldering profile is shown below. Other soldering methods are not recommended as they might cause damage to the product. Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) Reel Dimension Tape Dimensions (Units : mm) SPEC NO: DSAL2028 REV NO: V.2 DATE: MAR/25/2011 PAGE: 5 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: C.H.Han ERP: 1201006979 PACKING & LABEL SPECIFICATIONS AA3528SRS SPEC NO: DSAL2028 REV NO: V.2 DATE: MAR/25/2011 PAGE: 6 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: C.H.Han ERP: 1201006979
