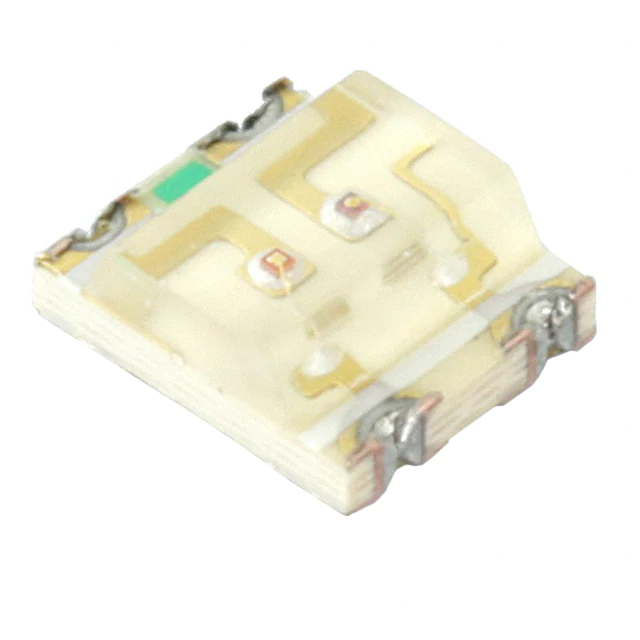

APBL3025SURKCGK-F01 3.0 x 2.5 mm Surface Mount LED Lamp DESCRIPTIONS PACKAGE DIMENSIONS The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode The Green source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs All devices, equipments and machineries must be electrically grounded FEATURES 3.0 mm x 2.5 mm SMD LED, 1.4 mm thickness Low power consumption Wide viewing angle Ideal for backlight and indicator Inner lens type Package: 2000 pcs / reel Moisture sensitivity level: 3 RoHS compliant RECOMMENDED SOLDERING PATTERN APPLICATIONS (units : mm; tolerance : ± 0.1) Backlight Status indicator Home and smart appliances Wearable and portable devices Healthcare applications ATTENTION Observe precautions for handling electrostatic discharge sensitive devices Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.2(0.008") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SELECTION GUIDE Part Number Emitting Color (Material) Lens Type ■ Hyper Red (AlGaInP) Iv (mcd) @ 20mA [2] Min. Typ. 500 1000 *120 *300 80 150 *80 *150 Water Clear APBL3025SURKCGK-F01 ■ Green (AlGaInP) Viewing Angle [1] 2θ1/2 50° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. * Luminous intensity value is traceable to CIE127-2007 standards. © 2019 Kingbright. All Rights Reserved. Spec No: DSAF1335 / 1203000922 Rev No: V.13A Date: 06/19/2019 Page 1 / 4 APBL3025SURKCGK-F01 ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25°C Parameter Symbol Value Emitting Color Unit Typ. Max. λpeak Hyper Red Green 645 574 - nm λdom [1] Hyper Red Green 630 570 - nm Spectral Bandwidth at 50% Φ REL MAX IF = 20mA Δλ Hyper Red Green 28 20 - nm Capacitance C Hyper Red Green 35 15 - pF Forward Voltage IF = 20mA VF [2] Hyper Red Green 1.95 2.1 2.5 2.5 V Reverse Current (VR = 5V) IR Hyper Red Green - 10 10 µA Wavelength at Peak Emission IF = 20mA Dominant Wavelength IF = 20mA Notes: 1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. ) 2. Forward voltage: ±0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure. ABSOLUTE MAXIMUM RATINGS at TA=25°C Parameter Value Symbol Unit Hyper Red Green Power Dissipation PD 75 75 mW Reverse Voltage VR 5 5 V Junction Temperature TJ 115 115 °C Operating Temperature Top -40 To +85 °C Storage Temperature Tstg -40 To +85 °C DC Forward Current IF 30 30 mA IFM [1] 185 150 mA - 3000 3000 V Peak Forward Current Electrostatic Discharge Threshold (HBM) Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033. © 2019 Kingbright. All Rights Reserved. Spec No: DSAF1335 / 1203000922 Rev No: V.13A Date: 06/19/2019 Page 2 / 4 APBL3025SURKCGK-F01 TECHNICAL DATA SPATIAL DISTRIBUTION RELATIVE INTENSITY vs. WAVELENGTH Green Relative Intensity (a. u.) 100% Red Ta = 25 °C Ta = 25 °C 80% 0° -15° 15° 30° -30° 45° -45° 60% 60° -60° 40% 20% 75° -75° 0% 350 400 450 500 550 600 Wavelength (nm) 650 700 750 800 -90° 1.0 0.5 0.0 90° 1.0 0.5 HYPER RED Forward current (mA) Ta = 25 °C 40 30 20 10 1.7 1.9 2.1 2.3 Forward voltage (V) 2.5 Permissible forward current (mA) Luminous intensity normalised at 20 mA 50 0 1.5 Forward Current Derating Curve Luminous Intensity vs. Forward Current Ta = 25 °C 2.0 1.5 1.0 0.5 0.0 2.5 0 10 20 30 40 Forward current (mA) 50 40 30 20 10 0 50 Luminous Intensity vs. Ambient Temperature Luminous intensity normalised at Ta = 25 °C Forward Current vs. Forward Voltage 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) -40 -20 0 20 40 60 80 100 Ambient temperature (°C) GREEN Forward current (mA) Ta = 25 °C 40 30 20 10 1.7 1.9 2.1 2.3 Forward voltage (V) 2.5 2.5 Permissible forward current (mA) Luminous intensity normalised at 20 mA 50 0 1.5 Forward Current Derating Curve Luminous Intensity vs. Forward Current Ta = 25 °C 2.0 1.5 1.0 0.5 0.0 0 10 20 30 40 Forward current (mA) 50 © 2019 Kingbright. All Rights Reserved. Spec No: DSAF1335 / 1203000922 Rev No: V.13A Date: 06/19/2019 50 Luminous Intensity vs. Ambient Temperature Luminous intensity normalised at Ta = 25 °C Forward Current vs. Forward Voltage 40 30 20 10 0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Page 3 / 4 APBL3025SURKCGK-F01 REFLOW SOLDERING PROFILE for LEAD-FREE SMD PROCESS TAPE SPECIFICATIONS (units : mm) REEL DIMENSION (units : mm) Notes: 1. Don't cause stress to the LEDs while it is exposed to high temperature. 2. The maximum number of reflow soldering passes is 2 times. 3. Reflow soldering is recommended. Other soldering methods are not recommended as they might cause damage to the product. PACKING & LABEL SPECIFICATIONS PRECAUTIONARY NOTES 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at https://www.KingbrightUSA.com/ApplicationNotes © 2019 Kingbright. All Rights Reserved. Spec No: DSAF1335 / 1203000922 Rev No: V.13A Date: 06/19/2019 Page 4 / 4
