APHCM2012ZGC-F01

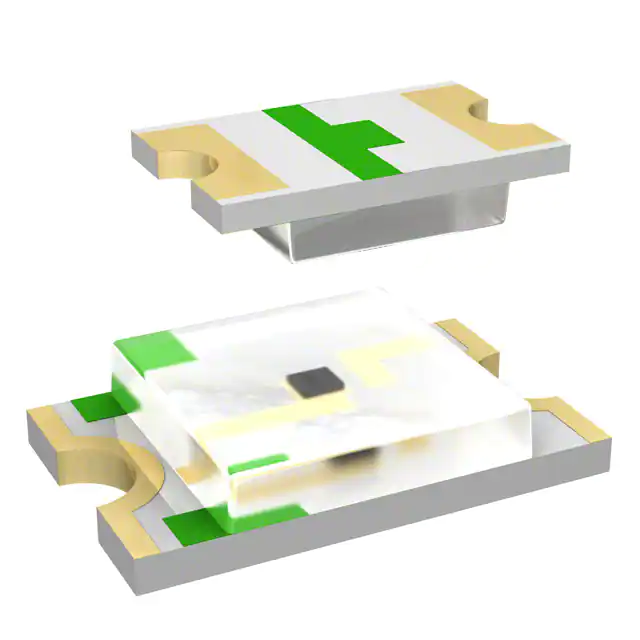

2.0x1.25mm SMD CHIP LED LAMP PRELIMINARY SPEC ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Part Number: APHCM2012ZGC-F01 Green Features 2.0X1.25mm SMT LED,0.5mm MAX.THICKNESS. LOW POWER CONSUMPTION. WIDE VIEWING ANGLE. IDEAL FOR BACKLIGHT AND INDICATOR. VARIOUS COLORS AND LENS TYPES AVAILABLE. PACKAGE : 2000PCS / REEL. MOISTURE SENSITIVITY LEVEL : LEVEL 3. RoHS COMPLIANT. Description The Green source color devices are made with AlInGaN on Sapphire Light Emitting Diode. Static electricity and surge damage the LEDS. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipment and machinery must be electrically grounded. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. Specifications are subject to change without notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SPEC NO: DSAH3756 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu DATE: APR/28/2007 DRAWN: Y.L.LI PAGE: 1 OF 5 ERP: 1203004180 Selection Guide Part No. Dice Lens Type Iv (mcd) [2] @ 20mA Min. APHCM2012ZGC-F01 Green (AlInGaN) WATER CLEAR 110 Typ. 300 Viewing Angle [1] 2θ1/2 110° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol λpeak λD [1] Δλ1/2 C VF [2] IR Parameter Peak Wavelength Dominant Wavelength Spectral Line Half-width Capacitance Forward Voltage Reverse Current Device Green Green Green Green Green Green Typ. 515 525 30 45 3.3 4.1 10 Max. Units nm nm nm pF V uA Test Conditions IF=20mA IF=20mA IF=20mA VF=0V;f=1MHz IF=20mA VR=5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating Temperature Storage Temperature Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. Green 102.5 25 150 5 -40°C To +85°C -40°C To +85°C Units mW mA mA V SPEC NO: DSAH3756 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu DATE: APR/28/2007 DRAWN: Y.L.LI PAGE: 2 OF 5 ERP: 1203004180 Green APHCM2012ZGC-F01 SPEC NO: DSAH3756 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu DATE: APR/28/2007 DRAWN: Y.L.LI PAGE: 3 OF 5 ERP: 1203004180 APHCM2012ZGC-F01 Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) Tape Specifications (Units : mm) SPEC NO: DSAH3756 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu DATE: APR/28/2007 DRAWN: Y.L.LI PAGE: 4 OF 5 ERP: 1203004180 PACKING & LABEL SPECIFICATIONS APHCM2012ZGC-F01 SPEC NO: DSAH3756 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu DATE: APR/28/2007 DRAWN: Y.L.LI PAGE: 5 OF 5 ERP: 1203004180
