APHF1608LSEEQBDZGKC

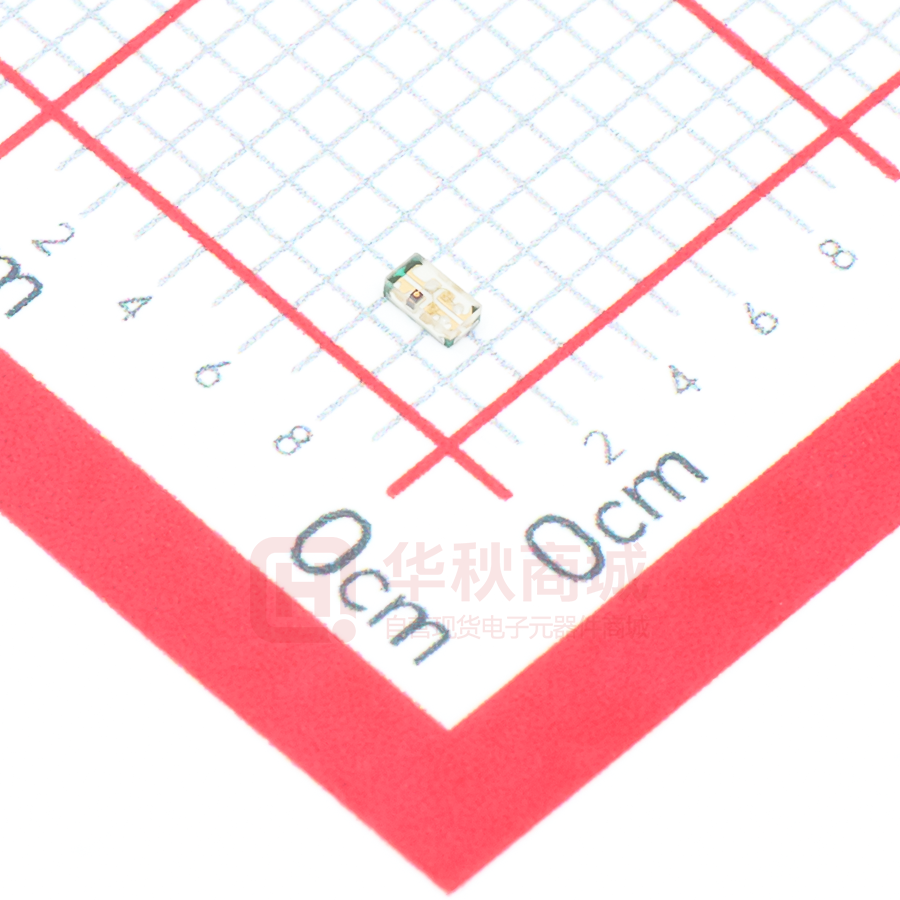

APHF1608LSEEQBDZGKC 1.6 x 0.8 mm Full-Color Surface Mount LED DESCRIPTIONS





PACKAGE DIMENSIONS The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode The Blue source color devices are made with InGaN Light Emitting Diode The Green source color devices are made with InGaN on Sapphire Light Emitting Diode Electrostatic discharge and power surge could damage the LEDs It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs All devices, equipments and machineries must be electrically grounded FEATURES






1.6 x 0.8 mm SMD LED, 0.5 mm thickness Low power consumption Package in 8mm tape on 7'' diameter reel, 4000 pcs / reel Can produce any color in visible spectrum, including white light Moisture sensitivity level: 3 Halogen-free RoHS compliant RECOMMENDED SOLDERING PATTERN (units : mm; tolerance : ± 0.1) APPLICATIONS




Backlight Status indicator Home and smart appliances Wearable and portable devices Healthcare applications ATTENTION Observe precautions for handling electrostatic discharge sensitive devices Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.15(0.006") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SELECTION GUIDE Part Number Emitting Color (Material) Iv (mcd) @ 2mA [2] ■ Hyper Red (AlGaInP) APHF1608LSEEQBDZGKC ■ Blue (InGaN) Viewing Angle [1] Lens Type Water Clear ■ Green (InGaN) Min. Typ. 4 15 4 10 20 70 2θ1/2 140° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. © 2021 Kingbright. All Rights Reserved. Spec No: DSAO6897 / 1203015312 Rev No: V.5B Date: 01/06/2021 Page 1 / 4 APHF1608LSEEQBDZGKC ELECTRICAL / OPTICAL CHARACTERISTICS at TA=25°C Value Parameter Symbol Emitting Color Unit Typ. Wavelength at Peak Emission IF = 2mA Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green Hyper Red Blue Green λpeak λdom [1] Dominant Wavelength IF = 2mA Spectral Bandwidth at 50% Φ REL MAX IF = 2mA ∆λ Capacitance C Forward Voltage IF = 2mA VF [2] Reverse Current (VR = 5V) IR Temperature Coefficient of λpeak IF = 2mA, -10°C ≤ T ≤ 85°C TCλpeak Temperature Coefficient of λdom IF = 2mA, -10°C ≤ T ≤ 85°C TCλdom Temperature Coefficient of VF IF = 2mA, -10°C ≤ T ≤ 85°C TCV Max. 630 460 515 621 465 525 20 25 35 25 100 45 1.8 2.65 2.65 - nm - nm - nm - pF 2.1 3.1 3.1 10 50 50 0.13 0.04 0.05 0.06 0.03 0.03 -1.9 -2.9 -2.9 V µA - nm/°C - nm/°C - mV/°C Notes: 1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. ) 2. Forward voltage: ±0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure. ABSOLUTE MAXIMUM RATINGS at TA=25°C Value Parameter Symbol Unit Hyper Red Blue Green PD [1] 75 80 82 mW Reverse Voltage VR 5 5 5 V Junction Temperature Tj 115 115 115 °C Operating Temperature Top -40 to +85 °C Storage Temperature Tstg -40 to +85 °C DC Forward Current IF [1] 30 20 20 mA Peak Forward Current IFM [2] 195 100 100 mA Electrostatic Discharge Threshold (HBM) - 3000 250 450 V Thermal Resistance (Junction / Ambient) Rth JA [3] 730 720 700 °C/W Thermal Resistance (Junction / Solder point) Rth JS [3] 610 620 590 °C/W Power Dissipation Notes: 1. The maximum ratings are valid for the case of lighting a single chip When two chips are lit at the same time, each chip should be driven at a current lower than 50% of the absolute maximum ratings When three chips are lit at the same time, each chip should be driven at a current lower than 30% of the absolute maximum ratings 2. 1/10 Duty Cycle , 0.1ms Pulse Width . 3. Rt h JA ,Rt h JS Results from mounting on PC board FR4 (pad size ≥ 16 mm 2 per pad). 4. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033. © 2021 Kingbright. All Rights Reserved. Spec No: DSAO6897 / 1203015312 Rev No: V.5B Date: 01/06/2021 Page 2 / 4 APHF1608LSEEQBDZGKC TECHNICAL DATA SPATIAL DISTRIBUTION RELATIVE INTENSITY vs. WAVELENGTH Blue Green Red Relative Intensity (a. u.) 100% 0° -15° Ta = 25 °C Ta = 25 °C 80% 15° R B,G 30° -30° 45° -45° 60% 60° -60° 40% 20% 75° -75° 0% 350 400 450 500 550 600 Wavelength (nm) 650 700 750 R 800 -90° 1.0 B,G 0.5 0.0 90° 1.0 0.5 HYPER RED Forward current (mA) Ta = 25 °C 8 6 4 2 1.7 1.8 1.9 2.0 Forward voltage (V) 10.0 Permissible forward current (mA) Luminous intensity normalised at 2 mA 10 0 1.6 Forward Current Derating Curve Luminous Intensity vs. Forward Current Ta = 25 °C 8.0 6.0 4.0 2.0 0.0 2.1 0 2 4 6 8 Forward current (mA) 50 40 30 20 10 0 10 Luminous Intensity vs. Ambient Temperature Luminous intensity normalised at Ta = 25 °C Forward Current vs. Forward Voltage 0 20 40 60 80 Ambient temperature (°C) 2.5 2.0 1.5 1.0 0.5 0.0 100 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) BLUE Forward Current vs. Forward Voltage 8 6 4 2 0 2.2 2.4 2.6 2.8 3.0 Forward voltage (V) 50 Ta = 25 °C Permissible forward current (mA) Ta = 25 °C 8 6 4 2 0 3.2 Luminous Intensity vs. Ambient Temperature 2.5 Luminous intensity normalised at T a = 25 °C 10 Luminous intensity normalised at 2 mA 10 Forward current (mA) Forward Current Derating Curve Luminous Intensity vs. Forward Current 40 30 20 10 0 0 2 4 6 8 Forward current (mA) 10 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) -40 -20 0 20 40 60 80 100 Ambient temperature (°C) GREEN 10 Forward current (mA) Ta = 25 °C 8 6 4 2 2.4 2.6 2.8 3.0 Forward voltage (V) 3.2 Luminous Intensity vs. Ambient Temperature 50 Ta = 25 °C Permissible forward current (mA) Luminous intensity normalised at 2 mA 10 0 2.2 Forward Current Derating Curve Luminous Intensity vs. Forward Current 8 6 4 2 0 2.5 Luminous intensity normalised at T a = 25 °C Forward Current vs. Forward Voltage 40 30 20 10 0 0 2 4 6 8 Forward current (mA) 10 © 2021 Kingbright. All Rights Reserved. Spec No: DSAO6897 / 1203015312 Rev No: V.5B Date: 01/06/2021 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 Ambient temperature (°C) Page 3 / 4 APHF1608LSEEQBDZGKC REFLOW SOLDERING PROFILE for LEAD-FREE SMD PROCESS TAPE SPECIFICATIONS (units : mm) REEL DIMENSION (units : mm) Notes: 1. Don't cause stress to the LEDs while it is exposed to high temperature. 2. The maximum number of reflow soldering passes is 2 times. 3. Reflow soldering is recommended. Other soldering methods are not recommended as they might cause damage to the product. PACKING & LABEL SPECIFICATIONS PRECAUTIONARY NOTES 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at https://www.KingbrightUSA.com/ApplicationNotes © 2021 Kingbright. All Rights Reserved. Spec No: DSAO6897 / 1203015312 Rev No: V.5B Date: 01/06/2021 Page 4 / 4
