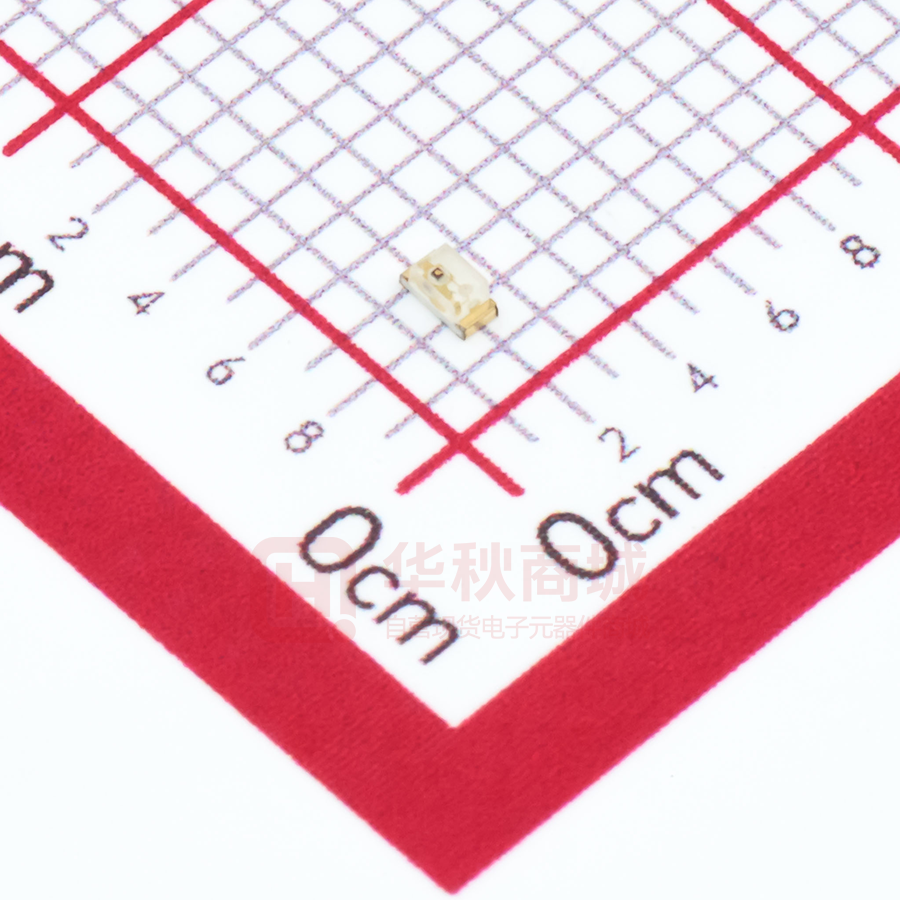

APT1608SURCK

1.6X0.8mm SMD CHIP LED LAMP Part Number: APT1608SURCK HYPER RED Features 1.6mmX0.8mm SMT LED, 0.75mm THICKNESS. LOW POWER CONSUMPTION. W IDE VIEWING ANGLE. IDEAL FOR BACKLIGHT AND INDICATOR. VARIOUS COLORS AND LENS TYPES AVAILABLE. PACKAGE: 2000PCS / REEL . MOISTURE SENSITIVITY LEVEL : LEVEL 3. RoHS COMPLIANT. Description The Hyper Red source color devices are made with DH InGaAlP on GaAs substrate Light Emitting Diode. P ackage Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3.Specifications are subject to change without notice. 4.The device has a single mounting surface. The device must be mounted according to the specifications. S PEC NO: DSAD0926 APPROVED: WYNEC R EV NO: V.8 CHECKED: Allen Liu DATE: APR/20/2007 DRAWN: D.M.LIU PAGE: 1 OF 5 ERP:1203005341 S election Guide Iv (mcd) [2] @ 20mA Min. APT1608SURCK HYPER RED (InGaAlP) WATER CLEAR 50 Typ. 150 Viewing Angle [1] 2θ1/2 120° Part No. Dice Lens Type Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol λpeak λD [1] Δλ1/2 C VF [2] IR Parameter Peak Wavelength Dominant Wavelength Spectral Line Half-width Capacitance Forward Voltage Reverse Current Device Hyper Red Hyper Red Hyper Red Hyper Red Hyper Red Hyper Red Typ. 650 635 28 35 1.95 2.5 10 Max. Units nm nm nm pF V uA Test Conditions IF=20mA IF=20mA IF=20mA VF=0V;f=1MHz IF=20mA VR = 5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating / Storage Temperature Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. Hyper Red 75 30 185 5 -40°C To +85°C Units mW mA mA V S PEC NO: DSAD0926 APPROVED: WYNEC R EV NO: V.8 CHECKED: Allen Liu DATE: APR/20/2007 DRAWN: D.M.LIU PAGE: 2 OF 5 ERP:1203005341 Hyper Red APT1608SURCK S PEC NO: DSAD0926 APPROVED: WYNEC R EV NO: V.8 CHECKED: Allen Liu DATE: APR/20/2007 DRAWN: D.M.LIU PAGE: 3 OF 5 ERP:1203005341 APT1608SURCK Recommended Soldering Pattern (Units : mm; Tolerance: ±0.1) Tape Specifications (Units : mm) S PEC NO: DSAD0926 APPROVED: WYNEC R EV NO: V.8 CHECKED: Allen Liu DATE: APR/20/2007 DRAWN: D.M.LIU PAGE: 4 OF 5 ERP:1203005341 PACKING & LABEL SPECIFICATIONS APT1608SURCK S PEC NO: DSAD0926 APPROVED: WYNEC R EV NO: V.8 CHECKED: Allen Liu DATE: APR/20/2007 DRAWN: D.M.LIU PAGE: 5 OF 5 ERP:1203005341
