DLC/6SRD

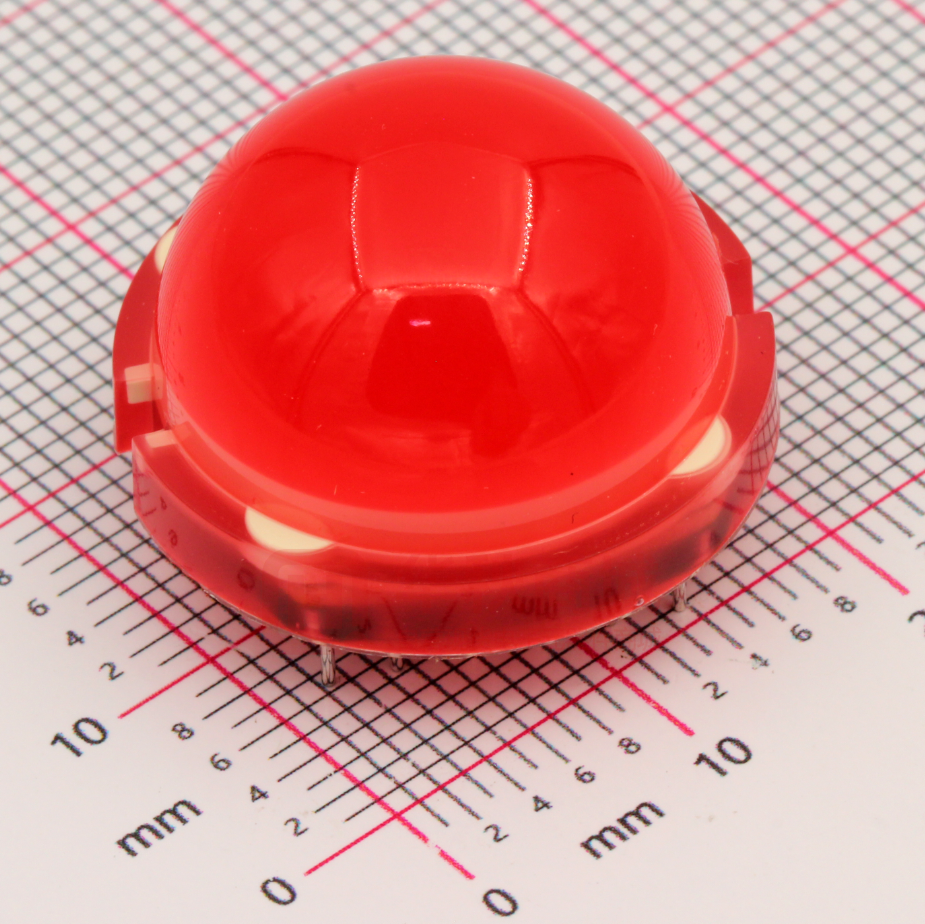

20mm BIG LAMP Part Number: DLC/6SRD Super Bright Red Features Description z 12 pins. The Super Bright Red source color devices are made with z High luminous intensity. Gallium Aluminum Arsenide Red Light Emitting Diode. z Low power consumption. z Wide viewing angle. z Categorized for luminous intensity. z Excellent on / off contrast. z Easy mounting on P.C. board or sockets. z Solid state reliability. z RoHS compliant. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. Lead spacing is measured where the leads emerge from the package. 4. Specifications are subject to change without notice. SPEC NO: DSAA4650 REV NO: V.12 DATE: NOV/01/2010 PAGE: 1 OF 4 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: D.M.Su ERP: 1338000051 Selection Guide Part No. Dice DLC/6SRD Super Bright Red (GaAlAs) RED DIFFUSED Viewing Angle [1] Iv (mcd) [2] @ 20mA Lens Type Min. Typ. 2θ1/2 300 470 120° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Device Typ. λpeak Peak Wavelength Super Bright Red λD [1] Dominant Wavelength Δλ1/2 Max. Units Test Conditions 660 nm IF=20mA Super Bright Red 640 nm IF=20mA Spectral Line Half-width Super Bright Red 20 nm IF=20mA C Capacitance Super Bright Red 45 pF VF=0V;f=1MHz VF [2] Forward Voltage Super Bright Red 1.85 2.5 V IF=20mA IR Reverse Current Super Bright Red 10 uA VR = 5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Super Bright Red Units Power dissipation 75 mW DC Forward Current 30 mA Peak Forward Current [1] 155 mA 5 V Reverse Voltage Operating/Storage Temperature Lead Solder Temperature [2] -40°C To +85°C 260°C For 3-5 Seconds Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. 2mm below package base. SPEC NO: DSAA4650 REV NO: V.12 DATE: NOV/01/2010 PAGE: 2 OF 4 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: D.M.Su ERP: 1338000051 Super Bright Red DLC/6SRD SPEC NO: DSAA4650 REV NO: V.12 DATE: NOV/01/2010 PAGE: 3 OF 4 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: D.M.Su ERP: 1338000051 PACKING & LABEL SPECIFICATIONS DLC/6SRD SPEC NO: DSAA4650 REV NO: V.12 DATE: NOV/01/2010 PAGE: 4 OF 4 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: D.M.Su ERP: 1338000051 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Kingbright: DLC/6SRD
