KP-1608SGC

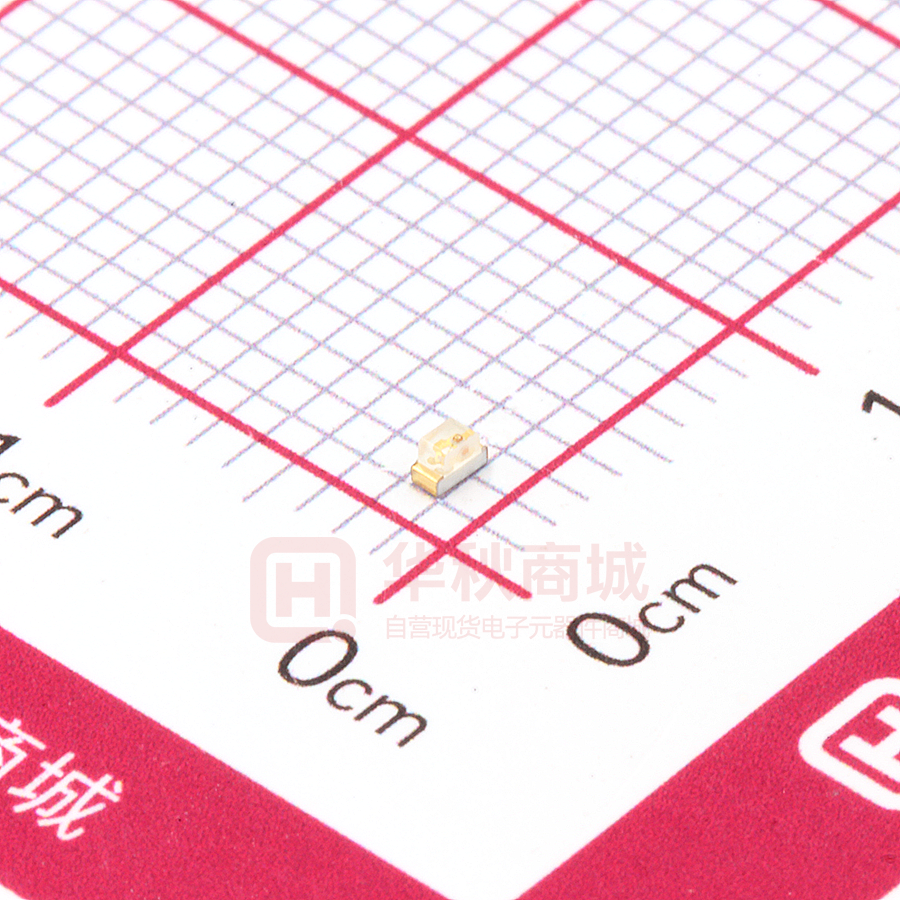

1.6X0.8mm SMD CHIP LED LAMP KP-1608SGC Features SUPER BRIGHT GREEN Description 1.6mmX0.8mm SMT LED, 1.1mm THICKNESS. The Super Bright Green source color devices are made LOW POWER CONSUMPTION. with Gallium Phosphide Green Light Emitting Diode. W IDE VIEW ING ANGLE. IDEAL FOR BACKLIGHT AND INDICATOR. VARIOUS COLORS AND LENS TYPES AVAILABLE. PACKAGE: 2000PCS / REEL . RoHS COMPLIANT. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3.Specifications are subject to change without notice. SPEC NO: DSAB0301 REV NO: V.9 DATE: MAR/14/2005 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: B.H.LI PAGE: 1 OF 4 Selection Guide Part No. Dice SUPER BRIGHT GREEN (GaP) KP-1608SGC Iv (mcd) @ 20mA Lens Type Viewing Angle Min. Typ. 2θ θ1/2 4 15 120° WATER CLEAR Note: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Device λpeak Peak Wavelength Super Bright Green λD Dominant Wavelength ∆λ1/2 Typ. Max. Units Test Conditions 565 nm IF=20mA Super Bright Green 568 nm IF=20mA Spectral Line Half-width Super Bright Green 30 nm IF=20mA C Capacitance Super Bright Green 15 pF VF=0V;f=1MHz VF Forward Voltage Super Bright Green 2.2 2.5 V IF=20mA IR Reverse Current Super Bright Green 10 uA VR = 5V Absolute Maximum Ratings at TA=25°C Parameter Super Bright Green Units Power dissipation 105 mW DC Forward Current 25 mA Peak Forward Current [1] 140 mA 5 V Reverse Voltage Operating/Storage Temperature -40°C To +85°C Note: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. SPEC NO: DSAB0301 REV NO: V.9 DATE: MAR/14/2005 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: B.H.LI PAGE: 2 OF 4 Super Bright Green KP-1608SGC SPEC NO: DSAB0301 REV NO: V.9 DATE: MAR/14/2005 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: B.H.LI PAGE: 3 OF 4 KP-1608SGC Recommended Soldering Pattern (Units : mm) Tape Specifications (Units : mm) If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength), the typical accuracy of the sorting process is as follows: 1. Wavelength: +/-1nm 2. Luminous Intensity: +/-15% 3. Forward Voltage: +/-0.1V Note: Accuracy may depend on the sorting parameters. SPEC NO: DSAB0301 REV NO: V.9 DATE: MAR/14/2005 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: B.H.LI PAGE: 4 OF 4
