KPT-1608SGC

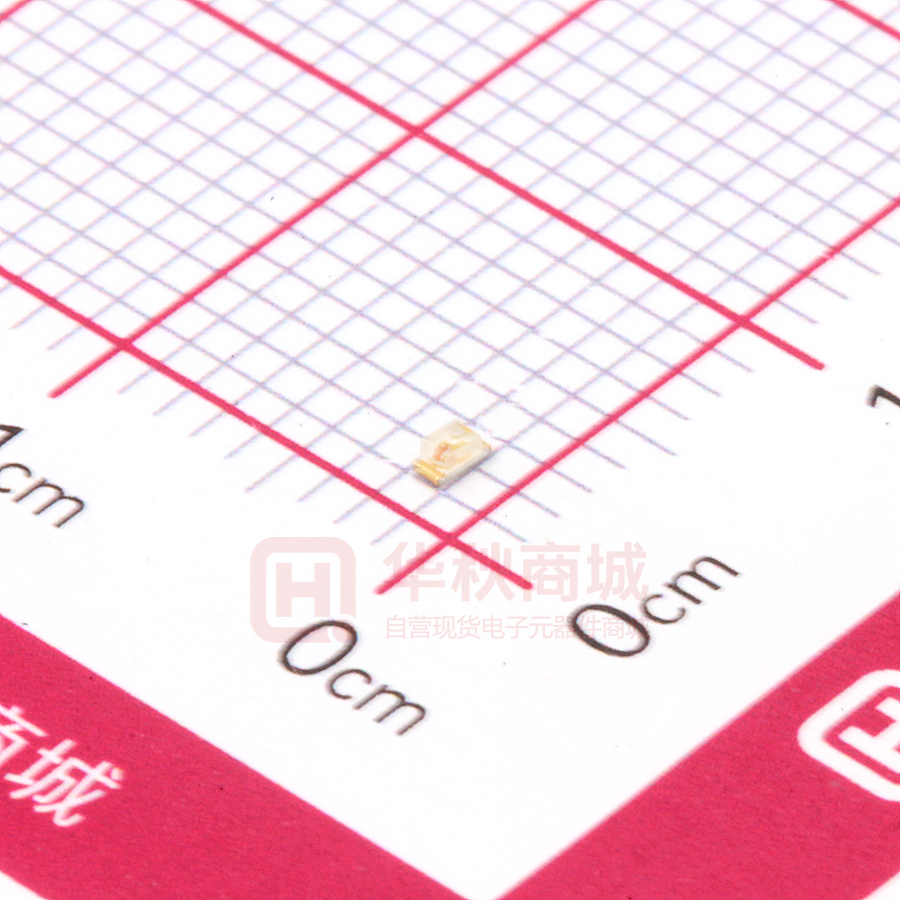

1.6X0.8mm SMD CHIP LED LAMP Part Number: KPT-1608SGC Super Bright Green Features Description 1.6mmX0.8mm SMD LED, 0.75mm thickness. The Super Bright Green source color devices are made with Low power consumption. Gallium Phosphide Green Light Emitting Diode. Wide viewing angle. Ideal for backlight and indicator. Package: 2000pcs / reel . Moisture sensitivity level : level 3. RoHS compliant. Package Dimensions K g in ig r b t h Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SPEC NO: DSAA5147 REV NO: V.27B DATE: MAY/25/2016 PAGE: 1 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001741 Selection Guide Part No. Emitting Color (Material) Viewing Angle [1] Iv (mcd) [2] @ 20mA Lens Type Min. KPT-1608SGC Super Bright Green (GaP) Typ. 2θ1/2 5 12 150° Water Clear Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous Flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Emitting Color Typ. λpeak Peak Wavelength Super Bright Green 565 λD [1] Dominant Wavelength Super Bright Green 568 Δλ1/2 Spectral Line Half-width Super Bright Green 30 C Capacitance Super Bright Green 15 VF [2] Forward Voltage IR Reverse Current t h Max. Units Test Conditions nm IF=20mA nm IF=20mA nm IF=20mA pF VF=0V;f=1MHz 2.5 V IF=20mA 10 uA VR=5V ig r b g in Super Bright Green 2.2 Super Bright Green Notes: 1. Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure. K Absolute Maximum Ratings at TA=25°C Parameter Values Units 62.5 mW DC Forward Current 25 mA Peak Forward Current [1] 140 mA 5 V Power dissipation Reverse Voltage Operating Temperature -40°C To +85°C Storage Temperature -40°C To +85°C Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033. SPEC NO: DSAA5147 REV NO: V.27B DATE: MAY/25/2016 PAGE: 2 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001741 Super Bright Green KPT-1608SGC t h ig r b g in K SPEC NO: DSAA5147 REV NO: V.27B DATE: MAY/25/2016 PAGE: 3 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001741 KPT-1608SGC Reflow soldering is recommended and the soldering profile is shown below. Other soldering methods are not recommended as they might cause damage to the product. Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) Tape Dimensions (Units : mm) K g in ig r b t h Reel Dimension SPEC NO: DSAA5147 REV NO: V.27B DATE: MAY/25/2016 PAGE: 4 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001741 PACKING & LABEL SPECIFICATIONS KPT-1608SGC t h ig r b g in K Terms and conditions for the usage of this document 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at http://www.kingbright.com/application_notes SPEC NO: DSAA5147 REV NO: V.27B DATE: MAY/25/2016 PAGE: 5 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001741
