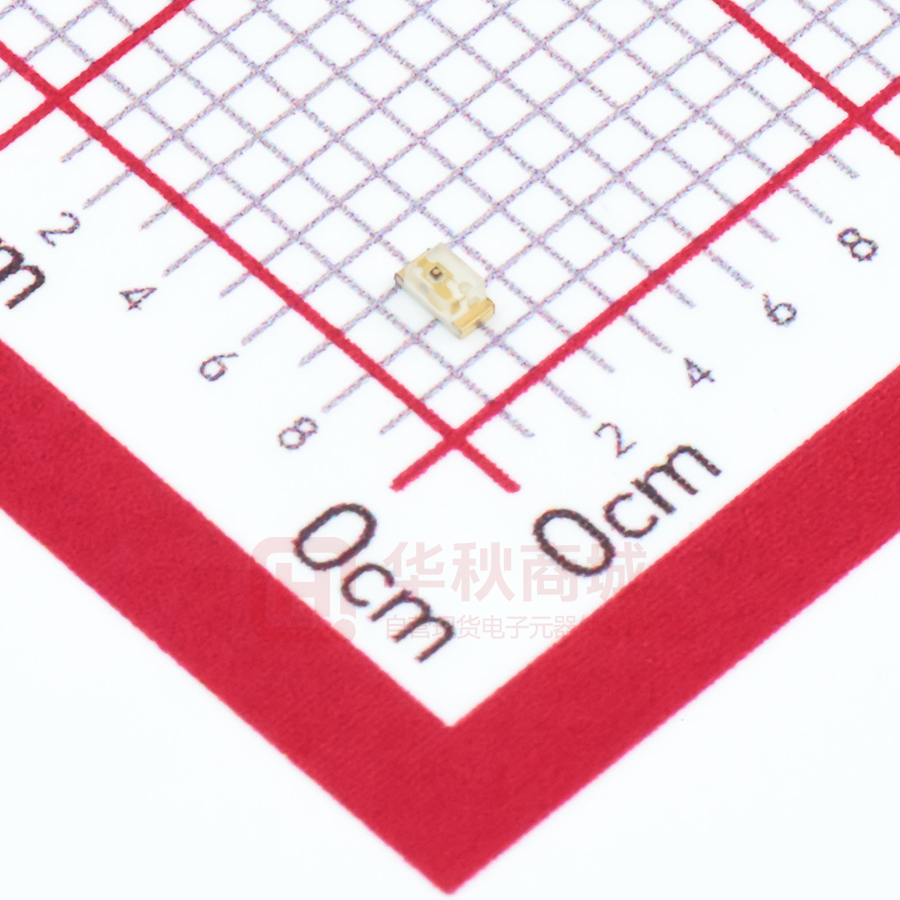

KPT-1608SYCK

1.6X0.8mm SMD CHIP LED LAMP Part Number: KPT-1608SYCK Super Bright Yellow Features Description 1.6mmX0.8mm SMD LED, 0.75mm thickness. The Super Bright Yellow device is made with AlGaInP (on Low power consumption. GaAs substrate) light emitting diode chip. Wide viewing angle. Ideal for backlight and indicator. Package: 2000pcs / reel . Moisture sensitivity level : level 3. RoHS compliant. Package Dimensions K g in ig r b t h Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.1(0.004") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. 4. The device has a single mounting surface. The device must be mounted according to the specifications. SPEC NO: DSAB0858 REV NO: V.21B DATE: APR/27/2016 PAGE: 1 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001771 Selection Guide Part No. Emitting Color (Material) Lens Type Viewing Angle [1] Iv (mcd) [2] @ 20mA Min. KPT-1608SYCK Super Bright Yellow (AlGaInP) 2θ1/2 80 Water Clear Typ. 150 120° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity / luminous Flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Emitting Color λpeak Peak Wavelength Super Bright Yellow 590 λD [1] Dominant Wavelength Super Bright Yellow 590 Δλ1/2 Spectral Line Half-width Super Bright Yellow 20 C Capacitance Super Bright Yellow 20 t h VF [2] Forward Voltage 2 IR Reverse Current Min. Typ. Max. g in ig r b Super Bright Yellow 1.6 Super Bright Yellow Units Test Conditions nm IF=20mA nm IF=20mA nm IF=20mA pF VF=0V;f=1MHz 2.5 V IF=20mA 10 uA VR=5V Notes: 1. Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure. K Absolute Maximum Ratings at TA=25°C Parameter Values Units Power dissipation 75 mW DC Forward Current 30 mA Peak Forward Current [1] 175 mA 5 V Reverse Voltage Operating Temperature -40°C To +85°C Storage Temperature -40°C To +85°C Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033. SPEC NO: DSAB0858 REV NO: V.21B DATE: APR/27/2016 PAGE: 2 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001771 Super Bright Yellow KPT-1608SYCK t h ig r b g in K SPEC NO: DSAB0858 REV NO: V.21B DATE: APR/27/2016 PAGE: 3 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001771 KPT-1608SYCK Reflow soldering is recommended and the soldering profile is shown below. Other soldering methods are not recommended as they might cause damage to the product. Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) Tape Dimensions (Units : mm) K g in ig r b t h Reel Dimension SPEC NO: DSAB0858 REV NO: V.21B DATE: APR/27/2016 PAGE: 4 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001771 PACKING & LABEL SPECIFICATIONS KPT-1608SYCK t h ig r b g in K Terms and conditions for the usage of this document 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at http://www.kingbright.com/application_notes SPEC NO: DSAB0858 REV NO: V.21B DATE: APR/27/2016 PAGE: 5 OF 5 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1203001771
