SC04-11EWA

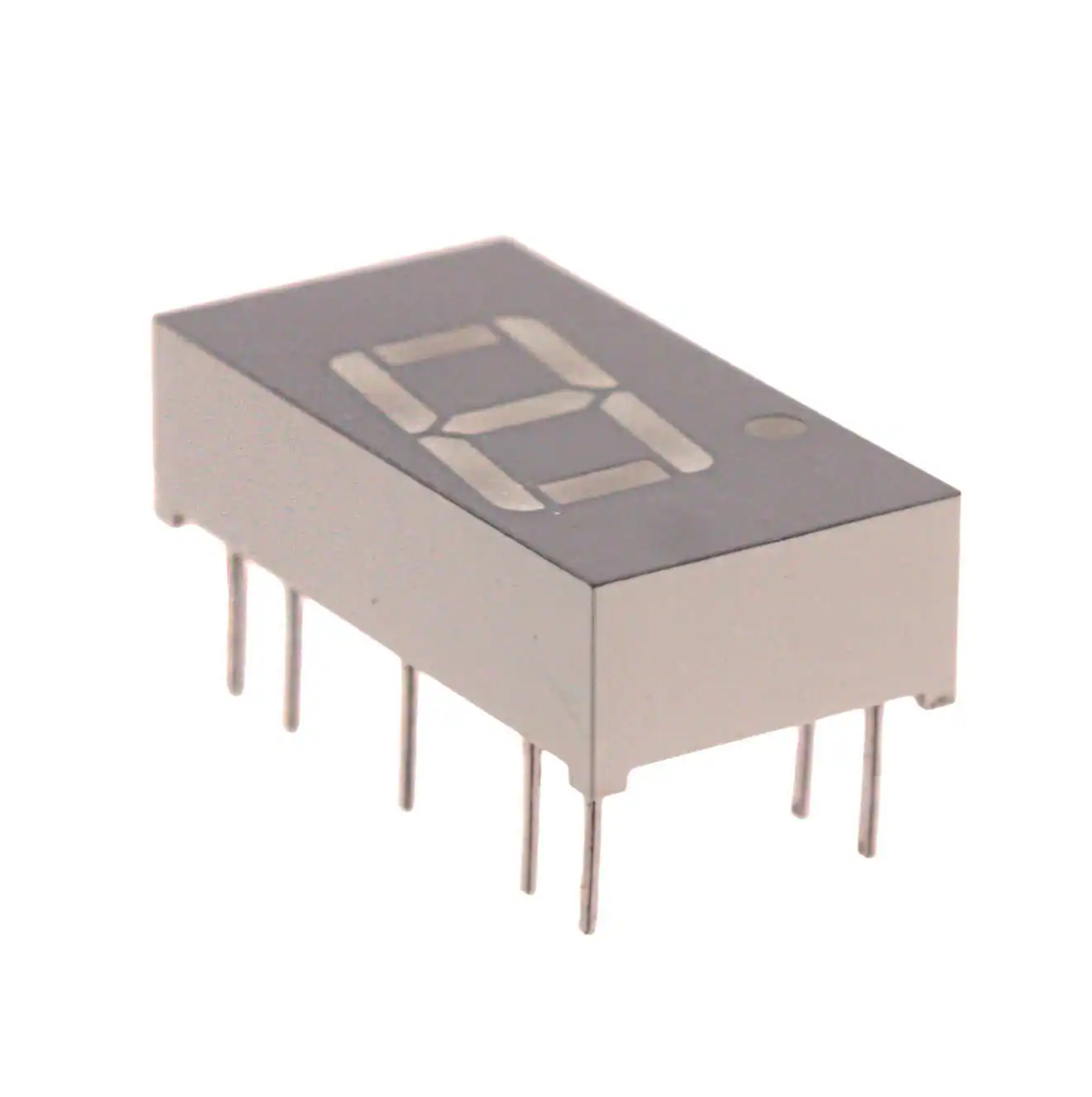

10.16mm (0.4INCH) SINGLE DIGIT NUMERIC DISPLAY Part Number: SC04-11EWA High Efficiency Red Features 0.4 INCH DIGIT HEIGHT. LOW CURRENT OPERATION. EXCELLENT CHARACTER APPEARANCE. EASY MOUNTING ON P.C. BOARDS OR SOCKETS. I.C. COMPATIBLE. MECHANICALLY RUGGED. STANDARD : GRAY FACE, WHITE SEGMENT. RoHS COMPLIANT. Description The High Efficiency Red source color devices are made with Gallium Arsenide Phosphide on Gallium Phosphide Orange Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. SPEC NO: DSAC2815 APPROVED: WYNEC REV NO: V.10 CHECKED: Joe Lee DATE: MAY/15/2007 DRAWN: Y.L.LI PAGE: 1 OF 4 ERP: 1301000707 Selection Guide Part No. Dice Lens Type Iv (ucd) [1] @ 10mA Min. SC04-11EWA High Efficiency Red (GaAsP/GaP) WHITE DIFFUSED 1900 Typ. 8000 Common Cathode, Rt. Hand Decimal. Description Note: 1. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol λpeak λD [1] Δλ1/2 C VF [2] IR Parameter Peak Wavelength Dominant Wavelength Spectral Line Half-width Capacitance Forward Voltage Reverse Current Device High Efficiency Red High Efficiency Red High Efficiency Red High Efficiency Red High Efficiency Red High Efficiency Red Typ. 627 625 45 15 2.0 2.5 10 Max. Units nm nm nm pF V uA Test Conditions IF=20mA IF=20mA IF=20mA VF=0V;f=1MHz IF=20mA VR=5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating / Storage Temperature Lead Solder Temperature[2] Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. 2mm below package base. High Efficiency Red 75 30 160 5 -40°C To +85°C 260°C For 3-5 Seconds Units mW mA mA V SPEC NO: DSAC2815 APPROVED: WYNEC REV NO: V.10 CHECKED: Joe Lee DATE: MAY/15/2007 DRAWN: Y.L.LI PAGE: 2 OF 4 ERP: 1301000707 High Efficiency Red SC04-11EWA SPEC NO: DSAC2815 APPROVED: WYNEC REV NO: V.10 CHECKED: Joe Lee DATE: MAY/15/2007 DRAWN: Y.L.LI PAGE: 3 OF 4 ERP: 1301000707 PACKING & LABEL SPECIFICATIONS SC04-11EWA SPEC NO: DSAC2815 APPROVED: WYNEC REV NO: V.10 CHECKED: Joe Lee DATE: MAY/15/2007 DRAWN: Y.L.LI PAGE: 4 OF 4 ERP: 1301000707
