TC12-11SRWA

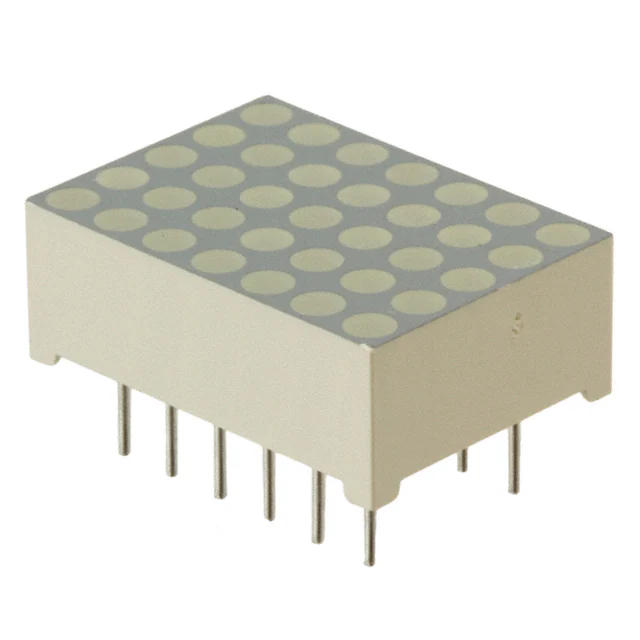

30mm (1.2 INCH) 5x7 DOT MATRIX DISPLAY Part Number: TC12-11SRWA Super Bright Red Features 1.2 INCH MATRIX HEIGHT. DOT SIZE 3mm. LOW CURRENT OPERATION. HIGH CONTRAST AND LIGHT OUTPUT. COMPATIBLE WITH ASCII AND EBCDIC CODES. COLUMN CATHODE AND COLUMN ANODE AVAILABLE. EASY MOUNTING ON P.C. BOARDS OR SOCKETS. MECHANICALLY RUGGED. STANDARD : GRAY FACE, WHITE DOT. RoHS COMPLIANT. Description The Super Bright Red source color devices are made with Gallium Aluminum Arsenide Red Light Emitting Diode. Package Dimensions& Internal Circuit Diagram Notes: 1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted. 2. Specifications are subject to change without notice. SPEC NO: DSAD2436 APPROVED: WYNEC REV NO: V.8 CHECKED: Joe Lee DATE: MAY/24/2007 DRAWN: Y.L.LI PAGE: 1 OF 4 ERP: 1332000506 Selection Guide Part No. Dice Lens Type Iv (ucd) [1] @ 10mA Min. TC12-11SRWA Super Bright Red (GaAlAs) WHITE DIFFUSED 8000 Typ. 36000 Column Cathode Description Note: 1. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol λpeak λD [1] Δλ1/2 C VF [2] IR Parameter Peak Wavelength Dominant Wavelength Spectral Line Half-width Capacitance Forward Voltage Reverse Current Device Super Bright Red Super Bright Red Super Bright Red Super Bright Red Super Bright Red Super Bright Red Typ. 660 640 20 45 1.85 2.5 10 Max. Units nm nm nm pF V uA Test Conditions IF=20mA IF=20mA IF=20mA VF=0V;f=1MHz IF=20mA VR=5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25°C Parameter Power dissipation DC Forward Current Peak Forward Current [1] Reverse Voltage Operating / Storage Temperature Lead Solder Temperature[2] Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. 2mm below package base. Super Bright Red 75 30 155 5 -40°C To +85°C 260°C For 3-5 Seconds Units mW mA mA V SPEC NO: DSAD2436 APPROVED: WYNEC REV NO: V.8 CHECKED: Joe Lee DATE: MAY/24/2007 DRAWN: Y.L.LI PAGE: 2 OF 4 ERP: 1332000506 Super Bright Red TC12-11SRWA SPEC NO: DSAD2436 APPROVED: WYNEC REV NO: V.8 CHECKED: Joe Lee DATE: MAY/24/2007 DRAWN: Y.L.LI PAGE: 3 OF 4 ERP: 1332000506 PACKING & LABEL SPECIFICATIONS TC12-11SRWA SPEC NO: DSAD2436 APPROVED: WYNEC REV NO: V.8 CHECKED: Joe Lee DATE: MAY/24/2007 DRAWN: Y.L.LI PAGE: 4 OF 4 ERP: 1332000506
