WP138A8QMP/GD/TG

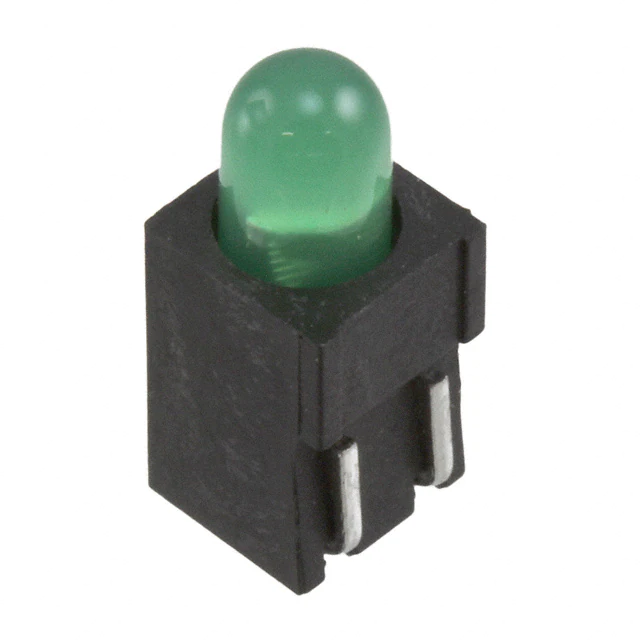

3.4mm RIGHT ANGLE LED INDICATOR Part Number: WP138A8QMP/GD/TG Green Features Description z Surface mount type. The Green source color devices are made with Gallium z Black case enhances contrast ratio. Phosphide Green Light Emitting Diode. z Wide viewing angle. z High reliability life measured in years. z Package:1000pcs / reel. z Moisture sensitivity level : level 3. z Housing UL rating:94V-0. z Housing material: PPA. z High temperature resistant housing. z High glass transition temperature epoxy. z RoHS compliant. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is ±0.25(0.01") unless otherwise noted. 3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SPEC NO: DSAF4747 REV NO: V.10B DATE: AUG/18/2016 PAGE: 1 OF 6 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1102000491 Selection Guide Part No. Emitting Color (Material) WP138A8QMP/GD/TG Lens Type Green (GaP) Green Diffused Viewing Angle [1] Iv (mcd) [2] @ 10mA Min. Typ. 2θ1/2 6 12 40° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity/ luminous Flux: +/-15%. 3. Luminous intensity value is traceable to CIE127-2007 standards. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Emitting Color Typ. λpeak Peak Wavelength Green λD [1] Dominant Wavelength Δλ1/2 Max. Units Test Conditions 565 nm IF=10mA Green 568 nm IF=10mA Spectral Line Half-width Green 30 nm IF=10mA C Capacitance Green 15 pF VF=0V;f=1MHz VF [2] Forward Voltage Green 2.0 2.5 V IF=10mA IR Reverse Current Green 10 uA VR = 5V Notes: 1. Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. 3. Wavelength value is traceable to CIE127-2007 standards. 4. Excess driving current and/or operating temperature higher than recommended conditions may result in severe light degradation or premature failure. Absolute Maximum Ratings at TA=25°C Parameter Values Units 62.5 mW DC Forward Current 25 mA Peak Forward Current [1] 140 mA 5 V Power dissipation Reverse Voltage Operating Temperature -40°C To +85°C Storage Temperature -40°C To +85°C Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033. SPEC NO: DSAF4747 REV NO: V.10B DATE: AUG/18/2016 PAGE: 2 OF 6 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1102000491 Green WP138A8QMP/GD/TG SPEC NO: DSAF4747 REV NO: V.10B DATE: AUG/18/2016 PAGE: 3 OF 6 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1102000491 WP138A8QMP/GD/TG Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) Reel Dimension Tape Dimensions (Units : mm) SPEC NO: DSAF4747 REV NO: V.10B DATE: AUG/18/2016 PAGE: 4 OF 6 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1102000491 PACKING & LABEL SPECIFICATIONS WP138A8QMP/GD/TG Terms and conditions for the usage of this document 1. The information included in this document reflects representative usage scenarios and is intended for technical reference only. 2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to the latest datasheet for the updated specifications. 3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues. 4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance. 5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright. 6. All design applications should refer to Kingbright application notes available at http://www.KingbrightUSA.com/ApplicationNotes SPEC NO: DSAF4747 REV NO: V.10B DATE: AUG/18/2016 PAGE: 5 OF 6 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1102000491 SPEC NO: DSAF4747 REV NO: V.10B DATE: AUG/18/2016 PAGE: 6 OF 6 APPROVED: Wynec CHECKED: Allen Liu DRAWN: L.T.Zhang ERP: 1102000491
