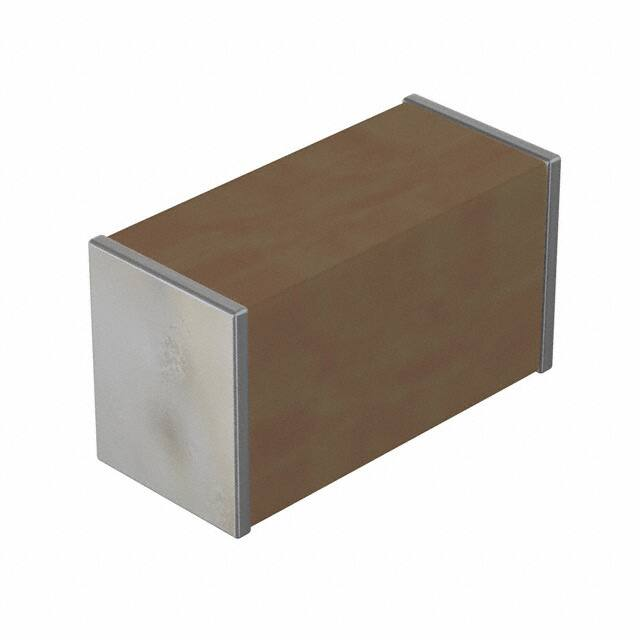

0201BN220J500YT

SPECIFICATION 1. SCOPE This specification covers the characteristics of size 0201, Base Metal C0G dielectric, 22 pF capacitance, +/- 5% tolerance, 50 VDC rated ceramic chip capacitors with nickel barrier (90% tin/10% lead) termination. 2. DIELECTRIC CHARACTERISTICS - C0G (BN) Operating Temperature Range: Temperature Coefficient: Dissipation Factor: Insulation Resistance, 25°C: Dielectric Withstanding Voltage: Aging Rate: Test Parameters: -55°C to +125°C 0 +/- 30 ppm/°C 0.1% Max. @ 25°C >10 Giga-Ohms 125 VDC 0% per decade 1MHz, 1.0 Volts +/- 0.2 Vrms, 25°C 3. PHYSICAL DIMENSIONS ( NOT SCALED ) X L W Dimensions L MB W X MB Inches (mm) .0235 (0.6) .0118 (0.3) .013 (0.33) .006 (0.15) +/- in (mm) .0015 (0.03) .0012 (0.03) Max .002 (0.05) 4. PART NUMBER DESCRIPTION 0201 BN 220 J 500 Y T 0201 BN 220 J 500 Y T = Size = C0G Dielectric (Base Metal Electrodes) = Capacitance Code (pF): First two digits are significant, third digit denotes number of zeros = Capacitance tolerance: J = +/- 5% = DC Voltage Rating: First two digits are significant, third digit denotes number of zeros = Termination: Nickel Barrier with 90% Tin / 10% Lead = Packaging: Tape and Reel REVISION: A NOVACAP P/N: CUSTOMER: CUST. P/N: 0201BN220J500YT SPEC DESIGNER SPEC MANAGER ENGINEERING MK 5/25/17 MK FOR BN 5/25/17 MK FOR BN 5/25/17 05/25/2017
