KAS-700-0150 Mics on Flex, 2 Pack, SPV08A0LR5H-1, TOCHI, Bottom Port Analog Knowles analog microphone SPV08A0LR5H-1 mounted on flexable bias boards ASSEMBLY OVERVIEW KAS-700-0050 MIC ON FLEX BOM

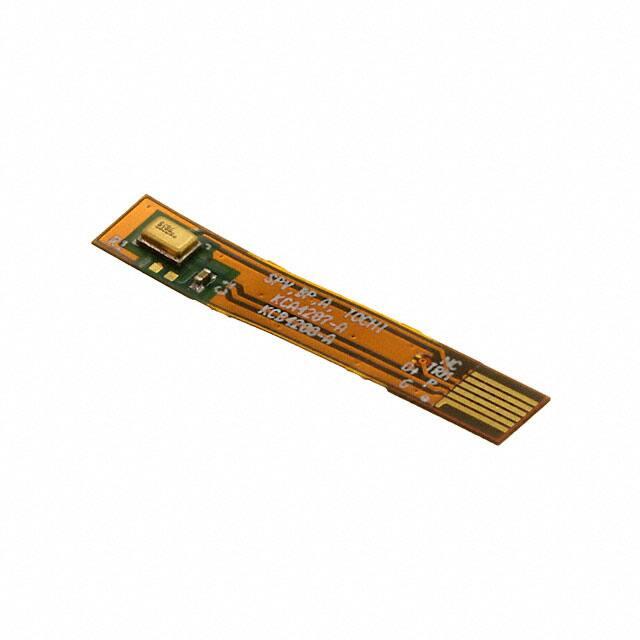

Bottom Port analog microphone mounted to flexible bias board.
SPV08A0LR5H-1, Bottom port analog microphone
For use with Knowles “Muskie” Microphone Evaluation Kit. Part# KAS-33100-0004
BYPASS CAPACITOR, 0.1uF, 0.1 F ±10% 16V, X5R, 0402
KCB4208 FLEX CIRCUIT PCB
64.5dB Signal to Noise Ratio (SNR).
134dB Acoustic Overload Point (AOP) provides a large dynamic range.
Differential mode configuration improves noise immunity to power supply variations, allowing extension of microphone PCB traces. FLEX CIRCUIT DIMENSIONS KEY MICROPHONE PARAMETERS SPECIFICATIONS Signal-to-noise ratio (SNR) 64.5 dB Acoustic Overload Point (10% AOP) 134 dB SPL FLEX CIRCUIT PINOUTS Low Frequency Roll Off (LFRO) 35 Hz Bandwidth (±3dB) 21 kHz Current consumption (uA) 175 uA The table below shows the pinout for the flex connector. The same connector can be used for all microphone flexes, regardless of port orientation or electrical interface. Sensitivity and Tolerance -42 +/- 1 dB Supply voltage (V) 2.3 – 3.6V Interface Analog Port location Package dimensions Flex Pin# Flex Marking Bottom Port 1 G Ground 2.75 x 1.85 x 0.90 mm 2 P Power 3 O+ Output 4 TRM NC 5 NC NC 6 NC NC Signal ADDITIONAL INFORMATION For inquiries, please visit the Knowles website at https://www.knowles.com/subdepartment/evaluationkits/dpt-microphones/subdpt-sisonic-surface-mount-mems Or contact your nearest Knowles representative. DISCLAIMER INFORMATION The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics. With respect to any examples given herein, any typical values stated herein and/or any information regarding the application of the device, Knowles Electronics, LLC hereby disclaims any and all warranties and liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third party. For further information on technology, delivery terms and conditions and prices, please contact a Knowles representative. © 2019, Knowles Electronics, LLC, Itasca, IL USA. All Rights Reserved. Knowles and the logo are trademarks of Knowles Electronics, LLC.
