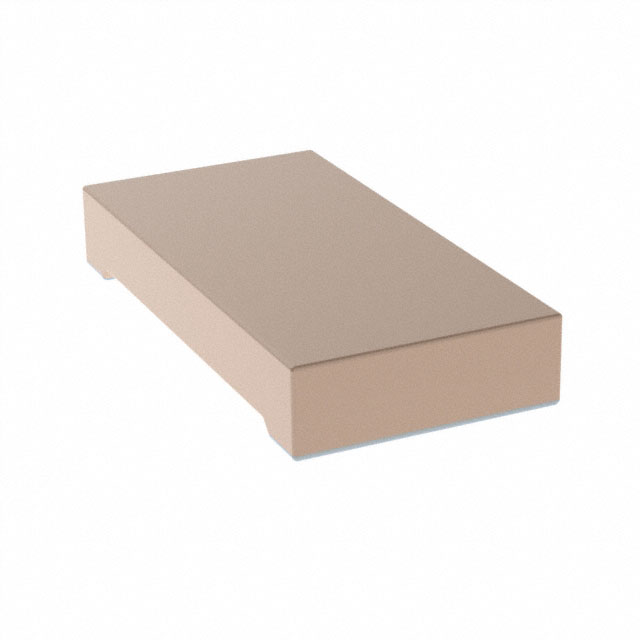

TLRZ2BTTD

TLRZ metal plate chip type jumper resistor EU features current sense • SMD type of small size, high rated current zero ohm jumper • Low height suitable for use of small equipment such as mobile phone • Suitable for reflow soldering (Not suitable for flow soldering) • Products meet EU RoHS requirements • AEC-Q200 Tested dimensions and construction Size Code L W t d Cu L Dimensions inches (mm) W d t TLRZ1E (0402) .039±.004 .020±.004 .008±.004 .016±.002 (1.00±0.10) (0.50±0.10) (0.20±0.10) (0.40±0.05) TLRZ1J (0603) .063±.004 .031±.004 .012±.004 (1.60±0.10) (0.80±0.10) (0.30±0.10) TLRZ2A (0805) .079±.004 .049±.004 .012±.004 .020±.002 (2.00±0.10) (1.25±0.10) (0.30±0.10) (0.5±0.05) TLRZ2B (1206) .126±.004 .063±.004 .012±.004 (3.20±0.10) (1.60±0.10) (0.30±0.10) Ni Sn Derating Curve 100 % Rated Power 80 60 40 20 0 -60 -65 -40 -20 0 20 120 140 40 60 80 100 105 Terminal Part Temperature (°C) 160 180 170 For resistors operated at an ambient temperature of 105°C or above, a power rating shall be derated in accordance with the above derating curve. ordering information TLRZ Type TLRZ 1E T Current Rating 1E: 10A 1J: 26A 2A: 31.6A 2B: 50A Termination Material T: Sn TB Packaging TB: 7" pitch pressed paper (TLRZ1E only) TD: 7" 4mm pitch punch paper For further information on packaging, please refer to Appendix A. Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use. 9/13/21 KOA Speer Electronics, Inc. • 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com 103 TLRZ metal plate chip type jumper resistor applications and ratings Current Rating Standard Resistance (Ω) Rated Terminal Part Temperature TLRZ1E 10A 0.5m max. 105°C and less TLRZ1J 26A 0.2m max. 105°C and less TLRZ2A 31.6A 0.2m max. 105°C and less TLRZ2B 50A 0.2m max. 105°C and less current sense Part Designation Operating Temperature Range -65°C to +170°C environmental applications One-Pulse Limiting Electric Power (W) One-Pulse Limiting Electric Power 100,000 10,000 1,000 2B 2A 100 1J 1E 10 1 .001 .01 .1 1 Pulse Duration (ms) 10 The maximum applicable voltage is equal to the max. overload voltage. Please ask us about the resistance characteristic of continuous applied pulse. The pulse endurance values are not assured values, so be sure to check the products on actual equipment when you use them. 100 Thermal Resistance TLRZ Size 1E 1J 2A 2B TH ＋ T＝Hs Terminal Part Temperature TH ：High TM ：Medium ＝ts TL ：Low TM ＋ T＝Hs Rth Temperature Type
