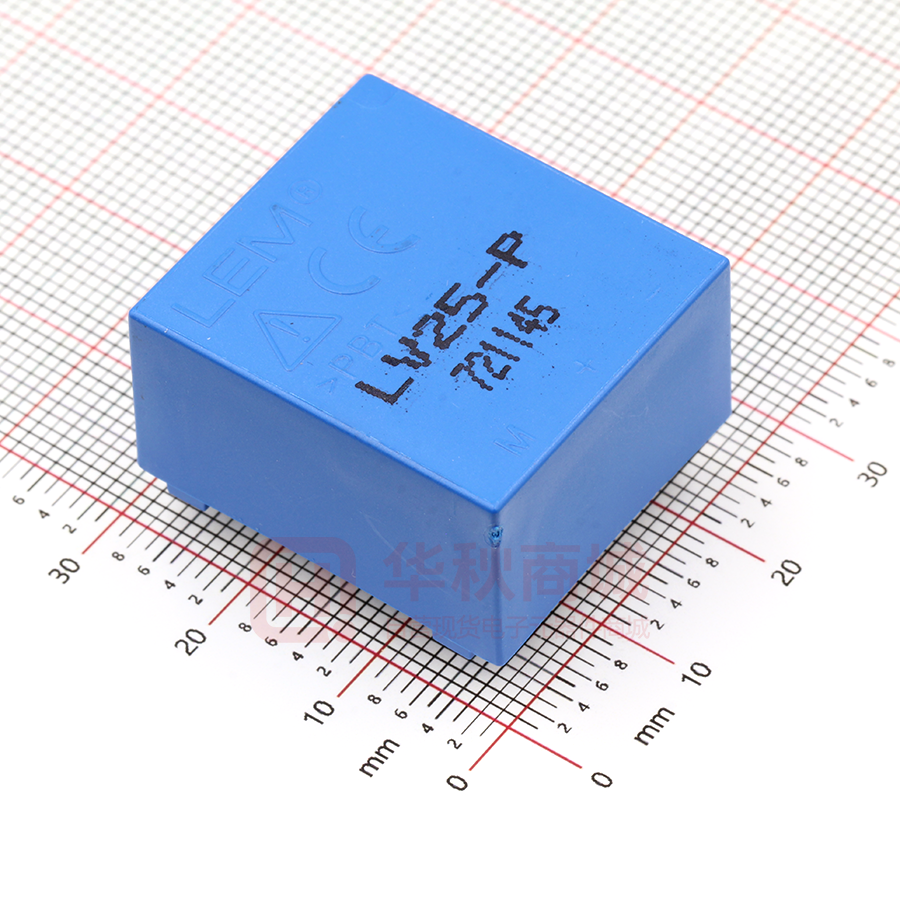

Voltage Transducer LV 25-P
For the electronic measurement of currents: DC, AC, pulsed...,
with galvanic separation between the primary circuit and the secondary
circuit.
Features
Electrical data
IPN
Primary nominal rms current
IPM
Primary current, measuring range
RM
Measuring resistance
with ± 12 V
@ ± 10 mA max
@ ± 14 mA max
with ± 15 V
@ ± 10 mA max
@ ± 14 mA max
ISN
Secondary nominal rms current
K N
Conversion ratio
U C
Supply voltage (± 5 %)
IC
Current consumption
10
0 .. ± 14
RM min
mA
mA
RM max
30
190
Ω
30
100
Ω
100 350
Ω
100 190
Ω
25
mA
2500 : 1000
± 12 .. 15
V
10 (@ ± 15 V) + IS mA
Accuracy - Dynamic performance data
XG
εL
IO
IOT
tr IS
Overall accuracy @ IPN, TA = 25 °C @ ± 12 .. 15 V ± 0.9
@ ± 15 V (± 5 %) ± 0.8
dCl
Linearity error
< 0.2
Typ Max
Offset current @ IP = 0, TA = 25 °C
± 0.15
Temperature variation of IO
0 °C .. + 25 °C ± 0.06 ± 0.25
UC
+ 25 °C .. + 70 °C ± 0.10 ± 0.35
R
StepM response time 1) to 90 % of IPN
40
General data U
TA
TS
RP
RS
m
IPN = 10 mA
VPN = 10 .. 500 V
%
%
%dCp
mA
mA
mA
µs
C
Ambient operating temperature
Ambient storage temperature
Resistance of primary winding @ TA = 70 °C
Resistance of secondary winding @ TA = 70 °C
Mass
Standards
0 .. + 70
°C
- 25 .. + 85
°C
250
Ω
110
Ω
22
g
EN 50178: 1997
UL 508: 2010
Note: 1) R1 = 25 kΩ (L/R constant, produced by the resistance and inductance of
the primary circuit).
●● Closed loop (compensated)
current transducer using the Hall
effect
●● Insulating plastic case recognized
according to UL 94-V0.
Principle of use
●● For voltage measurements,
a current proportional to the
measured voltage must be
passed through an external
resistor R1 which is selected by
the user and installed in series
with the primary circuit of the
transducer.
Advantages
●●
●●
●●
●●
●●
●●
Excellent accuracy
Very good linearity
Low thermal drift
Low response time
High bandwidth
High immunity to external
interference
●● Low disturbance in common
mode.
Applications
●● AC variable speed drives and
servo motor drives
●● Static converters for DC motor
drives
●● Battery supplied applications
●● Uninterruptible Power Supplies
(UPS)
●● Power supplies for welding
applications.
Application domain
●● Industrial.
N° 97.27.19.000.0
12August2014/version 19
Page 1/4
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
Voltage Transducer LV 25-P
Insulation coordination
U d
ÛW
dCp
dCI
CTI
Rms voltage for AC insulation test, 50 Hz, 1 min
Impulse withstand voltage 1.2/50 µs
Creepage distance
Clearance
Comparative tracking index (group IIIa)
2.5 1)
16
Min
19.5
19.5
175
kV
kV
mm
mm
Note: 1) Between primary and secondary.
Applications examples
According to EN 50178 and IEC 61010-1 standards and following conditions:
●● Over voltage category OV 3
●● Pollution degree PD2
●● Non-uniform field
dCp, dCI, ÛW
EN 50178
IEC 61010-1
Rated insulation voltage
Nominal voltage
Basic insulation
1600 V
1600 V
Reinforced insulation
800 V
800 V
Safety
This transducer must be used in limited-energy secondary circuits according to
IEC 61010-1.
This transducer must be used in electric/electronic equipment with respect to
applicable standards and safety requirements in accordance with the manufacturer’s
operating instructions.
Caution, risk of electrical shock
When operating the transducer, certain parts of the module can carry hazardous
voltage (eg. primary busbar, power supply).
Ignoring this warning can lead to injury and/or cause serious damage.
This transducer is a build-in device, whose conducting parts must be inaccessible
after installation.
A protective housing or additional shield could be used.
Main supply must be able to be disconnected.
Page 2/4
12August2014/version 19
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
UL 508:Ratings and assumptions of certification
File # E189713 Volume: 2 Section: 1
Standards
●● CSA C22.2 NO. 14 - 10 INDUSTRIAL CONTROL EQUIPMENT - Edition 11 - Revision Date 2011/08/01
●● UL 508 STANDARD FOR INDUSTRIAL CONTROL EQUIPMENT - Edition 17 - Revision Date 2010/04/15.
Parameter
Symbol
Primary involved potential
Unit
Value
V AC/DC
600
Max surrounding air temperature
TA
°C
85
Primary current
IP
mA
0 to 10
Secondary supply voltage
UC
V DC
± 12 to ±15
Secondary nominal rms current
ISN
mA
25
Conditions of acceptability
When installed in the end-use equiment, consideration shall be given to the following:
1 - These devices must be mounted in a suitable end-use enclosure.
2 - The terminals have not been evaluated for field wiring.
3 - The LV 25-P series are intended to be mounted on the printed wiring board of the end-use equipment (with a minimum CTI
of 100).
4 - The LV 25-P series shall be used in a pollution degree 2 environment when the Printed Wiring Board has not been coated.
5 - The LV 25-P series shall be mounted on the load side of line filters.
6 - Low voltage circuits are intended to be powered by a circuit derived from an isolating source (such as a transformer,optical
isolator,limiting impedance or electro-mechanical relay) and having no direct connection back to the primary circuit (other
than through the grounding means).
7 - Base on results of temperature tests, int he end use application, a maximum of 100 °C cannot be exceeded at soldering
point between primary coil pin and soldering point of on the primary bus bar (corrected to the appropriate evaludated max.
surrounding air).
Marking
Only those products bearing the UL or UR Mark should be considered to be Listed or Recognized and covered under UL’s
Follow-Up Service.Always look for the Mark on the product.
Page 3/4
12August2014/version 19
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
Dimensions LV 25-P (in mm)
HV
HV
HV
HV
HV
HV
dCl
HV
dCl HV
HV
R1
dCl
HV
R1
IS
dCp
IS
UC
UC
UC
UC
Mechanical characteristics
●● General tolerance
R1
●● FasteningHV& connection of primary
HV
●● Fastening & connection of secondary IS
●● Recommended PCB hole
RM
RM
dCp
Remarks
± 0.2 mm
2 pins
0.635 × 0.635
UC mm
RM Ø 1 mm
3 pins
Ø 1.2 mm
UC
dCl
dCp
●● IS is positive when VP is applied on terminal + HV.
●● Installation of the transducer must be done unless
otherwise specified on the datasheet, according to LEM
Transducer Generic Mounting Rules. Please refer to
LEM document N°ANE120504 available on our Web site:
Products/Product Documentation.
●● This is a standard model. For different versions (supply
voltages, turns ratios, unidirectional measurements...),
please contact us.
Instructions for use of the voltage transducer model LV 25-P
Primary resistor R1: the transducer’s optimum accuracy is obtained at the nominal primary current. As far as possible, R1 should
be calculated so that the nominal voltage to be measured corresponds to a primary current of 10 mA.
Example: Voltage to be measured VPN = 250 V a) R1 = 25 kΩ / 2.5 W, IP = 10 mA Accuracy = ± 0.9 % of VPN (@ TA= + 25 °C)
b) R1 = 50 kΩ / 1.25 W, IP = 5 mA Accuracy = ± 1.5 % of VPN (@ TA= + 25 °C)
Operating range (recommended): taking into account the resistance of the primary windings (which must remain low compared
to R1, in order to keep thermal deviation as low as possible) and the insulation, this transducer is suitable for measuring nominal
voltages from 10 to 500 V.
Page 4/4
12August2014/version 19
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com
